Mechanical by choice.
Shimano 105 provides cable-operated 2x12 shifting. The 50/34-tooth crankset and 11-34 cassette give this build a 1:1 lowest gear: 34 teeth at the front and 34 at the rear.
Description:
Wilier Triestina / Rapida / 2027 / E76952X
Make the long way home your usual route.
The Wilier Rapida Shimano 105 pairs a carbon frame and fork with mechanical 12-speed shifting, an integrated carbon cockpit and Miche Reflex DX wheels. A purposeful road build for the rides you plan around - and the extra miles you decide to add.
A reason to take the longer route
The road bike you look forward to riding.
Not every ride needs a finish line. Sometimes the goal is an early start, a good group and one more climb before heading home. Rapida belongs in that picture: a Wilier you choose for its identity, then make your own through the miles you put into it.
Why this build?
This mechanical 105 build keeps the buying decision focused. You get the Rapida carbon platform, integrated cockpit and hydraulic disc brakes without choosing electronic shifting or carbon wheels. For a rider who prefers conventional shift levers and wants to put more of the budget toward riding, it is the straightforward place to start.
A complete carbon platform.
The NH-MOD carbon frame and fork are paired with a carbon integrated cockpit and Wilier Filante SL carbon seatpost. Electronic shifting is not required to get those core features.
Room for your roads.
Vittoria Zaffiro Pro V 700 x 32c tires are specified as standard. The frame is rated for up to 36 mm clearance; any tire change still needs to suit the wheels and the actual mounted tire size.
The Rapida platform
Road ambition.
Room to make it your own.
Wilier positions Rapida between its race and endurance platforms. Start with the geometry, then choose the size and cockpit combination that supports the way you ride.
The supplied carbon frame and fork are shared across these two builds. That keeps the choice focused on shifting and wheels rather than presenting one as a different frame platform.
Integrated, with an important size detail.
R-Bar is the integrated carbon cockpit specified for S through XXL. Size XS uses Z-Bar. The size exception is part of the build, not an optional upgrade.
The stock tire specification is 700 x 32c. Frame clearance of up to 36 mm and wheel-specific tire compatibility are separate checks.
The decision, made clear
Choose the ride. Keep the shifting mechanical.
The reason to choose this Rapida is not that you have to settle. It is that mechanical shifting suits you. The Miche Reflex DX build keeps the specification direct, while retaining the same frame and fork specification supplied for the Di2 model.
| Build detail | Rapida Shimano 105 | Rapida Shimano 105 Di2 |
|---|---|---|
| Setup code | E76952X | E7695IA |
| Shifting | Mechanical 2x12 | Electronic 2x12 |
| Wheels | Miche Reflex DX | Miche Asfalto 45 Carbon |
| Frame and fork | Rapida carbon monocoque NH-MOD | Rapida carbon monocoque NH-MOD |
| Gearing | 50/34T with 11-34T cassette | 50/34T with 11-34T cassette |
| Best reason to choose | You prefer mechanical shifting and the Reflex DX specification. | You want electronic shifting and carbon wheels together. |

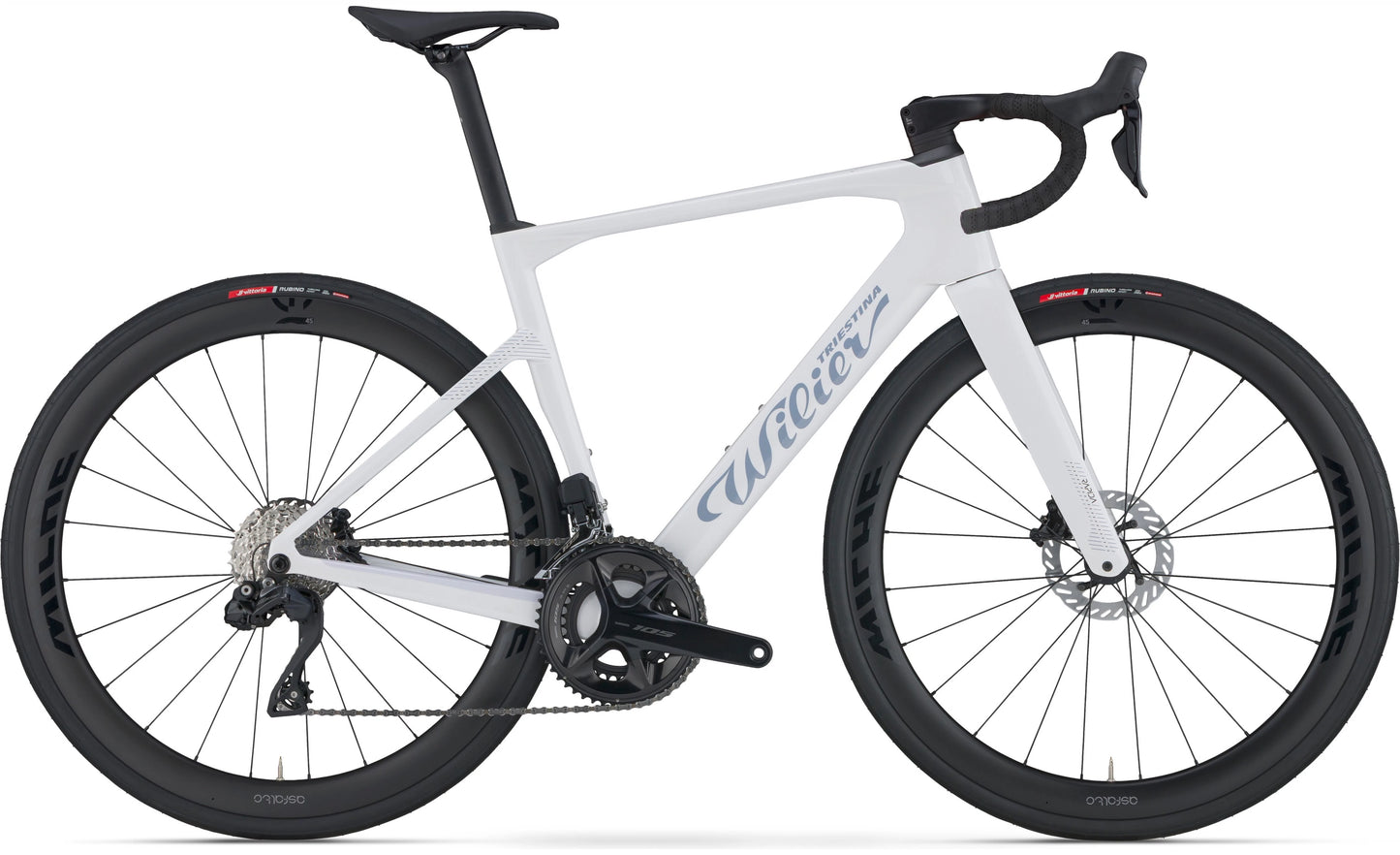

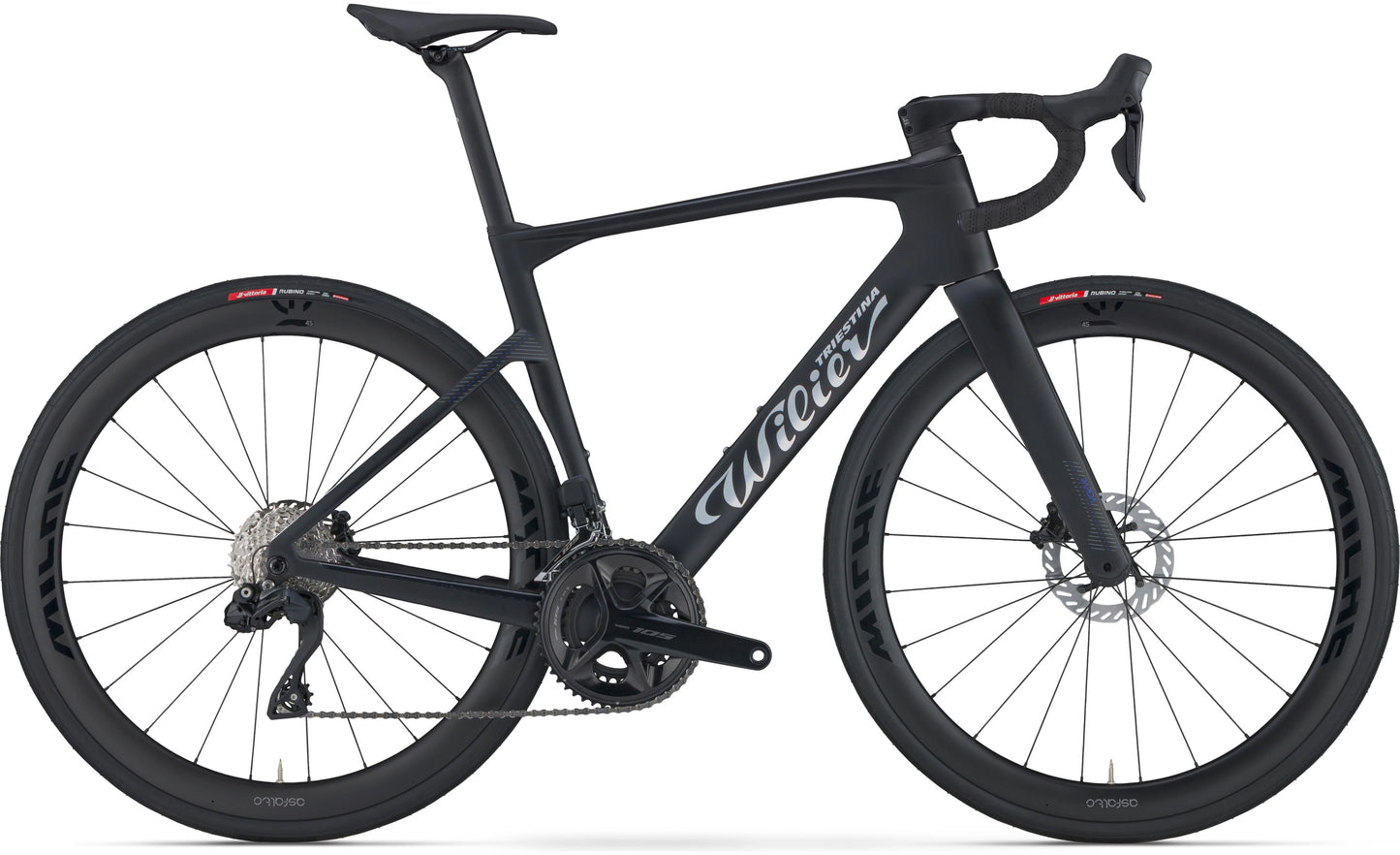

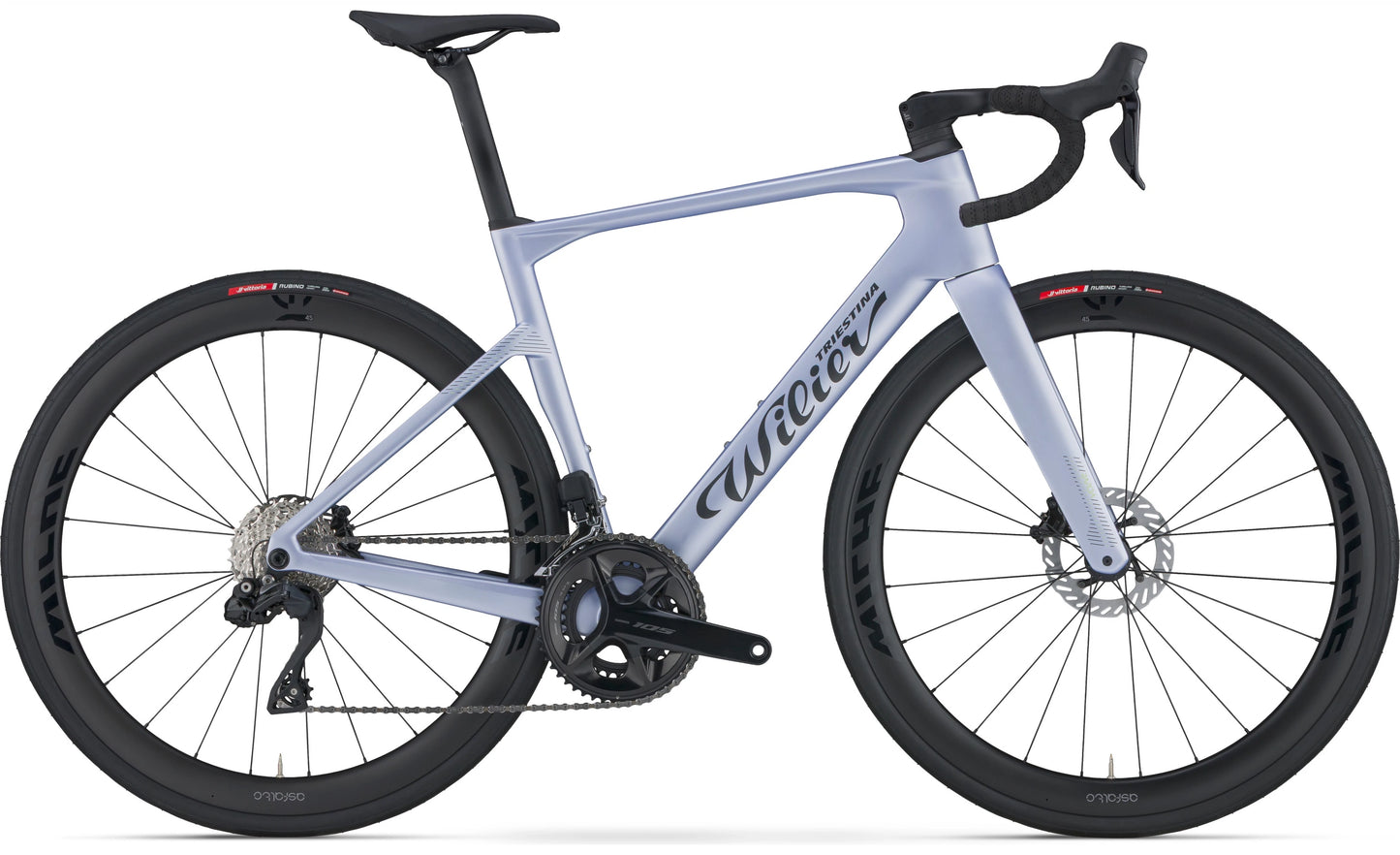

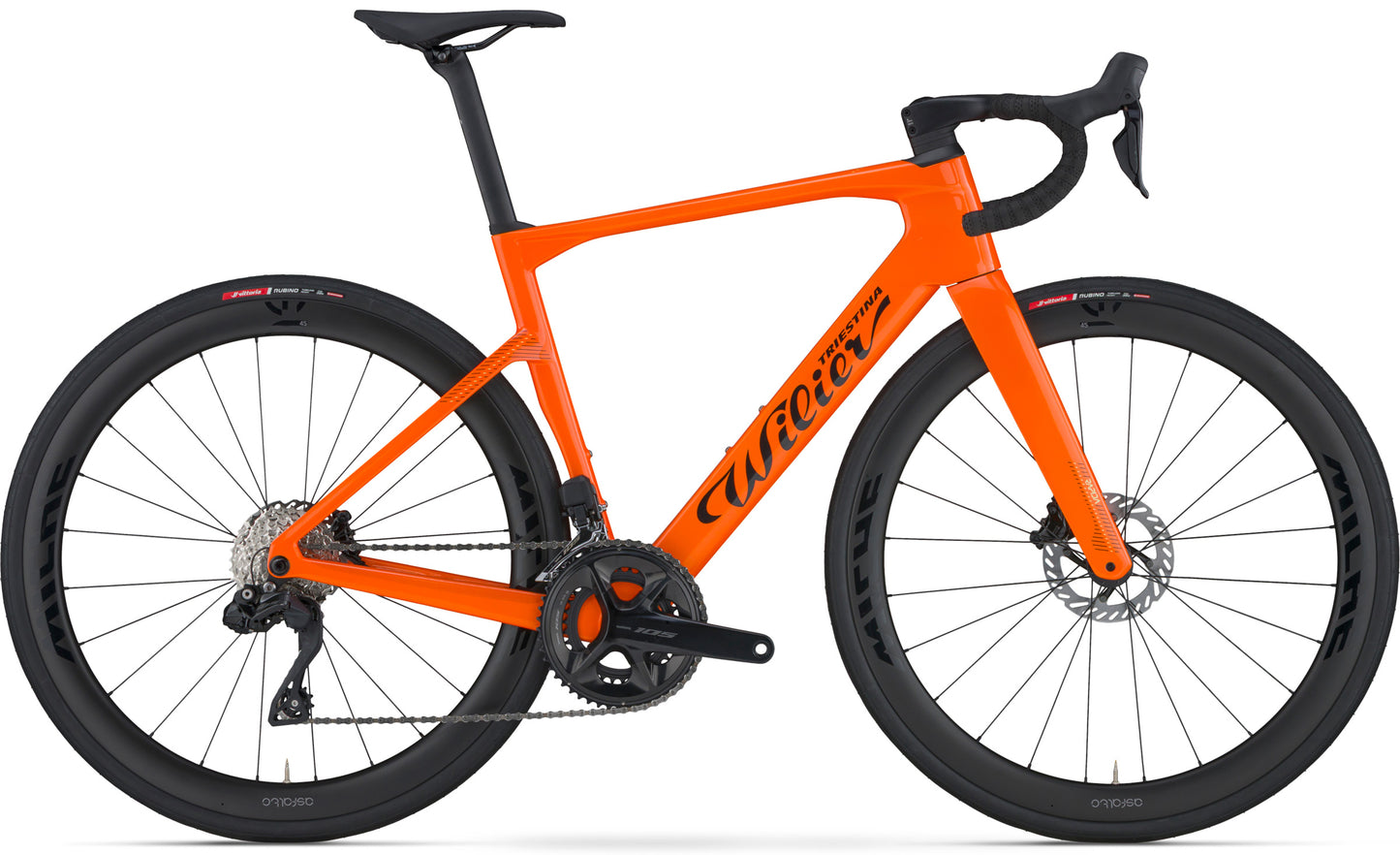

Four expressions of Rapida
Choose the color that feels like yours.
The 2027 dealer catalogue lists all four colors in XS through XXL for this build. Availability varies by exact size and color; contact Brimstone to confirm supplier stock and lead time before ordering.
Color references show the manufacturer's Di2-equipped display bikes, not a guarantee of the components supplied. Refer to the build table; paint appearance also varies with lighting and screen settings.
Know exactly what you are choosing
Rapida Shimano 105 specifications
| Component | E76952X specification |
|---|---|
| Manufacturer setup code | E76952X |
| Drivetrain | Shimano 105 mechanical 2x12, R7120 build |
| Wheelset | Miche Reflex DX |
| Frame | Rapida - carbon monocoque NH-MOD |
| Fork | Rapida - carbon monocoque NH-MOD |
| Cockpit | R-Bar integrated carbon in S, M, L, XL and XXL; Z-Bar in XS |
| Headset | Custom Superslim 1-1/4 inch upper bearing / FSA MR137 1-1/4 inch lower bearing |
| Shifters | Shimano 105 mechanical, 2x12 |
| Brakes | Shimano 105 hydraulic disc |
| Rotors | Shimano SM-RT70 - 160 mm front / 140 mm rear |
| Front derailleur | Shimano 105 FD-R7100 |
| Rear derailleur | Shimano 105 RD-R7100 |
| Crankset | Shimano 105 FC-R7100 - 50/34T |
| Bottom bracket | Miche Pressfit, 86.5 x 41 mm |
| Cassette | Shimano 105 CS-R7100-12 - 11-34T |
| Chain | Shimano CN-M7100, 12-speed |
| Tires | Vittoria Zaffiro Pro V - 700 x 32c |
| Frame tire clearance | Up to 36 mm; subject to wheel/tire compatibility and actual mounted dimensions |
| Saddle | Prologo Dimension RS Steel 145 BK |
| Seatpost | Wilier Filante SL carbon custom made - 15 mm setback |
| Thru-axles | Miche Thru Axle Light - 12 x 126.5 mm front / 12 x 172.5 mm rear |
| Published complete-bike weight | 8.4 kg +/- 5% (nominal; not boxed shipping weight) |
Weight is Wilier's published nominal reference figure, with a +/- 5% tolerance, not a measured weight for every size. Supplier records list different size-specific weights; confirm the delivered weight of your selected U.S. build with Brimstone before purchase. This figure is not boxed shipping weight.
Start with the numbers
Rapida geometry, size by size.
Compare stack and reach with a bike that already fits you. Linear dimensions are shown in millimeters; angles are in degrees.
| Measurement | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| Seat tube C/C (mm) | 412 | 442 | 472 | 502 | 532 | 562 |
| Seat tube H (mm) | 430 | 460 | 490 | 520 | 550 | 580 |
| Top tube L (mm) | 509 | 524 | 545 | 556 | 578 | 589 |
| Seat tube angle A (degrees) | 75.5 | 75 | 74 | 74 | 73 | 73 |
| Chainstay L1 (mm) | 410 | 410 | 412 | 412 | 414 | 414 |
| Head tube H1 (mm) | 108 | 125 | 143 | 162 | 183 | 202 |
| Head angle A1 (degrees) | 70.5 | 71.3 | 72 | 72 | 72 | 72 |
| Reach (mm) | 372 | 378 | 384.5 | 390 | 396 | 402 |
| Stack (mm) | 520 | 538 | 556 | 574 | 592 | 610 |
| Wheelbase (mm) | 981 | 986 | 994 | 1006 | 1021 | 1033 |
| Standover (mm) | 732 | 758 | 782 | 808 | 832 | 856 |
C/C, H, L, A, L1, H1 and A1 retain Wilier's geometry labels. Original centimeter measurements have been converted to millimeters. Frame dimensions do not establish the installed bar width, stem length or crank length.
Before your first ride
Questions worth answering.
How is this different from the Rapida 105 Di2?
This E76952X build uses mechanical Shimano 105 shifting and Miche Reflex DX wheels. The separate E7695IA product uses Shimano 105 Di2 electronic shifting and Miche Asfalto 45 Carbon wheels. The supplied frame and fork specifications are the same.
Which cockpit comes on size XS?
XS uses the Z-Bar. Sizes S through XXL use the R-Bar integrated carbon cockpit in the supplied specification. Bar width, stem length and crank length must be checked for the exact size before ordering.
Can I fit 36 mm tires?
Wilier lists frame clearance up to 36 mm, but that is not an approval for every tire and wheel combination. The supplied tires are 32 mm. Check the wheel manufacturer's tire limits, actual inflated tire width and required frame clearance before changing size.
Is the bike supplied tubeless?
A tubeless setup is not stated in this build specification. Do not assume that a carbon wheelset means the installed tires are tubeless-ready or that valves and sealant are included. Ask Brimstone to verify the exact wheel and tire combination.
How should I choose my Rapida size?
Use the stack, reach and standover measurements in the geometry table alongside your current bike and fit requirements. A height-only recommendation cannot account for cockpit length, flexibility or riding position. Brimstone can help review the relevant measurements before an order.
Can I collect the bike from Brimstone?
Yes. Bikes delivered to Brimstone for shop pickup receive assembly and a safety check. Contact the shop to confirm your size, color, ordering lead time and pickup arrangements. Shipping charges and delivery timing should be confirmed before purchase.
