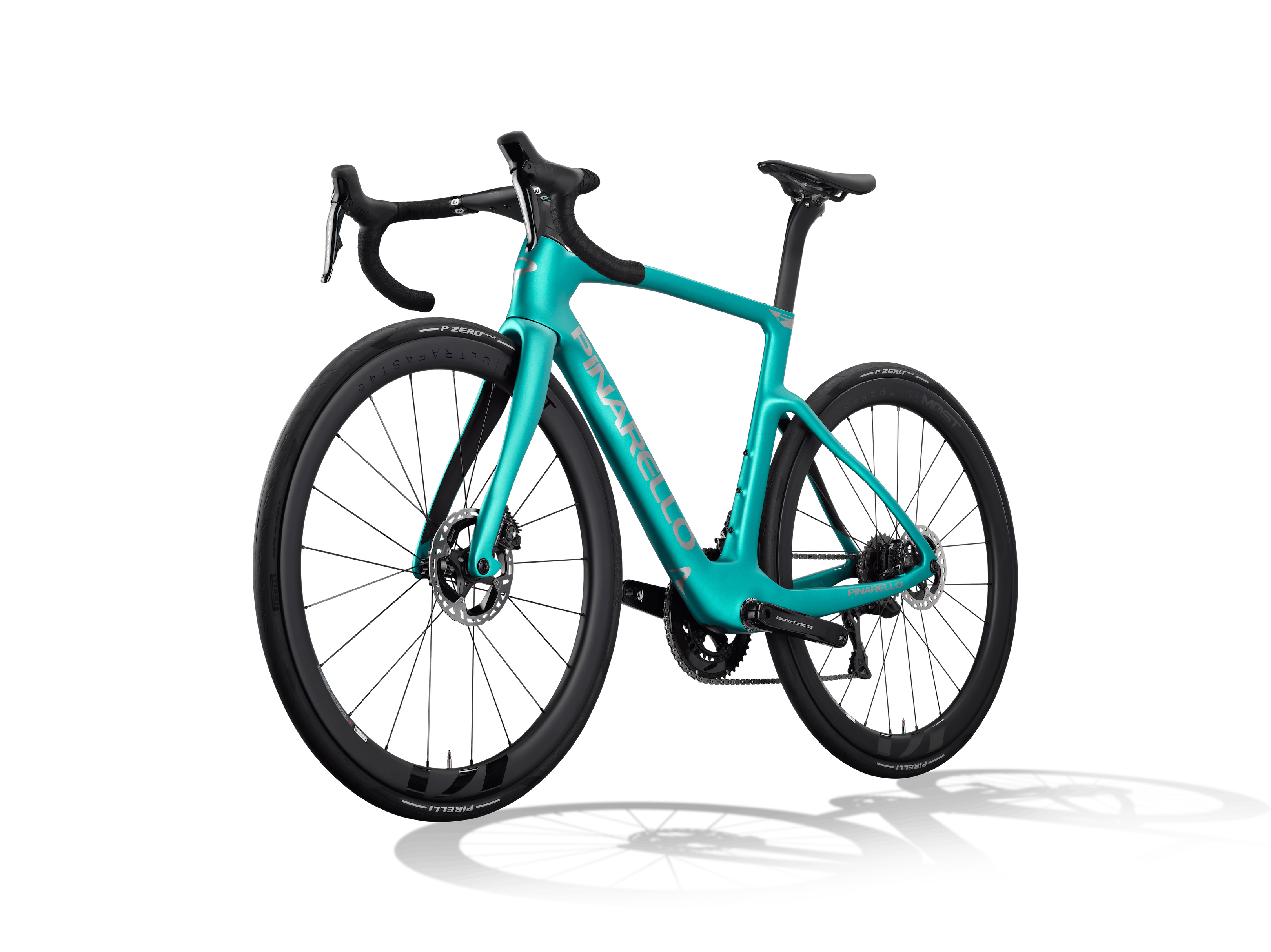

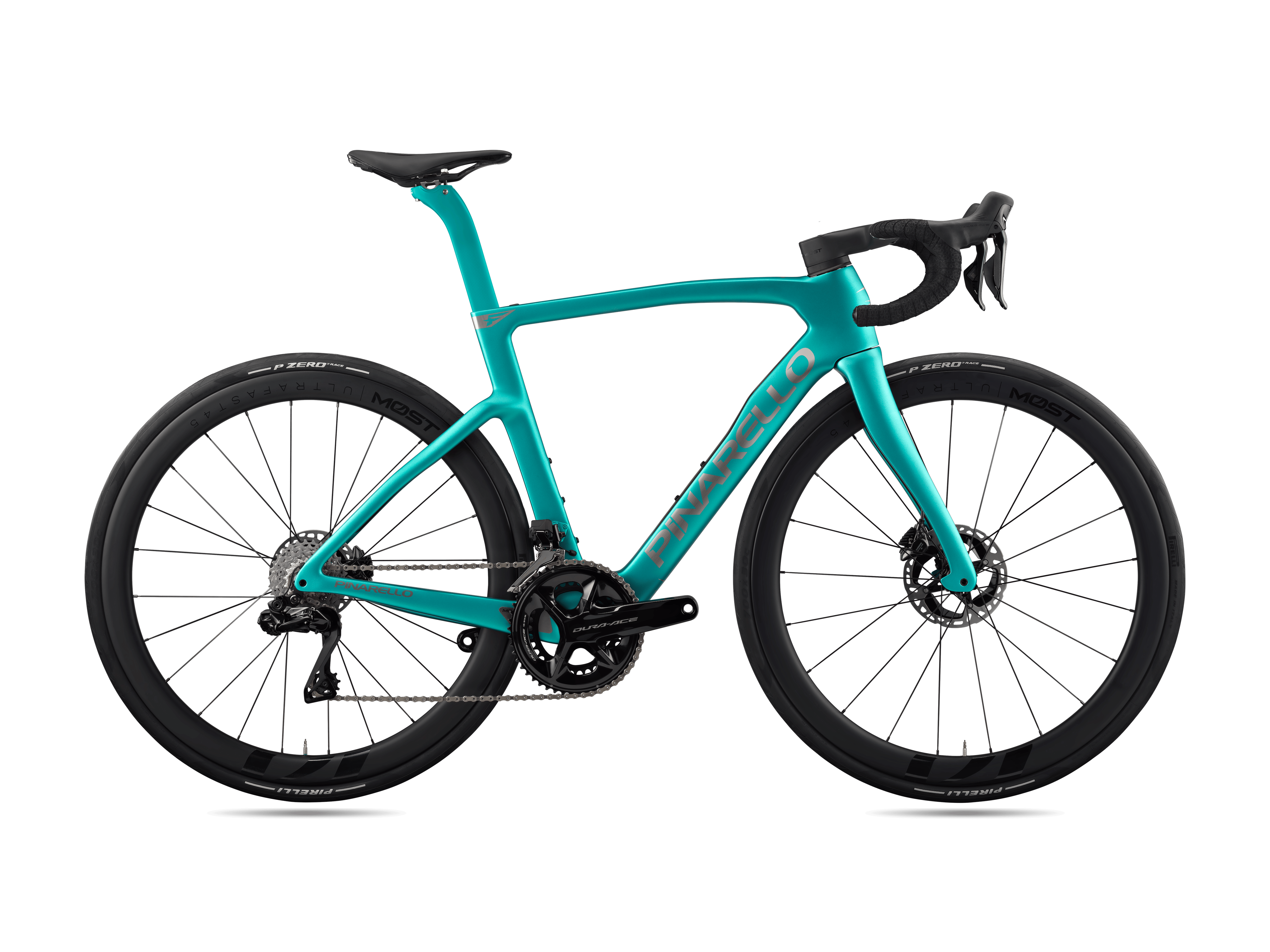

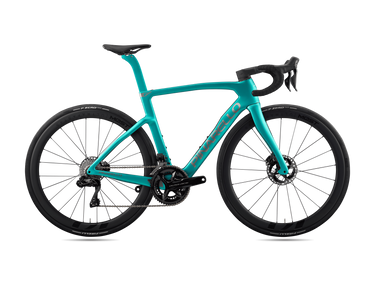

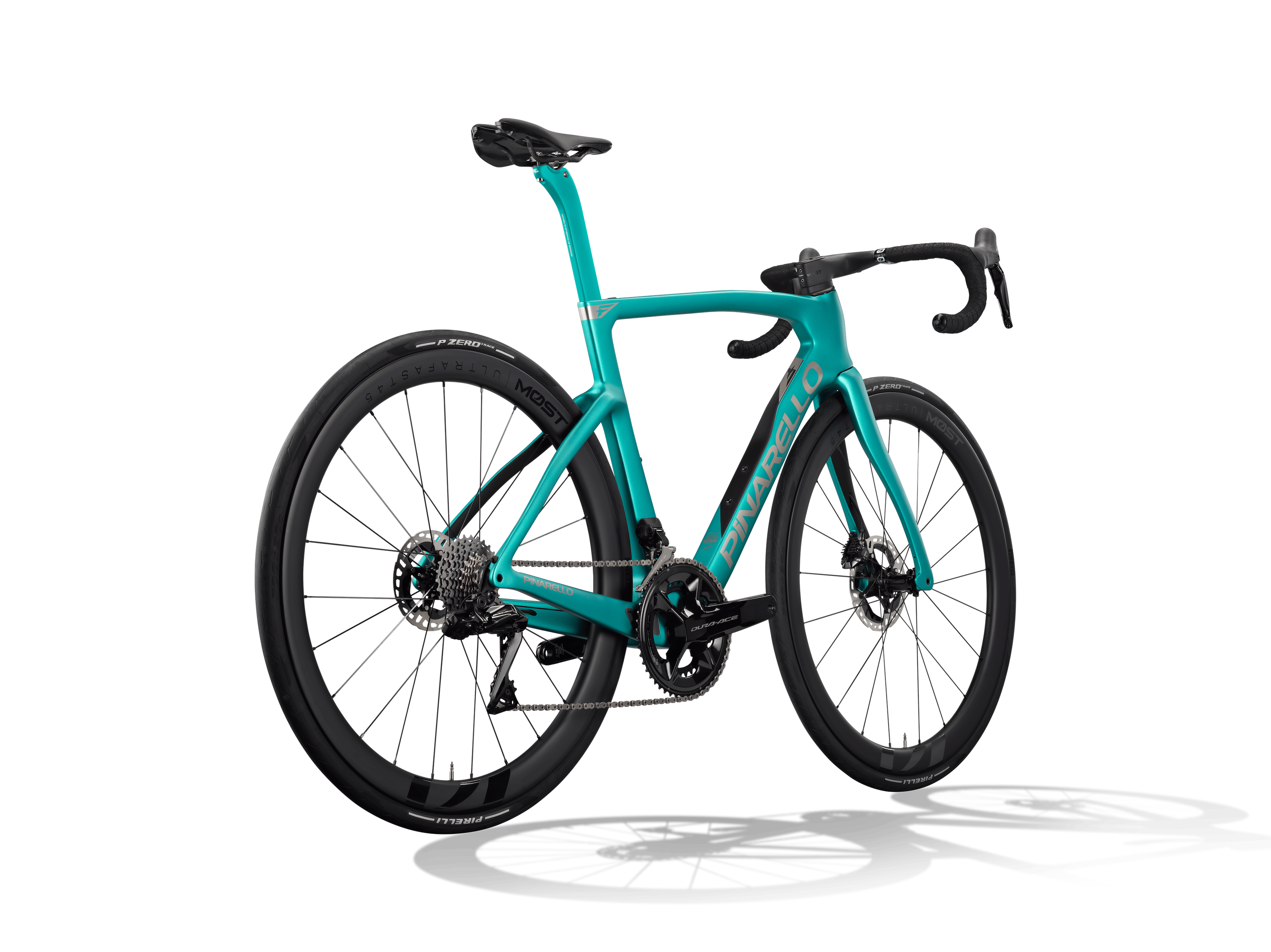

Pinarello F9 Dura-Ace Di2 Bike

The Pinarello F9 Dura-Ace Di2 delivers elite race-bike performance with a premium carbon platform, flagship Shimano electronic shifting, and aerodynamic integration inspired by Pinarello’s highest-level road machines. Sitting just below the Dogma F, the F9 is built for riders who want explosive acceleration, sharp handling, and all-around speed across climbs, sprints, descents, and fast group rides.

Built from TorayCa T900 UD carbon, the F9 uses Pinarello’s asymmetric frame design to balance drivetrain forces and improve power transfer under load. The result is a bike that feels immediate when you stand on the pedals and composed when speeds rise. The F-Series Onda Carbon fork, aero tube shaping, E-TiCR headset, internal routing, and integrated cockpit all work together to reduce drag and create a clean, race-focused profile.

This build is equipped with Shimano Dura-Ace Di2 R9250 12-speed electronic shifting, Shimano hydraulic disc brakes, and MOST Ultrafast 45 carbon wheels. With room for tires up to 32mm, the F9 also gives riders the option to add comfort and grip without losing its fast, direct race character.

Why Choose the Pinarello F9 Dura-Ace Di2?

• Race-ready carbon frame: TorayCa T900 UD carbon delivers stiffness, low weight, and responsive handling.
• Flagship drivetrain: Shimano Dura-Ace Di2 provides precise electronic shifting and powerful braking.
• Aero integration: E-TiCR routing, aero tube shaping, and integrated cockpit help reduce drag.
• Premium wheels: MOST Ultrafast 45 carbon wheels add speed, efficiency, and performance feel.
• Modern tire clearance: Clearance up to 32mm allows more comfort and grip on real roads.

Pinarello F9 Highlights

• TorayCa T900 UD carbon frame
• F-Series Onda Carbon fork
• Shimano Dura-Ace Di2 R9250 12-speed drivetrain
• Shimano Dura-Ace hydraulic disc brakes
• MOST Ultrafast 45 carbon wheelset
• MOST Talon Ultra Fast integrated cockpit
• Asymmetric frame construction
• E-TiCR integrated headset and internal routing
• Race-focused F-Series geometry

Pros and Cons

Pros

• Near-Dogma-level race performance in the F-Series platform
• Premium Shimano Dura-Ace Di2 electronic shifting
• Carbon wheelset included
• Sharp, confident handling for fast riding and descending
• Integrated cockpit sizing varies by frame size for a better stock fit
• 32mm tire clearance improves comfort and versatility

Cons

• Aggressive race geometry may not suit riders seeking maximum upright comfort
• Premium components can carry higher replacement costs
• Less endurance-focused than Pinarello’s X-Series models

Specifications

Frame Material	TorayCa T900 UD
Fork	F-Series Onda Carbon
Headset	E-TiCR Integrated
Seatpost	F-Series Carbon
Front Derailleur	Shimano Dura-Ace Di2 R9250
Rear Derailleur	Shimano Dura-Ace Di2 R9250
Crankset	Shimano Dura-Ace R9200
Chainrings	50/34
Bottom Bracket	Shimano Dura-Ace BB9200
Brake Calipers	Shimano Dura-Ace R9270 Hydraulic Disc
Rotors	Shimano 160mm front / 140mm rear
Shifters / Levers	Shimano Dura-Ace Di2 R9270
Cassette	Shimano Dura-Ace R9200 12-speed 11-30
Chain	Shimano M9100 12-speed
Wheel - Front	MOST Ultrafast 45
Wheel - Rear	MOST Ultrafast 45
Stem	MOST Talon Ultra Fast
Handlebar	MOST Talon Ultra Fast
Saddle	MOST Lynx
Pedals	Not Included

Geometry & Fit

The Pinarello F9 uses a race-focused F-Series geometry designed for riders who prioritize speed, responsiveness, and efficient power transfer. Compared to Pinarello’s X-Series endurance bikes, the F9 places the rider in a lower and more aggressive position for improved aerodynamics and sharper handling.

Size	43	46.5	50	51.5	53	54.5	56	57.5	59.5
Seat Tube	430	465	500	515	530	545	560	575	595
Top Tube	500	515	525	535	545	555	565	578	600
Head Tube	97	104	109	114	123	138	149.5	178	220
Chainstay	406	408	408	408	408	410	410	410	410
BB Drop	67	72	72	72	72	72	72	72	67
Seat Tube Angle	74.4	74.4	74	73.7	73.7	73.4	73	73	72.4
Head Tube Angle	69.5	70.5	71.4	72	72.5	72.8	73.2	73.7	73.4
Stack	502.5	517.7	525.5	532.3	542.6	557.9	570.3	599.3	633.5
Reach	351.3	365.2	372.1	378.1	385.6	388.3	390.8	395.4	400.3
Stem Length	80mm	90mm	90mm	100mm	100mm	100mm	110mm	110mm	110mm
Bar Width	40cm	42cm	42cm	42cm	44cm	44cm	44cm	46cm	46cm
Crank Length	170mm	170mm	170mm	170mm	172.5mm	172.5mm	172.5mm	175mm	175mm

Design Benefits

Tour-Proven Carbon Platform

The TorayCa T900 UD carbon frame provides a strong balance of stiffness, weight savings, and ride quality. It responds quickly under hard acceleration and gives the F9 its sharp, race-focused personality.

Integrated Aerodynamic Design

The F9’s aerodynamic performance comes from the complete system: slimmer tube shaping, Aero-Keel bottom bracket design, E-TiCR headset, internal cable routing, integrated seat clamp, and MOST Talon Ultra Fast cockpit.

Dura-Ace Di2 Precision

Shimano Dura-Ace Di2 delivers quick, consistent electronic shifting with powerful hydraulic braking. It is a flagship-level drivetrain built for serious training, racing, and high-performance road riding.

Modern Tire Clearance

Clearance for up to 32mm tires allows riders to run wider road tires for added comfort, grip, and confidence without compromising the F9’s race-oriented geometry.

Frequently Asked Questions

What type of bike is the Pinarello F9 Dura-Ace Di2?

The Pinarello F9 is a high-performance carbon race road bike designed for fast group rides, climbing, sprinting, descending, and competitive road cycling.

Why should I buy the Pinarello F9 Dura-Ace Di2?

You should buy the F9 if you want a premium race bike with much of the Dogma F feel, Shimano’s flagship Dura-Ace Di2 drivetrain, carbon wheels, aerodynamic integration, and sharp Pinarello handling.

How does the F9 compare to the Dogma F?

The F9 sits below the Dogma F but shares much of Pinarello’s race-focused engineering philosophy. The Dogma F remains the flagship, while the F9 delivers elite-level performance in a slightly more accessible package.

Is the Pinarello F9 good for climbing?

Yes. The lightweight T900 carbon frame, stiff rear triangle, and Dura-Ace drivetrain make the F9 highly capable on climbs and repeated accelerations.

Can the F9 be used for long rides?

Yes. While the F9 is race-focused, its 32mm tire clearance allows riders to add comfort and grip for longer rides and rougher pavement.

Does the Pinarello F9 come with carbon wheels?

Yes. This build includes MOST Ultrafast 45 carbon wheels.

Are pedals included?

No. Pedals are not included, allowing riders to choose their preferred pedal system.

Final Verdict

The Pinarello F9 Dura-Ace Di2 is built for riders who want elite race-bike performance without stepping all the way into Dogma F territory. With TorayCa T900 carbon, Shimano Dura-Ace Di2, MOST Ultrafast 45 wheels, integrated aerodynamics, and race-focused geometry, the F9 delivers a fast, refined, and highly capable road bike ready for serious performance riding.
