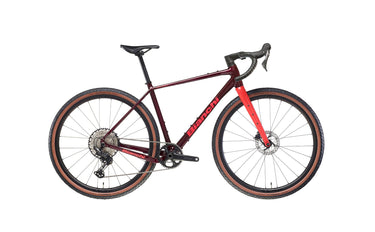

Bianchi Arcadex Aluminum - GRX 610/822 1x12sp

Nature amplified. The Bianchi Arcadex gravel bike blends an emotional communion with nature with the exhilarating rush of Bianchi racing DNA. It delivers distinct performance for the modern gravel rider—fast on open roads, composed on rough surfaces, and ready for long days exploring off the beaten path.

Why the Arcadex stands out

• Gravel-specific, aerodynamic geometry tuned for stability and speed
• Aerodynamic alloy frame paired with a carbon fork for efficiency and comfort
• Velomann components for a clean, performance-minded build
• Slim, integrated cockpit with internal cable routing for clean lines
• Pirelli Cinturato Tan tires for confident grip on mixed terrain

Performance-focused design, built for real gravel

Bianchi brings its hallmark dedication to detail to the gravel world. The frame design has been aerodynamically optimized for performance, while generous tire clearance—up to 700×45 or 650×47—delivers the scope to tackle rough terrain, loose surfaces, and big adventures.

The clean lines of the bike are maintained with fully internal cable routing. An aluminum stem and spacers are designed for a tighter connection to the head tube, helping keep steering precise. A 1-1/8" head tube adds stability at speed and control when slowing down, and the ride characteristics are maintained across frame sizes.

Who it’s for

• Riders who want an aero-inspired gravel bike for fast mixed-surface riding
• Explorers who want wide tire clearance and stable geometry
• Gravel racers who value clean integration and responsive handling

Full specifications

See the detailed component list below.

• Frame: Bianchi Arcadex AL, aluminium, hydroformed tubes, tire clearance 50 mm, T47 Bottom bracket, rack and fender compatibility sizes XS- SM-MD-LG-XL
• Fork: Bianchi Arcadex, Carbon, flat mount disc frake, thru axle 12x100 mm
• Headset: Acros for internal cable routing
• Shifters: Shimano GRX, shifter lever ST-RX610, caliper BR- RX400
• Rear Derailleur: Shimano GRX, RD-RX822, 12sp
• Crankset: Shimano GRX, FC-RX610, 40T Crank length: 165 mm (XS-SM); 170 mm (MD-LG); 172.5 mm (XL)
• Bottom Bracket: Token T47, 24 mm axle, 86.5 mm width
• Chain: Shimano 105, CN-M7100
• Cassette: Shimano SLX, CS-M7100, 10-51T, 10-12-14-16- 18-21-24-28-33-39-45-51T
• Brakes: Shimano BR-RX410 Hydraulic disc brake
• Rotors: FRONT: Shimano RT-CL700 Center Lock, 160 mm / REAR: Shimano RT-CL700 Center Lock, 160 mm
• Wheels: Velomann V22G, Rim: Aluminium, 622x24c, 24h
• Tires: Pirelli Cinturato Tanwall, 700x45
• Stem: Velomann AL6061, rise -7° Size: 70 mm (XS); 80 mm (SM); 90 mm (MD); 100 mm (LG); 110 mm (XL)
• Handlebar: Velomann Gravel, Aluminium, diameter 31.8 mm, reach 70 mm, drop 130 mm, flare 16 deg Size: 400 mm (XS-SM); 420 mm (MD-LG); 440 mm (XL)
• Grips / Extensions: Bianchi Hexagon tape, 2.5 mm thickness, black
• Seatpost Clamp: Bianchi Aluminium, diameter 31.8 mm
• Seatpost: Velomann Aluminium, 27,2 mm, Seatback 0 mm length: 300 mm (XS); 350 mm (SM-LG); 400 mm (XL)
• Saddle: Selle Royal SRX Open
