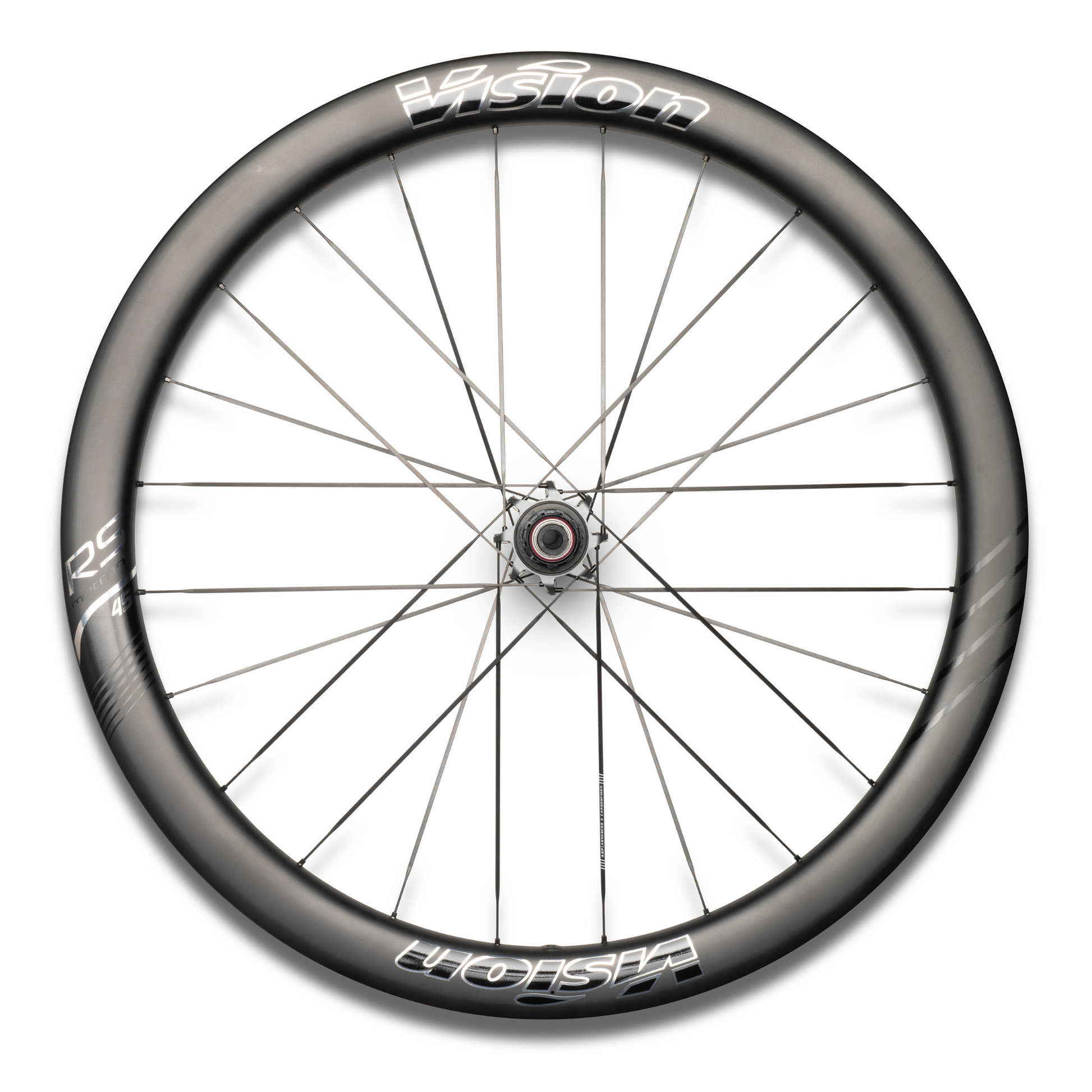

Vision Metron RS 45 CS Silver Edition Wheelset

Vision Metron RS 45 CS Silver Edition Wheelset

Limited-edition aero road wheels built around CeramicSpeed efficiency. The Vision Metron RS 45 CS Silver Edition Wheelset combines a 45 mm full-carbon rim, aero-bladed carbon spokes, CeramicSpeed ceramic bearings, and Vision V-1000 ratchet hubs for a premium road wheel upgrade focused on speed, smoothness, and precise power transfer.

Designed for modern disc-brake road bikes, the Metron RS 45 CS Silver Edition is available here with either a Shimano 11/12-speed freehub or a SRAM XDR freehub. Both versions use a Center Lock disc-brake interface and thru-axle road fitment.

Why choose the Metron RS 45 CS Silver Edition?

Vision positions the Metron RS CS Silver Edition at the top of its Racing Series wheel lineup. The wheelset pairs Vision's carbon wheel design and manufacturing expertise with CeramicSpeed bearing technology to reduce friction, improve smoothness, and maximize efficiency during hard road efforts.

• Limited-edition silver finish for a distinctive high-end build
• 45 mm full-carbon rim depth for aero road performance without going overly deep
• 23 mm internal rim width and 31.1 mm external rim width for modern road tire profiles
• CeramicSpeed ceramic bearings engineered for efficiency, smoothness, and durability
• Vision V-1000 PRS ratchet hubs with 72T engagement
• 5-degree hub engagement angle for fast pickup under acceleration
• Aero-bladed DP carbon spokes for a light, stiff, aerodynamic structure
• 2:1 spoke ratio with 21 spokes front and 24 spokes rear
• ABS self-locking nipples for secure, precise wheel building
• Hand-built craftsmanship
• Shimano 11/12-speed and SRAM XDR freehub options
• Claimed wheelset weight: 1290 g per pair

CeramicSpeed bearings

The CS version is developed with CeramicSpeed and uses CeramicSpeed ceramic bearings designed specifically for Vision V-1000 hubs. Vision describes the bearing system as using grade 3 silicon nitride balls, hardened steel raceways, reinforced cages, and low-viscosity grease to reduce friction while increasing efficiency and durability. The CeramicSpeed bearing system is also backed by a 4-year bearing warranty according to Vision's product page.

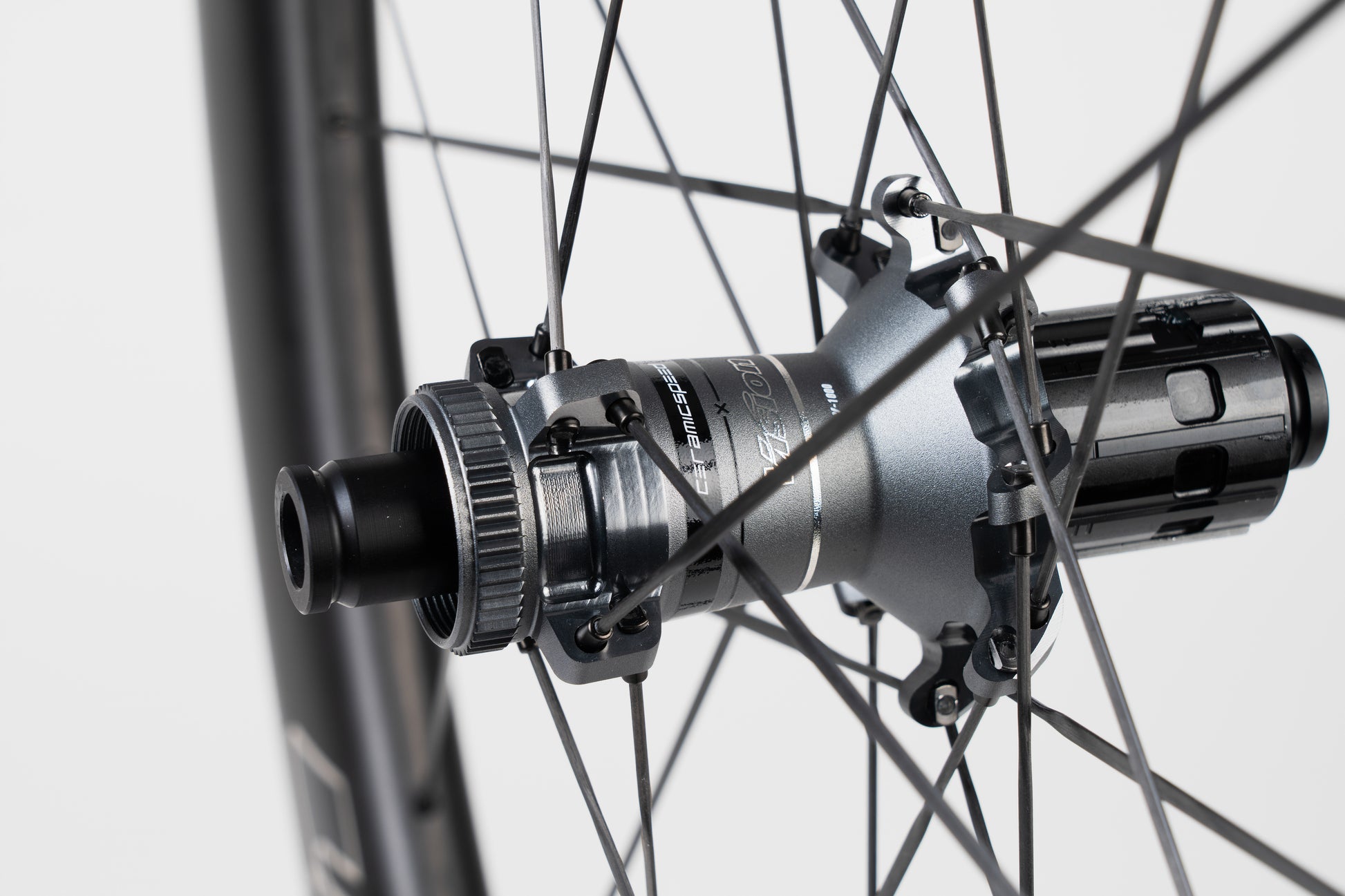

V-1000 72T ratchet hubs

The Vision V-1000 PRS hub system uses a helical clutch ratchet with 72 teeth. Vision states that this creates a 5-degree engagement angle and 24% faster engagement than the previous Vision 6-pawl and DT 54T / 6.6-degree systems. For riders who sprint, attack, climb out of the saddle, or accelerate repeatedly, that quick pickup helps the wheelset feel immediate and responsive.

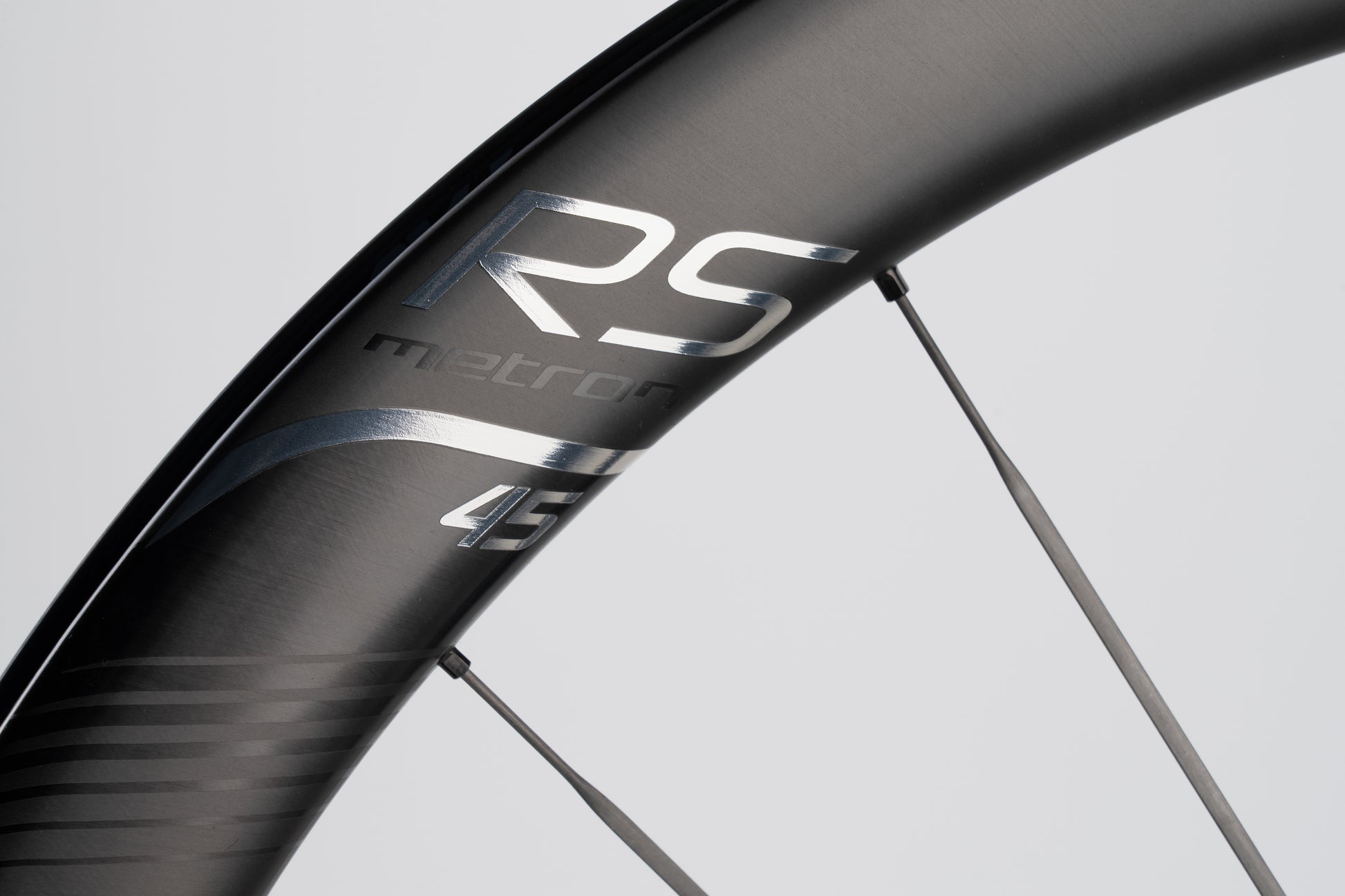

Full carbon construction

The Metron RS 45 CS Silver Edition uses a full carbon rim and carbon spokes. The 45 mm rim depth gives riders an aero benefit while keeping the wheelset versatile for rolling terrain, fast group rides, road racing, and daily performance riding. The 23 mm internal width supports modern road tire sizing and shaping, while the 31.1 mm outer width helps create a clean aero profile with today's wider road tires.

Best use

This wheelset is best for road riders who want a premium, race-oriented carbon wheelset with a responsive mid-depth profile, excellent bearing performance, and compatibility with current Shimano and SRAM drivetrain standards. It is a strong upgrade for aero road bikes, lightweight race bikes, endurance road bikes, and performance disc-brake road builds.

Technical Specifications

Variant Details

Buyer Questions & Answers

What is the Vision Metron RS 45 CS Silver Edition best for?

It is best for road riders who want a premium mid-depth carbon wheelset for racing, fast group rides, high-speed training, and performance road builds.

What does CS mean on this wheelset?

CS refers to the CeramicSpeed version of the Metron RS wheelset. This build uses CeramicSpeed ceramic bearings for reduced friction, smoothness, efficiency, and durability.

Is this wheelset tubeless-ready?

Yes. The Metron RS 45 CS Silver Edition is a tubeless-ready clincher road wheelset.

What freehub do I need?

Choose Shimano 11/12-Speed for Shimano road drivetrains and many Shimano-compatible cassettes. Choose SRAM XDR for SRAM AXS road drivetrains that use XDR cassettes.

Is this a disc-brake wheelset?

Yes. This is a disc-brake road wheelset with a Center Lock rotor interface.

What axle standard does it use?

The wheelset is listed for modern road thru-axle fitment: 12 x 100 mm front and 12 x 142 mm rear.

How deep are the rims?

The rims are 45 mm deep, giving a versatile aero profile that works well for racing, fast road riding, and everyday performance use.

How wide are the rims?

Vision lists the rim at 23 mm internal width and 31.1 mm outer width, supporting a modern wider road tire shape.

How much does the wheelset weigh?

Vision lists the Metron RS 45 CS Silver Edition wheelset at 1290 g per pair.

What makes the V-1000 hub special?

The V-1000 PRS hub uses a 72T ratchet system with a 5-degree engagement angle for fast pickup and responsive acceleration.

Why choose a 45 mm wheel instead of a deeper wheel?

A 45 mm rim depth gives a strong balance of aero benefit, low weight, handling stability, and climbing versatility. It is often easier to ride in variable wind than a very deep wheel while still offering meaningful speed gains.

Is this wheelset compatible with SRAM AXS?

Yes, choose the SRAM XDR variant for SRAM AXS road drivetrains that use XDR cassettes.

Is this wheelset compatible with Shimano 12-speed road?

Yes, choose the Shimano 11/12-Speed variant for Shimano 12-speed road drivetrains.
