Description:
Vigorelli Track Alu – Frameset
The new Vigorelli graphic concept simulates the look of a National Cycling Federation track frame that has continued to be used by many different riders (as would often occur with team bikes in national velodromes during the 70s and 80s) who have chosen to continue to add stickers and “restyle” the frame according to new trends and sponsors. Accordingly the frame offers, on top of its two-tone wet-on-wet paint, a layering of “retro” and “hypercontemporary” Cinelli logos and graphic styles.
Highlights

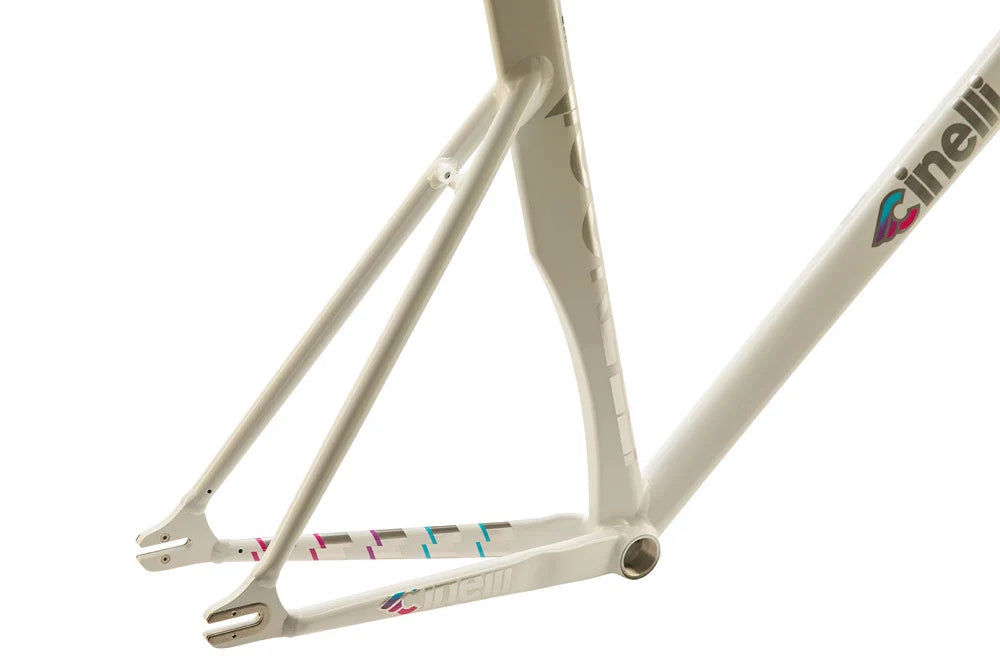

- Pure track reactive geometry (377 mm chainstays in all sizes)
- Negative sloping top tube
- Aerodynamic blade seat tube

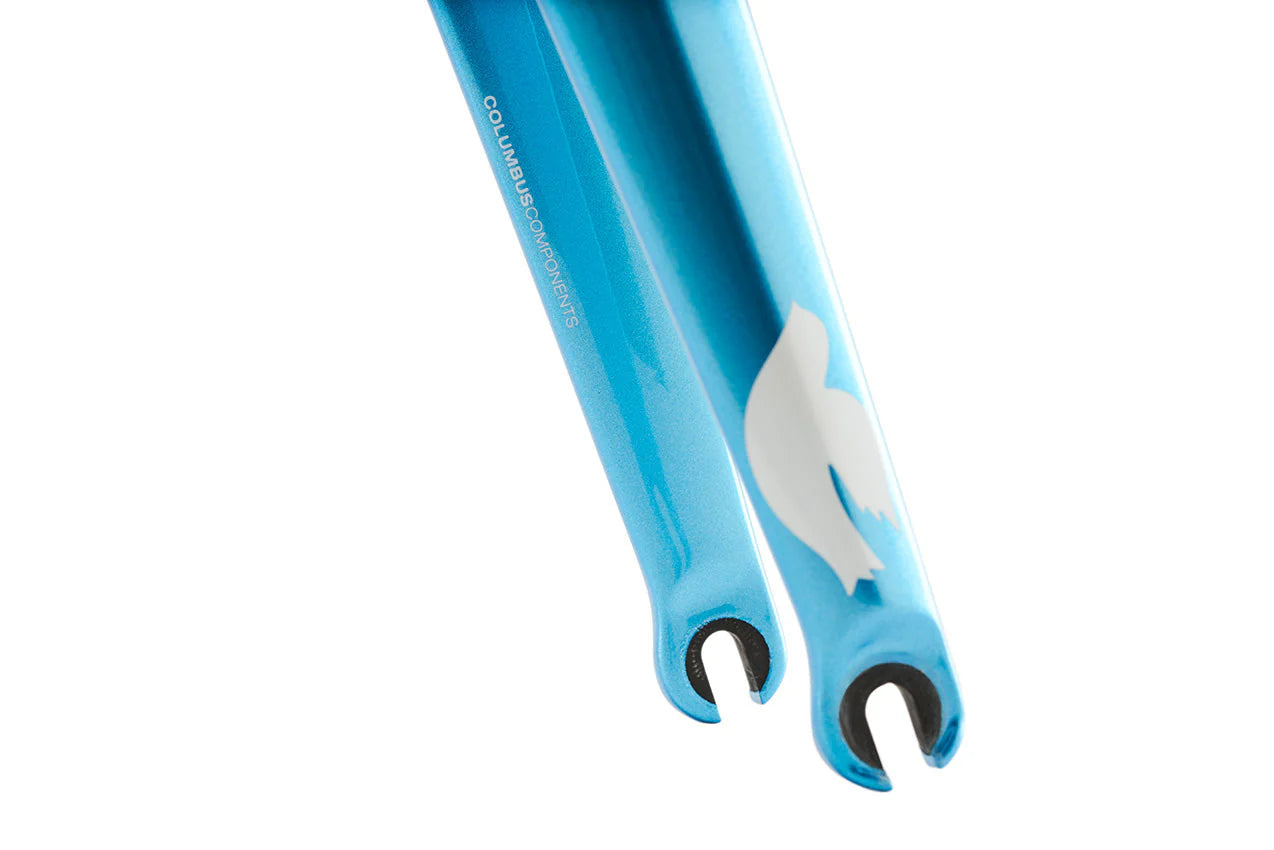

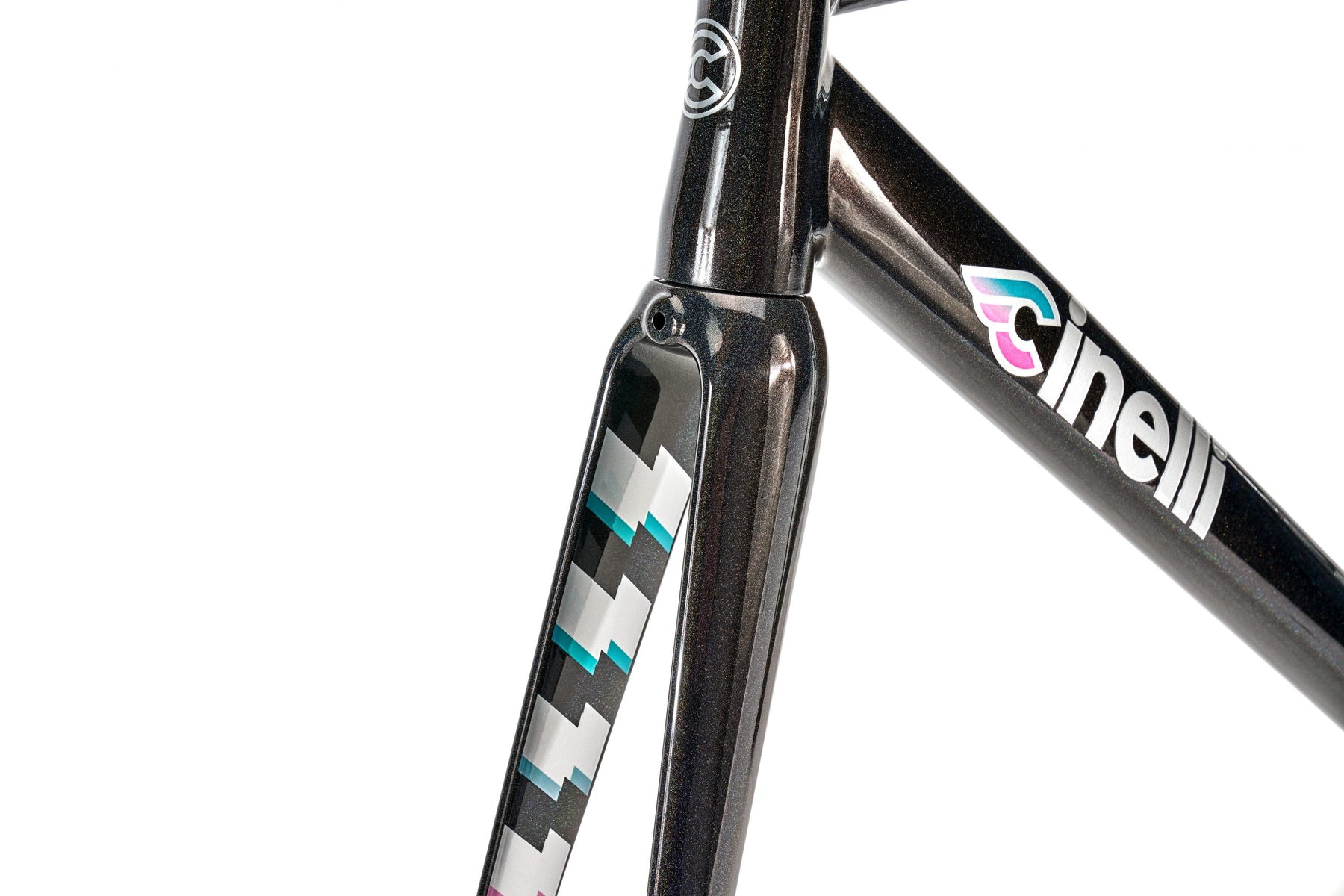

- Columbus Futura carbon monocoque fork (1-1/8” – 1-1/2”)

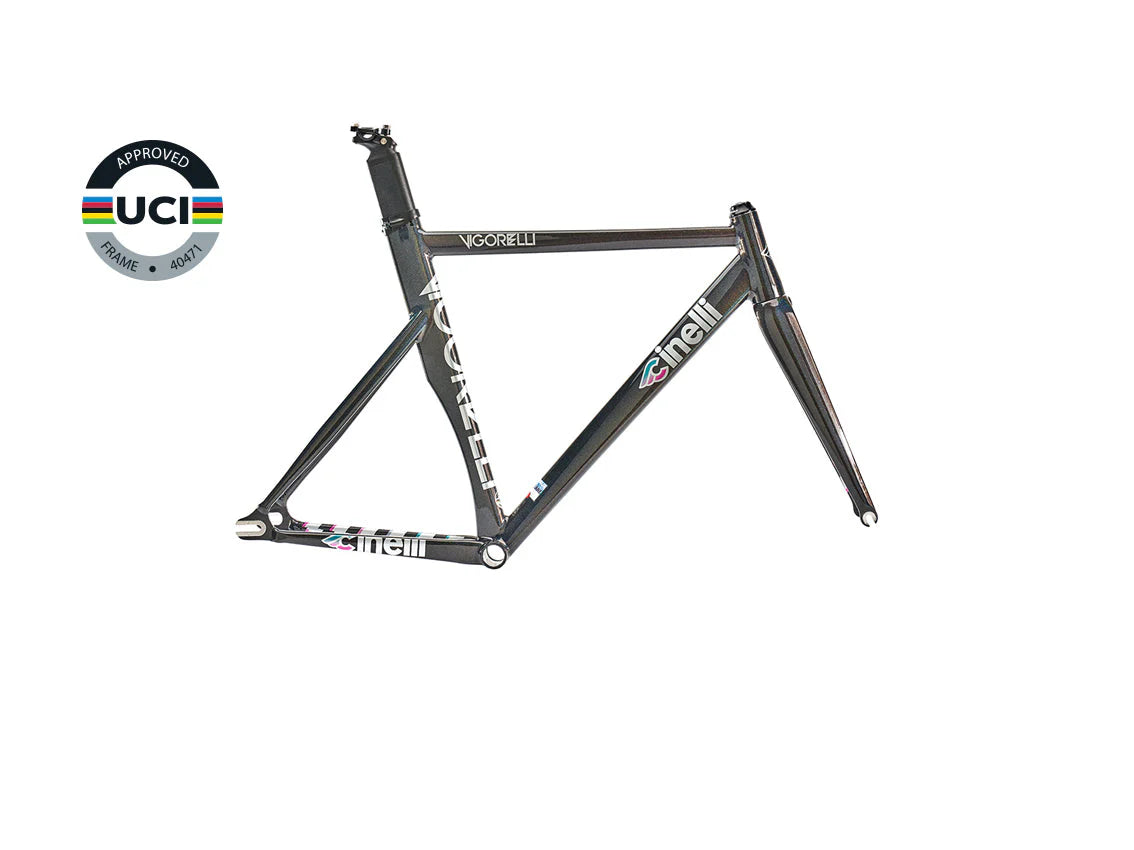

- UCI-approved for track competition
Frame Specs
- Sizes: XS (52) – S (55) – M (57) – L (59) – XL (60.5)
- Material: Columbus Airplane Triple Butted Alloy
- Headset: IS 42/28.6 | IS 52/40

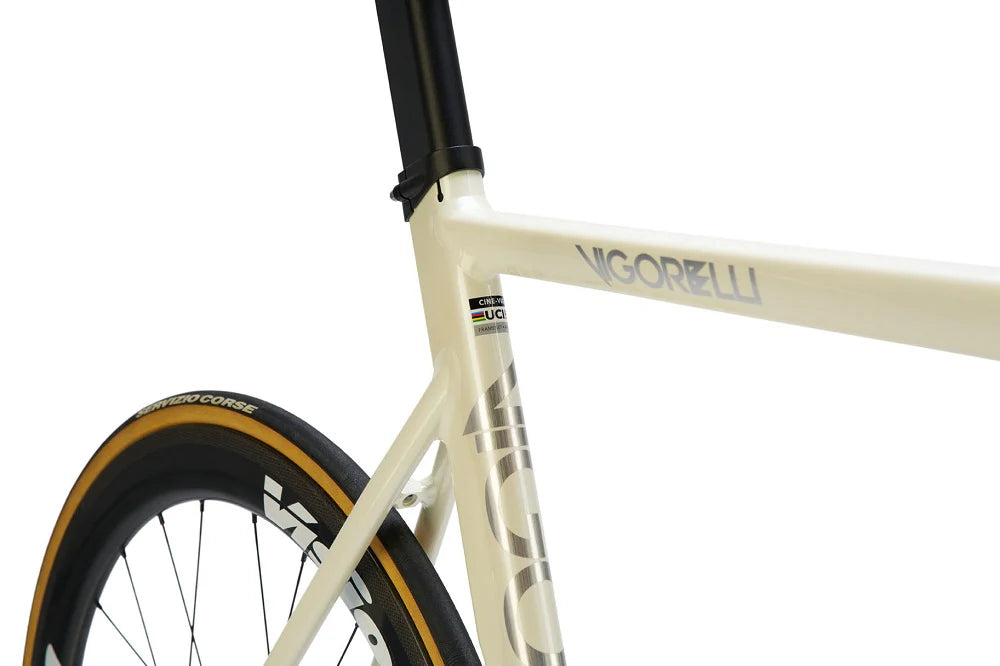

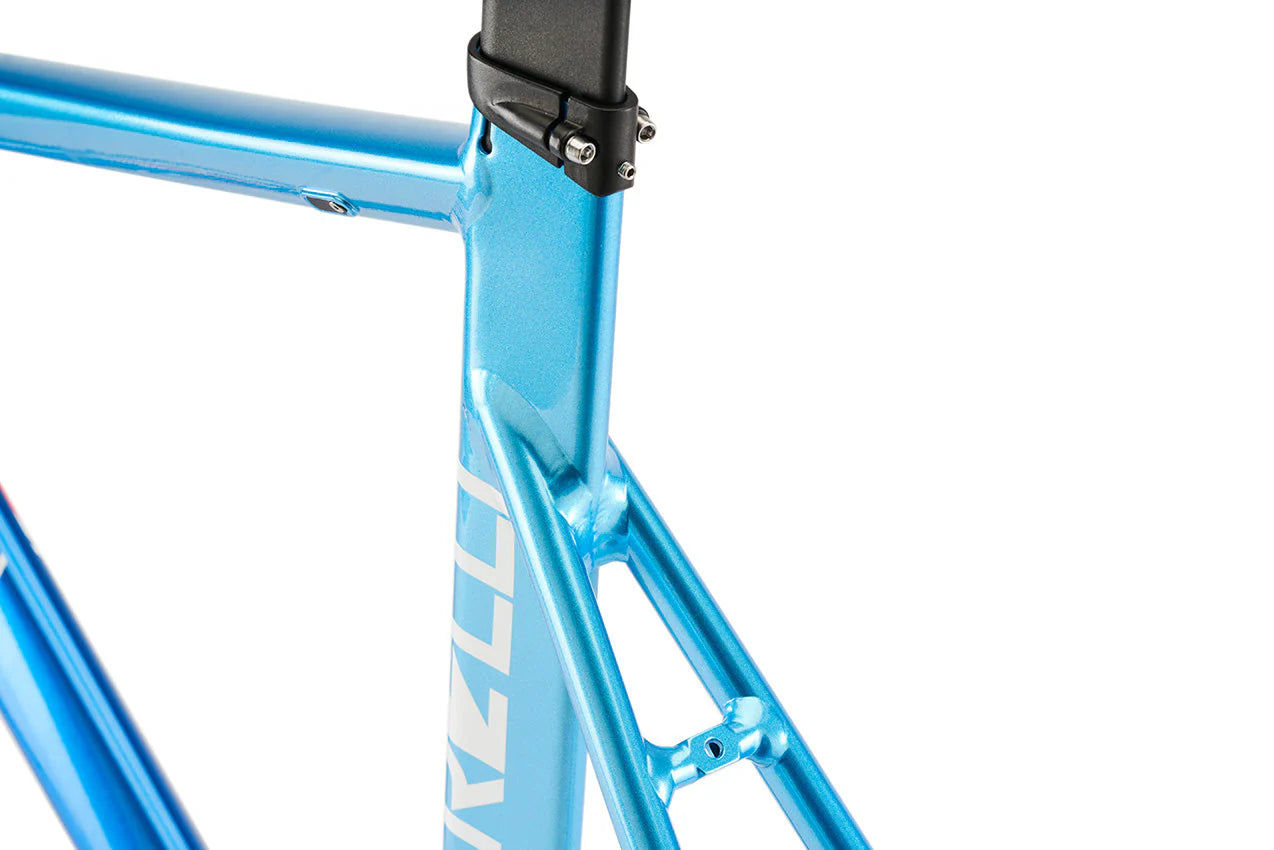

- Seatpost: Dedicated Aero Alu Seatpost (L350)
- Seat clamp: Dedicated Aero Seat Clamp
- BB shell: BSA 68 mm
- Routing: Rear brake internal routing

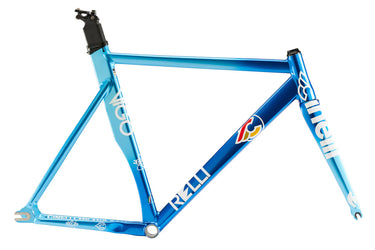

- Colors: 80’s Nazionale Blue · Rainbow · Special White
- Tyre clearance: up to 700x28c
- Fork: Columbus Futura Caliper 1-1/8” – 1-1/2” Carbon Monocoque
- Weight: Frame 1550 g (size M) · Fork 350 g (uncut) · Seatpost 200 g
- Brake: Standard rim brake

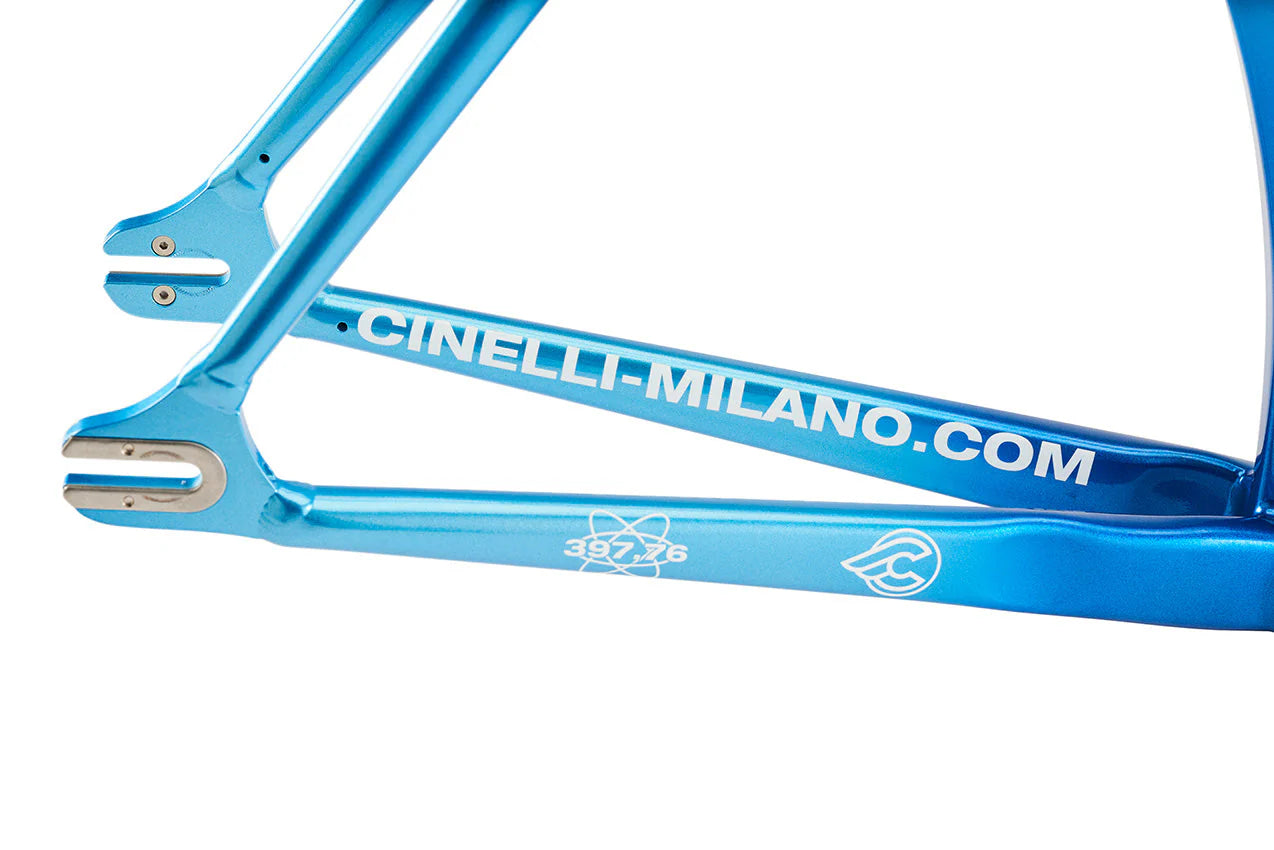

- Dropouts: Front QR 100 mm · Rear QR 120 mm (stainless steel removable plates)
- Included: Seatpost / Seat clamp / Headset / Expander

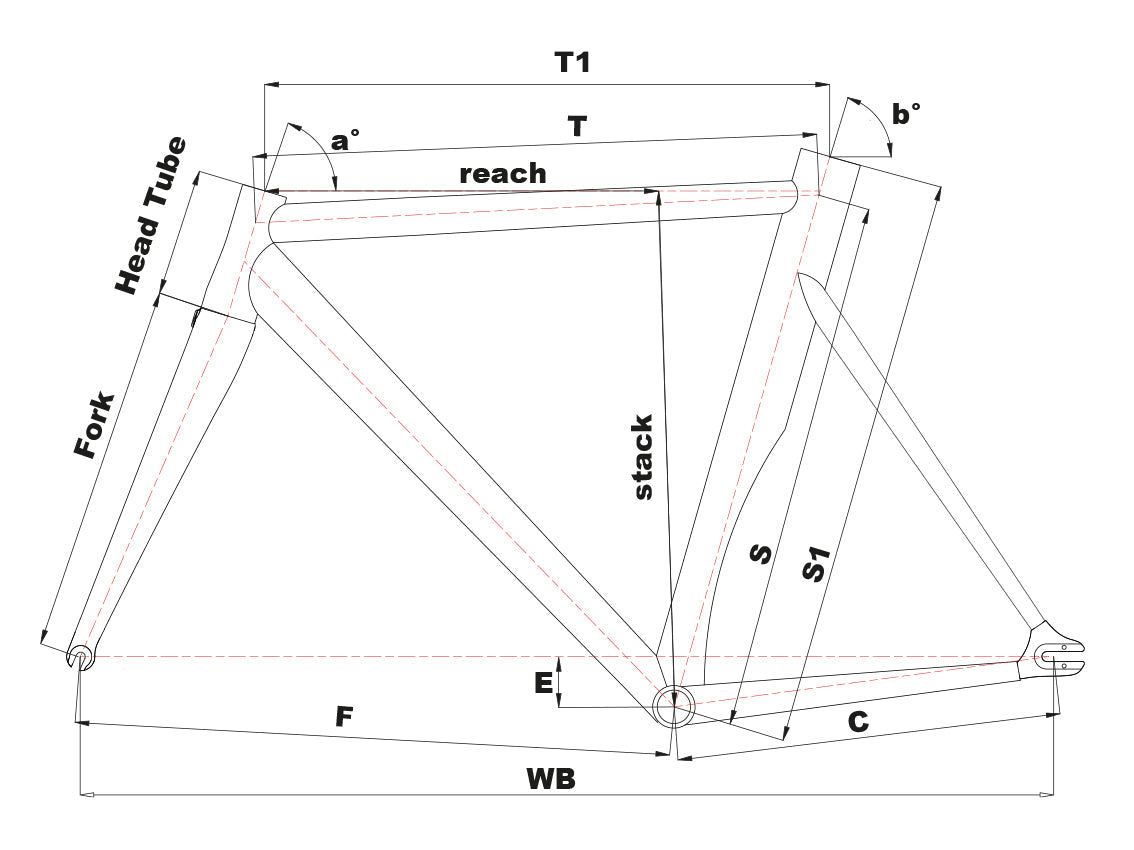

Geometry (XS)
- S1: 520
- S: 480
- T1: 500
- T: 507
- Head tube: 95
- Head angle: 73°
- Seat angle: 73.5°
- Rake: 45
- Chainstay: 377
- Front center: 543
- Wheelbase: 914
- BB drop: 50
- Fork: 368
- Stack: 478
