Electronic at your fingertips.
Shimano 105 Di2 uses electronic shift commands. The ST-R7170 controls offer reach adjustment and customizable button functions, letting you tailor the controls rather than simply adapt to them.
Description:
Wilier Triestina / Rapida / 2027 / E7695IA
Find your rhythm. Make every shift count.
The Wilier Rapida Shimano 105 Di2 combines electronic 12-speed shifting with Miche Asfalto 45 Carbon wheels, an integrated carbon cockpit and the Rapida carbon frame. Two defining equipment choices, brought together in one complete road bike.
A reason to take the longer route
Built for the ride you keep thinking about.
The group rolls out. The conversation fades on the first climb. A familiar road opens into a stretch you wish would last longer. Rapida gives those moments a bike to belong to - distinctive enough to feel special, and ready to become part of your riding routine.
Why this build?
Choose this build when electronic shifting and carbon wheels are already on your list. Rather than starting with the mechanical version and planning those changes later, the E7695IA specification brings both together from the outset. The decision is about the equipment you want to ride, not a different Rapida frame.
Carbon wheels from day one.
Miche Asfalto 45 Carbon is the wheelset in this build. Miche specifies a 45 mm carbon rim profile for Asfalto 45 - a clear equipment distinction from the Reflex DX mechanical configuration.
Gearing for changing roads.
A compact 50/34-tooth Shimano crankset and 11-34 cassette give a 1:1 lowest gear. The supplied Vittoria Zaffiro Pro V tires are 700 x 32c; wider-tire choices require wheel and frame compatibility checks.
The Rapida platform
Road ambition.
Room to make it your own.
Wilier positions Rapida between its race and endurance platforms. Start with the geometry, then choose the size and cockpit combination that supports the way you ride.
The supplied carbon frame and fork are shared across these two builds. That keeps the choice focused on shifting and wheels rather than presenting one as a different frame platform.
Integrated, with an important size detail.
R-Bar is the integrated carbon cockpit specified for S through XXL. Size XS uses Z-Bar. The size exception is part of the build, not an optional upgrade.
The stock tire specification is 700 x 32c. Frame clearance of up to 36 mm and wheel-specific tire compatibility are separate checks.
The decision, made clear
The upgrade is more than electronic shifting.
The Di2 model changes two of the parts riders often put on an upgrade list: the shifting system and the wheels. It retains the supplied Rapida frame and fork specification, then adds Shimano electronic controls and Miche Asfalto 45 Carbon wheels as a complete factory build.
| Build detail | Rapida Shimano 105 | Rapida Shimano 105 Di2 |
|---|---|---|
| Setup code | E76952X | E7695IA |
| Shifting | Mechanical 2x12 | Electronic 2x12 |
| Wheels | Miche Reflex DX | Miche Asfalto 45 Carbon |
| Frame and fork | Rapida carbon monocoque NH-MOD | Rapida carbon monocoque NH-MOD |
| Gearing | 50/34T with 11-34T cassette | 50/34T with 11-34T cassette |
| Best reason to choose | You prefer mechanical shifting and the Reflex DX specification. | You want electronic shifting and carbon wheels together. |

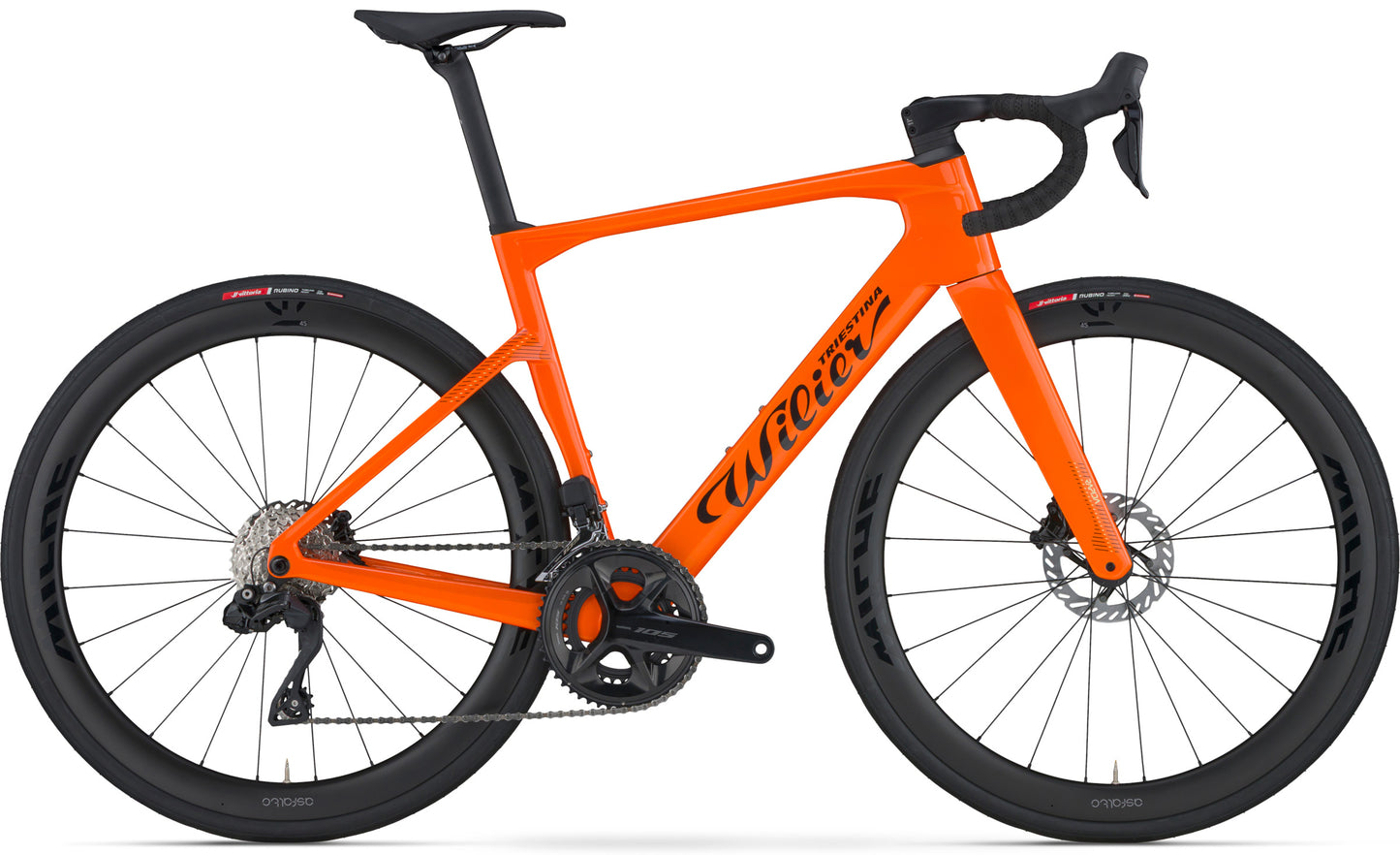

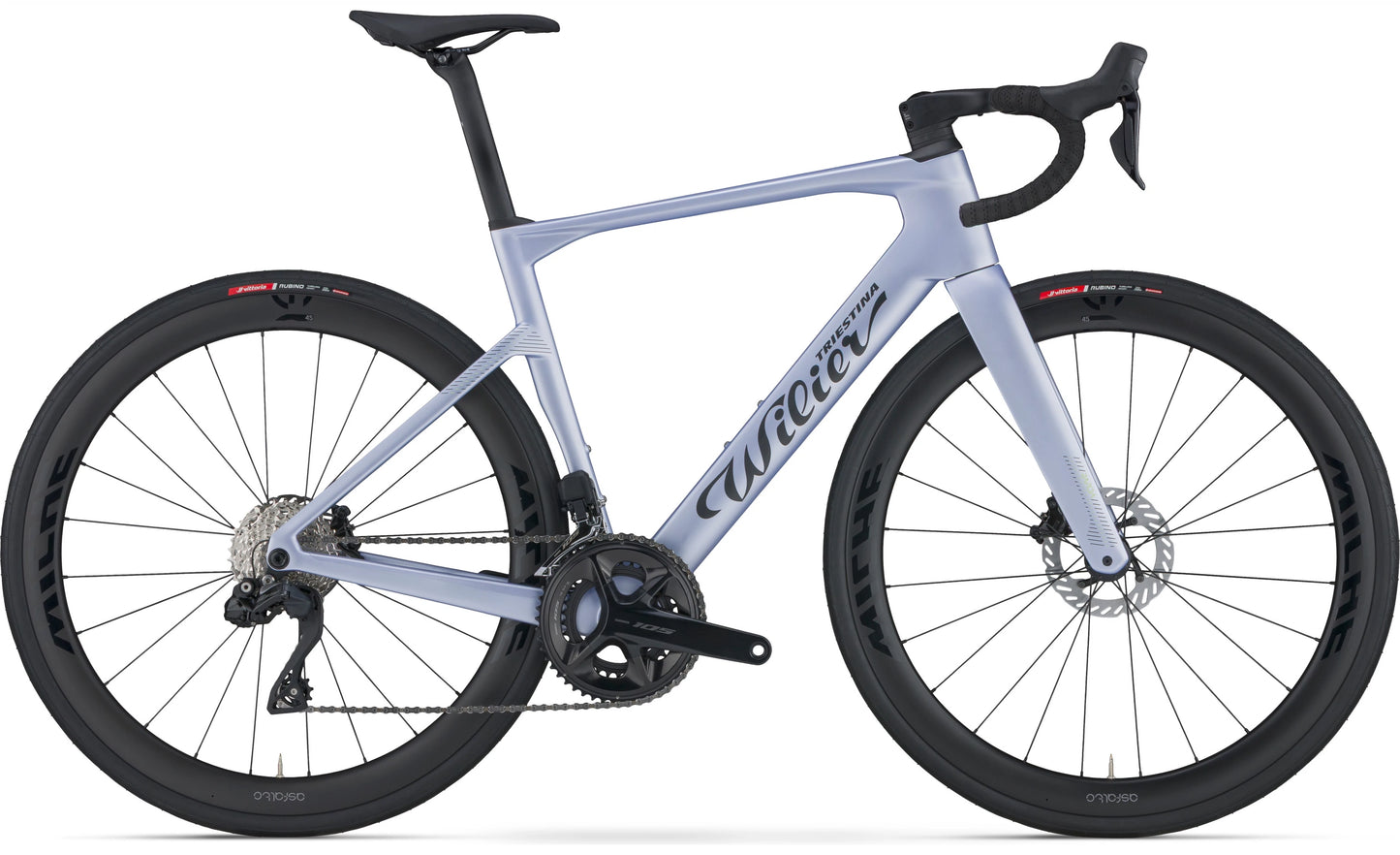

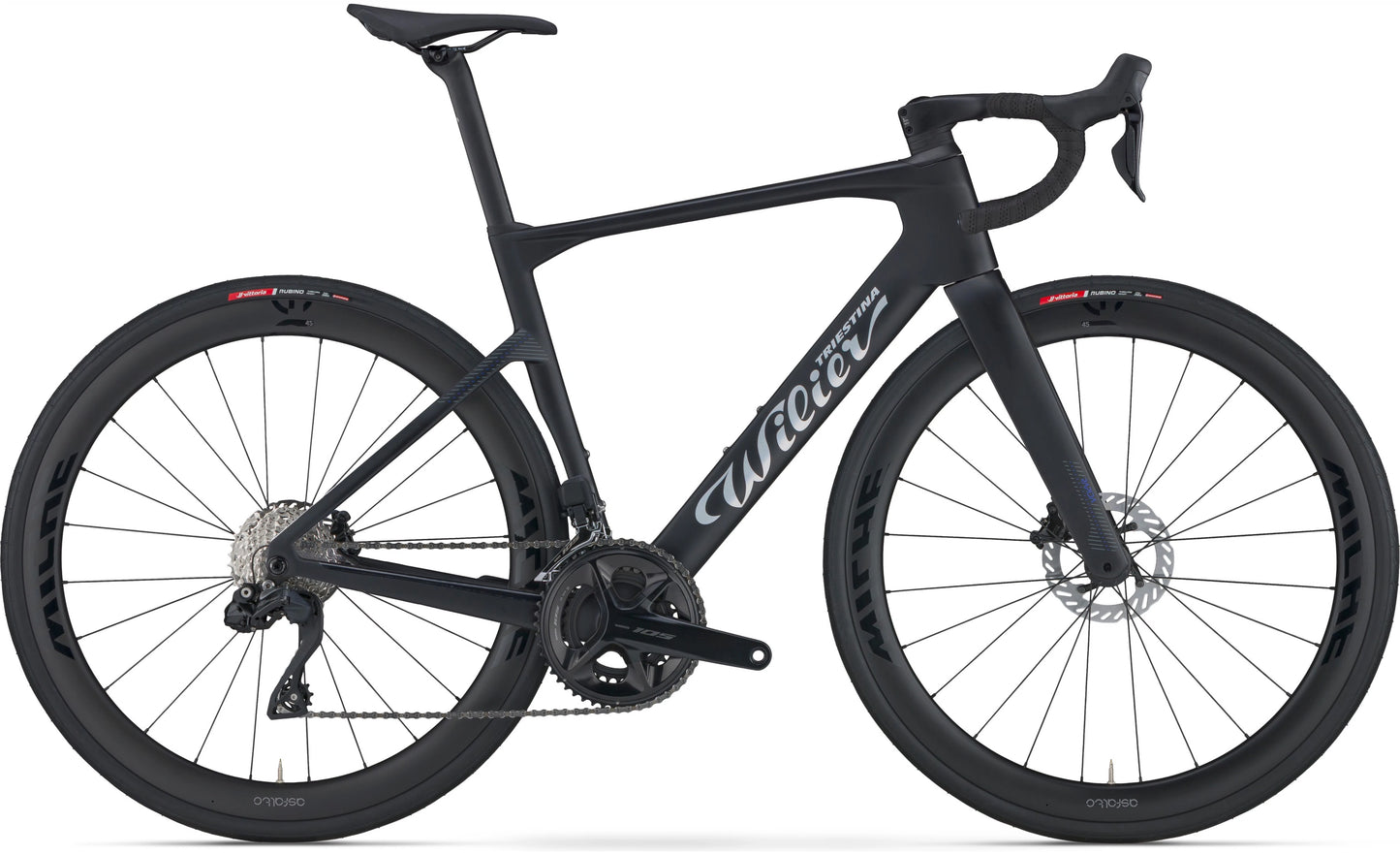

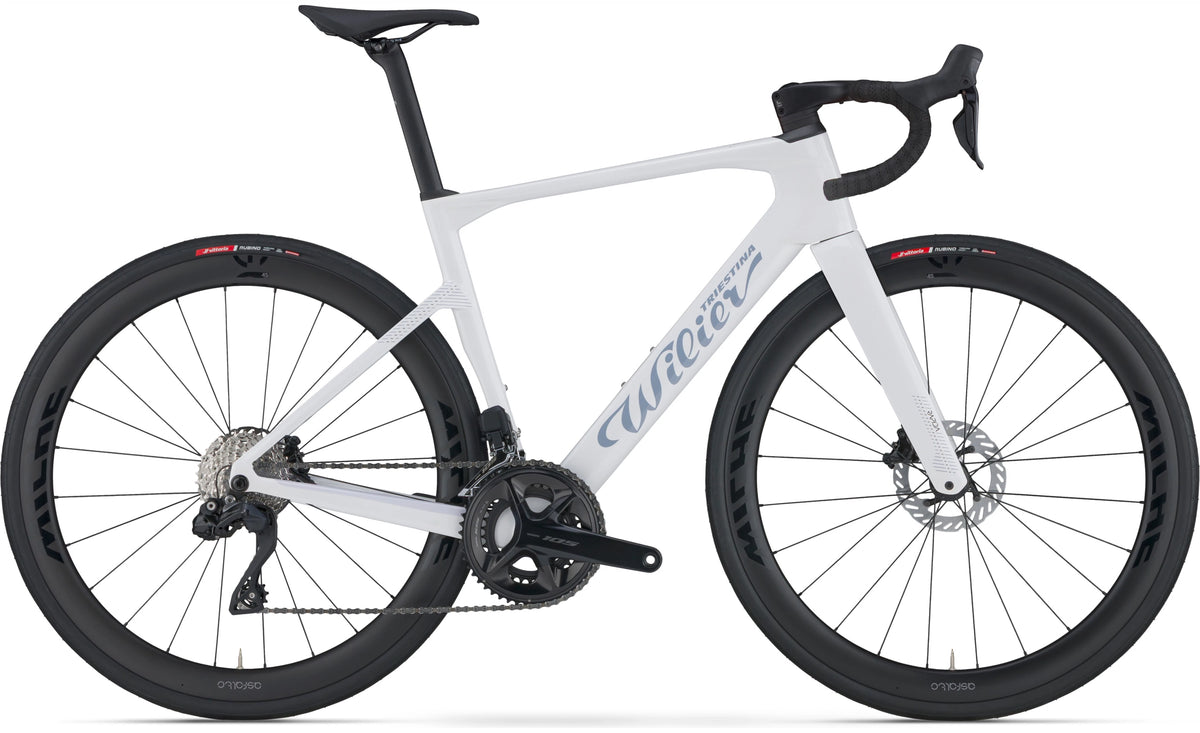

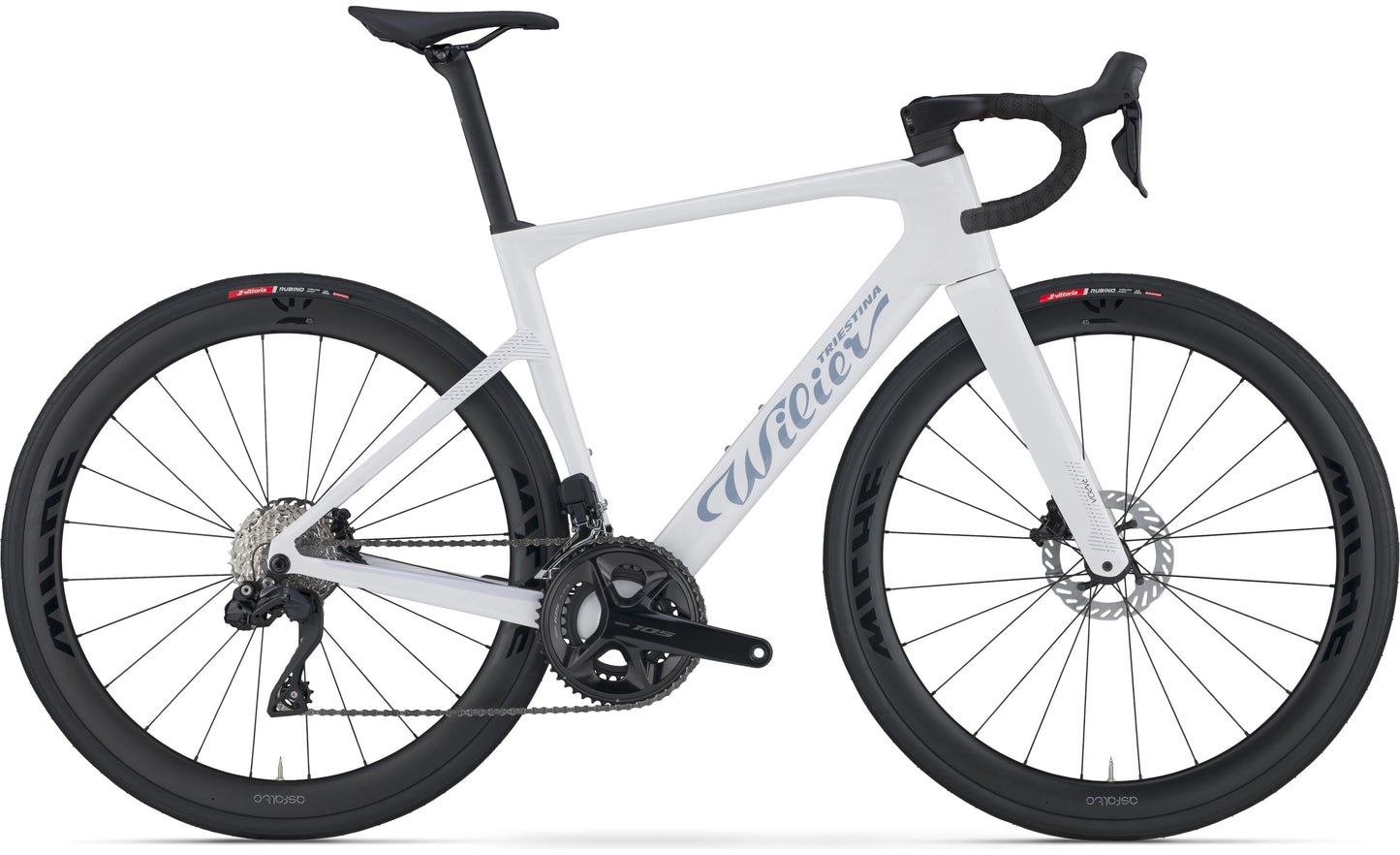

Four expressions of Rapida
Choose the color that feels like yours.
The 2027 dealer catalogue lists all four colors in XS through XXL for this build. Availability varies by exact size and color; contact Brimstone to confirm supplier stock and lead time before ordering.
Color references show the manufacturer's Di2-equipped display bikes, not a guarantee of the components supplied. Refer to the build table; paint appearance also varies with lighting and screen settings.
Know exactly what you are choosing
Rapida 105 Di2 specifications
| Component | E7695IA specification |
|---|---|
| Manufacturer setup code | E7695IA |
| Drivetrain | Shimano 105 Di2 electronic 2x12, R7150 build |
| Wheelset | Miche Asfalto 45 Carbon |
| Frame | Rapida - carbon monocoque NH-MOD |
| Fork | Rapida - carbon monocoque NH-MOD |
| Cockpit | R-Bar integrated carbon in S, M, L, XL and XXL; Z-Bar in XS |
| Headset | Custom Superslim 1-1/4 inch upper bearing / FSA MR137 1-1/4 inch lower bearing |
| Shifters | Shimano 105 Di2 ST-R7170 |
| Brakes | Shimano 105 BR-R7170 hydraulic disc |
| Rotors | Shimano SM-RT70 - 160 mm front / 140 mm rear |
| Front derailleur | Shimano 105 Di2 FD-R7150 |
| Rear derailleur | Shimano 105 Di2 RD-R7150 |
| Crankset | Shimano 105 FC-R7100 - 50/34T |
| Bottom bracket | Miche Integrale Pressfit, 86.5 x 41 mm |
| Cassette | Shimano 105 CS-R7100-12 - 11-34T |
| Chain | Shimano CN-M7100, 12-speed |
| Tires | Vittoria Zaffiro Pro V - 700 x 32c |
| Frame tire clearance | Up to 36 mm; subject to wheel/tire compatibility and actual mounted dimensions |
| Saddle | Prologo Dimension RS Steel 145 BK |
| Seatpost | Wilier Filante SL carbon custom made - 15 mm setback |
| Thru-axles | Miche Thru Axle Light - 12 x 126.5 mm front / 12 x 172.5 mm rear |
| Published complete-bike weight | 8.2 kg +/- 5% (nominal; not boxed shipping weight) |
Weight is Wilier's published nominal reference figure, with a +/- 5% tolerance, not a measured weight for every size. Supplier records list different size-specific weights; confirm the delivered weight of your selected U.S. build with Brimstone before purchase. This figure is not boxed shipping weight.
Start with the numbers
Rapida geometry, size by size.
Compare stack and reach with a bike that already fits you. Linear dimensions are shown in millimeters; angles are in degrees.
| Measurement | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| Seat tube C/C (mm) | 412 | 442 | 472 | 502 | 532 | 562 |
| Seat tube H (mm) | 430 | 460 | 490 | 520 | 550 | 580 |
| Top tube L (mm) | 509 | 524 | 545 | 556 | 578 | 589 |
| Seat tube angle A (degrees) | 75.5 | 75 | 74 | 74 | 73 | 73 |
| Chainstay L1 (mm) | 410 | 410 | 412 | 412 | 414 | 414 |
| Head tube H1 (mm) | 108 | 125 | 143 | 162 | 183 | 202 |
| Head angle A1 (degrees) | 70.5 | 71.3 | 72 | 72 | 72 | 72 |
| Reach (mm) | 372 | 378 | 384.5 | 390 | 396 | 402 |
| Stack (mm) | 520 | 538 | 556 | 574 | 592 | 610 |
| Wheelbase (mm) | 981 | 986 | 994 | 1006 | 1021 | 1033 |
| Standover (mm) | 732 | 758 | 782 | 808 | 832 | 856 |
C/C, H, L, A, L1, H1 and A1 retain Wilier's geometry labels. Original centimeter measurements have been converted to millimeters. Frame dimensions do not establish the installed bar width, stem length or crank length.
Before your first ride
Questions worth answering.
Does the Di2 price include the carbon wheels?
Yes. The E7695IA specification supplied for this product includes both Shimano 105 Di2 2x12 electronic shifting and Miche Asfalto 45 Carbon wheels. It is not the mechanical bike with only the shifters changed.
Which cockpit comes on size XS?
XS uses the Z-Bar. Sizes S through XXL use the R-Bar integrated carbon cockpit in the supplied specification. Bar width, stem length and crank length must be checked for the exact size before ordering.
Can I fit 36 mm tires?
Wilier lists frame clearance up to 36 mm, but that is not an approval for every tire and wheel combination. The supplied tires are 32 mm. Check the wheel manufacturer's tire limits, actual inflated tire width and required frame clearance before changing size.
Is the bike supplied tubeless?
A tubeless setup is not stated in this build specification. Do not assume that a carbon wheelset means the installed tires are tubeless-ready or that valves and sealant are included. Ask Brimstone to verify the exact wheel and tire combination.
How should I choose my Rapida size?
Use the stack, reach and standover measurements in the geometry table alongside your current bike and fit requirements. A height-only recommendation cannot account for cockpit length, flexibility or riding position. Brimstone can help review the relevant measurements before an order.
Can I collect the bike from Brimstone?
Yes. Bikes delivered to Brimstone for shop pickup receive assembly and a safety check. Contact the shop to confirm your size, color, ordering lead time and pickup arrangements. Shipping charges and delivery timing should be confirmed before purchase.
