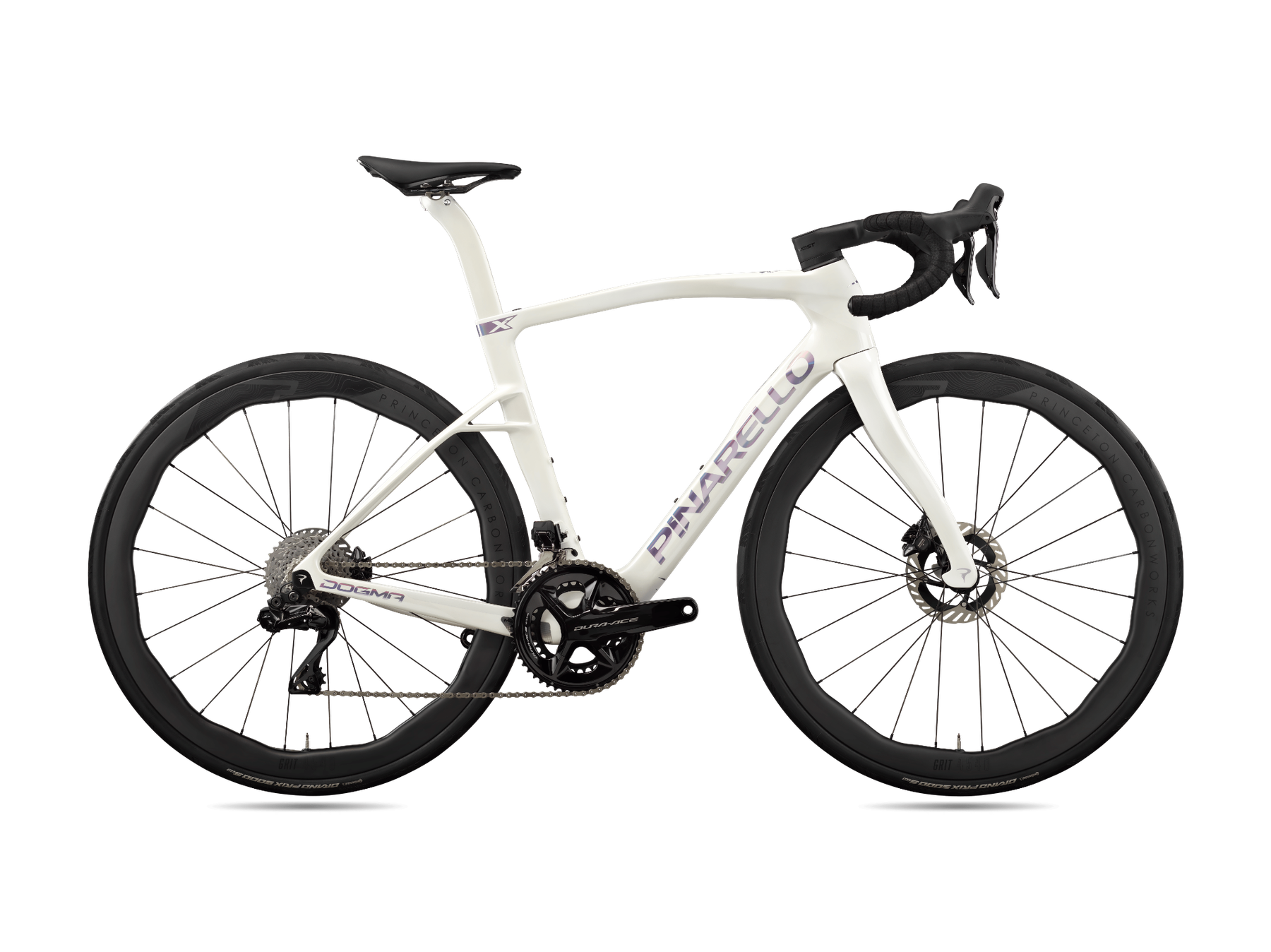

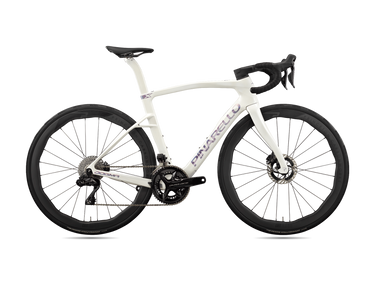

Moonlight Frost
J120 DISC
Description:
Pinarello New DOGMA X
Amplify Every Emotion
The Pinarello New DOGMA X Dura-Ace Di2 is a premium endurance race bike built for riders who want long-distance comfort without giving up DOGMA-level speed, handling and efficiency.
Dura-Ace Di2TorayCa M40X35mm Tire ClearanceX-Stays 2.0
Speed, efficiency and emotion.
Dogma X is where long-distance capability meets Pinarello performance. Designed for riders who embrace big days, technical roads and fast endurance riding, the New DOGMA X transforms every ride into something smoother, faster and more engaging.
This Dura-Ace Di2 build pairs the DOGMA X platform with Shimano's flagship electronic groupset, Princeton GRIT 4540 DB wheels, the MOST Talon Ultra Fast cockpit and a TorayCa M40X carbon frame.
Available colours
Choose from four official Dura-Ace Di2 paint schemes, each matched to the same high-performance New DOGMA X platform.

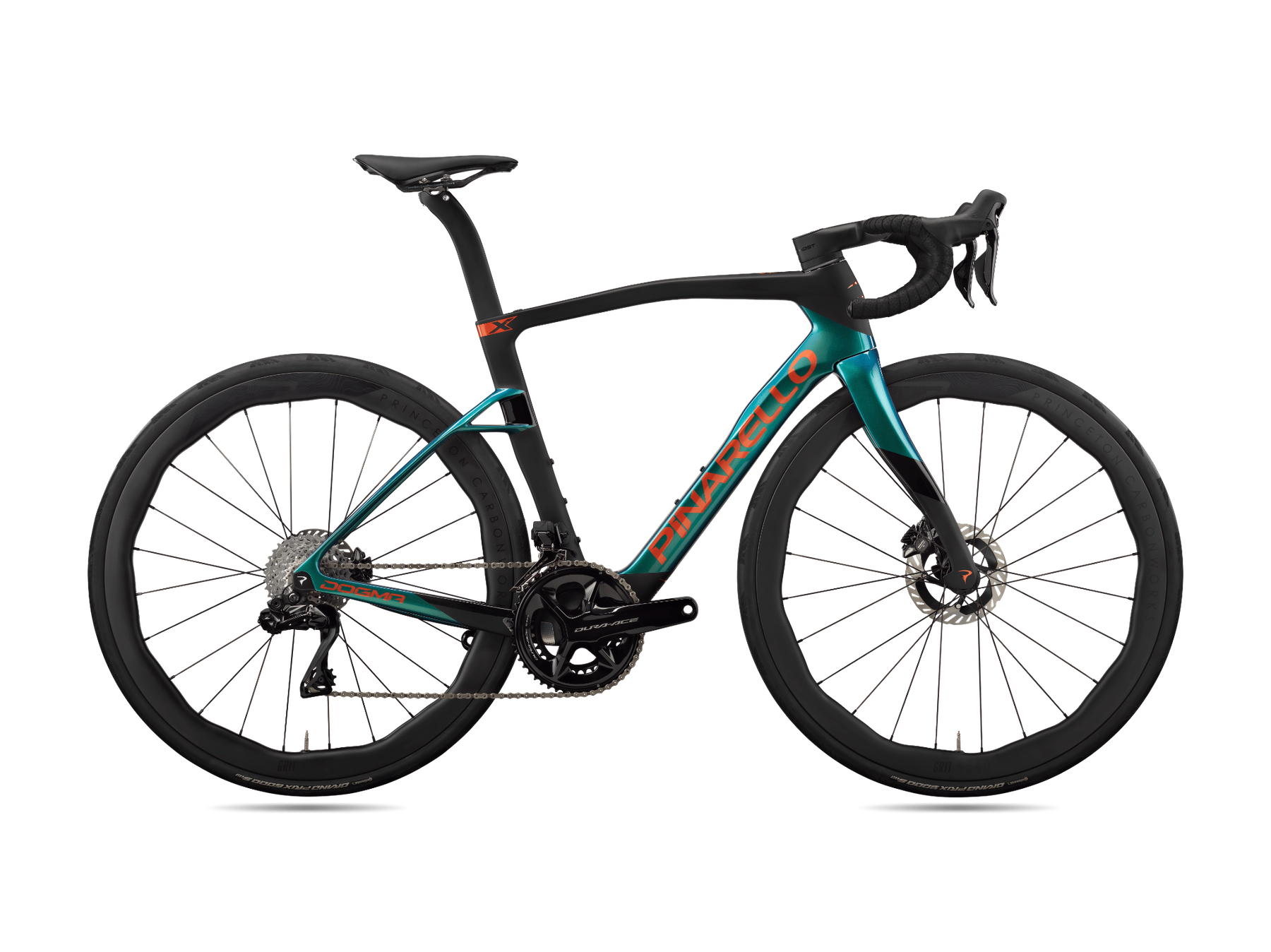

Jade Eclipse
J121 DISC

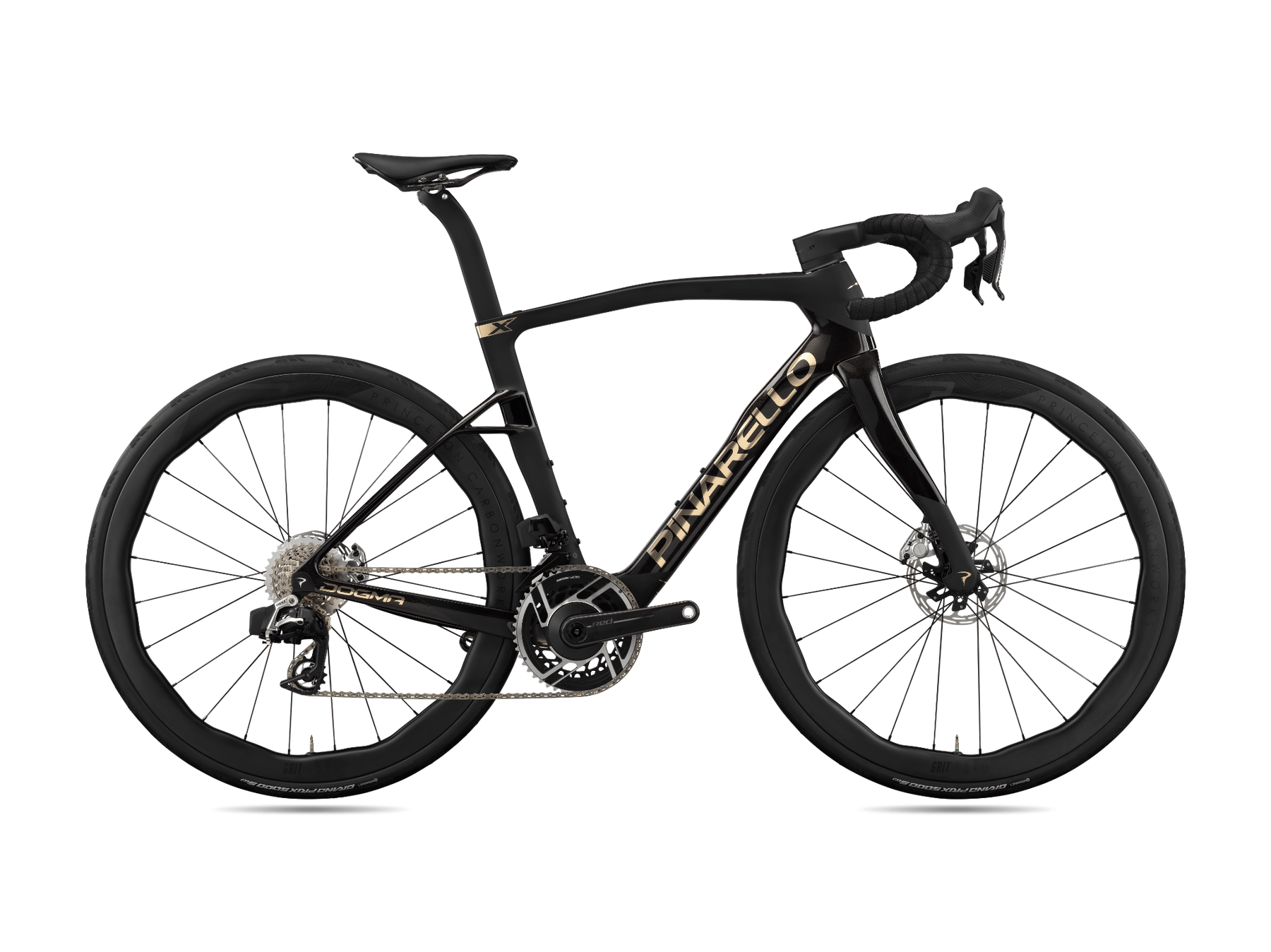

Etna Lucente
J122 DISC

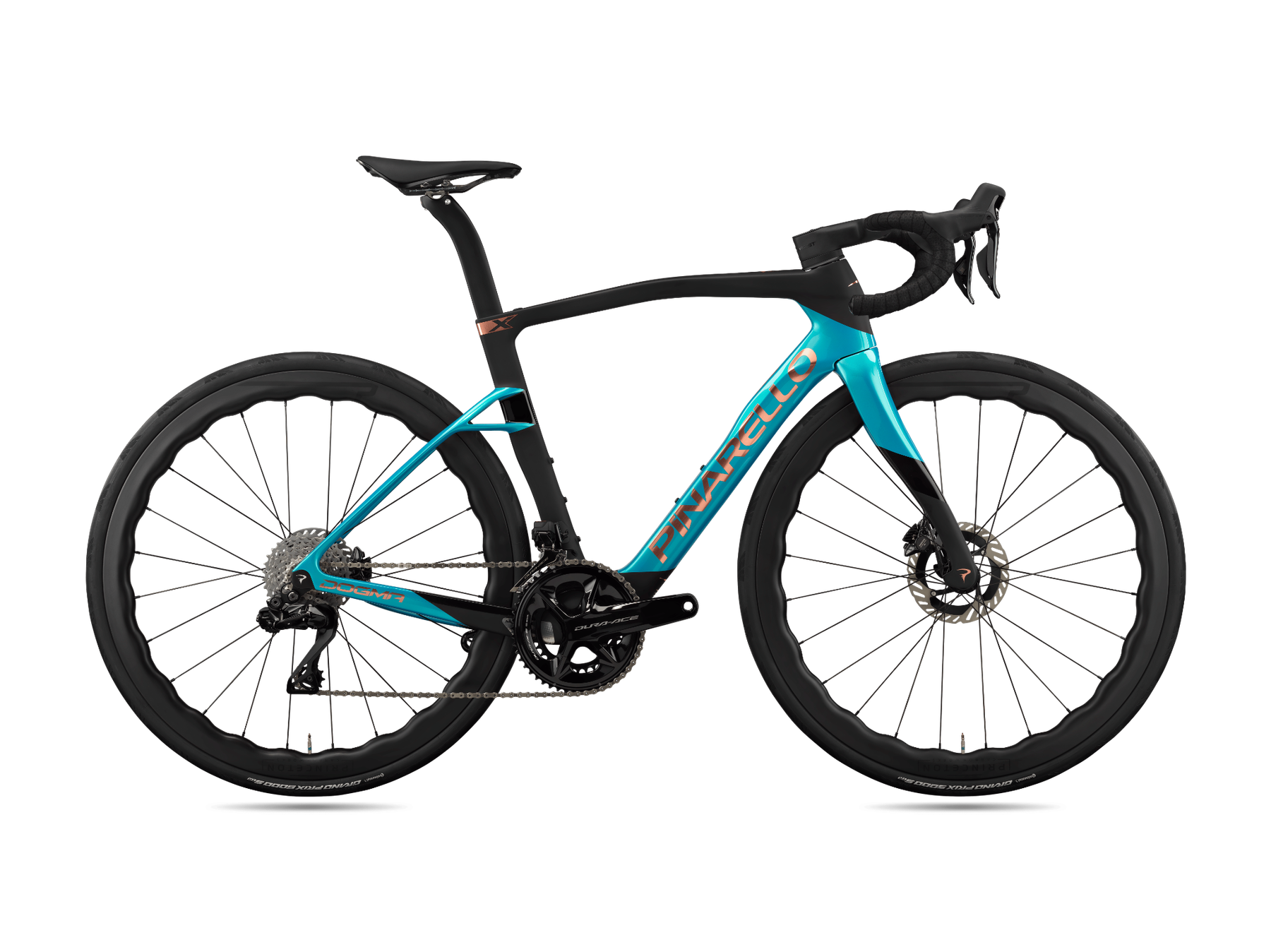

Aqua Veil
J123 DISC
X Stays 2.0
Four connection points. Less rebound. More control.
The lower attachment point and refined geometry enhance the double-arm, four-point top-stays design. Road vibrations are dispersed more efficiently through four connection points, while the lower linkage minimises rebound for a smoother, more controlled ride.

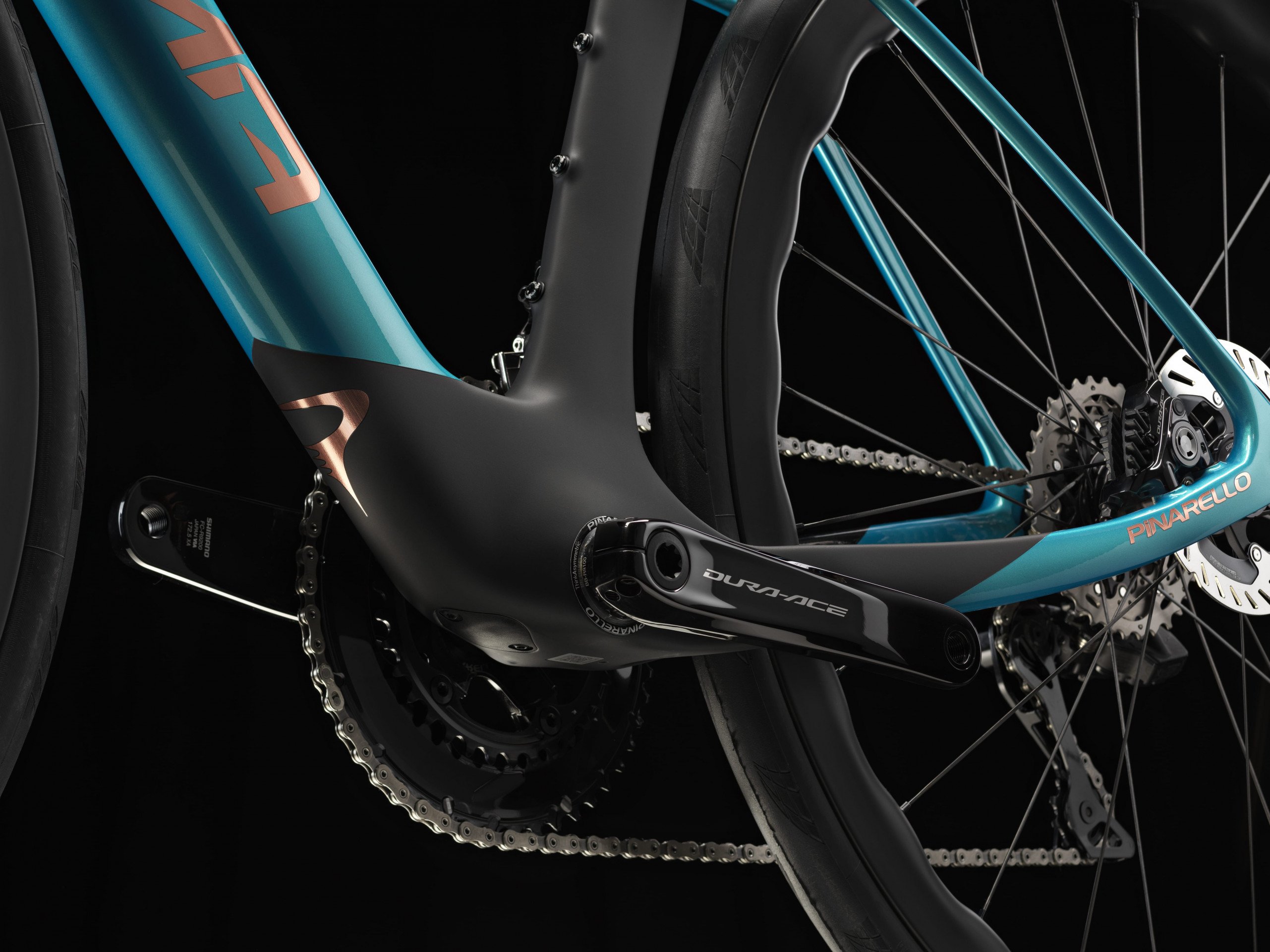

New Aero-Keel BB
35mm tire clearance and modern tubeless capability.
The New Aero-Keel bottom bracket gives the New DOGMA X generous 35mm tire clearance so riders can fully benefit from modern tubeless technology, maintaining high performance while enhancing comfort, grip and control.
Elliptical Steering Tube
Narrower at the front. Deeper where it counts.
The elliptical-shaped steering tube integrates front cable routing, reduces overall width and increases head tube depth to improve aerodynamic efficiency and torsional stiffness for sharper handling and greater stability.
New Aero Downtube
Narrower, tapered and built for speed.
The new aero downtube improves aerodynamic performance while increasing lateral stiffness, creating a bike that feels more reactive on climbs, faster on flats and more composed on descents.
M40X Carbon Fiber
A new carbon lay-up for DOGMA performance.
Tested on X-Light and INEOS Grenadiers team special bikes, TorayCa M40X carbon offers exceptional tensile strength and elastic modulus for a frame that feels light, reactive and precise.

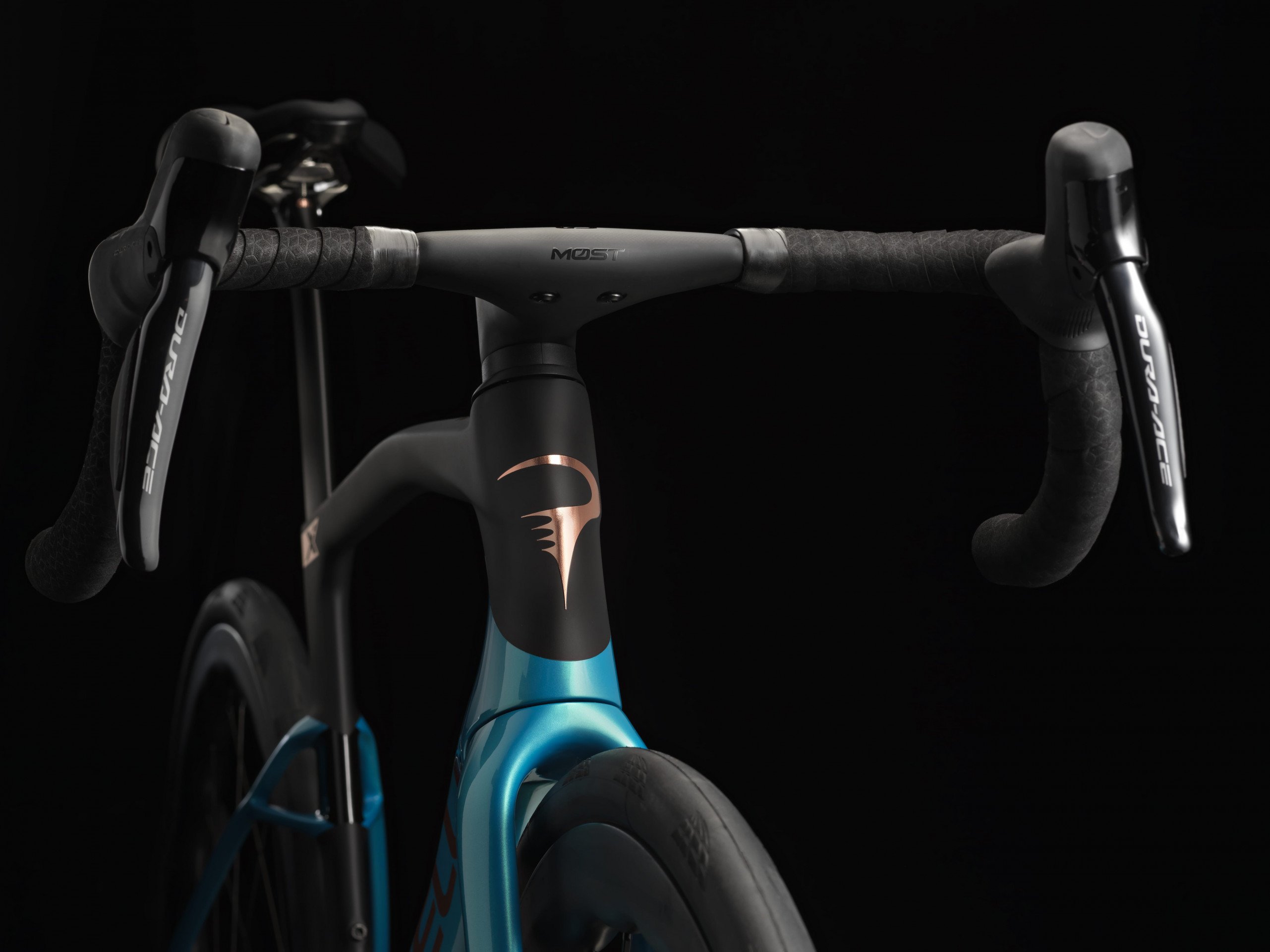

Talon Ultra Fast
Lighter, cleaner and faster at the front.
The MOST Talon Ultra Fast integrated cockpit is lighter and more aerodynamic than ever before, with a natural twisted lever position that helps riders hold an efficient aero posture with greater confidence and control.
Dura-Ace Di2 build
Shimano Dura-Ace Di2 delivers precise electronic shifting and elite braking performance for riders who want a refined, race-level endurance build.
FrameTorayCa M40X, eTiCR cable routing, Italian BB, UCI approved
ForkNew eTICR Onda Fork, ForkFlap, 1.5 steerer
GroupsetShimano Dura-Ace Di2 2x12 DB
WheelsetPrinceton GRIT 4540 DB
Integrated handlebarMOST Talon Ultra Fast
SaddleMOST Lynx Ultrafast Superflow L Carbon Large 145mm
SeatpostPinarello Aero Seatpost with 3D Titanium Clamp
Tire clearance35mm
Geometry and dimensions
Official New DOGMA X geometry values are shown below. Measurements are listed in millimetres unless otherwise noted.
| Size | CE | CC | L | A [deg] | B [deg] | P | T | D | R | G | Reach | Stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 43 | 415 | 430 | 505 | 74.4 | 70 | 422 | 111 | 77 | 47 | 375 | 349.3 | 524.2 |
| 46 | 425 | 465 | 515 | 74.4 | 70 | 422 | 123 | 77 | 47 | 375 | 358.1 | 535.5 |
| 50 | 450 | 500 | 525 | 74 | 70.5 | 422 | 128 | 77 | 47 | 375 | 365.4 | 542.1 |
| 51.5 | 470 | 515 | 535 | 73.7 | 71 | 422 | 133 | 77 | 47 | 375 | 371.7 | 548.6 |
| 53 | 495 | 530 | 545 | 73.7 | 71.5 | 422 | 142 | 77 | 47 | 375 | 379.4 | 559 |
| 54 | 510 | 540 | 552 | 73.4 | 72 | 422 | 150 | 77 | 47 | 375 | 381.2 | 568.4 |
| 55 | 520 | 550 | 557 | 73.4 | 72 | 422 | 161 | 77 | 47 | 375 | 383 | 578.9 |
| 56 | 525 | 560 | 565 | 73 | 72.5 | 422 | 169 | 77 | 47 | 375 | 384.6 | 588.4 |
| 57.5 | 540 | 575 | 575 | 73 | 72.8 | 422 | 182 | 77 | 47 | 375 | 390.8 | 601.7 |
| 59.5 | 560 | 595 | 595 | 72.4 | 73 | 422 | 218 | 72 | 47 | 375 | 395.3 | 632 |
| 62 | 600 | 620 | 620 | 72 | 73 | 422 | 258 | 72 | 47 | 375 | 403.8 | 670.3 |
CE: Seat tube center-end. CC: Seat tube center-center. L: Top tube center-center. A: Seat tube angle. B: Head tube angle. P: Chainstay. T: Headtube. D: BB drop. R: Fork rake. G: Fork height.
FAQ
Is the New DOGMA X an endurance bike?
Yes, but it should be understood as a premium endurance race bike. It is built for long distances while preserving Pinarello speed, handling and efficiency.
What tire clearance does the New DOGMA X have?
The New Aero-Keel BB design provides generous 35mm tire clearance for modern tubeless performance, comfort and control.
What carbon fibre is used?
The frame uses TorayCa M40X carbon with eTiCR cable routing, Italian bottom bracket construction and UCI approval.
What colours are available?
Etna Lucente, Jade Eclipse, Moonlight Frost and Aqua Veil.
What sizes are available?
43, 46, 50, 51.5, 53, 54, 55, 56, 57.5, 59.5 and 62.
