Description:
01 / THE RACE FORMULA
Road racing without a single-terrain bias

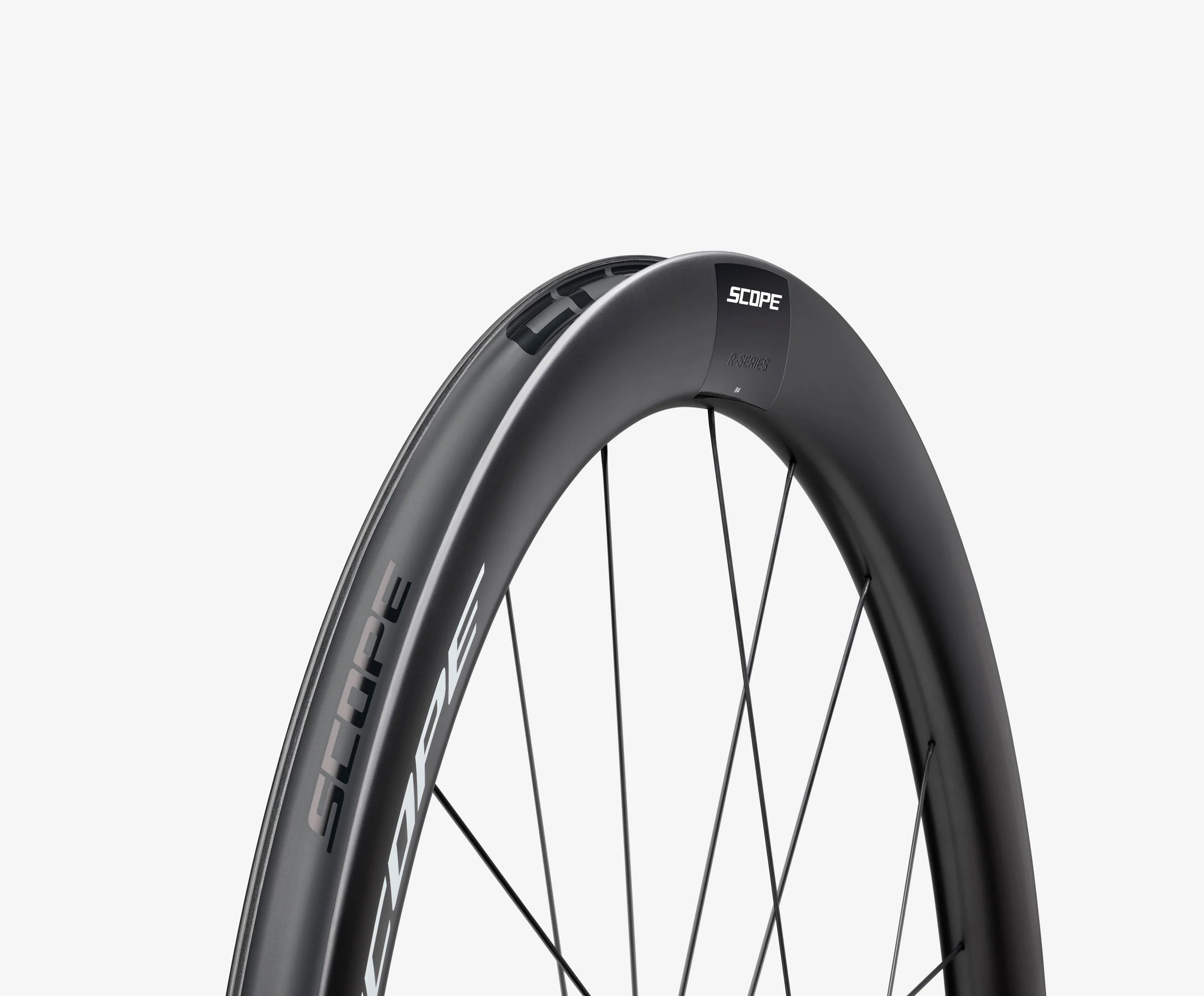

A road race can demand everything in one afternoon: repeated accelerations, technical turns, fast open roads and a climb with no place to hide. The R4 is built for that broad racing brief. Its 45 mm AEA-developed profile and 23 mm hooked inner rim target modern 28 mm road tires, while the mechanical labyrinth system is designed to protect the hubs through repeated use.
03 / RACE DEVELOPMENT
The details behind race-day speed.
The Race approach combines AEA-optimized carbon rims, Sapim CX-Ray spokes and a 36T Diamond Ratchet SL engagement system in a wheelset built for competition and training.

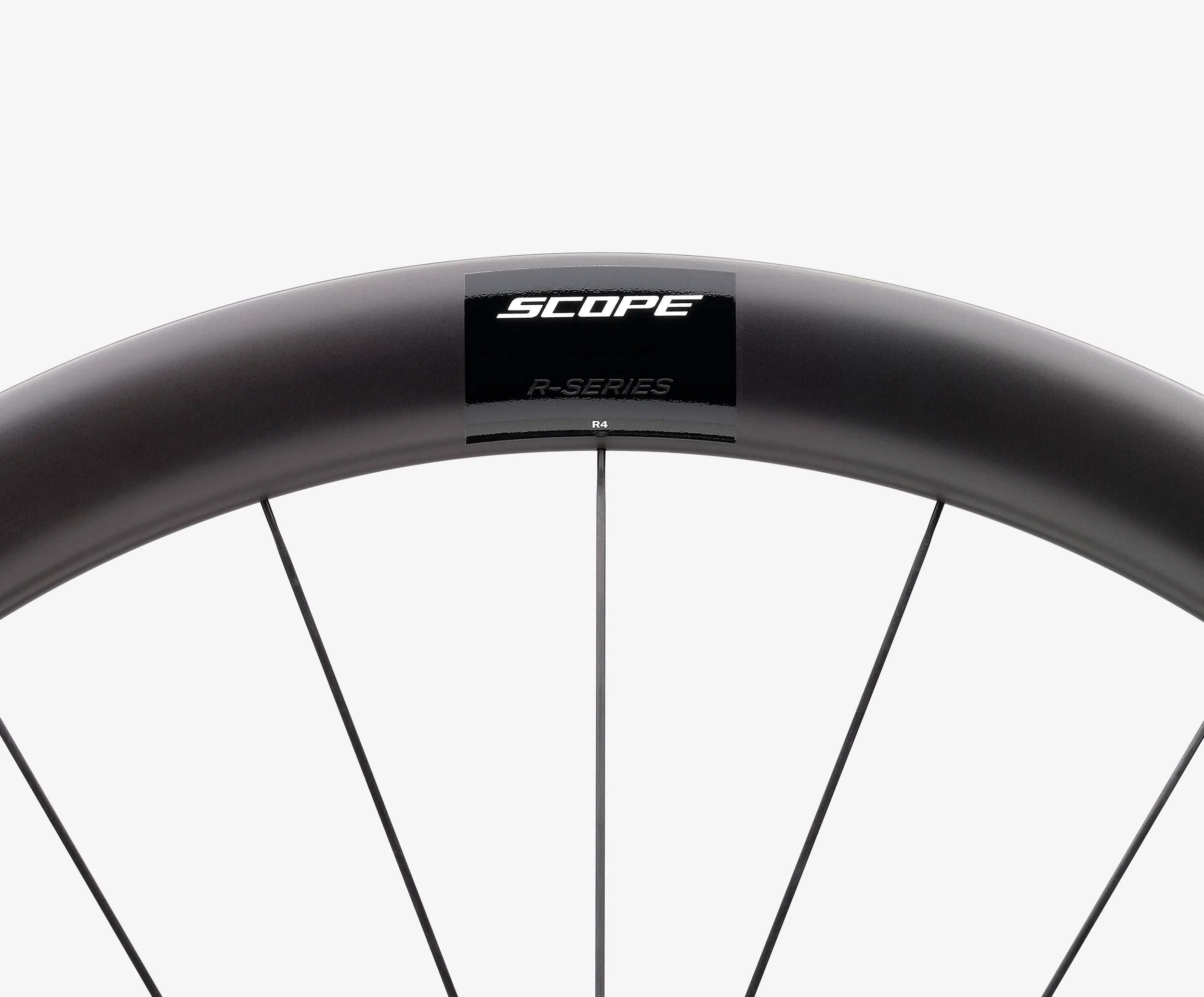

RACE RIM AERODYNAMICS
Scope uses aerodynamic profiles derived from Artech development but without the Artech Aeroscales outer surface.
SAPIM CX-RAY SPOKES
The Race system uses conventional steel aero spokes rather than the flagship Artech carbon spokes.

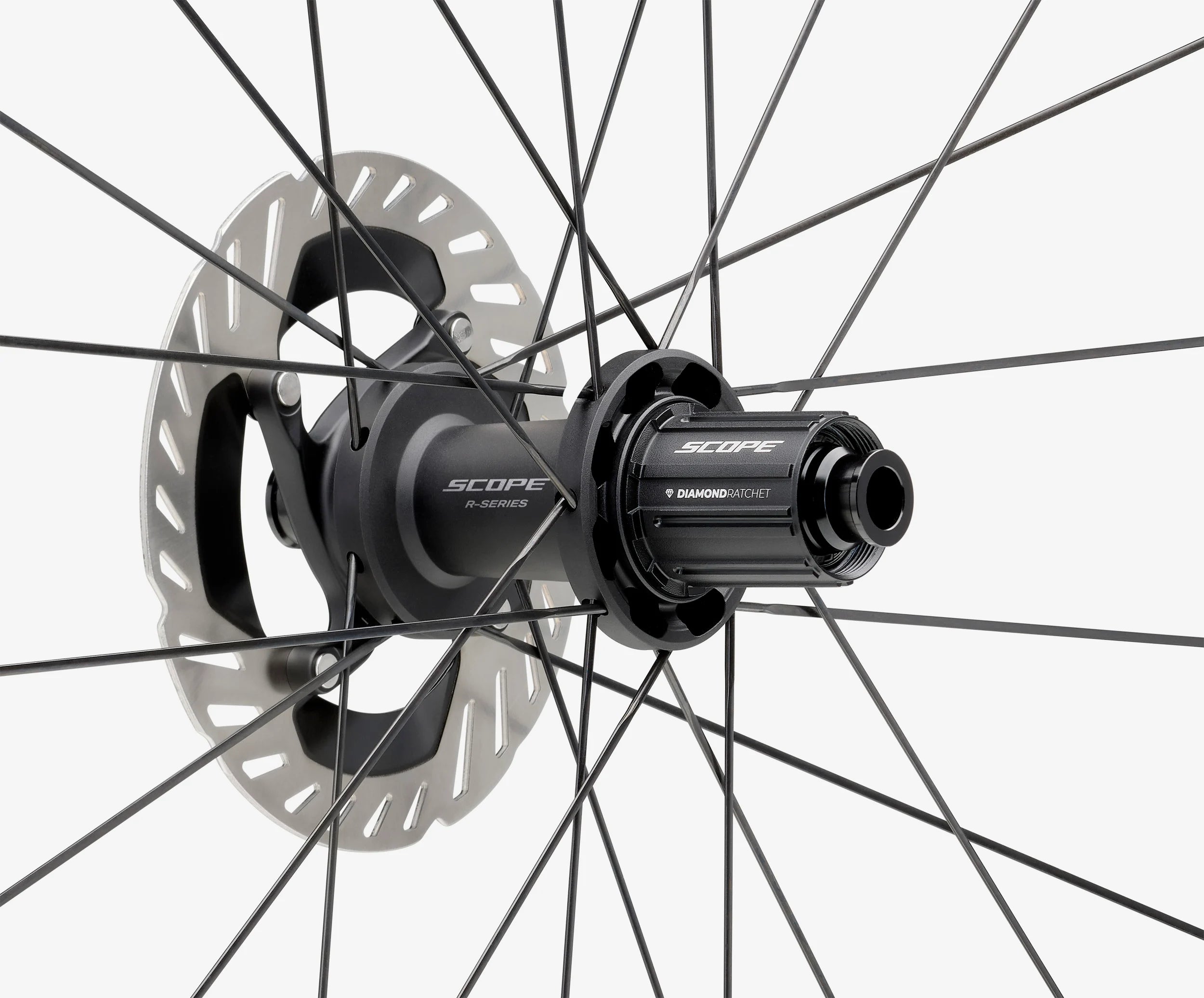

HUB LABYRINTH
Mechanical labyrinth sealing is designed to help shield the hub against dirt and improve long-term durability.
THE SCOPE RANGE / THREE DISTINCT APPROACHES
Find your place in the Scope family.
Sport, Race and Artech share Scope's focus on carbon wheel performance. The difference is in the construction, technology and application; always compare the exact models and compatibility before choosing.
SPORT
Proven carbon performanceStraightforward upgrade choice, Sport-series hubs and accessible ride-specific technology.
RACE / THIS MODEL
Race-built speedArtech-derived rim profiles and race-oriented hub and spoke systems; details vary by model.
ARTECH
Flagship materialsAdvanced Artech construction, including its distinctive premium hub, spoke and aero technologies as specified by model.
Complete model specifications / Before you buy
Scope R4 technical reference
Rim and tire dimensions, hub architecture, wheel weight, axle and braking information in one place. Manufacturer-listed wheel mass is not shipping weight. Tire compatibility requires confirmation against the tire manufacturer and your exact bicycle.
| Category / riding discipline | Road |
|---|---|
| Series | Race |

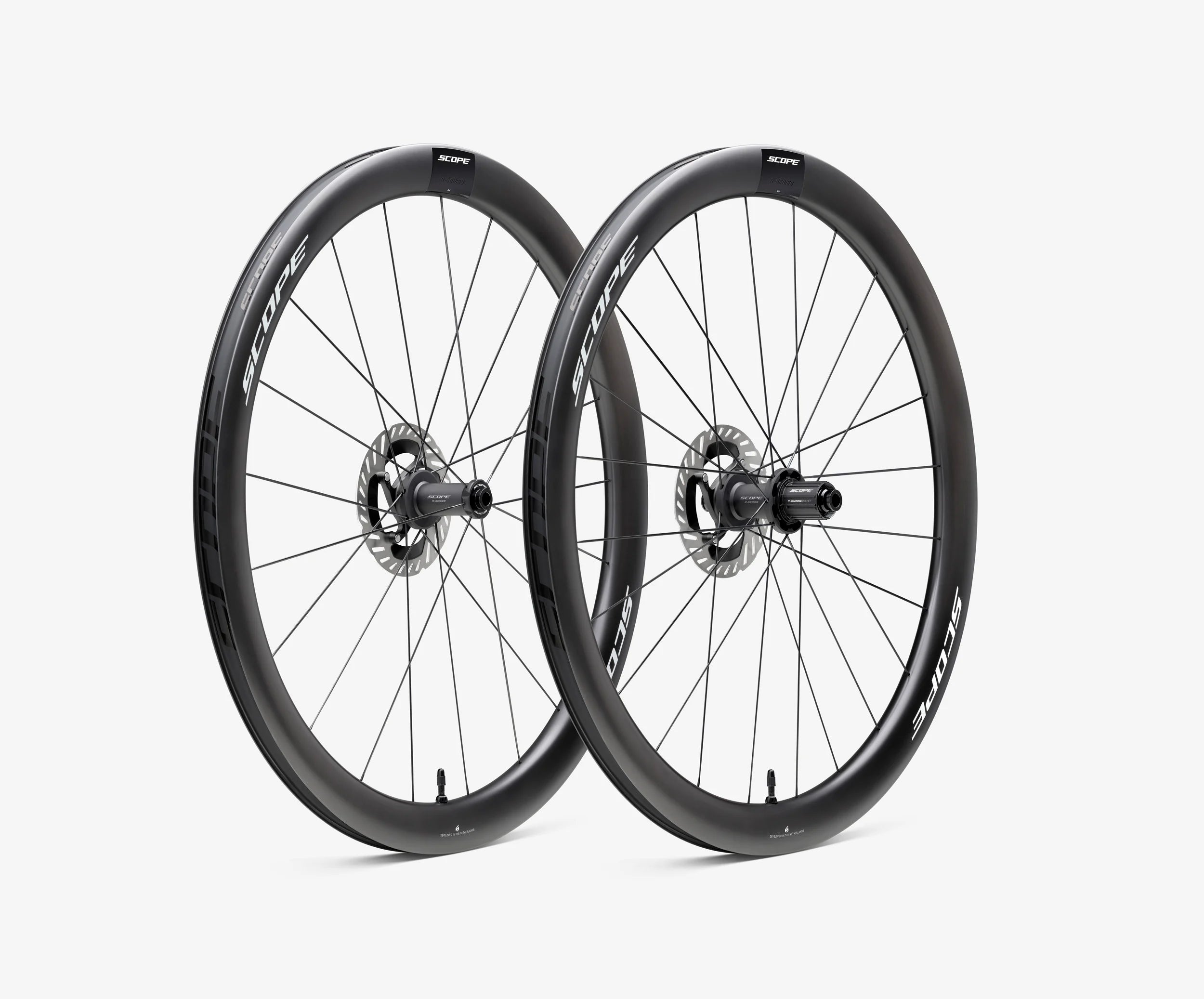

| Package contents | Complete front-and-rear wheelset |
| Manufacturer-listed wheel weight | 1,349 g |
| Rim depth / construction | 45 mm |
| External rim width | 31 mm |
| Internal rim width | 23 mm |
| Tubeless readiness | Yes (as listed by Scope) |
| Rim bead interface | Hooked |
| Optimum tire width | 28 mm |
| Manufacturer tire-width compatibility | 28–65 mm |
| Manufacturer maximum tire pressure | 8.6 bar / 125 psi |
| Rider-weight guidance | No rider-weight limit stated by Scope for this model |
| Hub system | Scope R-Series |
| Hub bearings | Front: 2 × SKF 61803; rear: 3 × SKF 61803 + 1 × SKF 61903 |
| Freehub / engagement | 36T Diamond Ratchet SL |
| Axle fit | Front: 12 × 100 mm; rear: 12 × 142 mm thru axles |

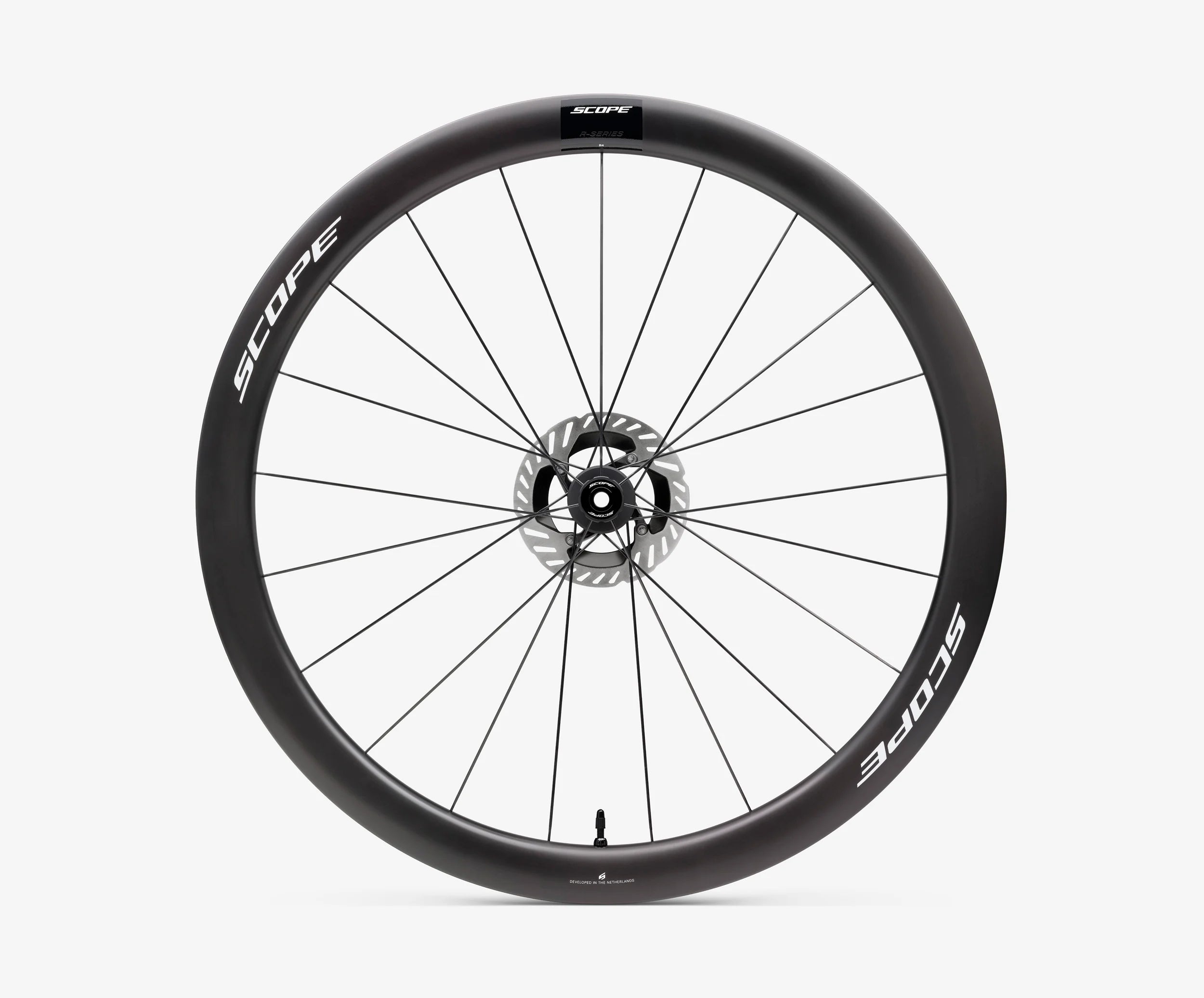

| Brake interface | Centerlock disc brake |
| Spoke layout | 21 front / 24 rear — Sapim CX-Ray |
| Hub sealing | Mechanical labyrinth system as specified for Scope R-series wheelsets |
Fit & function / Important decisions
Know what you're buying.
This listing is for a front and rear wheel. Select the correct cassette/freehub configuration above.
Scope identifies a hooked tubeless-ready tire bed; check the specific tire manufacturer’s rim-width approvals.
Confirm axle interface, tire clearance and the selected variant before ordering.
Configuration / Exactly the right version
Select the correct factory build.
The variant selector determines which Scope manufacturer SKU and barcode you order. Choose options appropriate to your bike; if a variant is unavailable, contact Brimstone before substituting another freehub or braking configuration.
- Freehub Body
- Shimano HG, Shimano Micro Spline, SRAM XDR, Campagnolo, Campagnolo N3W
- Decal Color
- White, Black
- Bearings
- SKF / Standard
More Scope options / Compare intelligently
Where this wheel sits in the range.
Compare the rim depth, tire interface and intended discipline before choosing a model. For technical fit questions, Brimstone can check the specification of your bicycle.
Compare Scope models: R6 — Road wheels · R4.A — All-Road wheels · Artech 4 — Road wheels
Scope wheelset / Compatibility answers
Frequently asked questions about Scope R4
How does R4 differ from Artech 4?
Both target a 45 mm road rim profile and 28 mm tires, but R4 uses Race-series hubs and Sapim CX-Ray spokes without Artech’s Aeroscales finish or 3D-printed hub architecture.
What is included in the Scope R4 listing?
Complete front-and-rear wheelset. Tires, cassettes, rotors and accessories are included only if specifically listed in the Scope package details.
What does the Scope R4 weigh?
Scope publishes 1,349 g as its wheel weight. It is not a shipping-package weight, and actual manufactured weights can vary.
Which tire should I use with the Scope R4?
Scope identifies a 23 mm internal rim and 28 mm optimum tire width. The tire manufacturer must approve the tire on this particular rim width and bead system, and the frame must provide adequate clearance.
Will it fit my bike?
Check the axle standard, brake interface, tire clearance, and any rear cassette/freehub compatibility. A wheel-model name is not enough to establish drivetrain compatibility.
Can Brimstone help confirm compatibility?
Yes. Brimstone Bicycles can help you check rim/tire approval, axle type and—when applicable—the correct freehub body before you order.
What’s supplied / Warranty guidance
The wheel and the support behind it.
Tubeless valve(s) and tubeless tape (pre-installed), per Scope product page.
Scope lists a limited three-year manufacturer warranty on Race and Sport wheels purchased from Scope or an official Scope dealer. It applies to the original purchaser, subject to product registration within 30 working days and Scope’s published coverage and exclusions. Crash replacement is a separate manufacturer program; promotional trial and free-shipping terms are not promised by Brimstone.
Use the Scope warranty information and Scope crash replacement information for current terms.
