WILIER TRIESTINA / VERTICALE SLR
Keep something for the summit.
RED AXS, a factory-specified power meter and a sub-1:1 low gear. A Verticale build for riders who pay attention to the whole climbing package.
RED AXS + power meter / Kleos RD 36 Carbon01 / A BIKE WITH A POINT OF VIEW
For the roads
that rise.
A lightweight bike is only part of the story when the climb gets steep. Gearing matters too. This Verticale SLR combines SRAM RED AXS E1, a power-meter crankset and Miche Kleos RD 36 Carbon wheels with CeramicSpeed bearings. Its listed complete-bike reference weight is 6.69 kg, plus or minus five percent, while the 48/35T crankset and 10-36T cassette give it a distinct climbing advantage in gearing among these eight configurations.
SRAM RED AXS E1 2x12 + power meter
Miche Kleos RD 36 Carbon / CeramicSpeed
48/35T chainrings / 10-36T cassette
Standard-finish build from $13,900. Custom-paint prices vary. The selected color and size determine the final item code and price.
Configuration references: E508TBK / E708TBKR. Dealer catalogue collection: 2027.
The 6.69 kg figure is the supplied nominal complete-bike reference, with +/-5% tolerance. Size, paint and final equipment can change actual weight. It is not the boxed shipping weight. Photographs are manufacturer display bikes and may show different components, accessories or finishes. The specification below defines this product.
02 / THE UNDERLYING PLATFORM
Lightness starts
with the frame.
The Verticale SLR specification combines Toray T800, T1100 and M46JB carbon in the monocoque frame and fork. The frame reference is 720 g and the fork reference is 320 g, each with a stated +/-5% tolerance.
Those numbers are individual component references, not a ready-to-ride total. Across these eight builds, the same listed frame platform is paired with different drivetrains, wheels and finishing parts. That is where choosing your particular Verticale becomes meaningful.
03 / WHY THIS CONFIGURATION
Your build.
Your priorities.
Choose this RED build when you want power measurement, the RD 36 wheel package and the lowest listed low-gear ratio in this group. That is a gearing comparison, not a promise of greater speed: the right fit, tires and your preferred controls remain central to the choice.
Gearing, explained without the guesswork
The 35/36 smallest combination is approximately 0.97:1, below 1:1. The 48/10 largest combination is 4.80:1. Together they distinguish this bike from both Force builds, which use a 10-33T cassette, and from the Dura-Ace power-meter build with 52/36T and 11-30T. The power meter is included in the specified FC-RED-P-E1 crankset.
Wheels and finishing kit
The Kleos RD 36 wheels list CeramicSpeed bearings, but this SRAM build uses a SRAM DUB 86.5 PressFit Road bottom bracket, not the Miche CeramicSpeed bottom bracket listed on the Dura-Ace/RD 36 bikes. Braking uses SRAM Paceline X rotors at 160 mm front and rear. Those details are kept separate rather than extending one build's specifications across the entire range.
Choose the bike for the climbs you ride, the gears you use and the way you want to feel at the top.
04 / COLOR IS PART OF THE EXPERIENCE
Quiet confidence.
Or something unmistakable.

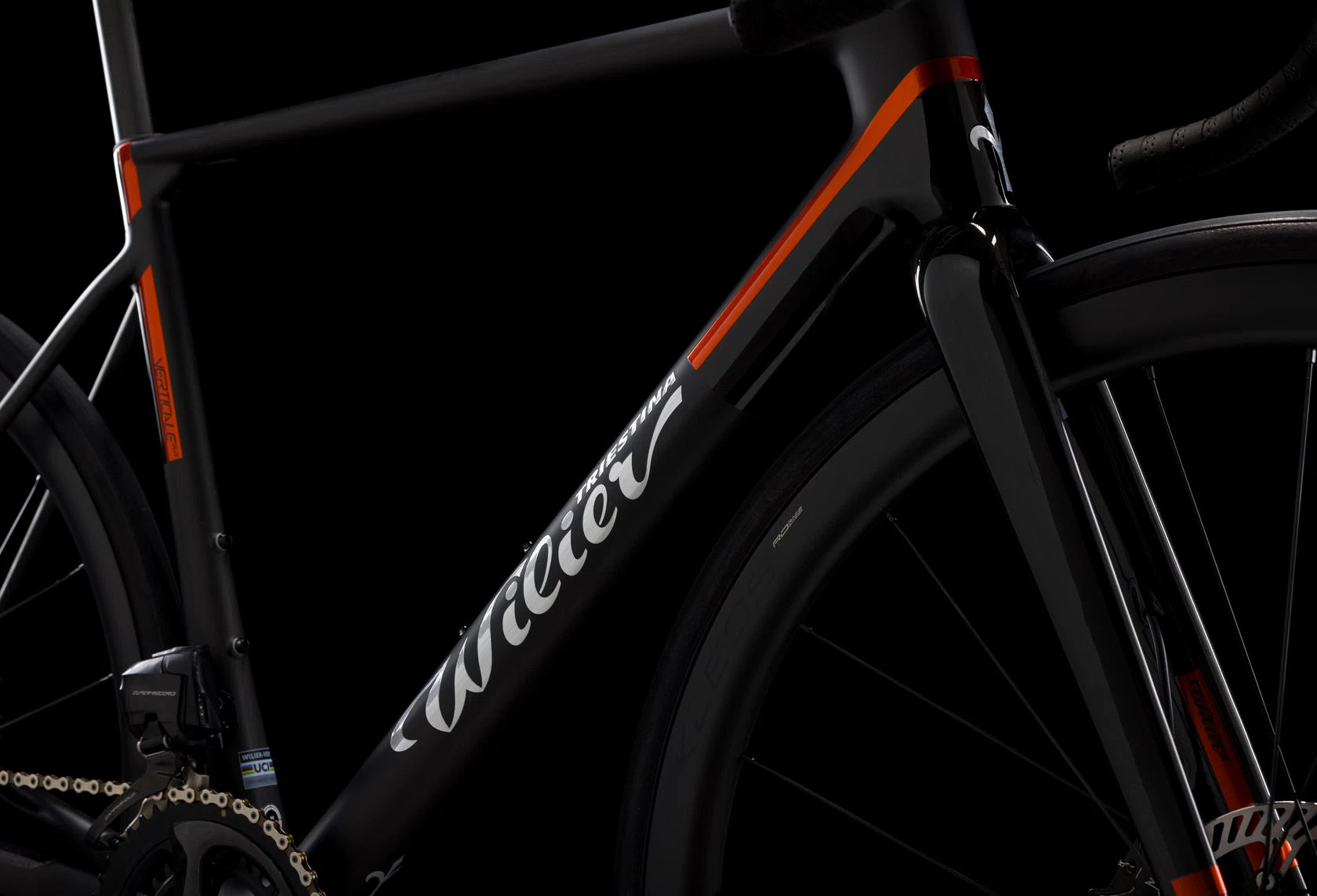

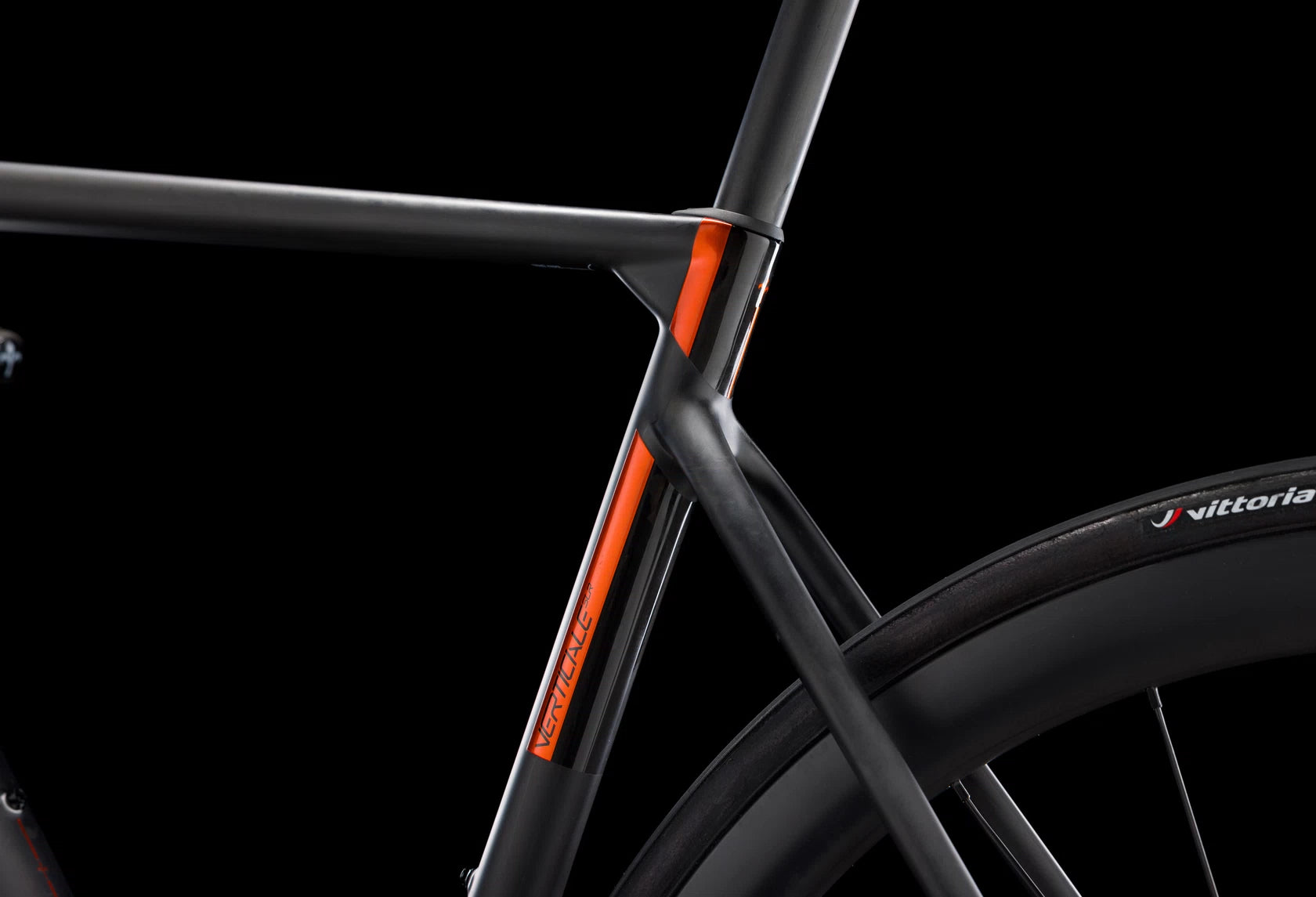

Core Black brings a dark foundation with orange accents. Sea Black combines black, white and gold detailing. Coral Bloom moves through lavender, orange and white. The gallery gives each finish its own space, without changing the equipment selected for this product.

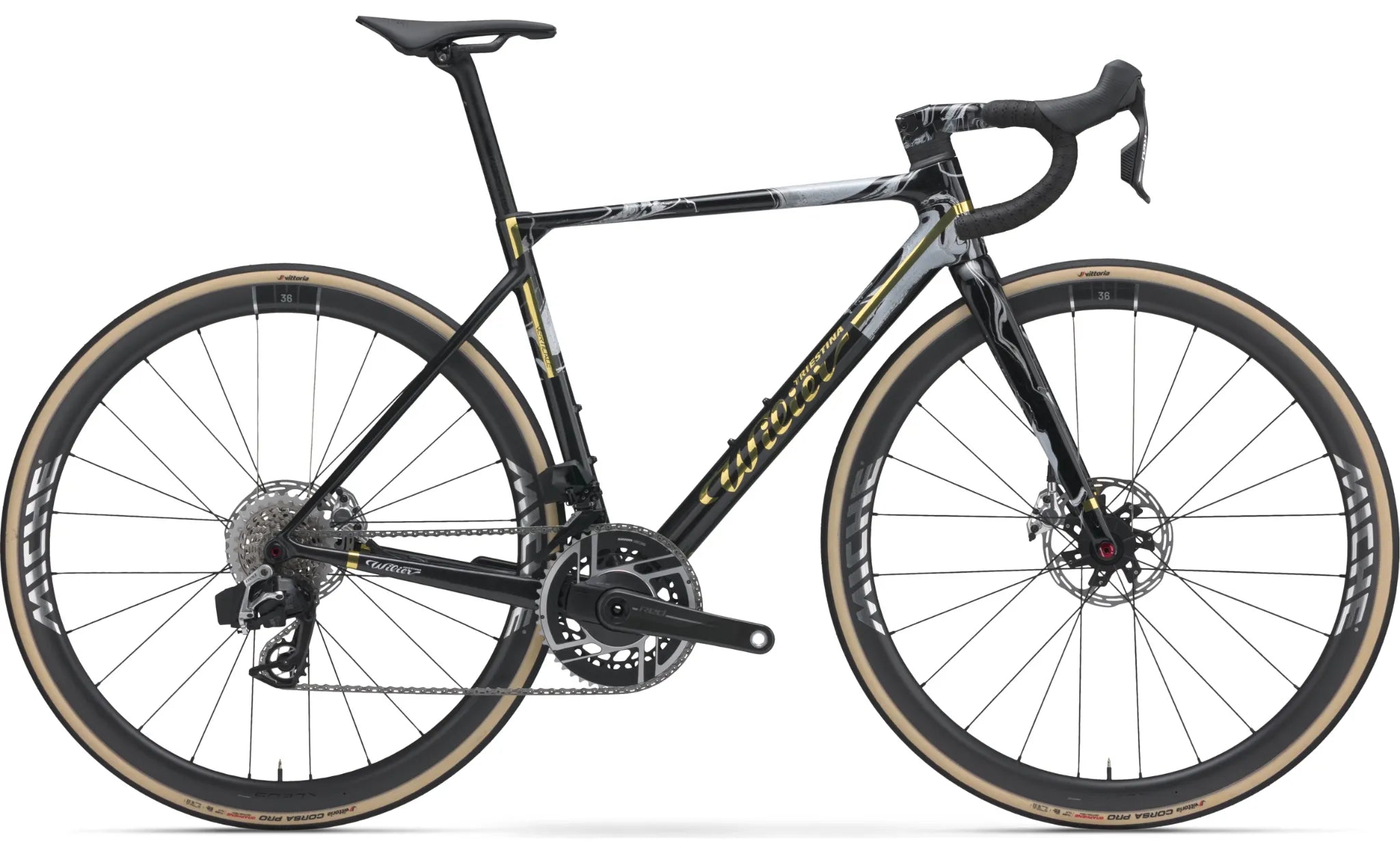

Sea Black / Q6
Color-reference display bike. Equipment may differ from this product.
Catalogue sizes: XS, S, M, L, XL, XXL.

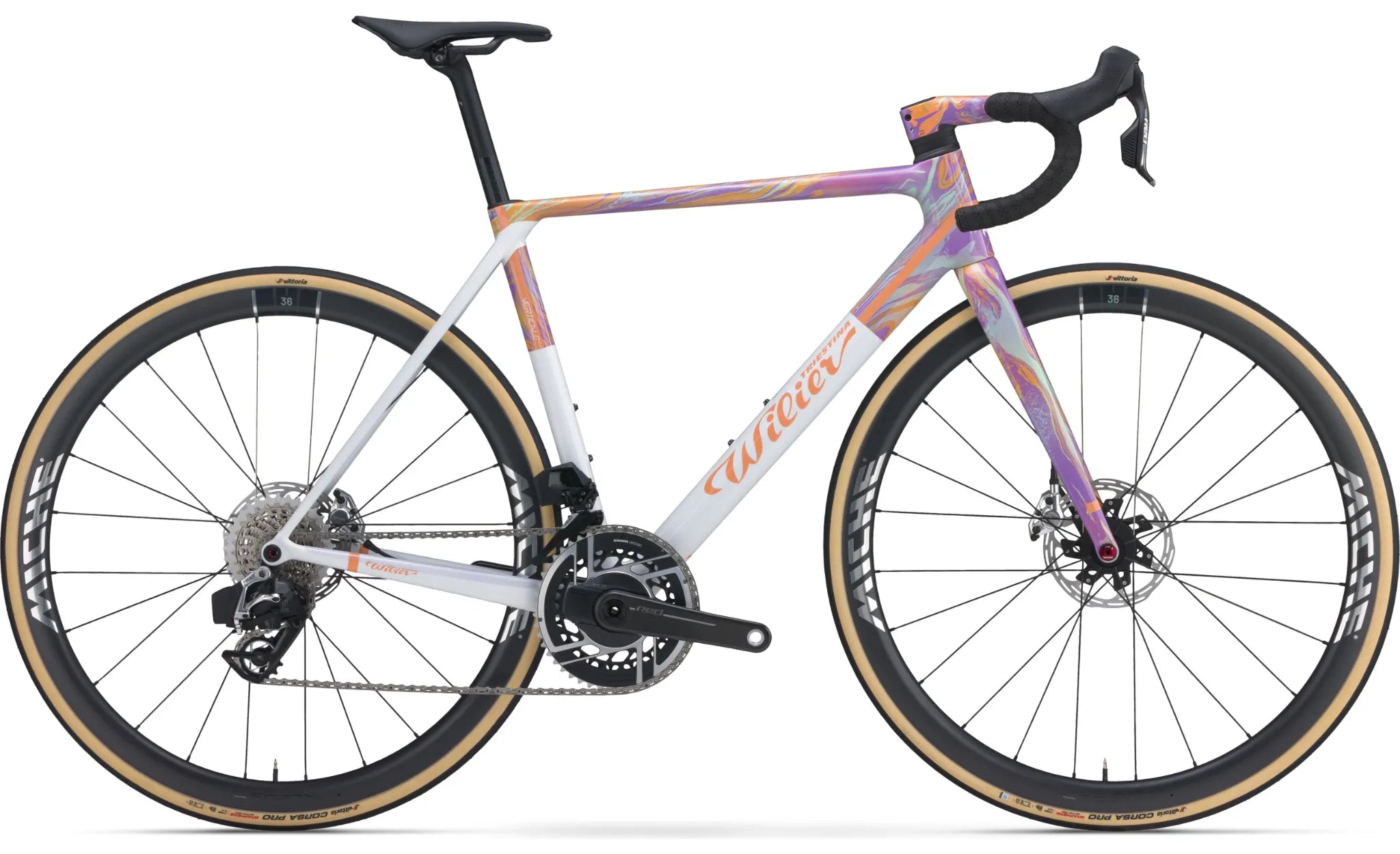

Coral Bloom / Q7
Color-reference display bike. Equipment may differ from this product.
Catalogue sizes: XS, S, M, L, XL, XXL.

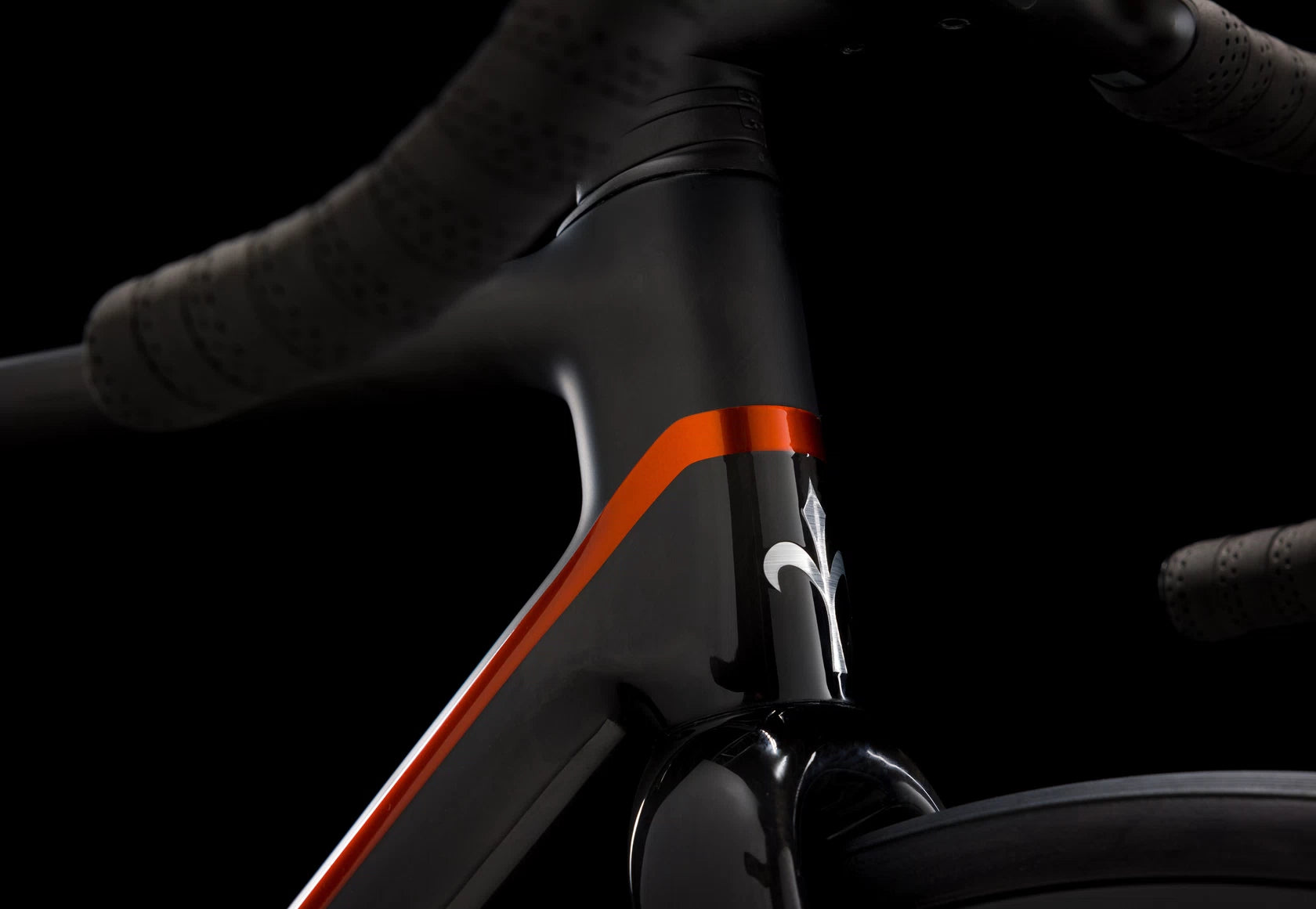

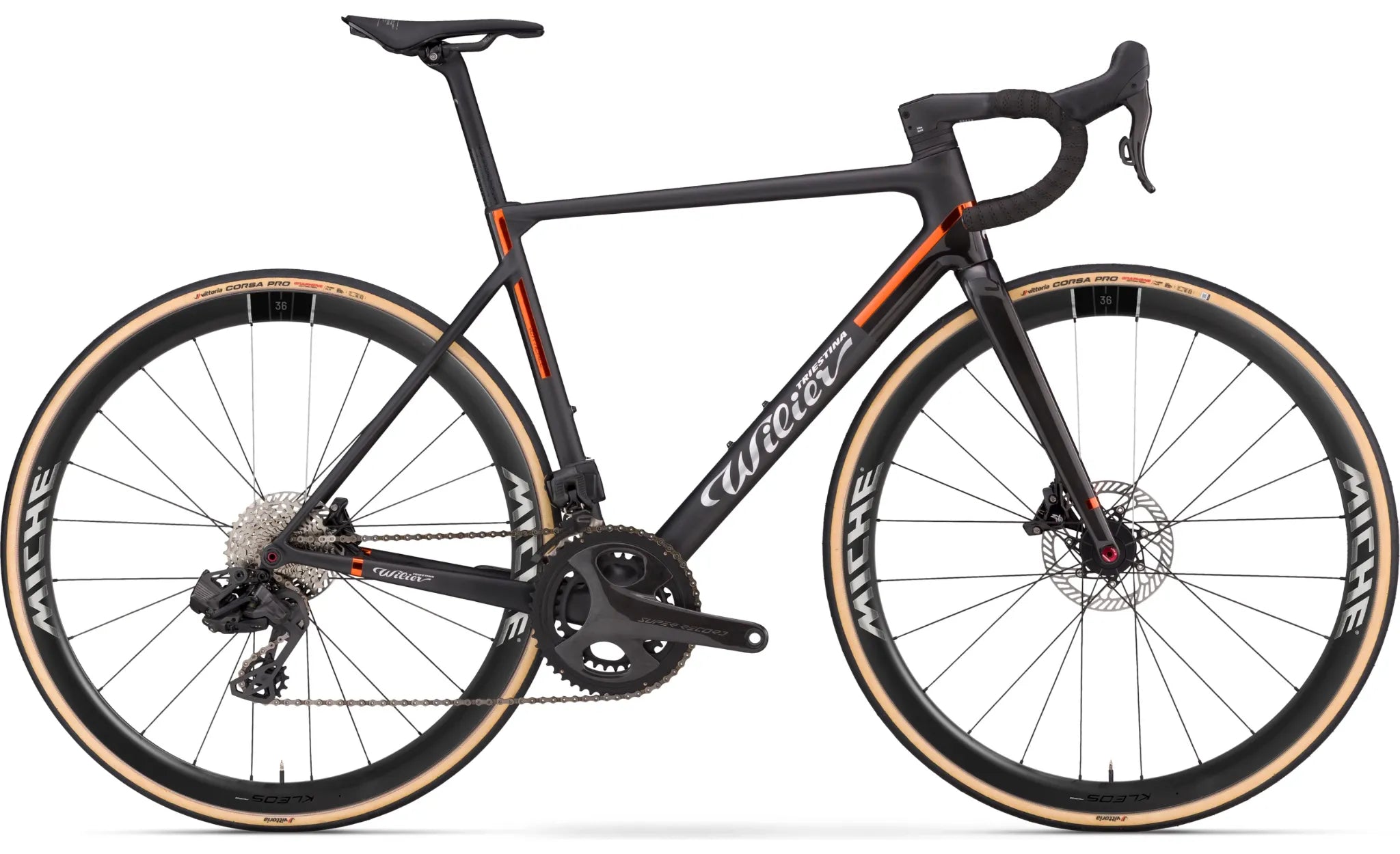

Core Black / Q1
Color-reference display bike. Equipment may differ from this product.
Catalogue sizes: XS, S, M, L, XL, XXL.
Infinitamente - Custom Paint / QA
Custom paint reference only. Final artwork and quotation require confirmation.
Catalogue sizes: XS, S, M, L, XL, XXL.
The supplied catalogue lists custom-paint variants for XS through XXL; final artwork and ordering details require confirmation. A catalogue listing is not a live stock confirmation or a guaranteed delivery date.
05 / THE DETAILS YOU KEEP LOOKING AT
Beyond a color swatch.

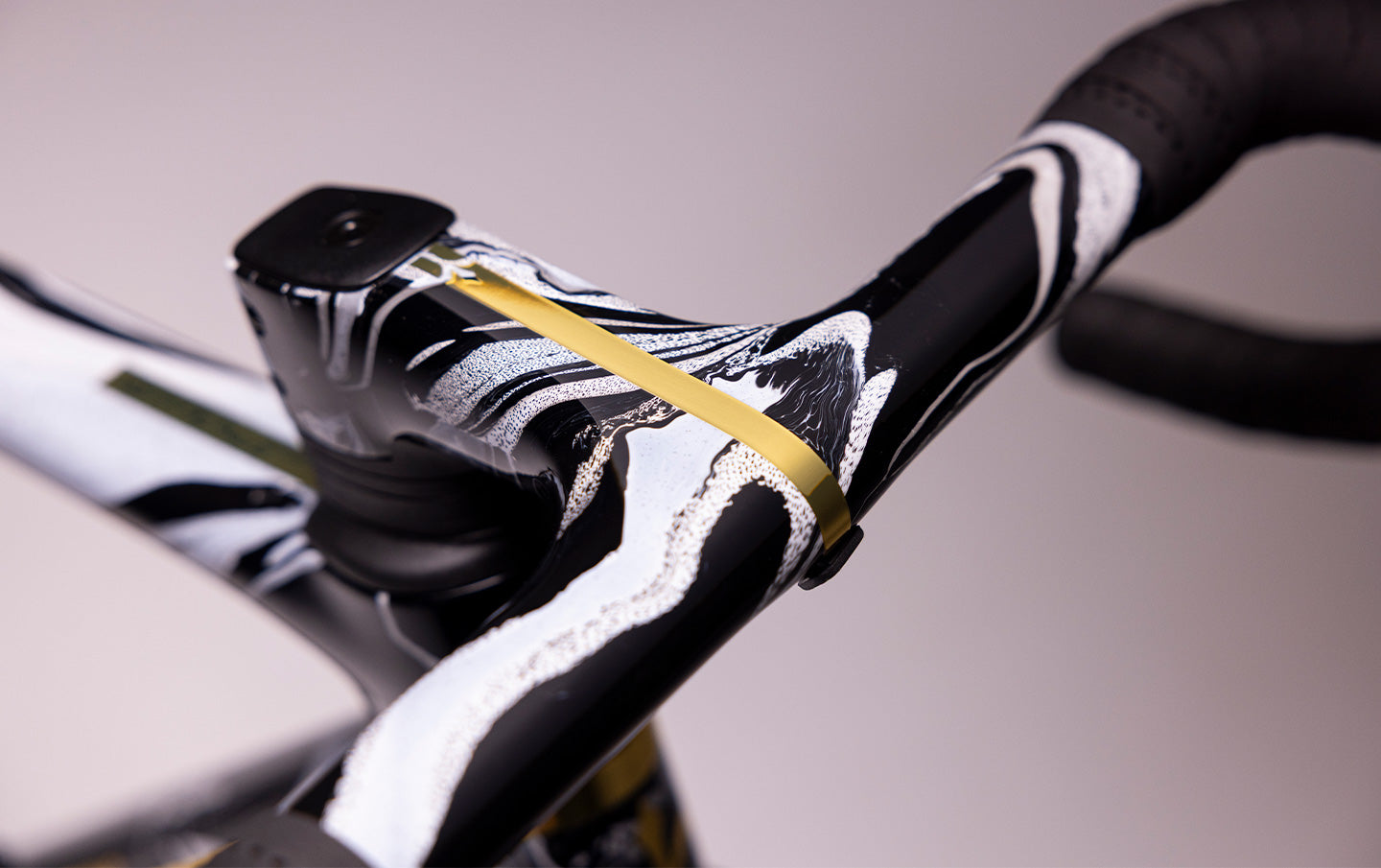

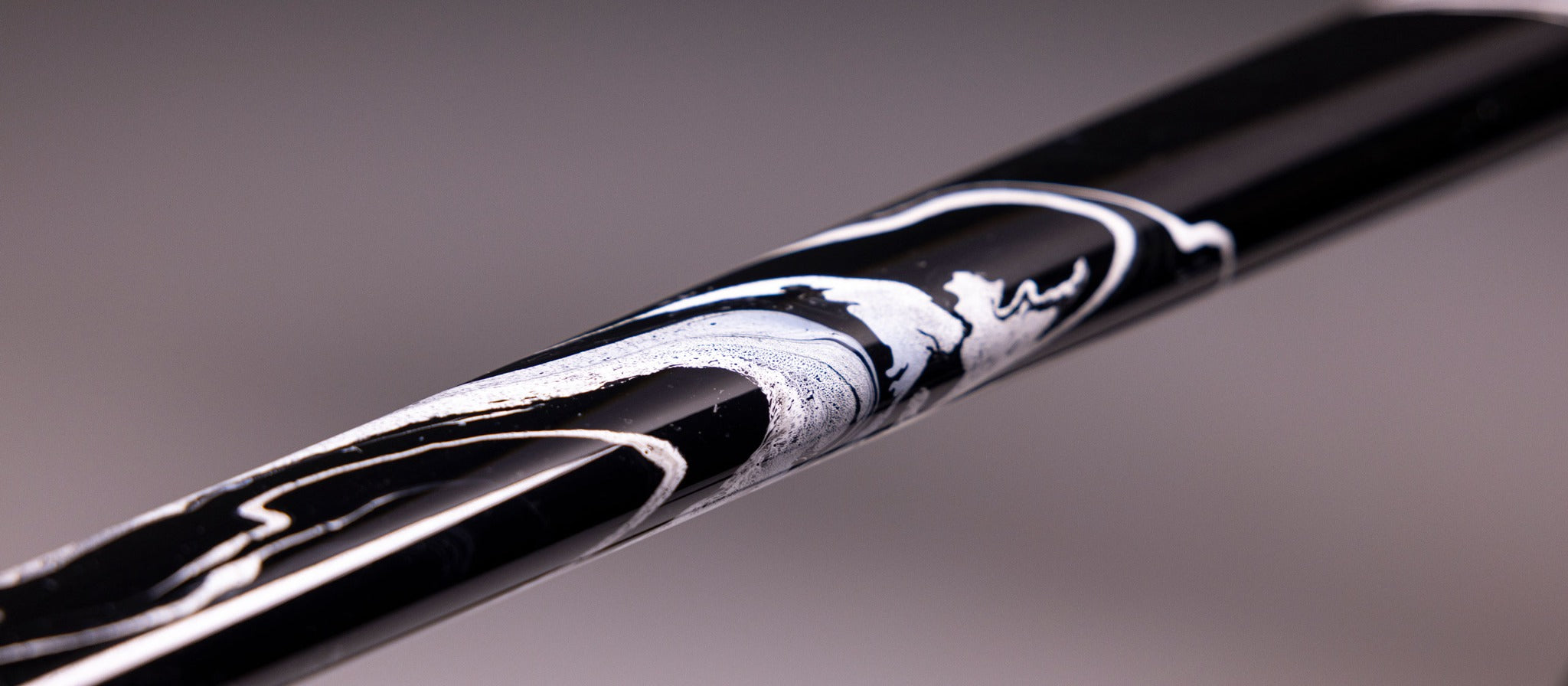

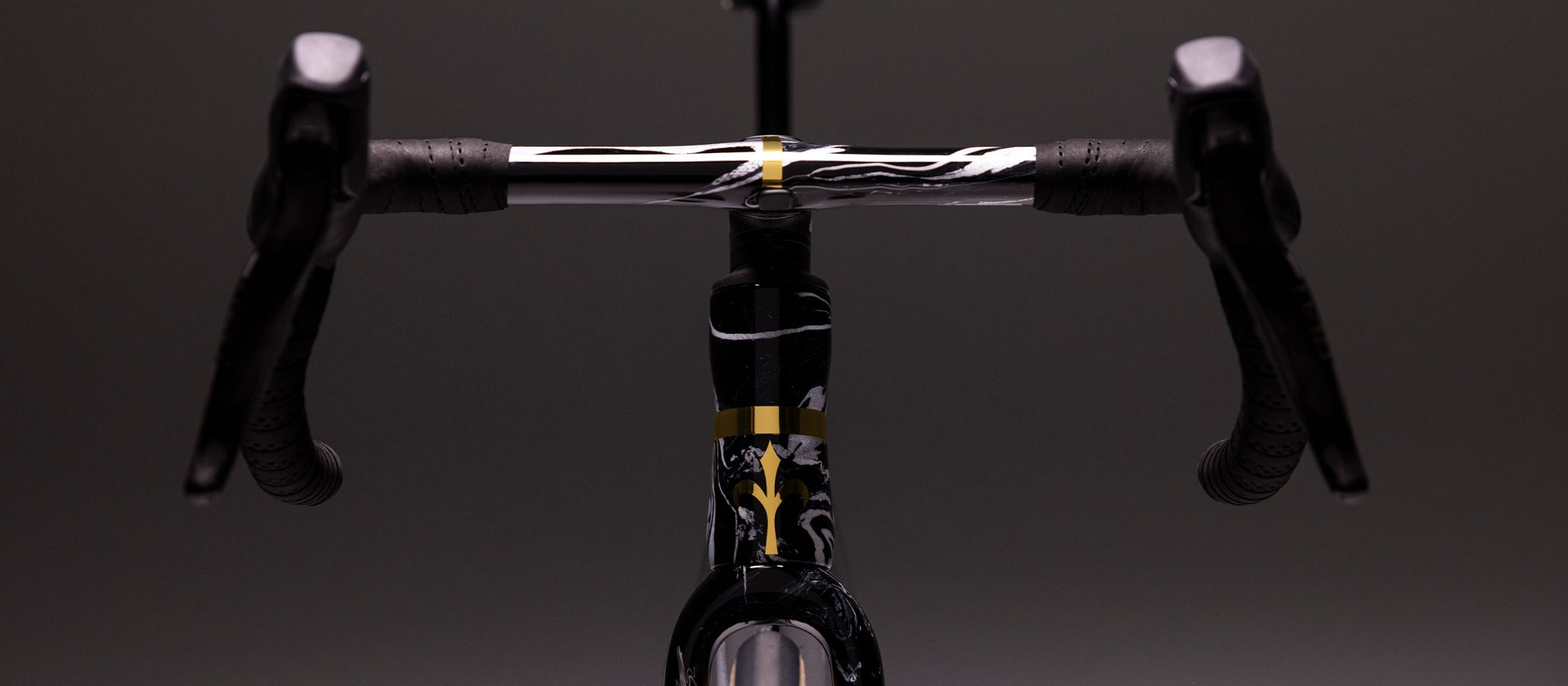

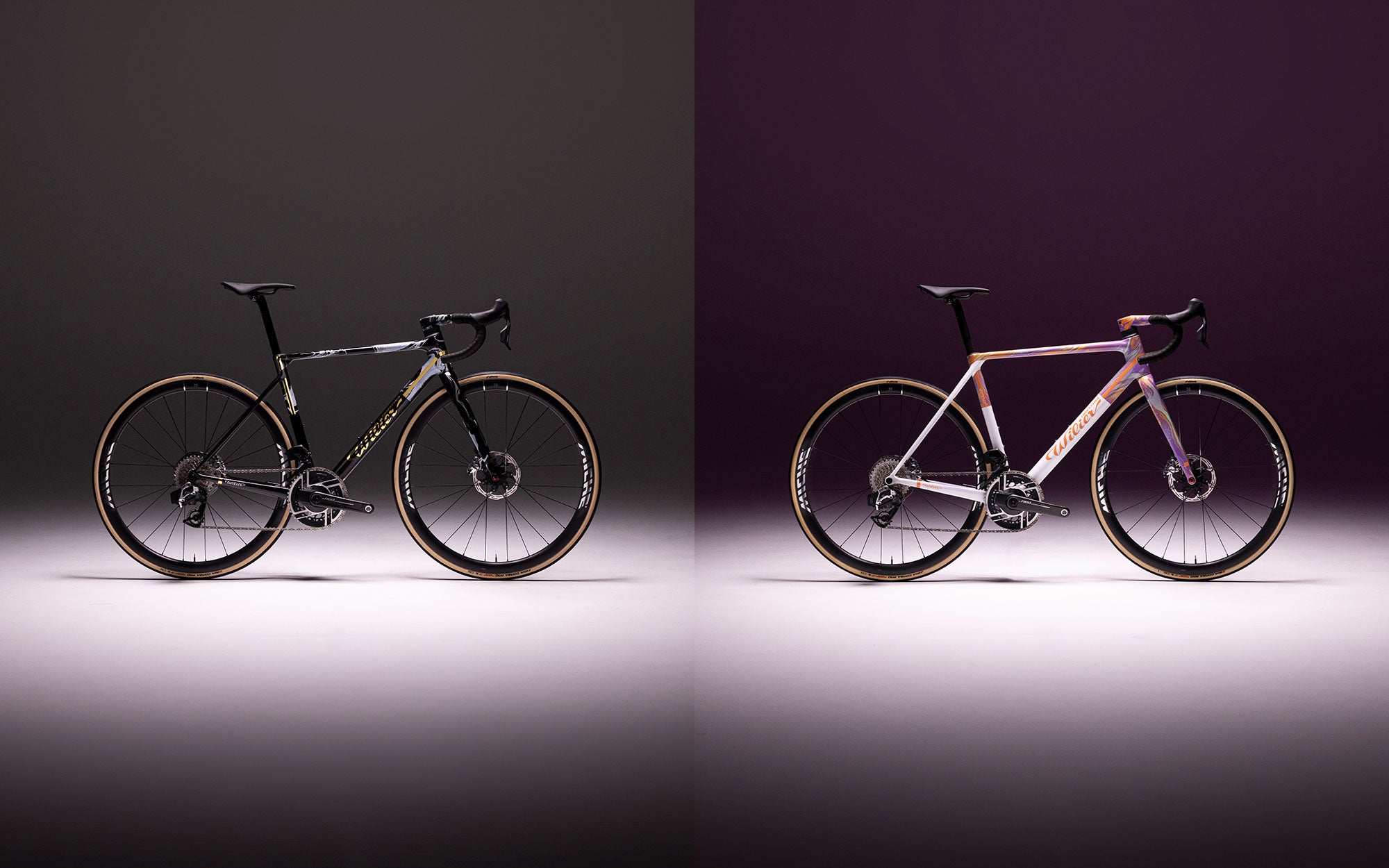

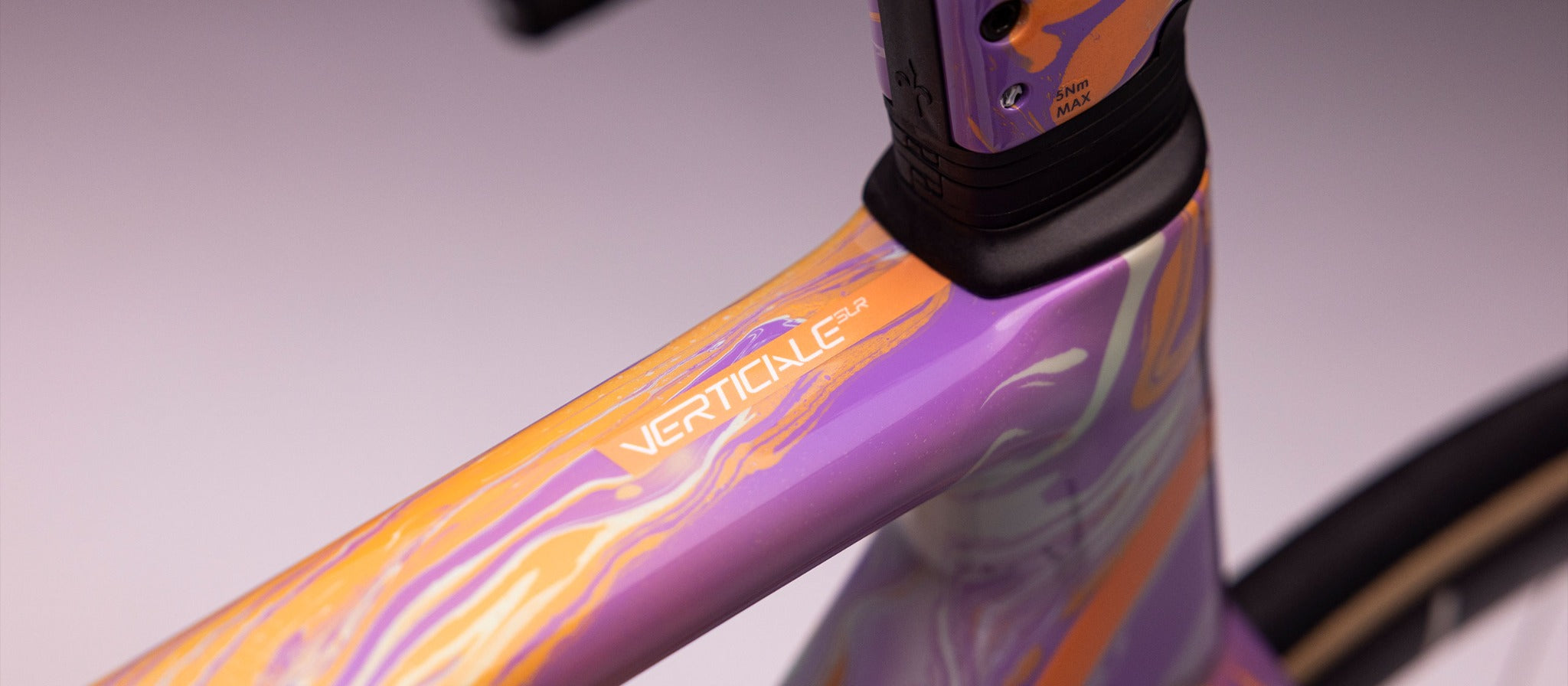

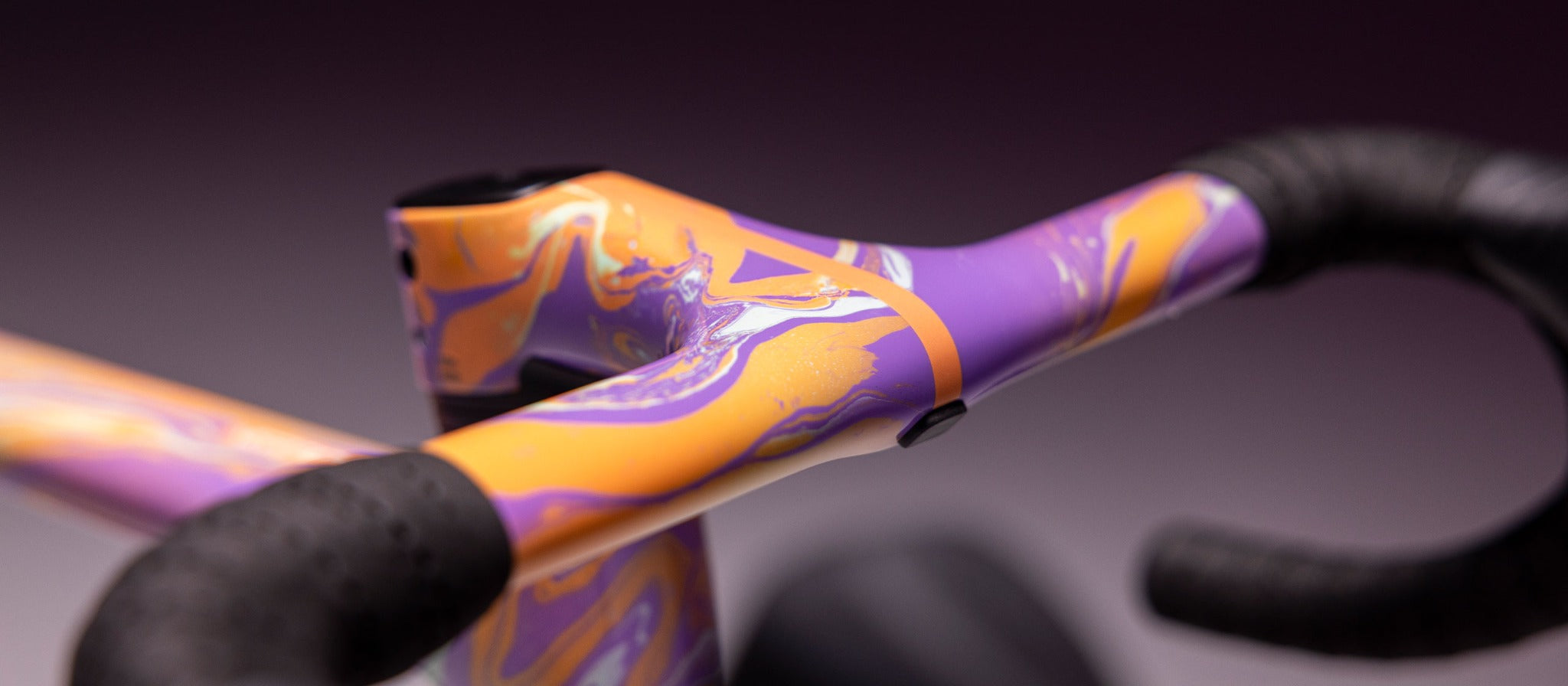

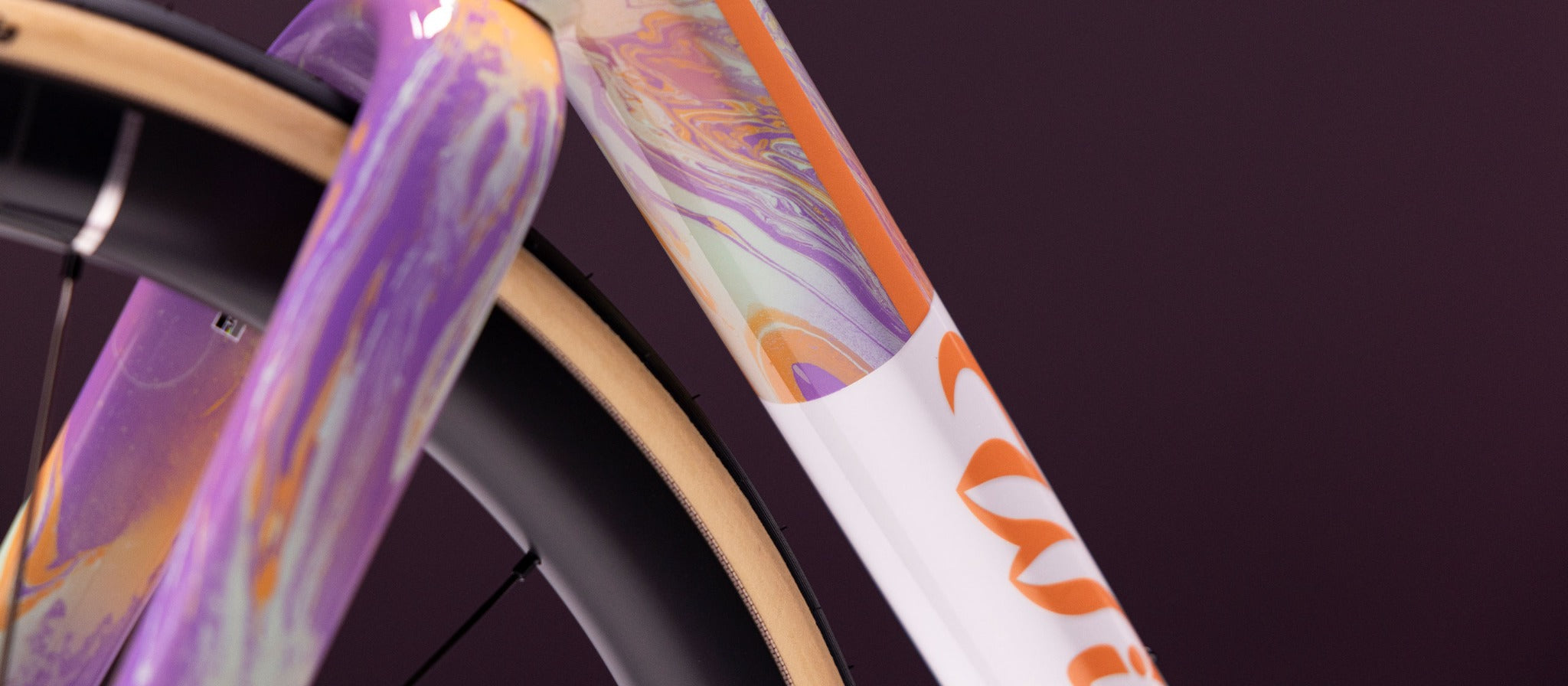

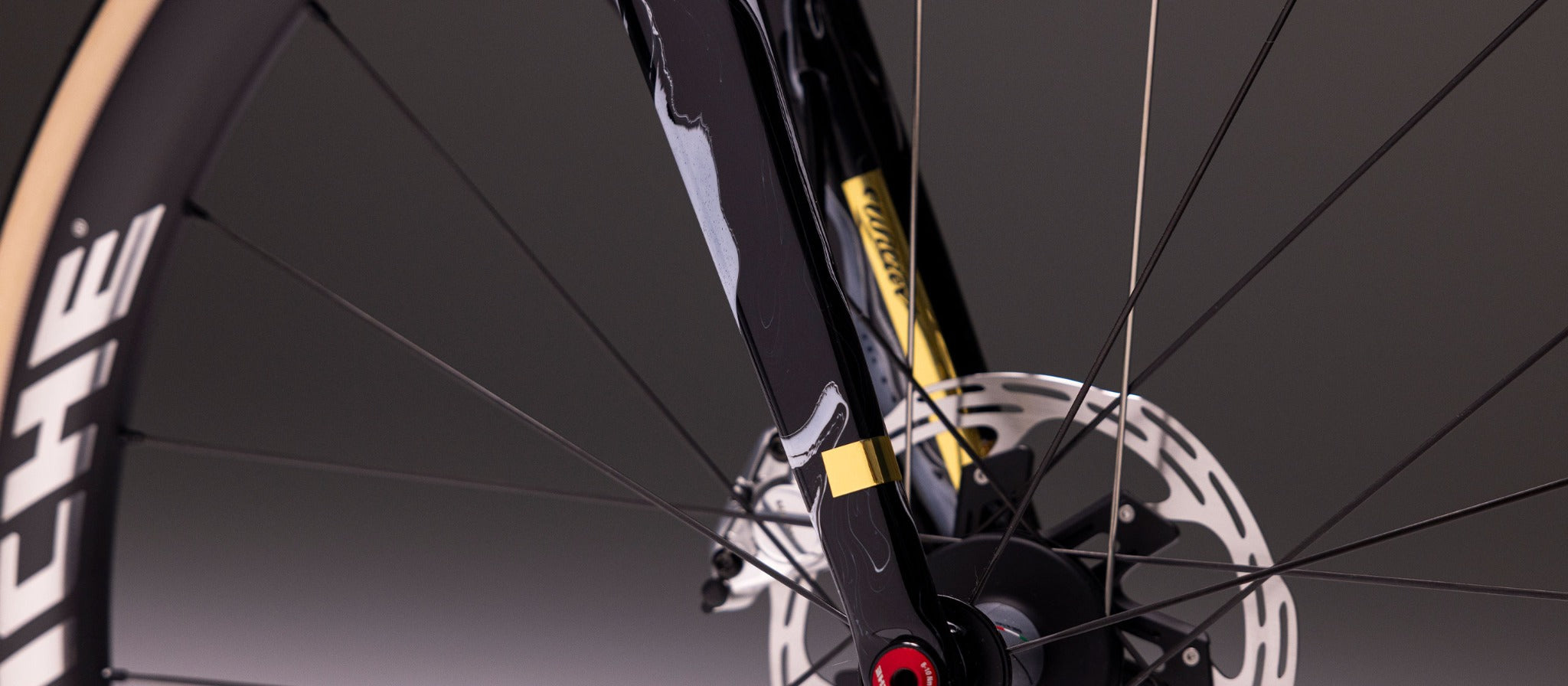

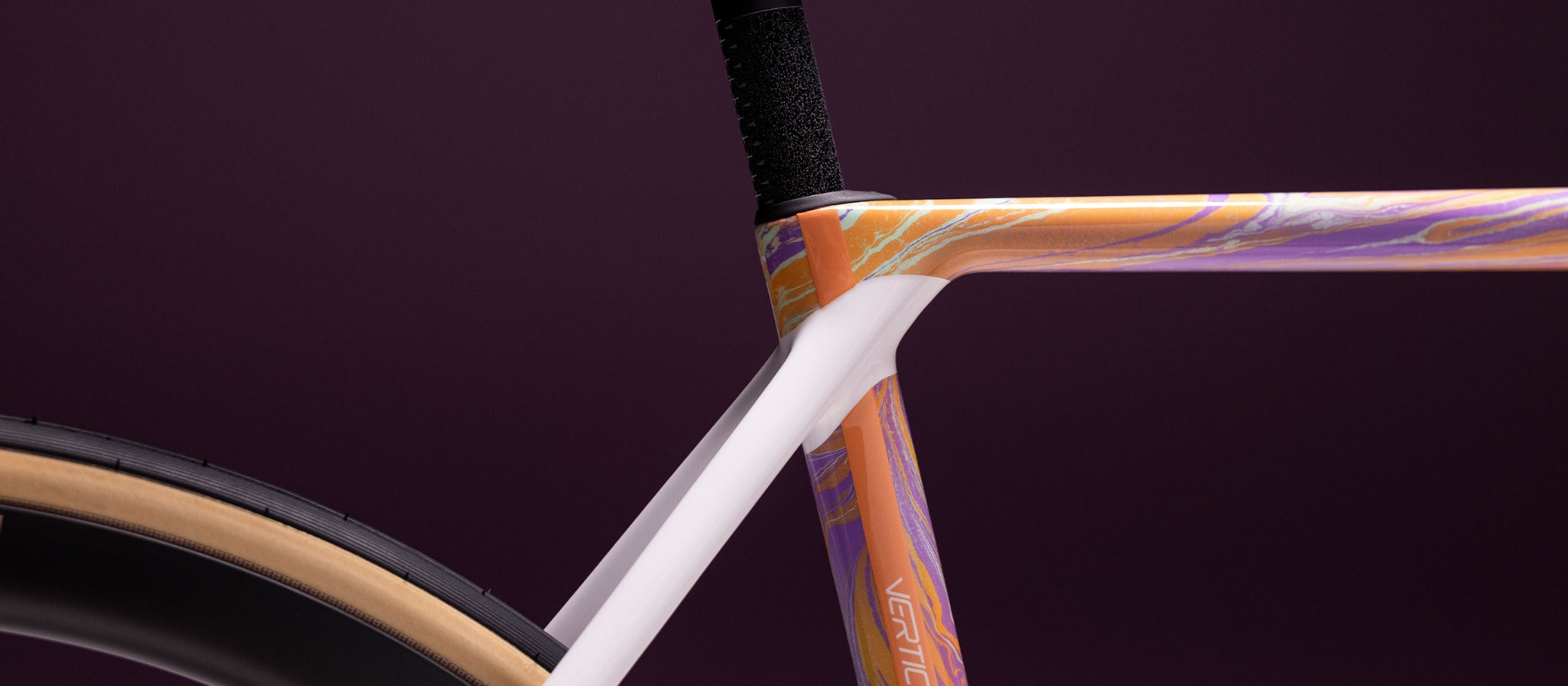

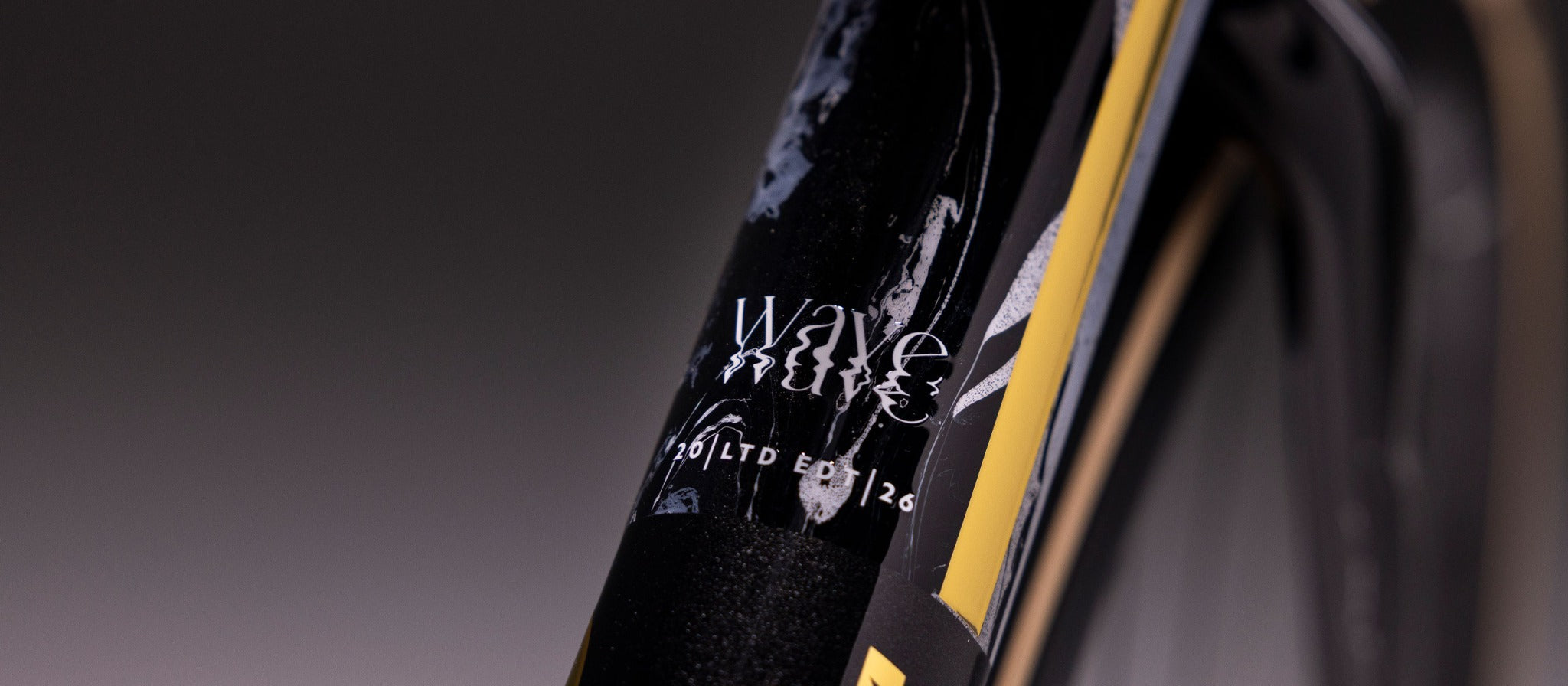

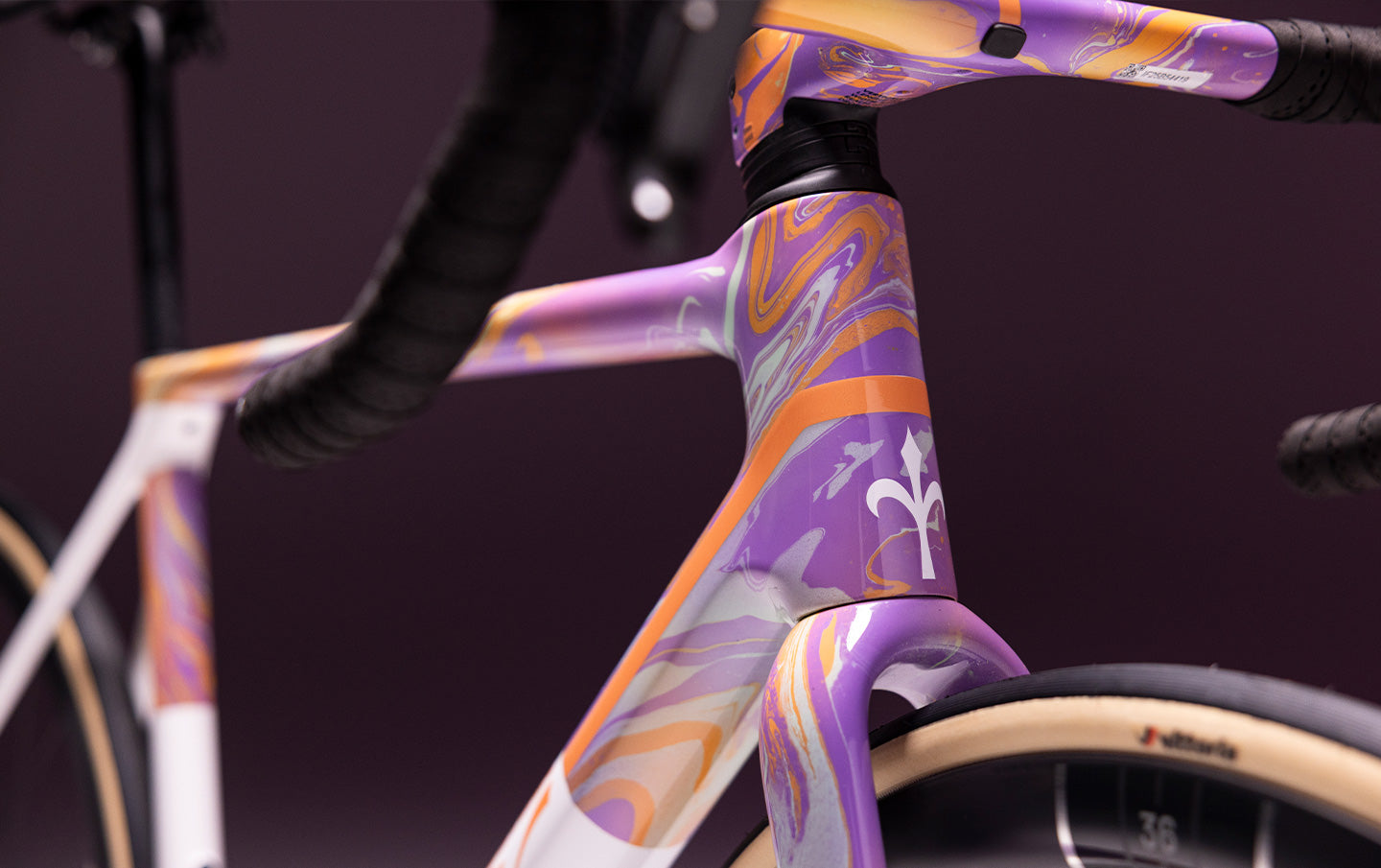

The Sea Black and Coral Bloom photographs show the paint continuing across the frame and cockpit. Close-up images reveal the contrasts and flowing patterns that a single side-on product image cannot convey. These are finish references, not promises of identical pattern placement or equipment.
Explore eight more Sea Black and Coral Bloom details
06 / WHERE RIDER MEETS BIKE
One integrated
point of contact.

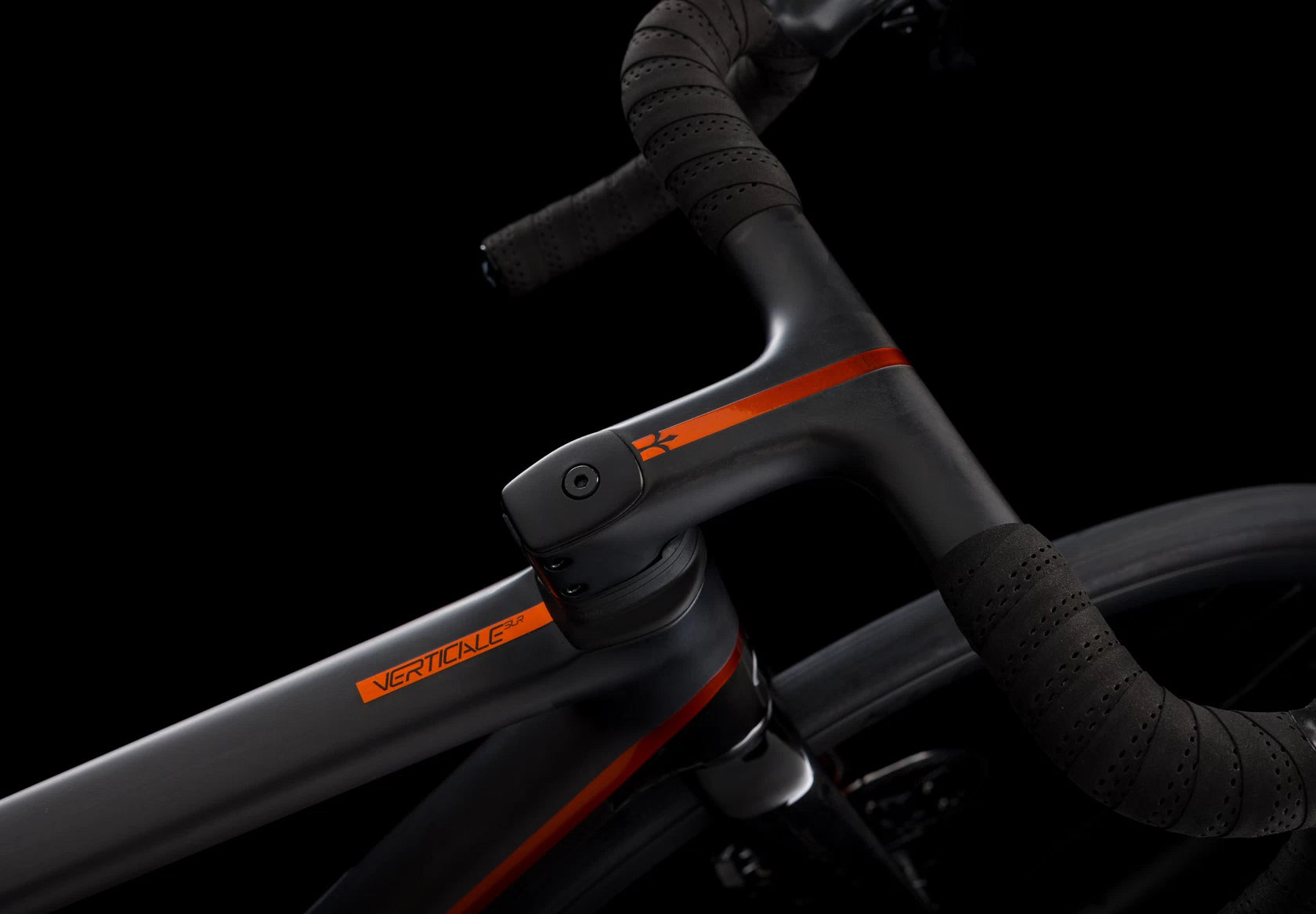

The custom carbon V-Bar integrates the handlebar and stem, with a listed reference weight of 310 g +/-5%. The specified build includes a Garmin/Wahoo mount. A computer is not listed as included.
On an integrated cockpit, fit should lead the decision. Stem length, handlebar width, saddle position and reach need to work together. Brimstone can help compare your current setup with the intended bike before the order is finalized.
07 / A ROAD BIKE, NOT JUST A STUDIO OBJECT
The reason for all of it.
Early light. A road that keeps turning. The quiet satisfaction of finding a pace you can hold. The equipment matters because the ride matters more.
View the team-bike reference photograph
08 / THE COMPLETE SPECIFICATION
The details,
in full.
| Frame | Verticale SLR carbon monocoque; Toray T800 + T1100 + M46JB |
|---|---|
| Fork | Verticale SLR carbon monocoque; Toray T800 + T1100 + M46JB |
| Handlebar | V-Bar integrated carbon, custom made; Garmin/Wahoo mount included |
| Handlebar reference weight | 310 g +/-5% |
| Headset | Custom Superslim 1-1/4 in upper bearing / FSA MR137 1-1/4 in lower bearing |
| Shifters | SRAM RED AXS ED-RED-E1 |
| Brakes | SRAM RED AXS ED-RED-E1 |
| Rotors | SRAM Paceline X RT-PLN-X-A1; 160 / 160 mm |
| Front derailleur | SRAM RED AXS FD-RED-E-E1 |
| Rear derailleur | SRAM RED AXS E1 |
| Crankset | SRAM RED E1 DUB FC-RED-P-E1 power meter; 48/35T |
| Power meter | Included in the specified crankset |
| Bottom bracket | SRAM DUB 86.5 PressFit Road |
| Cassette | SRAM RED CS-XG-1290-E1; 10-36T |
| Chain | SRAM RED CN-RED-E1 |
| Wheels | Miche Kleos RD 36 Carbon / CeramicSpeed |
| Tires | Vittoria Corsa Pro 700x28c |
| Frame tire clearance | Up to 32 mm; verify actual mounted tire width and wheel compatibility |
| Saddle | Prologo Nago R4 PAS; carbon rails |
| Seatpost | Wilier Verticale carbon, custom made, -15 mm; rear light included |
| Thru-axles | Miche Thru Axle Light; 12 x 118 front / 12 x 165 rear (manufacturer lengths) |
| Complete-bike reference weight | 6.69 kg +/-5%; supplied build reference, not a size-specific or packed weight |
| Frame reference weight | 720 g +/-5%; frame only, not complete-bike weight |
| Fork reference weight | 320 g +/-5%; fork only |
| Build references | E508TBK / E708TBKR; exact item code depends on color and size |
The component table defines this build. Confirm final size-specific fit, equipment and availability before ordering. Tire clearance is a frame limit, not blanket approval for every wheel/tire combination. Tubeless installation is not promised by this listing.
Compare the eight builds
| Build | Wheel package | Chainrings / cassette | Lowest ratio | Power meter |
|---|---|---|---|---|
| Ultegra Di2 | Kleos 42 | 50/34T / 11-30T | 1.13:1 | Not listed |
| Force AXS | Kleos 42 | 48/35T / 10-33T | 1.06:1 | Not listed |
| Force AXS + power meter | Kleos 42 | 48/35T / 10-33T | 1.06:1 | Yes |
| Dura-Ace Di2 / Kleos 42 | Kleos 42 | 50/34T / 11-30T | 1.13:1 | Not listed |
| Dura-Ace Di2 / RD 36 | Kleos RD 36 / CeramicSpeed | 50/34T / 11-30T | 1.13:1 | Not listed |
| Dura-Ace Di2 + power meter | Kleos RD 36 / CeramicSpeed | 52/36T / 11-30T | 1.20:1 | Yes |
| RED AXS + power meter | Kleos RD 36 / CeramicSpeed | 48/35T / 10-36T | 0.97:1 | Yes |
| Super Record WRL 2x13 | Kleos RD 36 / CeramicSpeed | 50/34T / 10-33T | 1.03:1 | Not listed |
Ratios are calculated from the listed chainring and cassette tooth counts. A lower number represents a lower gear; it is not a speed or performance guarantee.
09 / INFINITAMENTE
Room for a
personal signature.

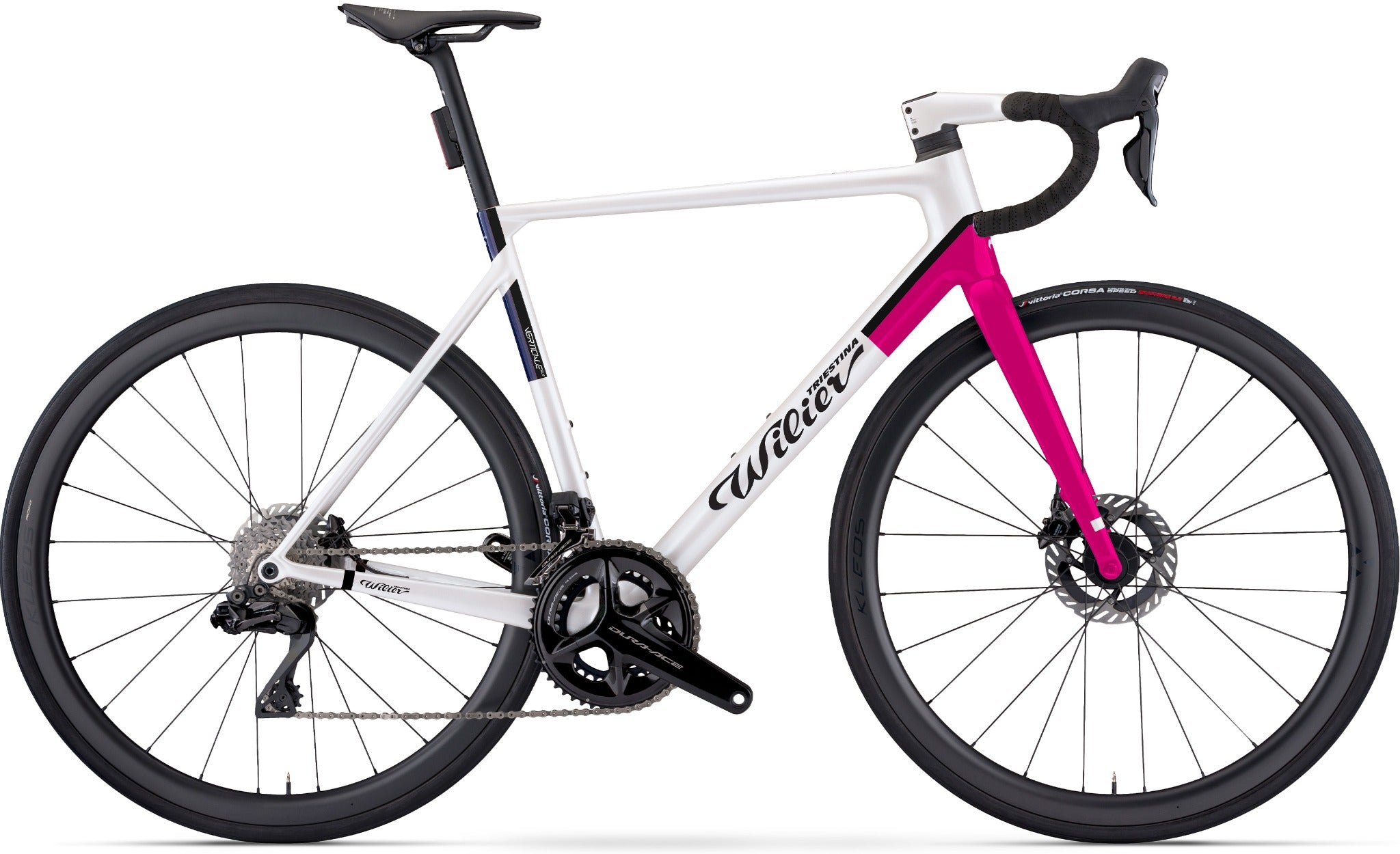

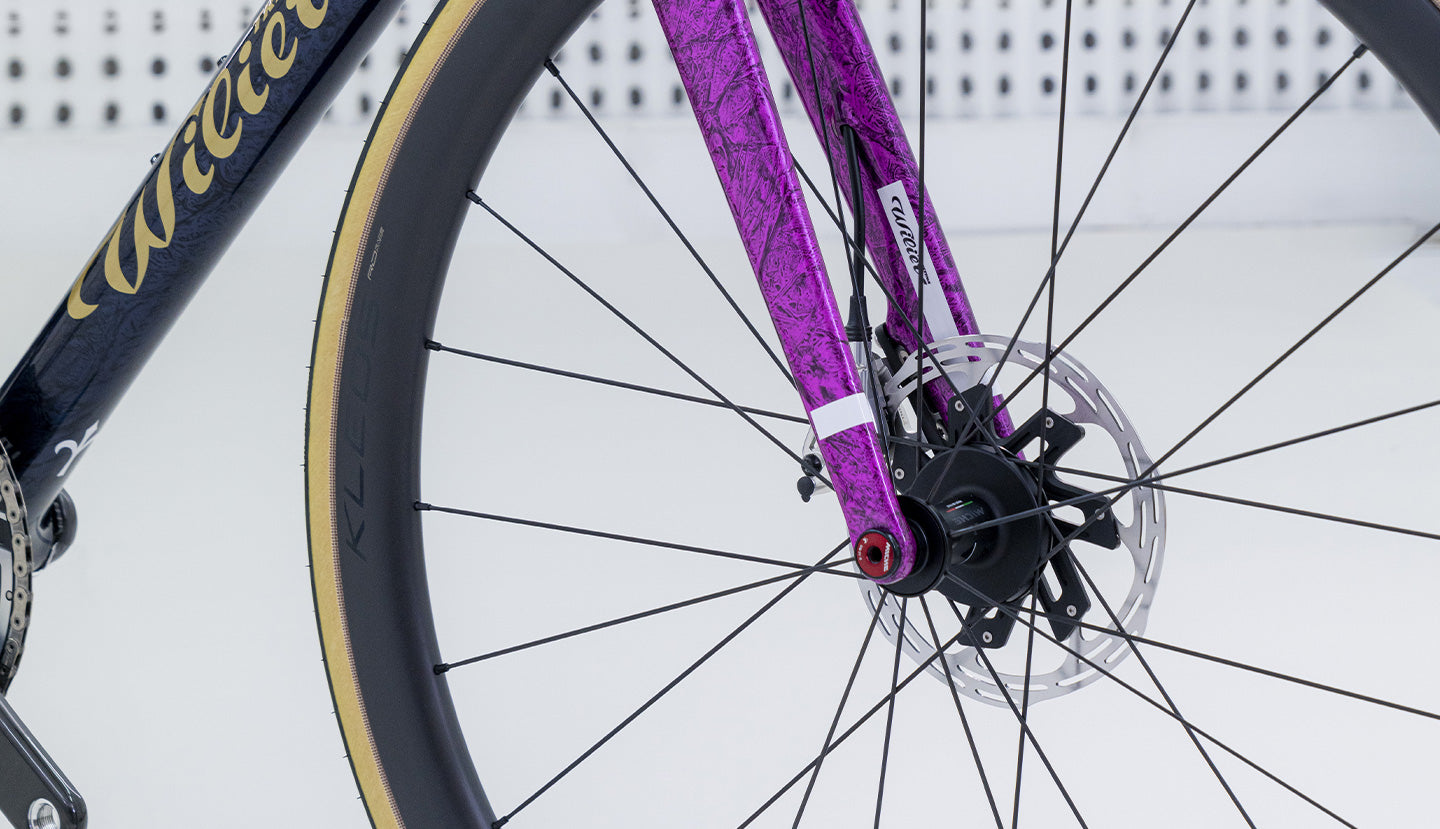

Infinitamente appears as a separate custom-paint option in the dealer catalogue. The white-and-pink studio bike and purple fork detail are examples of customization, not additional standard colors or a fixed finished design.
Custom artwork, the final quotation and the lead time need to be confirmed with Brimstone before an order is committed. Custom-paint catalogue pricing is higher than the standard finishes.
10 / MAKE IT YOUR VERTICALE
A better purchase
starts with the right fit.
Catalogue sizes range from XS through XXL. Exact combinations depend on the selected build and finish. Contact Brimstone to review frame geometry and cockpit dimensions for your selected size before ordering.
Bring your existing fit into the conversation
Your current frame size, saddle height, stem length and handlebar width are useful starting points. Brimstone can help review fit, the chosen configuration and supplier availability before you finalize the bike.
Discuss your Verticale SLRBikes shipped to Brimstone for shop pickup receive assembly and a safety check. Contact the shop for shipping and pickup arrangements.
Does this build include a power meter?
Yes. The listed configuration includes SRAM RED E1 DUB FC-RED-P-E1 power meter; 48/35T.
What does the quoted weight refer to?
The 6.69 kg figure is the supplied nominal complete-bike reference, with +/-5% tolerance. Size, paint and final equipment can change actual weight. It is not the boxed shipping weight.
Can I choose a different color without changing the groupset?
Yes, within the listed color/size combinations for this product. The photos show display builds; the component table remains the specification for the selected product. Custom paint has separate pricing and confirmation requirements.
Are Sea Black and Coral Bloom separate builds?
They are finish options grouped under the same drivetrain/wheel specification here. Their exact supplier item codes use a different setup-code family in the catalogue. The original item codes and EANs are retained for every variant.
Is a team paint scheme included?
No. The team-rider photograph provides riding context only. Team colors and equipment are not offered as an extra catalogue variant without a corresponding orderable item code.
Is my size in stock?
Please confirm with Brimstone. The supplier file contains planning dates rather than live stock quantities. A listed date does not guarantee availability or delivery.
