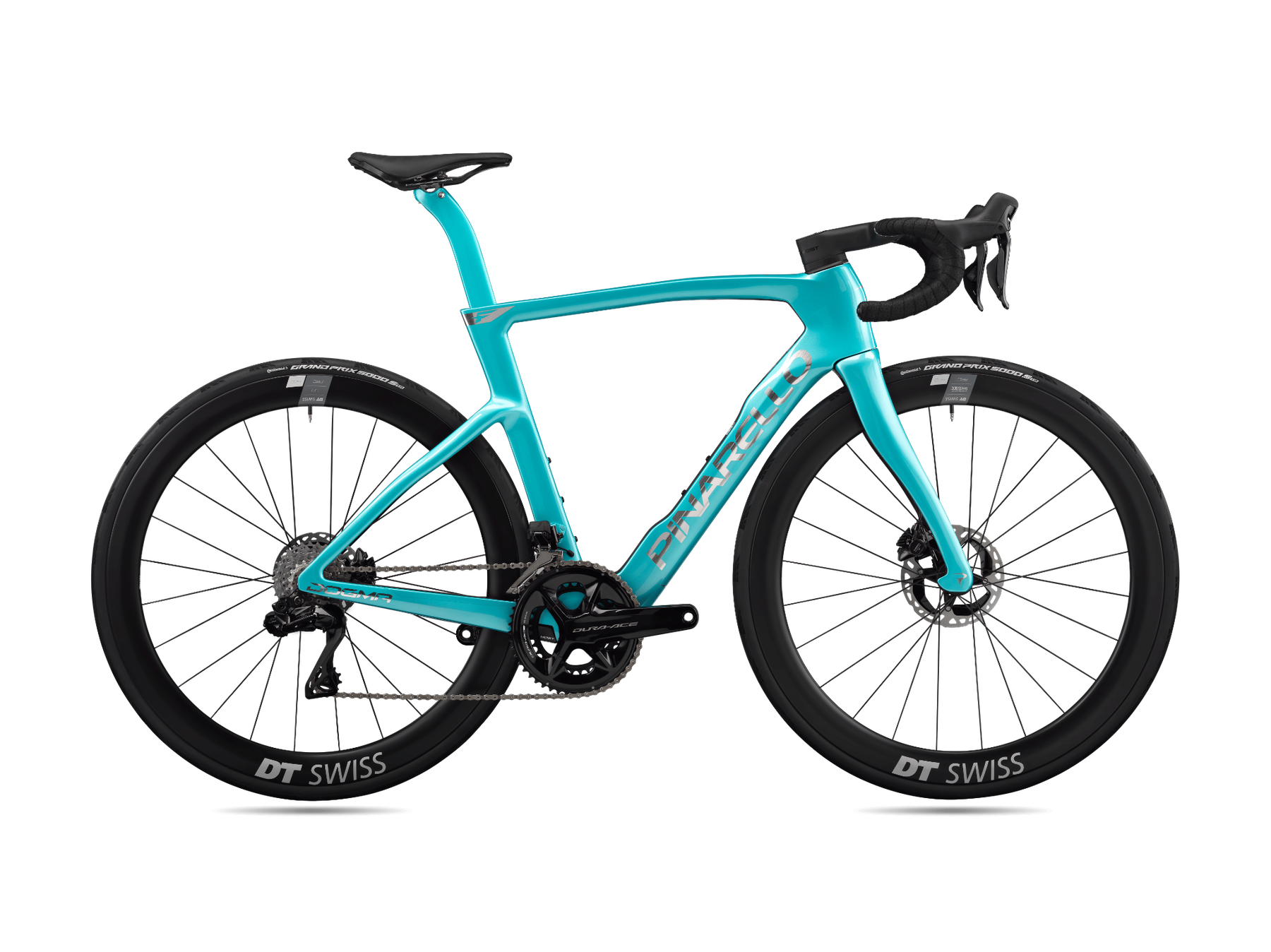

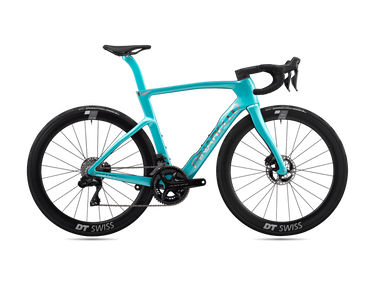

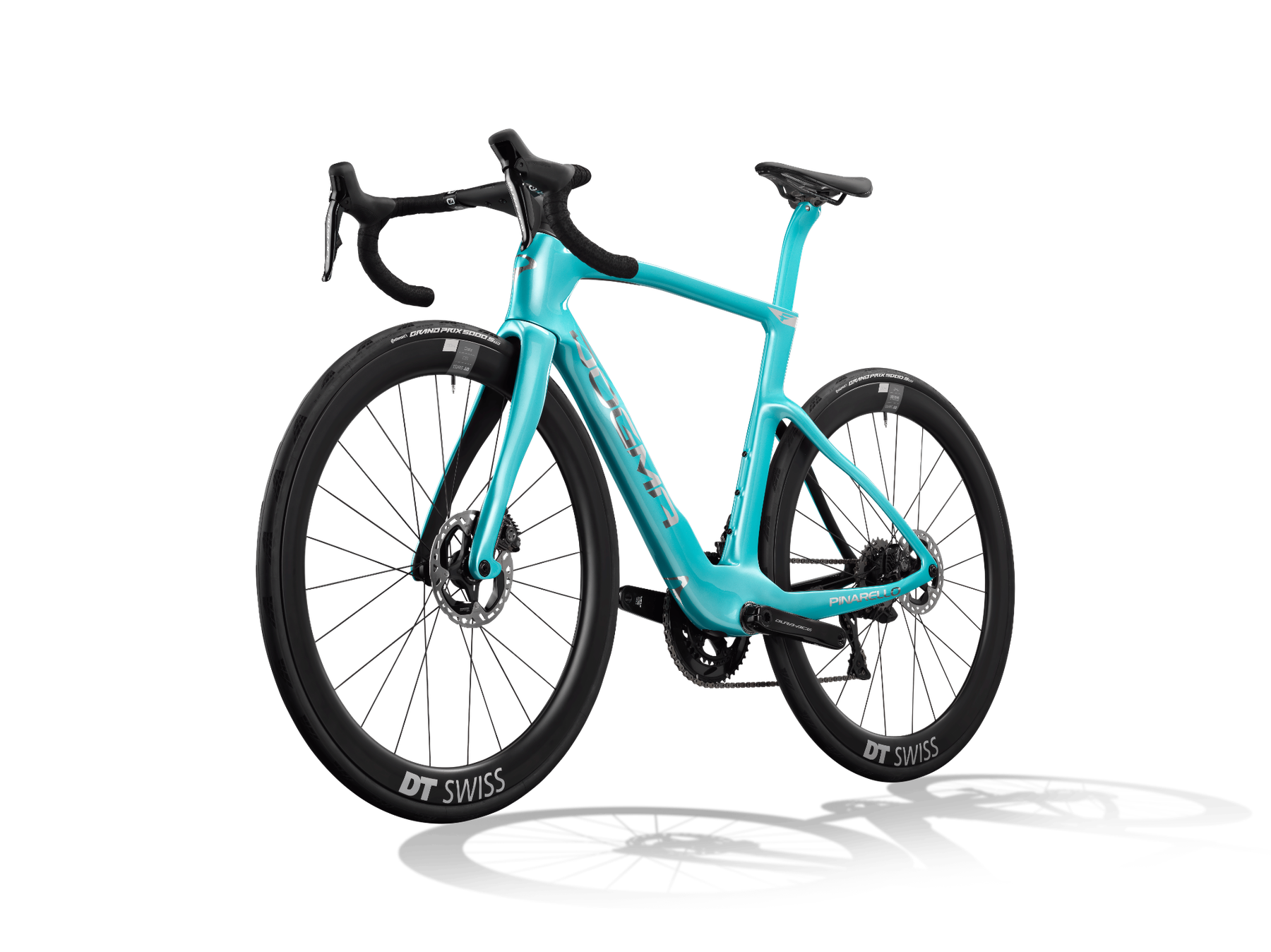

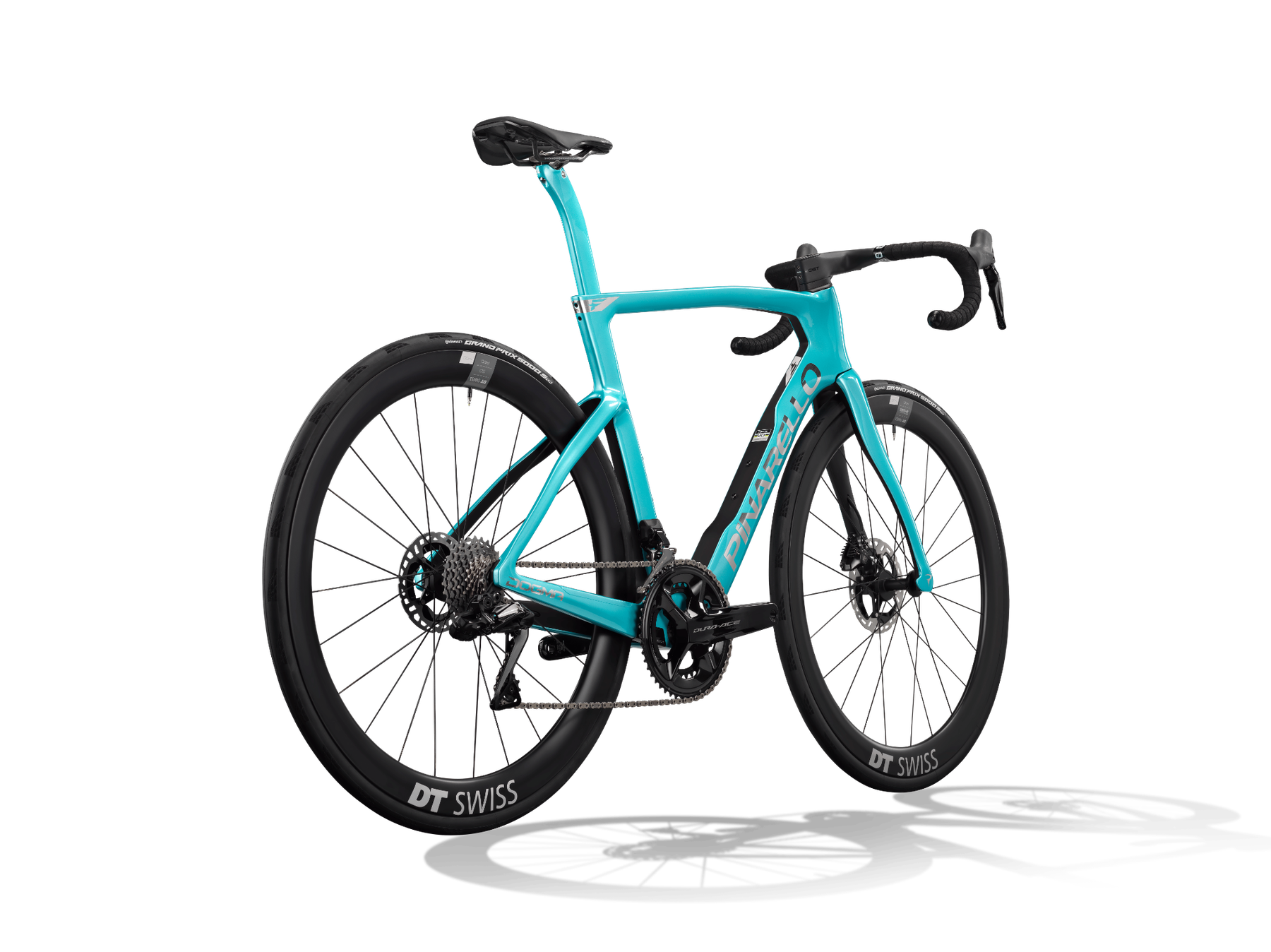

Luxter Turquoise
H100 — a vibrant turquoise flagship finish that gives the 2026 Dogma F immediate visual energy.
Description:
2026 Dogma F
Pinarello Dogma F SRAM RED AXS
The 2026 Pinarello Dogma F SRAM RED AXS is a flagship race bike built for riders who want Pinarello's WorldTour frame technology, a fully wireless SRAM RED AXS E1 drivetrain, integrated power data, and the unmistakable presence of a true Dogma.
2026 Dogma FSRAM RED AXS E1Power Meter IncludedPrinceton Peak 4550
2026Dogma F Model
6.63kgComplete Claimed Weight
AXSWireless RED E1
4550Princeton Peak Wheels
Race Luxury
Clean wireless control. Pure Dogma speed.
The Dogma F Red AXS pairs one of cycling's most advanced race frames with SRAM's fully wireless RED AXS E1 groupset. No shift cables. No visual clutter. Just precise electronic control, hydraulic braking, power measurement from day one, and a cockpit that looks as clean as it feels fast.
This page targets riders searching for a Pinarello Dogma F, Pinarello Dogma F Red AXS, 2026 Dogma F, SRAM RED AXS superbike, M40X carbon race bike, Princeton Peak 4550 road bike, or a flagship Italian road bike with WorldTour DNA.
Colour Collection
Four Luxter finishes for a flagship race frame.
Choose the Dogma F colour that matches your riding style while keeping the same SRAM RED AXS E1 performance build across every variant.

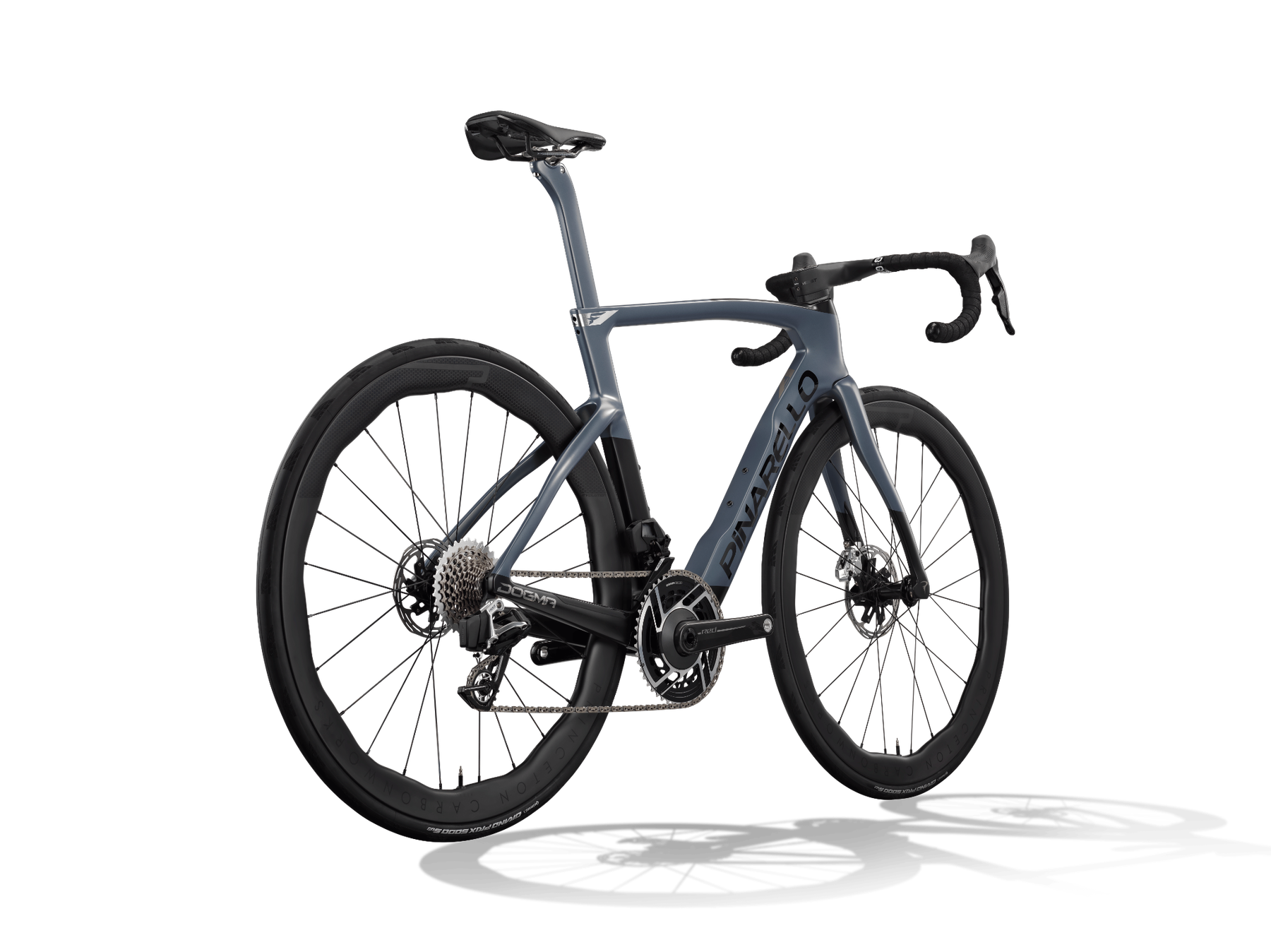

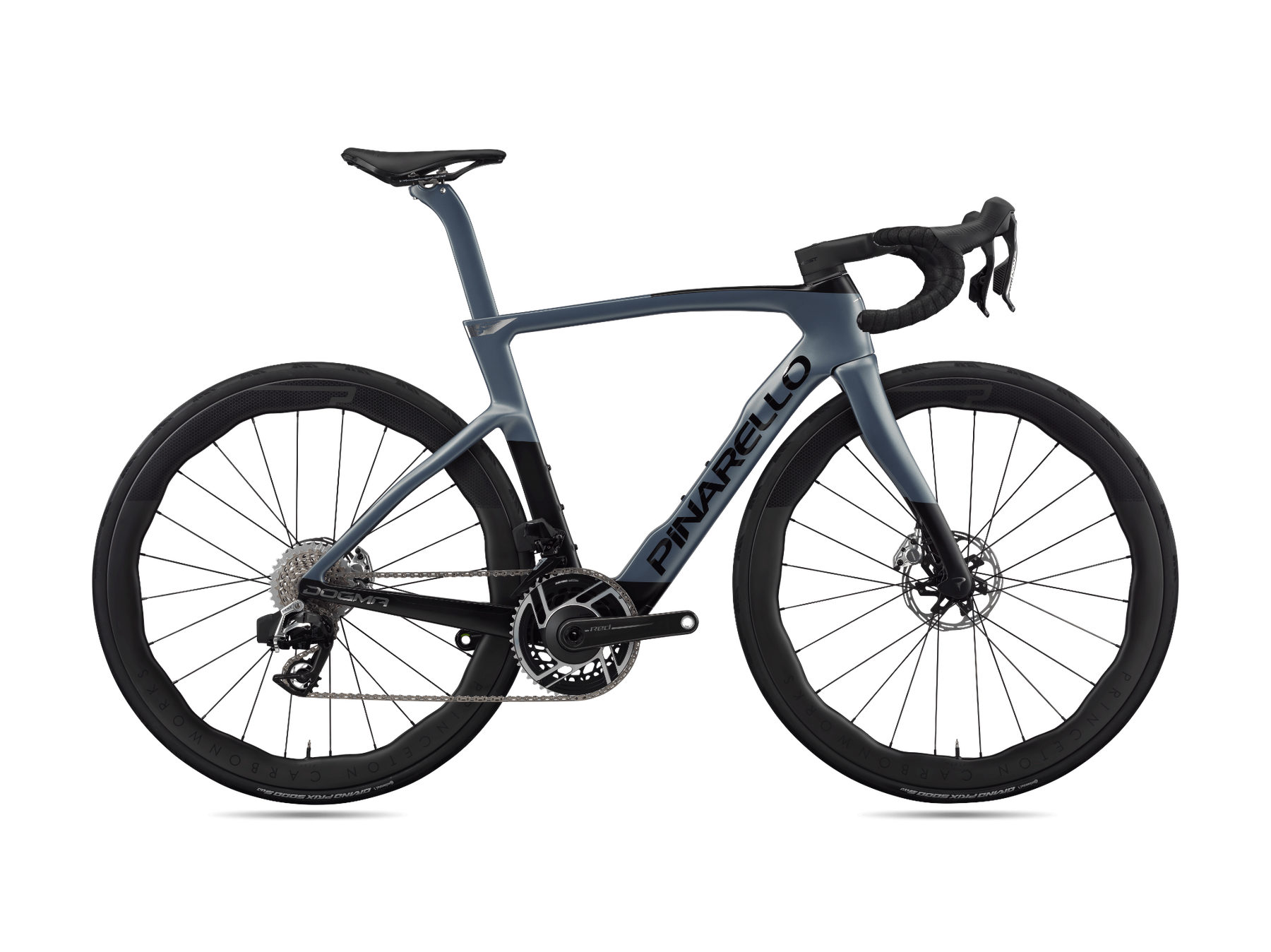

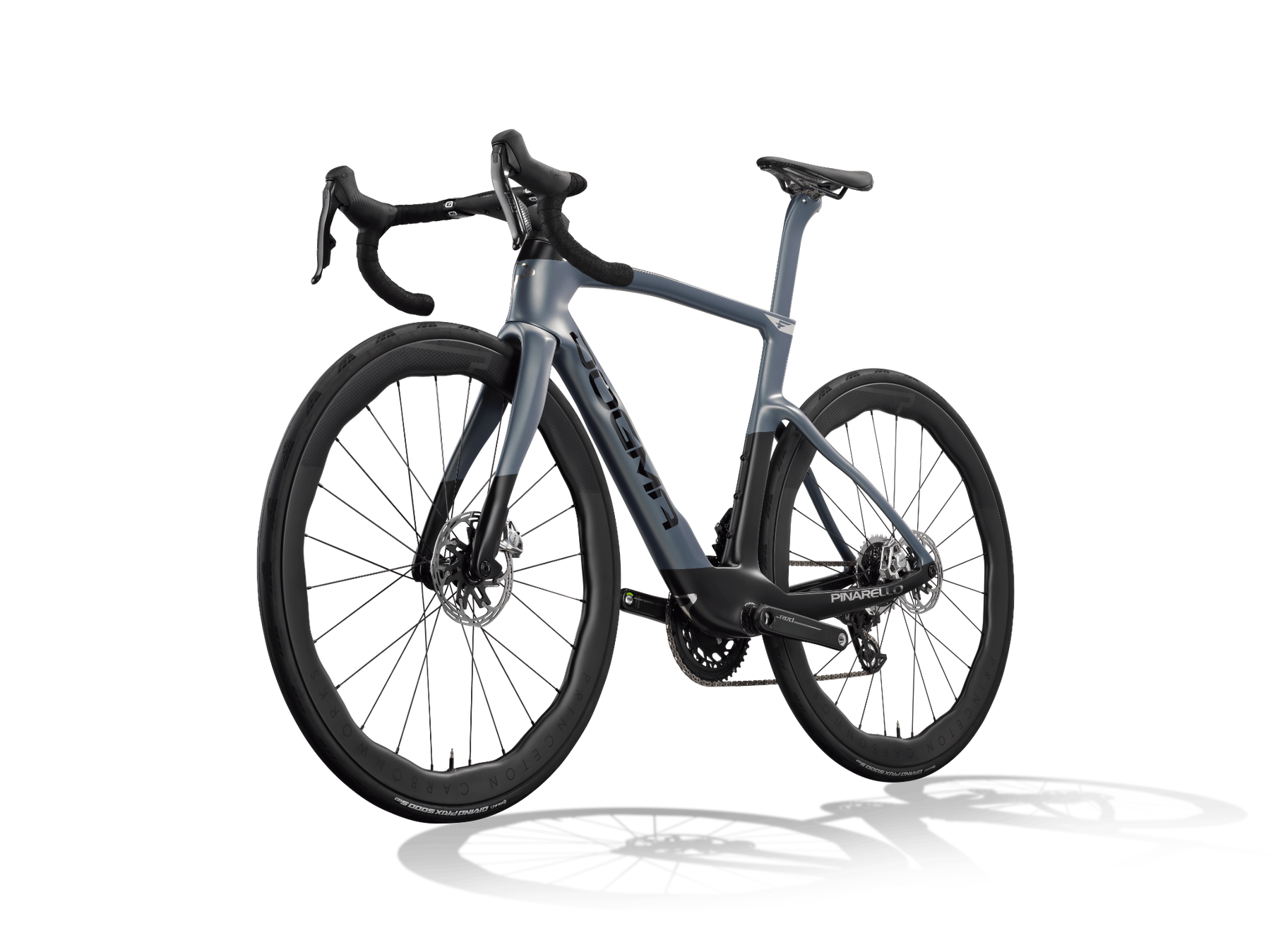

Luxter Grey Matte
H101 — a stealth luxury finish for riders who want understated race-bike presence.

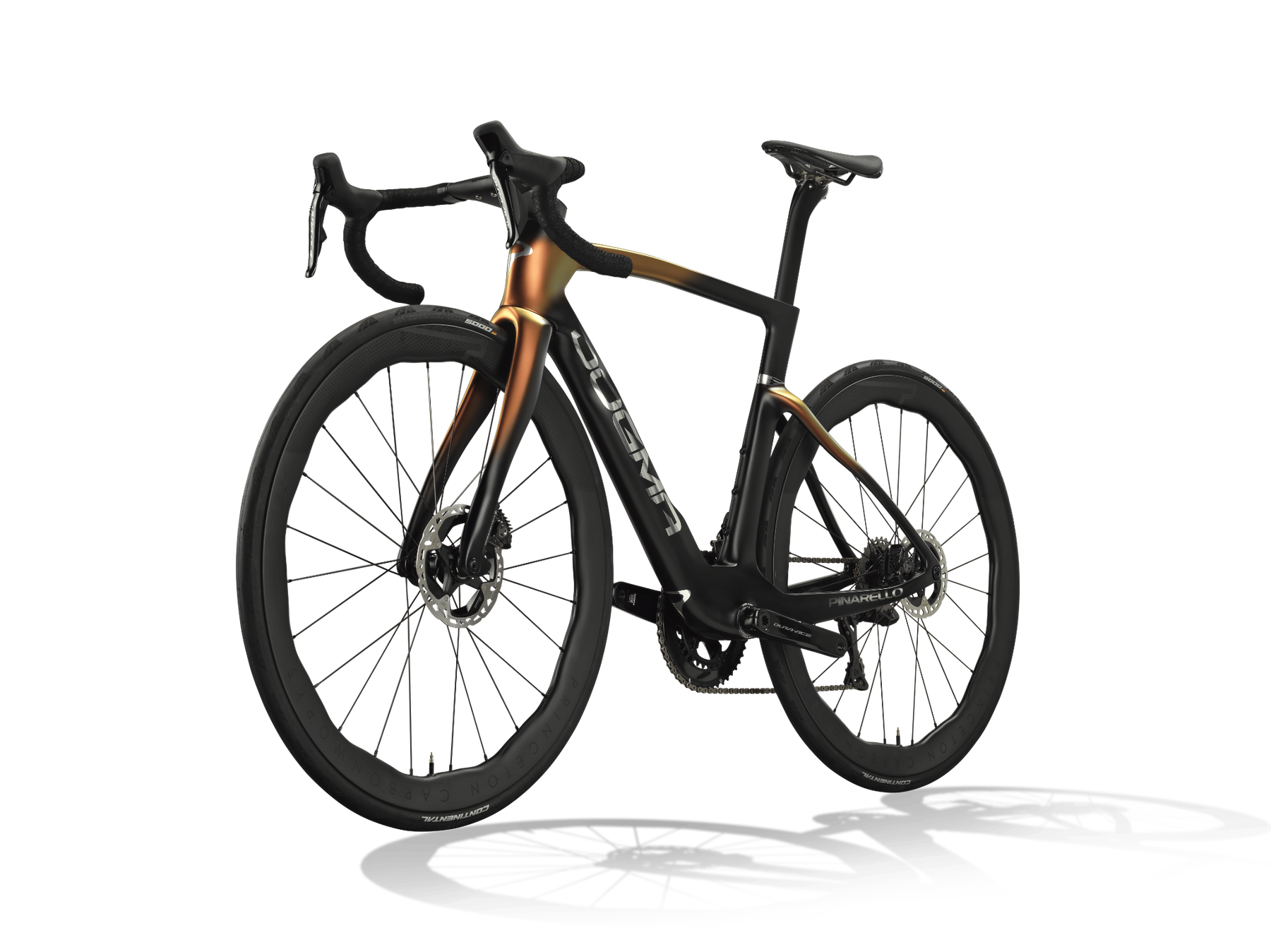

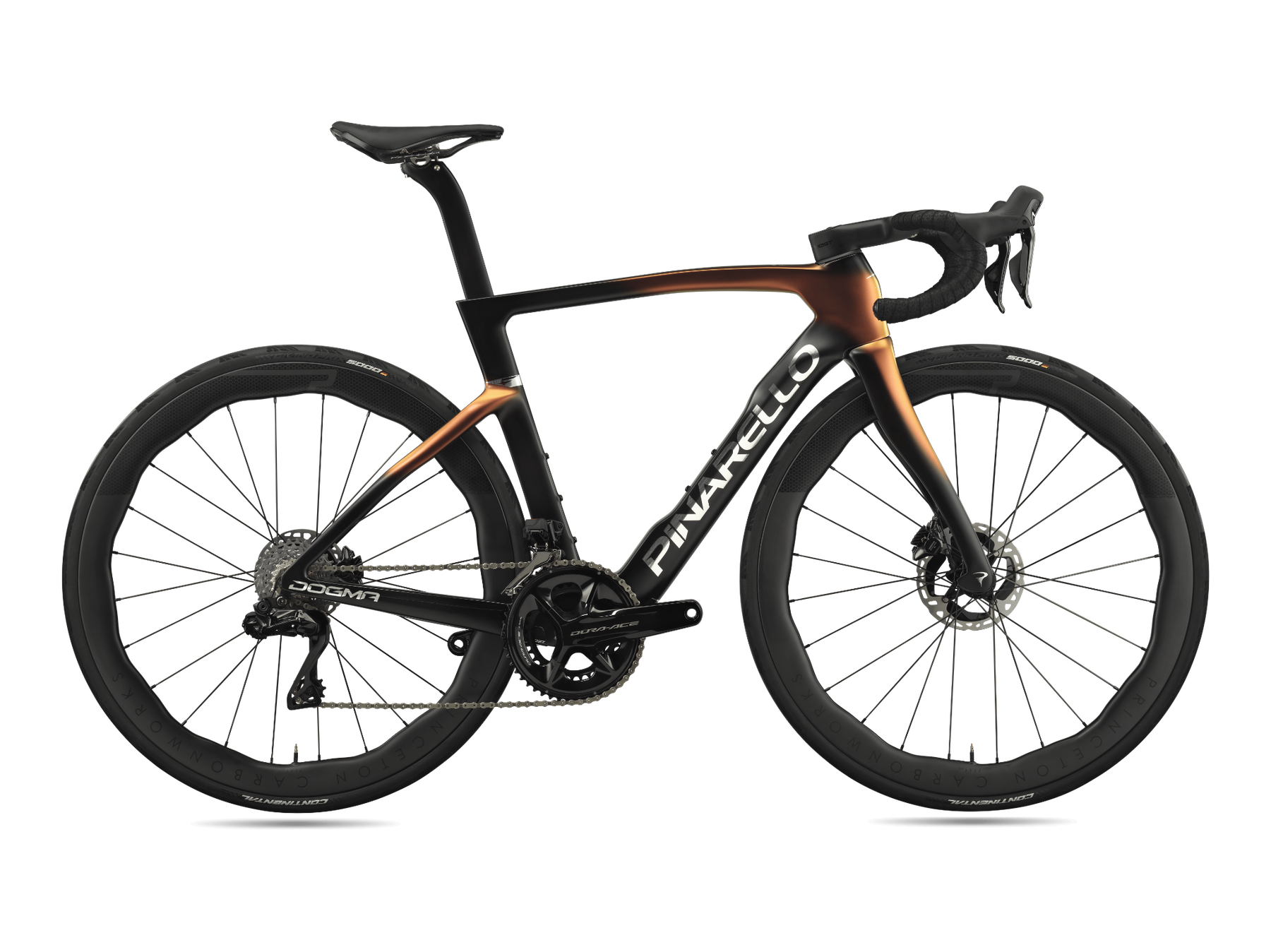

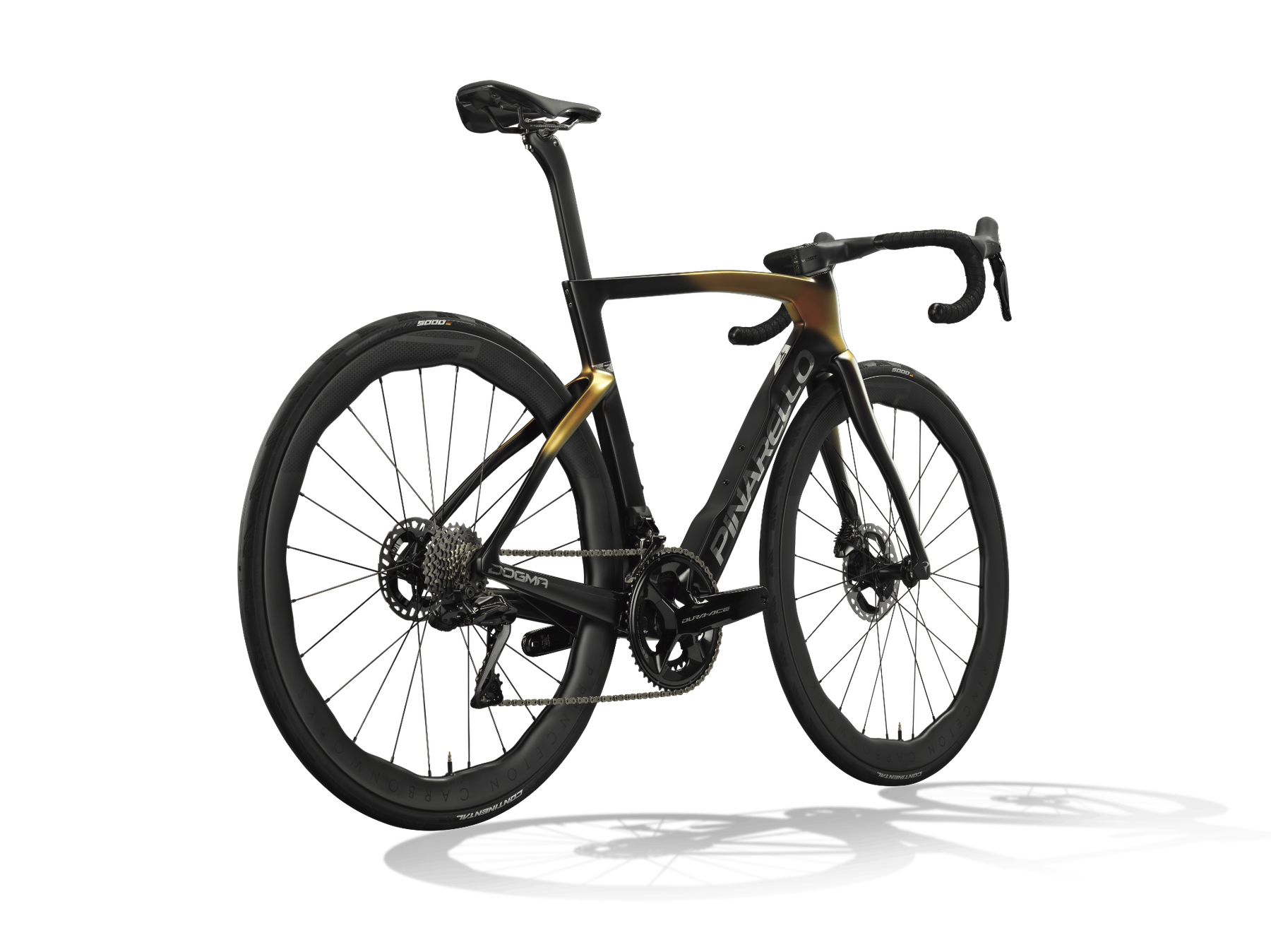

Luxter Amber
H102 — a warm amber race finish with a distinctive, collector-grade personality.

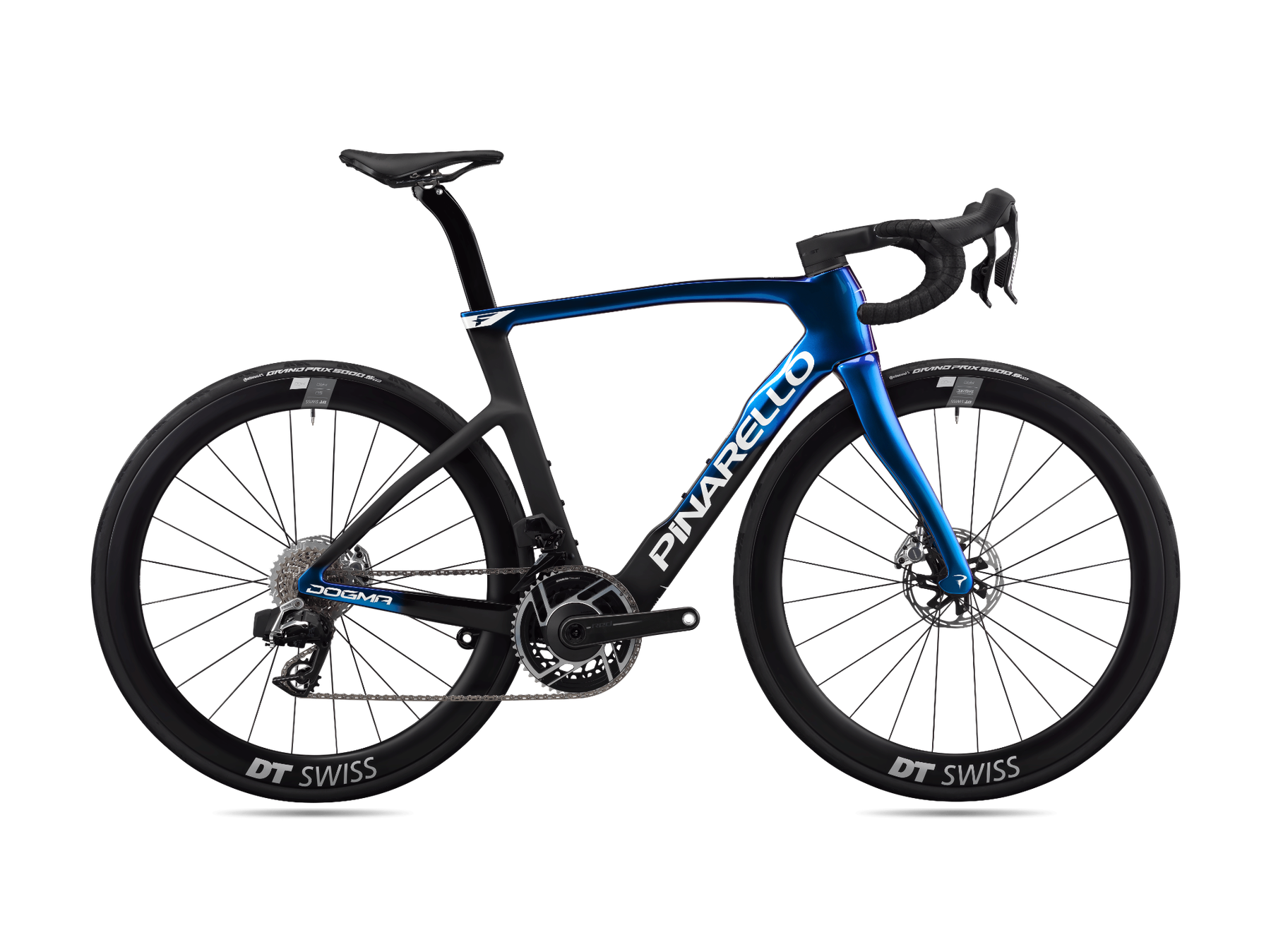

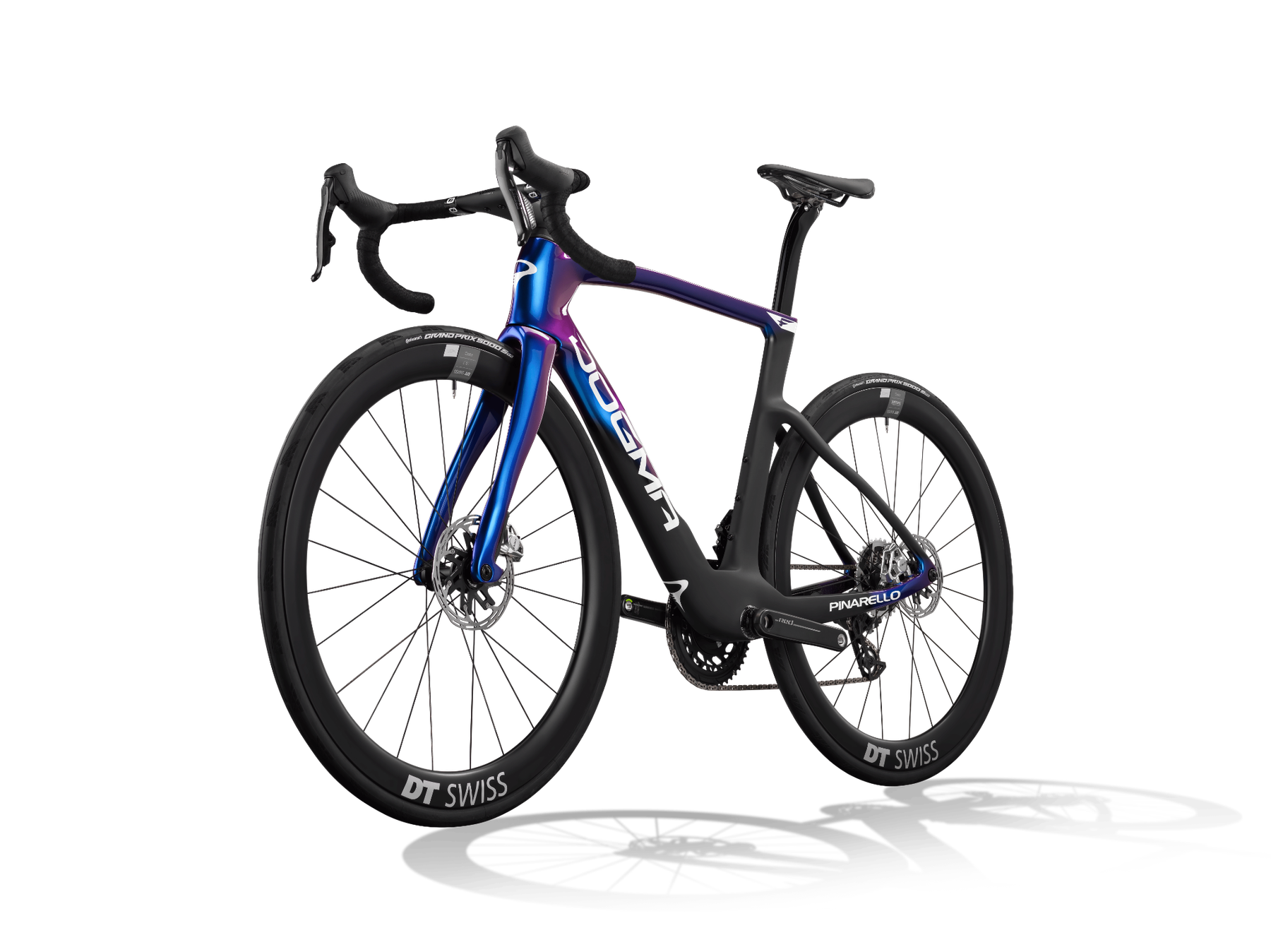

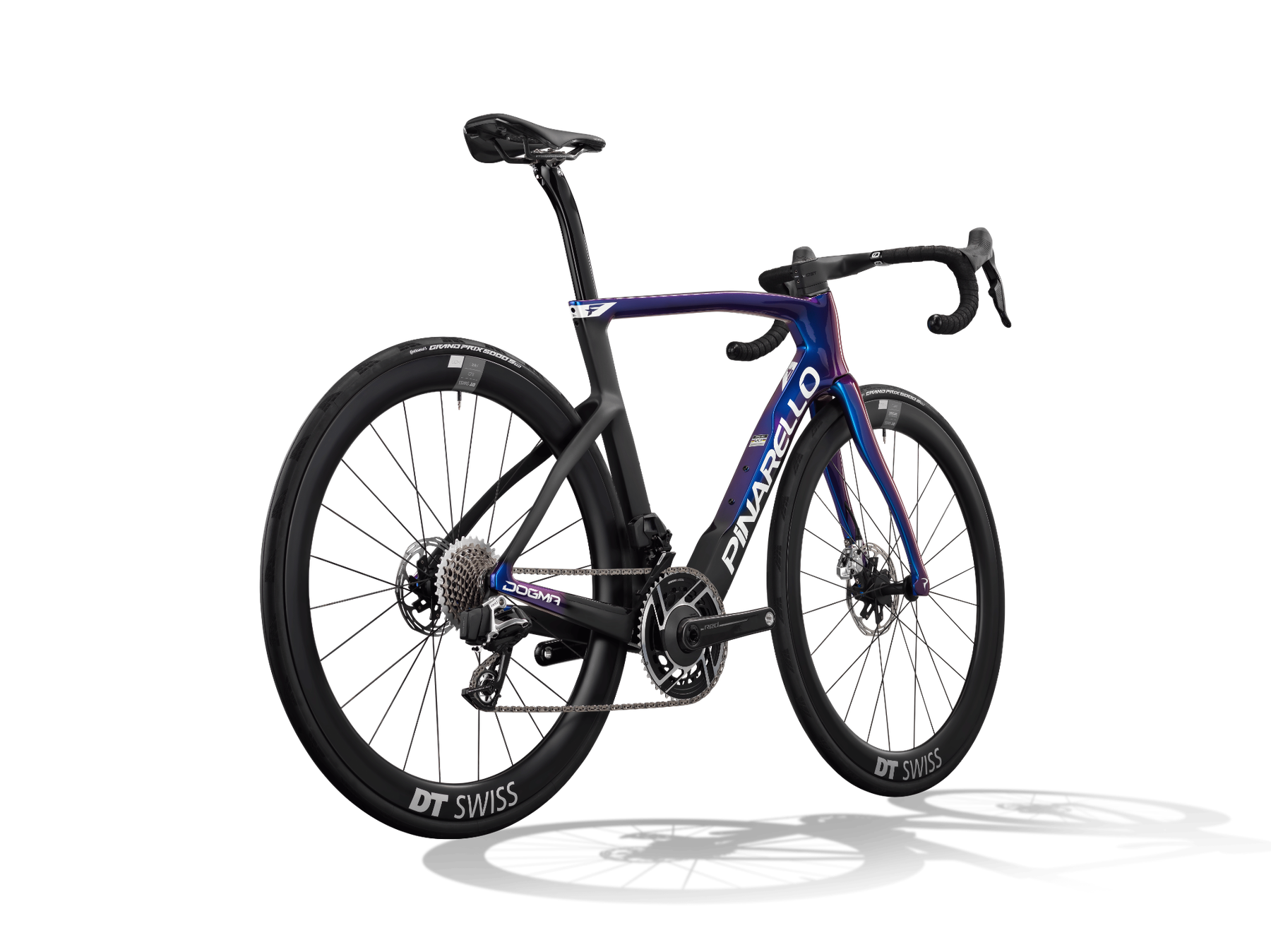

Luxter Blue Shiny
H103 — a glossy blue finish that pairs deep race-bike restraint with a sharp electric highlight.
Engineering
Aero, stiffness and control from every angle.
The Dogma F frame combines Pinarello's M40X carbon layup, Aero-Keel bottom bracket shaping, eTICR Onda fork and integrated cockpit architecture into a race platform designed to translate effort into speed.
M40X Carbon
TorayCa M40X carbon gives the Dogma F the high tensile modulus and lateral stiffness demanded by elite racing, without adding unnecessary weight.
Aero-Keel BB
The downtube is rotated into a keel profile around the bottom bracket to reduce drag in a high-turbulence area inspired by Pinarello's record-setting aerodynamic work.
eTICR Onda Fork
The slimmer Onda fork preserves Pinarello's signature handling while improving front-end aero performance and high-speed stability.
Integrated Clamp
The fully integrated seatpost clamp reduces exposed hardware while helping keep road grime and sweat away from the mechanism.
Talon Ultra Fast
The MOST Talon Ultra Fast cockpit integrates bar and stem in a lighter, more aerodynamic front end shaped around a natural lever position.
Wireless RED AXS
SRAM RED AXS E1 removes shift cables completely, giving the bike a cleaner cockpit and a precise electronic drivetrain with power data built in.
Build Specification
SRAM RED AXS E1, built for speed and data.
The SRAM RED AXS build is for riders who want the cleanest possible electronic drivetrain, wide 10-33 gearing, immediate power measurement and race-ready hydraulic braking.
FrameTorayCa M40X carbon
ForkeTICR Onda Fork with ForkFlap
Claimed weight6.63kg complete
Front derailleurSRAM RED AXS E1
Rear derailleurSRAM RED AXS E1
CranksetSRAM RED E1 with power meter
Chainrings48/35
CassetteSRAM XG1290 E1 12-speed 10-33
Bottom bracketSRAM DUB Italian Threaded
BrakesSRAM RED E1 hydraulic disc, 160mm rotors
CockpitMOST Talon Ultra Fast
Wheels / tyresPrinceton Peak 4550; Continental Grand Prix 5000S TR 700x28
Geometry
Dogma F geometry and fit data.
Responsive size cards replace wide tables so the geometry stays easy to read on mobile and desktop.
43Size
Seat tube430Top tube500Head tube102Chain stay407BB drop67Seat angle74.4°Head angle69.5°Stack502Reach351.5Stem80mmBar40cmCrank165mm
46.5Size
Seat tube465Top tube515Head tube109Chain stay407BB drop72Seat angle74.4°Head angle70.5°Stack517.3Reach365.4Stem90mmBar42cmCrank165mm
50Size
Seat tube500Top tube525Head tube114Chain stay407BB drop72Seat angle74°Head angle71.4°Stack525.2Reach372.2Stem90mmBar42cmCrank170mm
51.5Size
Seat tube515Top tube535Head tube119Chain stay407BB drop72Seat angle73.7°Head angle72°Stack532.1Reach378.2Stem100mmBar42cmCrank170mm
53Size
Seat tube530Top tube545Head tube128Chain stay407BB drop72Seat angle73.7°Head angle72.5°Stack542.4Reach385.6Stem110mmBar42cmCrank172.5mm
54Size
Seat tube540Top tube550Head tube136Chain stay408BB drop72Seat angle73.4°Head angle72.8°Stack551Reach385.3Stem110mmBar42cmCrank172.5mm
55Size
Seat tube550Top tube557Head tube147Chain stay408BB drop72Seat angle73.4°Head angle72.8°Stack561.5Reach389.2Stem110mmBar44cmCrank172.5mm
56Size
Seat tube560Top tube565Head tube154.5Chain stay409BB drop72Seat angle73°Head angle73.2°Stack570.1Reach390.8Stem120mmBar44cmCrank172.5mm
57.5Size
Seat tube575Top tube575Head tube168Chain stay409BB drop72Seat angle73°Head angle73.7°Stack584.8Reach396.7Stem120mmBar44cmCrank175mm
59.5Size
Seat tube595Top tube587Head tube204Chain stay409BB drop67Seat angle72.4°Head angle73.4°Stack613.2Reach393.4Stem120mmBar46cmCrank175mm
62Size
Seat tube620Top tube620Head tube244Chain stay411BB drop67Seat angle72°Head angle73.4°Stack651.6Reach410Stem130mmBar46cmCrank175mm
FAQ
Pinarello Dogma F SRAM RED AXS FAQ
Is this the 2026 Pinarello Dogma F?
Yes. This product page is configured for the 2026 Pinarello Dogma F SRAM RED AXS model in the H100, H101, H102 and H103 Luxter colourways.
What groupset comes on this bike?
This build uses SRAM RED AXS E1 wireless 12-speed shifting with SRAM RED E1 hydraulic disc brakes and a SRAM RED E1 crankset with integrated power meter.
What wheels are included?
The bike is specified with Princeton Peak 4550 wheels and Continental Grand Prix 5000S TR 700x28 tyres.
What colours are available?
Available colours are H100 Luxter Turquoise, H101 Luxter Grey Matte, H102 Luxter Amber and H103 Luxter Blue Shiny.
What sizes are available?
Available sizes are 43, 46.5, 50, 51.5, 53, 54, 55, 56, 57.5, 59.5 and 62.
