Force XPLR wireless
SRAM Force XPLR AXS E1 brings a refined 1x13 wireless drivetrain with a 10-46T cassette, giving gravel racers a clean, modern and performance-focused shifting system.
Description:
Rave SLR ID2 gravel race platform
Wilier Rave SLR ID2 SRAM Force XPLR AXS E1 1x13 - Miche Graff Aero 48 F-Bar
A premium SRAM Force XPLR AXS E1 1x13 gravel race build with Wilier's integrated carbon F-Bar cockpit, Miche Graff Aero 48 Carbon wheels and fast 700x50c tubeless-ready tires.
- SRAM Force XPLR AXS E1 1x13
- Miche Graff Aero 48 Carbon
- F-Bar integrated carbon cockpit
- 10-46T cassette
- 8.45 kg +/- 5%
- XS to XXL
Why it exists
Force XPLR wireless performance with aero carbon wheels and full cockpit integration.
The Rave SLR ID2 is Wilier's dedicated gravel race platform, designed for riders who want speed, control and precision across fast gravel, broken pavement and demanding mixed terrain.
This E628F4G build pairs the Rave ID2 carbon monocoque HUS MOD + Liquid Crystal Polymer frame with SRAM Force XPLR AXS E1 1x13, Miche Graff Aero 48 Carbon wheels and Wilier's F-Bar integrated carbon cockpit. It is a high-performance wireless build for riders who want a lighter drivetrain tier, a fast aero wheel package and a clean integrated cockpit in one complete bike.
53mm max tire clearance
10-4613-speed cassette
8.45kg +/- 5%
48mm carbon wheel depth
Why this bike stands out
A premium SRAM wireless gravel race build with the upgrades riders feel immediately: integrated cockpit, aero carbon wheels, Force-level components and modern 13-speed range.
F-Bar integration
The F-Bar integrated carbon cockpit gives the bike a cleaner front end, refined cable management and a more premium race-bike feel than the separate alloy bar and stem builds.
Aero carbon wheel speed
Miche Graff Aero 48 Carbon wheels give this build a faster, sharper feel for high-speed gravel, rolling terrain and mixed road sections.
Value argument
Why this build is good value
The E628F4G build is positioned for riders who want a clear step up from Rival-level wireless builds without jumping to the highest possible race spec. It adds SRAM Force XPLR AXS E1, the integrated carbon F-Bar cockpit and Miche Graff Aero 48 Carbon wheels, creating a complete performance package straight from the showroom.
For riders comparing upgrades, this build makes a lot of sense because the drivetrain, cockpit and wheelset are already at a premium level. You are not buying a great frame and immediately planning expensive changes; the most meaningful speed, control and integration upgrades are included from day one.
Best for
This Force XPLR F-Bar build is made for riders who want a premium SRAM wireless gravel race package with aero speed and clean integration.
Fast gravel racing
The aero wheelset, carbon cockpit and race-focused chassis suit high-speed gravel events and aggressive mixed-surface riding.
SRAM wireless riders
Best for riders who prefer SRAM AXS wireless shifting and want the added refinement of the Force XPLR E1 drivetrain.
Premium build seekers
A strong choice when you want a race-ready bike with premium wheels, cockpit and drivetrain already included.
Configuration
Complete build details for the Rave SLR ID2 E628F4G with SRAM Force XPLR AXS E1 1x13, Miche Graff Aero 48 Carbon wheels and F-Bar.
| Model | Wilier Rave SLR ID2 |
|---|---|
| Build code | E628F4G, F-Bar |
| Category | Carbon gravel race bike |
| Frame | Rave ID2 carbon monocoque HUS MOD + Liquid Crystal Polymer |
| Fork | Rave ID2 carbon monocoque HUS MOD + Liquid Crystal Polymer |
| Groupset | SRAM Force XPLR AXS E1 1x13 |
| Shifters | SRAM Force AXS ED-FRC-E1 |
| Brakes | SRAM Force AXS ED-FRC-E1 hydraulic disc |
| Rotors | SRAM Paceline RT-PLN-A1 160 / 160 mm |
| Rear derailleur | SRAM Force XPLR AXS RD-FRC-1E-E1 |
| Crankset | SRAM Force XPLR DUB Wide FC-FRC-1W-E1 40T |
| Bottom bracket | SRAM DUB Wide Press Fit 86.5 |
| Cassette | Force XPLR XG-1371 CS-XG-1371-E1 10-46T |
| Chain | SRAM Force CN-FRC-E1 |
| Wheelset | Miche Graff Aero 48 Carbon |
| Tyres | Vittoria Terreno T50 700x50c TLR |
| Handlebar | F-Bar integrated carbon custom made |
| Handlebar weight | 380 g +/- 5% |
| Headset | Custom Superslim 1-1/4 inch upper bearing and FSA MR137 1-1/4 inch lower bearing |
| Saddle | Prologo Dimension-AGX T4.0 143 black |
| Seatpost | Wilier Filante carbon custom seatpost, -15 mm offset |
| Axle / thru axle | Miche thru axle 12x118 front and 12x165 rear |
| Weight | 8.45 kg +/- 5% |
| Frame weight | 990 g +/- 5% |
| Fork weight | 415 g +/- 5% |

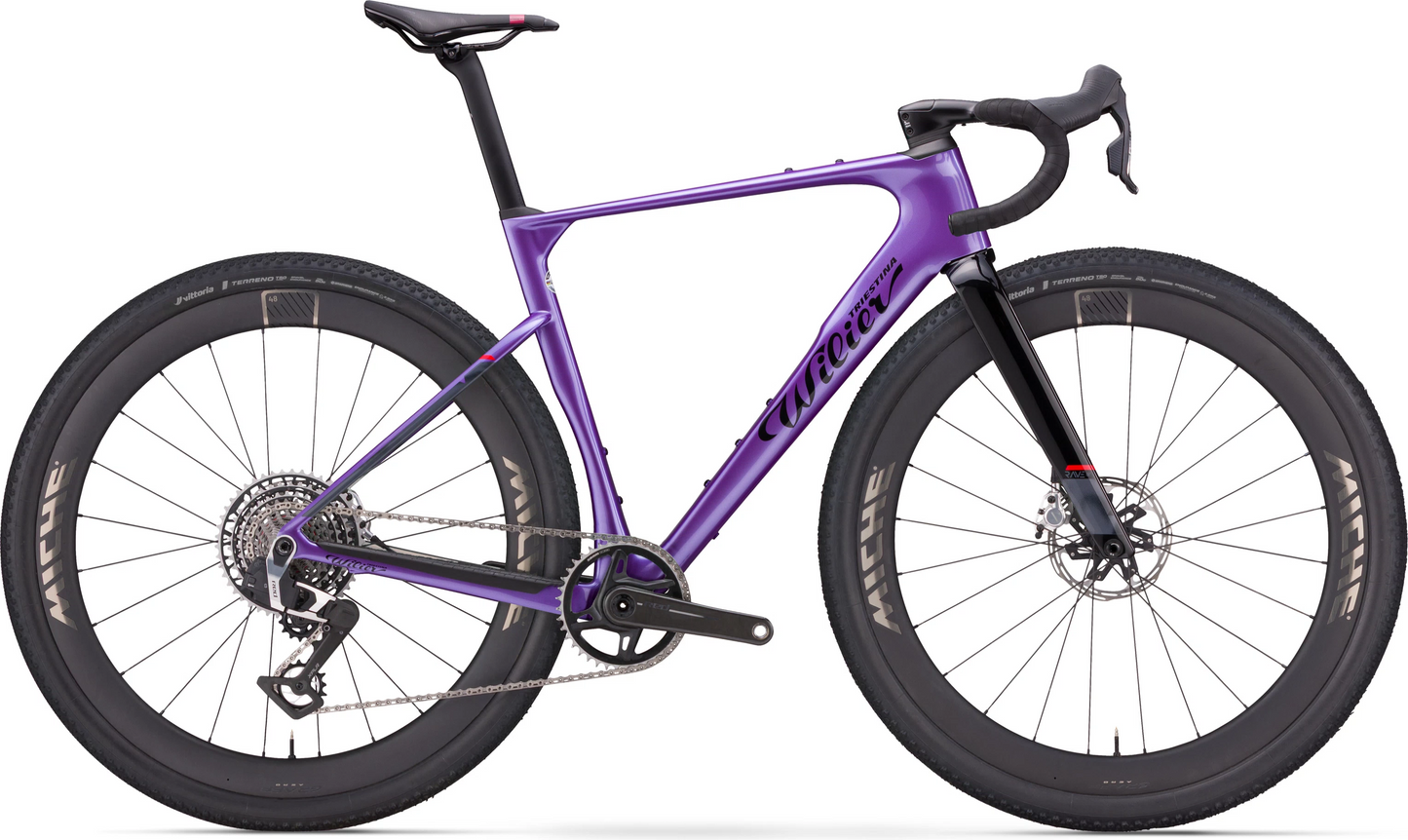

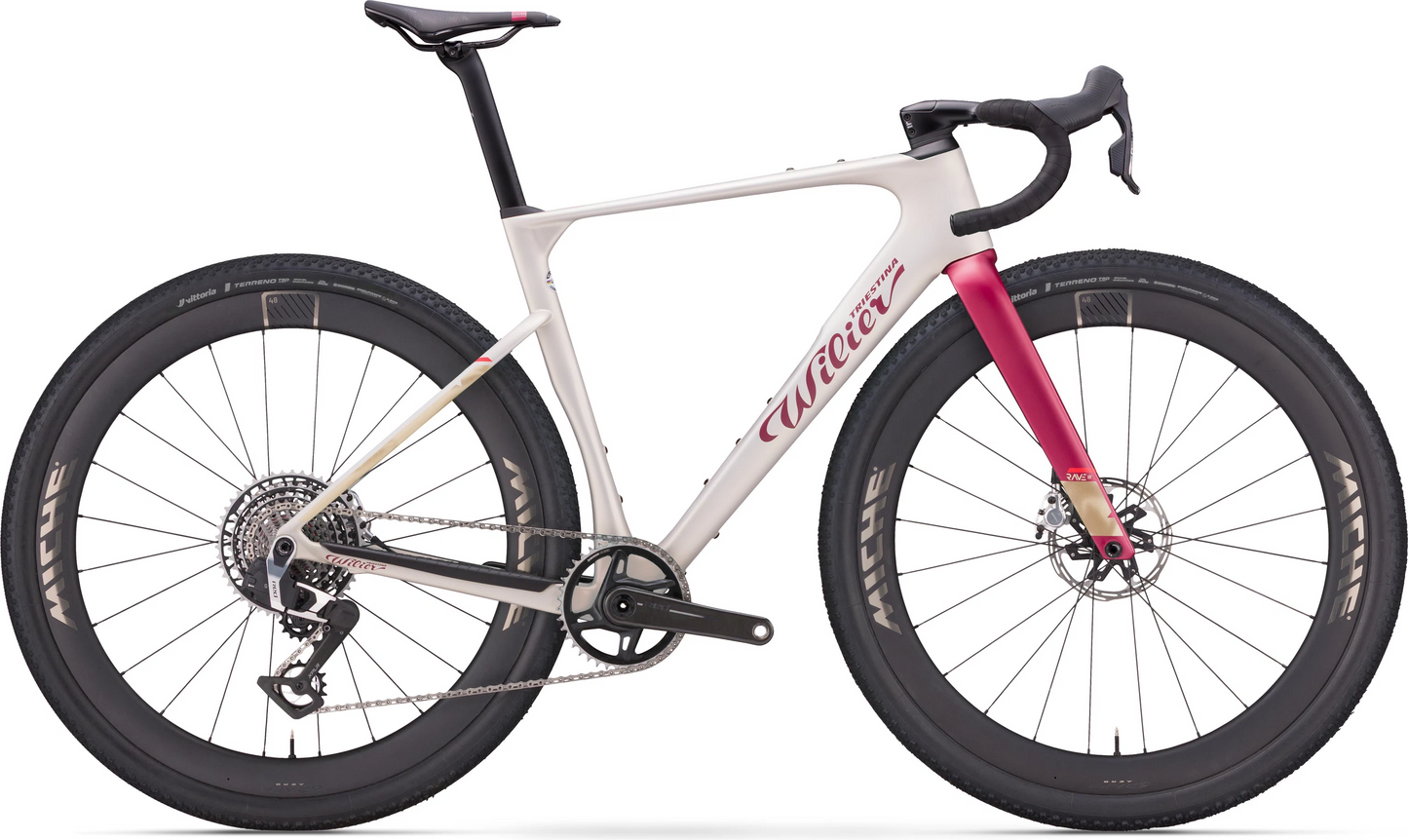

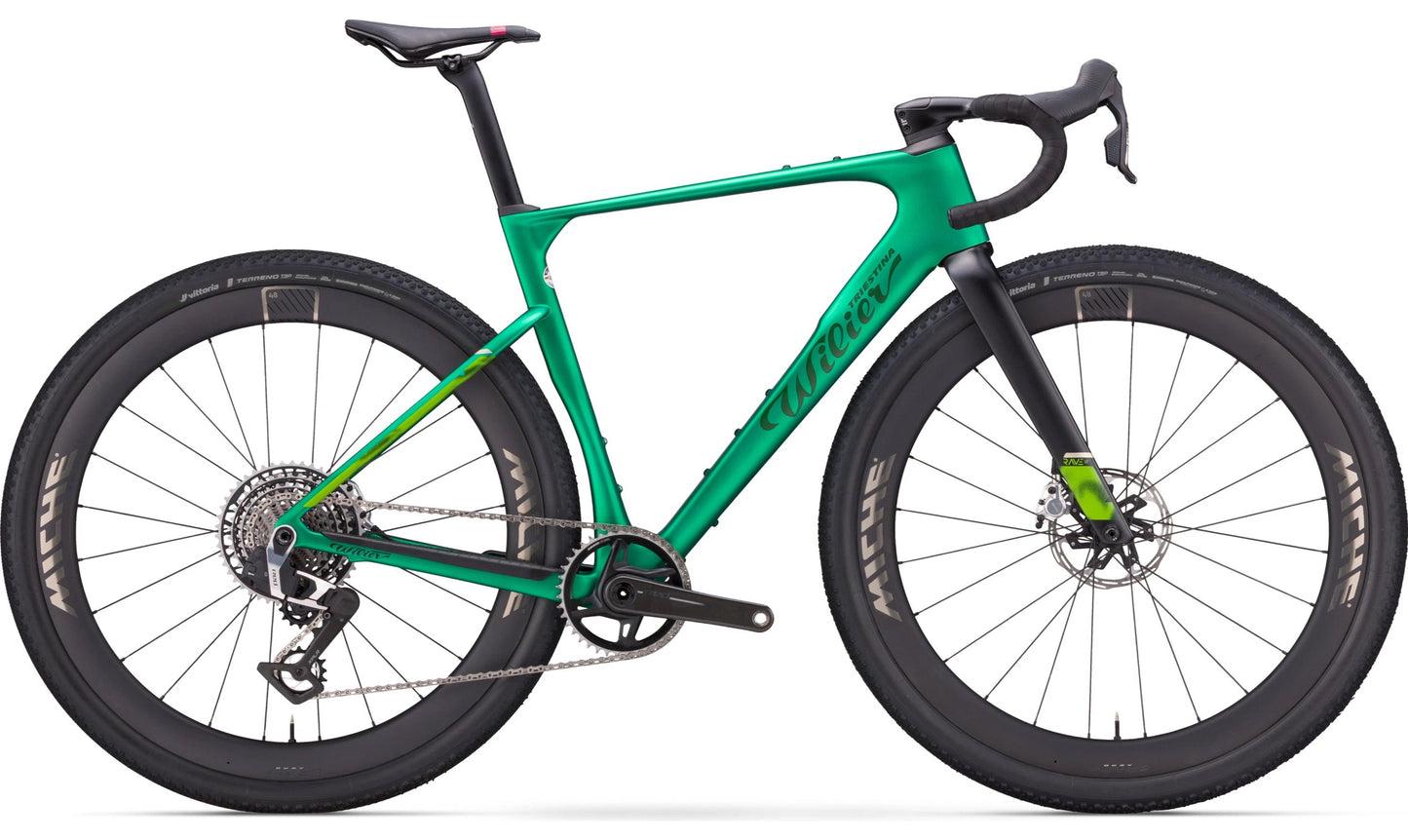

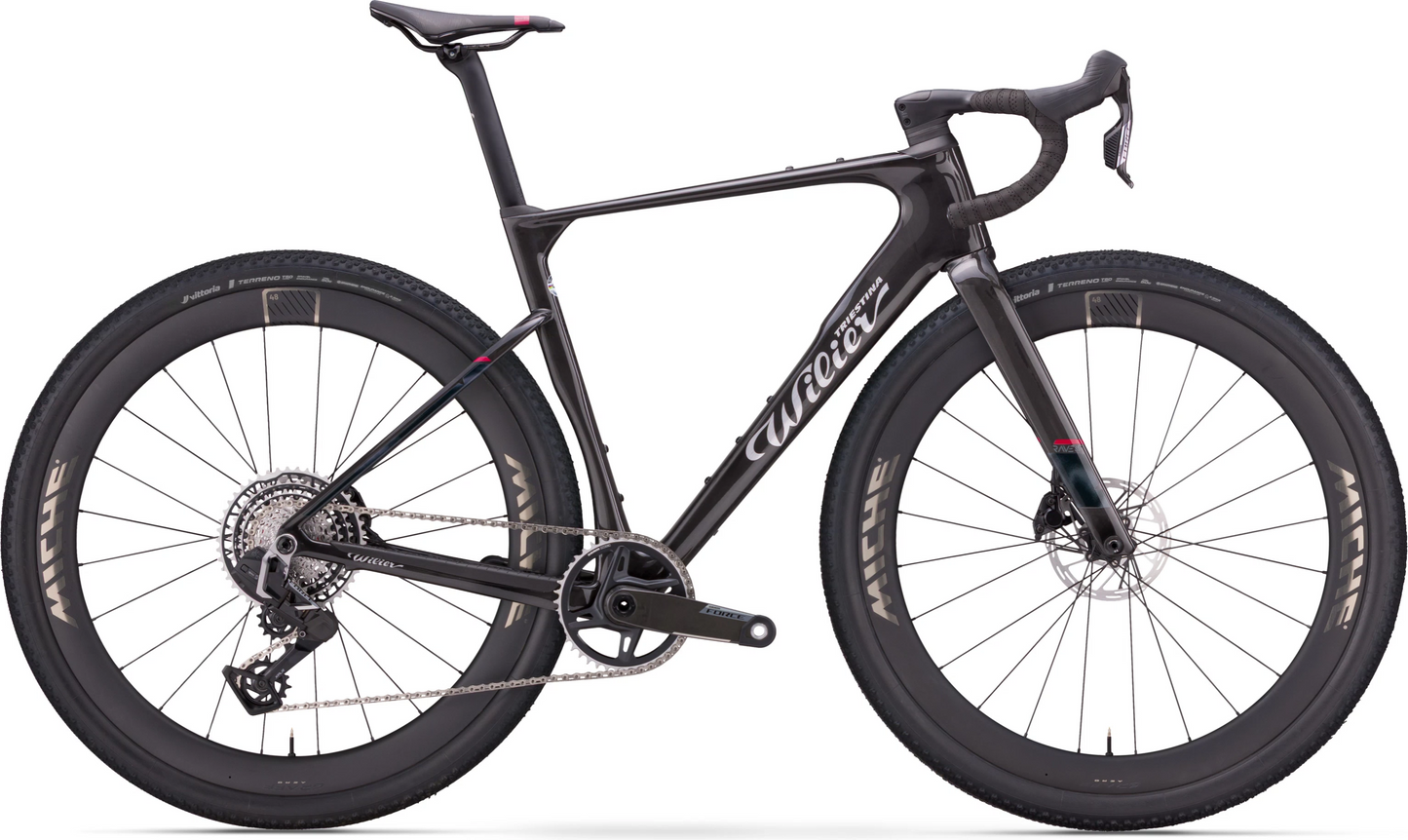

| Available colours | V10 Pixel Green Matt, V11 Glitch Black, V12 Neon Purple, V13 Byte Cream Matt |
| Available sizes | XS, S, M, L, XL, XXL |
Geometry
Compact wheelbase, short chainstays and gravel-racing angles create a quick, precise ride on road and off.
| Size | C/C cm | L cm | H cm | A deg | L1 cm | H1 cm | A1 deg | Reach mm | Stack mm | Wheelbase mm |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 43.2 | 51.6 | 45 | 75.5 | 41.9 | 10.7 | 69.2 | 375 | 532 | 1014 |
| S | 46.2 | 53.2 | 48 | 74.7 | 41.9 | 11.8 | 70 | 381 | 546 | 1017 |
| M | 48.2 | 54.9 | 50 | 74 | 42.1 | 13.1 | 70.8 | 387 | 561 | 1022 |
| L | 50.2 | 56.6 | 52 | 73.5 | 42.1 | 14.8 | 71.2 | 393 | 579 | 1031 |
| XL | 52.2 | 58.3 | 54 | 73 | 42.3 | 16.6 | 71.6 | 400 | 597 | 1042 |
| XXL | 54.2 | 59.7 | 56 | 73 | 42.3 | 18.5 | 72 | 408 | 617 | 1052 |
Questions riders often ask
Helpful answers for comparing this Force XPLR F-Bar build to the other Rave SLR ID2 options.
Why choose this over the Rival XPLR F-Bar build?
Choose this version if you want a step up to SRAM Force XPLR AXS E1 while keeping the same premium F-Bar cockpit and Miche Graff Aero 48 Carbon wheel package.
What is the benefit of the Miche Graff Aero 48 wheels?
The 48 mm aero carbon wheelset is designed to make the bike feel faster and more responsive at speed, especially on fast gravel, rolling courses and mixed road sections.
Is SRAM Force XPLR AXS E1 suitable for serious gravel racing?
Yes. Force XPLR AXS E1 is a performance wireless 1x13 gravel drivetrain with broad 10-46T range and clean shift control for racing and high-speed mixed-terrain rides.
How does the F-Bar change the ride?
The F-Bar creates a cleaner, more integrated front end and gives the bike a more premium race-bike feel compared with the separate alloy handlebar and stem configurations.
Who should buy this version?
This build is best for riders who want a premium SRAM wireless Rave SLR ID2 with aero carbon wheels, an integrated carbon cockpit and a lighter 8.45 kg claimed build weight.
The SRAM Force XPLR build with aero wheels and full cockpit integration.
The E628F4G sits above the Rival-level F-Bar builds by pairing Wilier's Rave SLR ID2 carbon race chassis with Force XPLR wireless shifting, Miche Graff Aero 48 Carbon wheels and the F-Bar integrated carbon cockpit.
