Description:

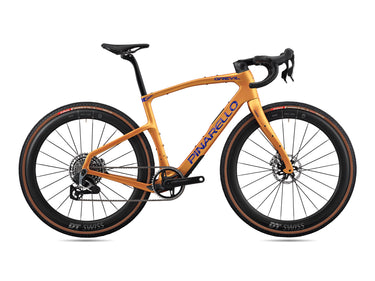

The new generation of Grevil F is lighter, faster, and designed to be ridden for days on end. No matter the conditions or the duration of the race, the bike’s versatility provides the perfect solution to help you compete to win.
Components
| FRAME SET | |
|---|---|
| FRAME | TORAY T900 UD |
| FORK | F Onda Fork with ForkFlap™, Tapered head tube |
| DRIVETRAIN | |
| CRANKSET AND CHAINRINGS | SRAM RED XPLR AXS 1x13 |
| CASSETTE | SRAM RED XPLR AXS 1x13 |
| CHAIN | SRAM Red |
| BOTTOM BRACKET | SRAM BB DUB ITALIAN 70mm ROAD WIDE |
| BRAKES | |
| FRONT BRAKE DISC | Sram Red 2 pistons caliper, 160mm rotor |
| REAR BRAKE DISC | Sram Red 2 pistons caliper, 160mm rotor |
| COCKPIT | |
| HANDLEBAR | JAGUAR ULTRA GR TICR |
| STEM | TIGER ALU AERO TICR |
| BAR TAPE | MOST Ultragrip Evo 3mm - Black |
| SADDLE | Most Lynx My26 |
| SEATPOST | D-SHAPE SEATPOST |
| SEAT CLAMP | fsc frontal seat clamp |
| WHEELS AND TIRES | |
| TYRES DISC | VITTORIA TERRENO T50 45 |
| WHEELSET DISC | DT SWISS GRC 1400 50DB |
| AXLES DISC | NEW MOST Ultra Light Custom Axle 12x100 & 12x142, tool free removal |
| ACCESSORIES AND NOTES | |
| BOTTLES AND BOTTLE CAGES | Bottlecase The Wings Gravel with Bottle Fly 550ml Pinarello bottle |
Geometries
| CF | CC | L | I | A[°] | B[°] | F | P | T | D | R | G | WB | REACH | STACK |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 410 | 470 | 530 | 125.6 | 74.5 | 70.25 | 603.9 | 430 | 115 | 72 | 55 | 405 | 1023.5 | 368.4 | 553.2 |
| 440 | 500 | 545 | 137.8 | 74 | 70.5 | 614.5 | 430 | 130 | 72 | 55 | 405 | 1034.2 | 376.1 | 568.3 |
| 470 | 530 | 558 | 148.3 | 73.75 | 70.75 | 625.8 | 430 | 150 | 67 | 55 | 405 | 1047 | 383.7 | 583.2 |
| 490 | 550 | 570 | 156.2 | 73.5 | 71.75 | 621.9 | 430 | 160 | 67 | 50 | 405 | 1043 | 390.4 | 598.4 |
| 510 | 575 | 587 | 168.1 | 73 | 72 | 631.9 | 430 | 175 | 67 | 50 | 405 | 1053.1 | 398.2 | 613.6 |
| 545 | 600 | 607 | 180.4 | 72.5 | 72.25 | 644.3 | 430 | 195 | 67 | 50 | 405 | 1065.5 | 406.9 | 633.7 |
CE: SEAT TUBE CENTER - END, CC: SEAT TUBE CENTER - CENTER, L: TOP TUBE CENTER - CENTER, A[°]: SEAT TUBE ANGLE, B[°]: HEADTUBE ANGLE, P: CHAINSTAY, T: HEADTUBE, D: BB DROP, R: FORK RAKE , G: FORK HEIGHT, REACH, STACK
Shipping and Assembly
Ready to ship in 2 days.
