Description:
Princeton CarbonWorks Mach 7580 TSV3 Tri-Spoke Wheels — Front, Rear or Complete Set
The Princeton CarbonWorks Mach 7580 TSV3 is the third generation of the brand’s flagship carbon tri-spoke wheel and its fastest, lightest version yet. Designed for time trial, triathlon, and high-speed racing, the TSV3 is available as a front wheel, rear wheel, or complete front-and-rear wheelset. Redesigned rim and spoke-blade profiles are optimized around modern 28–30mm tires.
The Mach 7580 TSV3 combines a 23mm hooked internal width, a 33mm maximum rim width, ceramic bearings, and Tactic Racing TR01 v2 ratchet and freehub internals. At approximately 880g for the front and 900g for the rear, the complete TSV3 wheelset is approximately 125g lighter than the TSV2 set, delivering lower mass without compromising aerodynamic speed or race-ready performance.
Already proven in prototype form at the highest level of competition, the TSV3 was developed for riders seeking an advanced aero tri-spoke wheelset for fast time trials, triathlons, and demanding race courses. Its wider tire interface is engineered to complement current-generation race tires while delivering the distinctive speed and stability of Princeton CarbonWorks’ Mach platform.
Key Features — Mach 7580 TSV3
- Category: Carbon tri-spoke wheel for time trial, triathlon, and high-speed racing
- Generation: Third-generation Mach 7580 Tri-Spoke
- Purchase options: Front wheel, rear wheel, or complete front-and-rear set
- Front wheel weight: Approximately 880g
- Rear wheel weight: Approximately 900g
- Complete set weight: Approximately 1,780g
- Weight improvement: Complete set is approximately 125g lighter than TSV2
- Internal rim width: 23mm hook-to-hook
- Maximum rim width: 33mm
- Rim interface: Hooked profile for secure tire retention and broad tire compatibility
- Tire optimization: Redesigned around 28–30mm tires
- Aerodynamic design: Updated rim and tri-spoke blade profiles
- Bearings: Ceramic bearings
- Hub internals: Tactic Racing TR01 v2 ratchet and freehub
- Paint options: Ten Princeton CarbonWorks colors and finishes
Front, Rear and Complete-Set Options
| Configuration | Approx. weight | Best suited for |
|---|---|---|
| Mach 7580 TSV3 Front | 880g | Pairing with a rear disc or other aero rear wheel |
| Mach 7580 TSV3 Rear | 900g | Courses or events where a rear disc wheel is not preferred |
| Mach 7580 TSV3 Complete Set | 1,780g | Matching front-and-rear tri-spoke race setup |
Published wheel weights are approximate. Actual weight may vary slightly due to production tolerances, finish, freehub configuration, and other component choices.
Available Mach 7580 TSV3 Colors

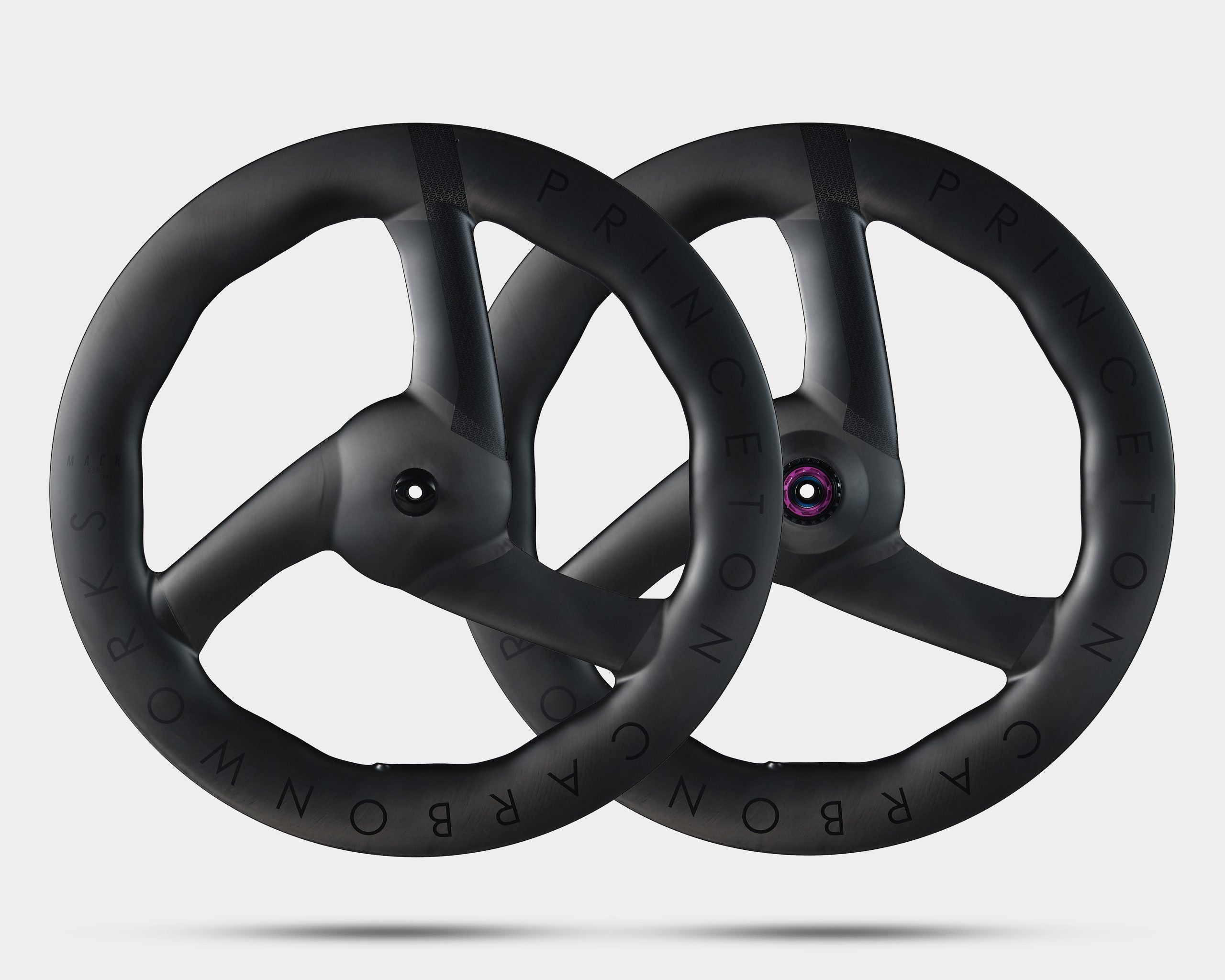

- Matte Black
- Matte White

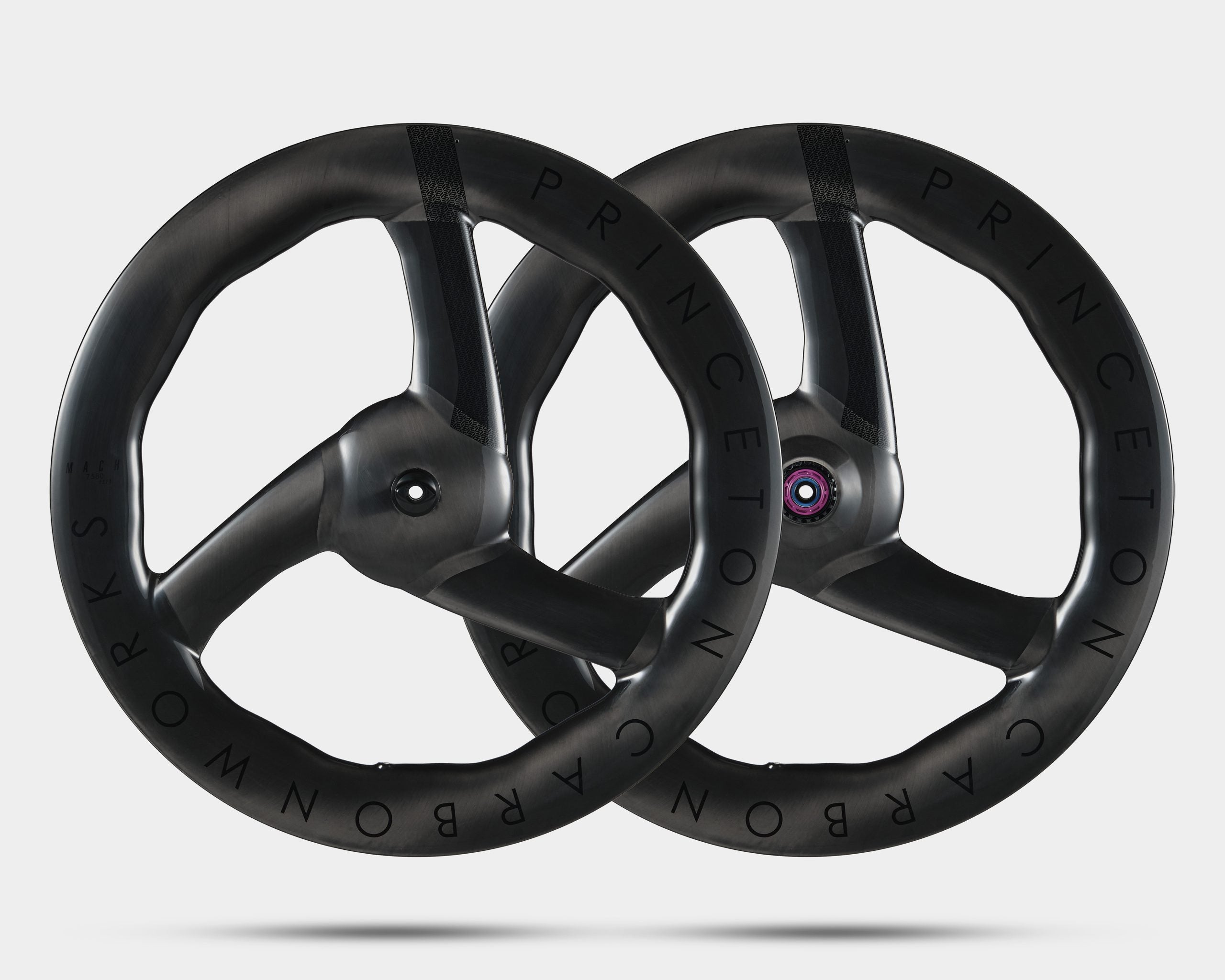

- Gloss Black

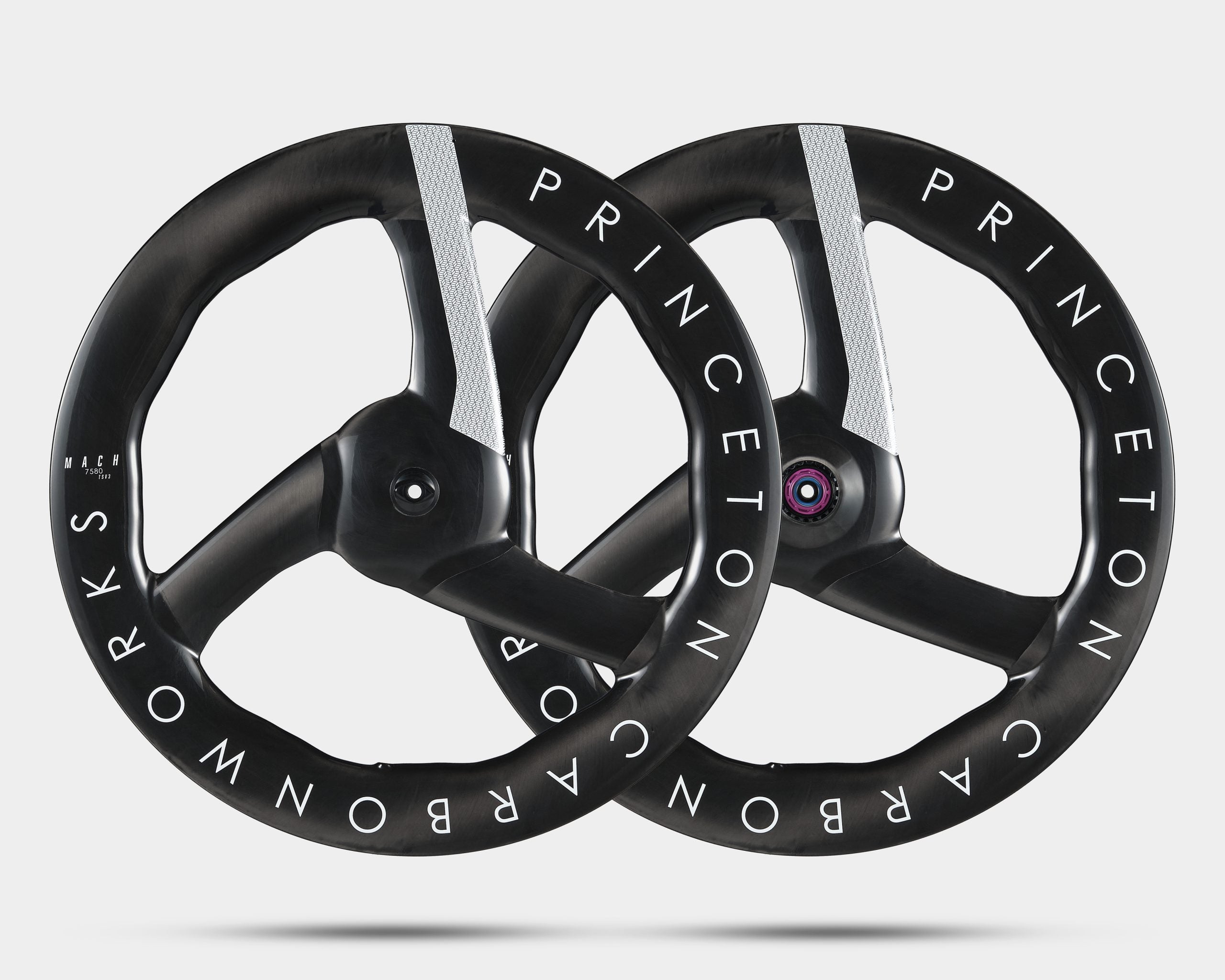

- Gloss White
- Gloss Chrome

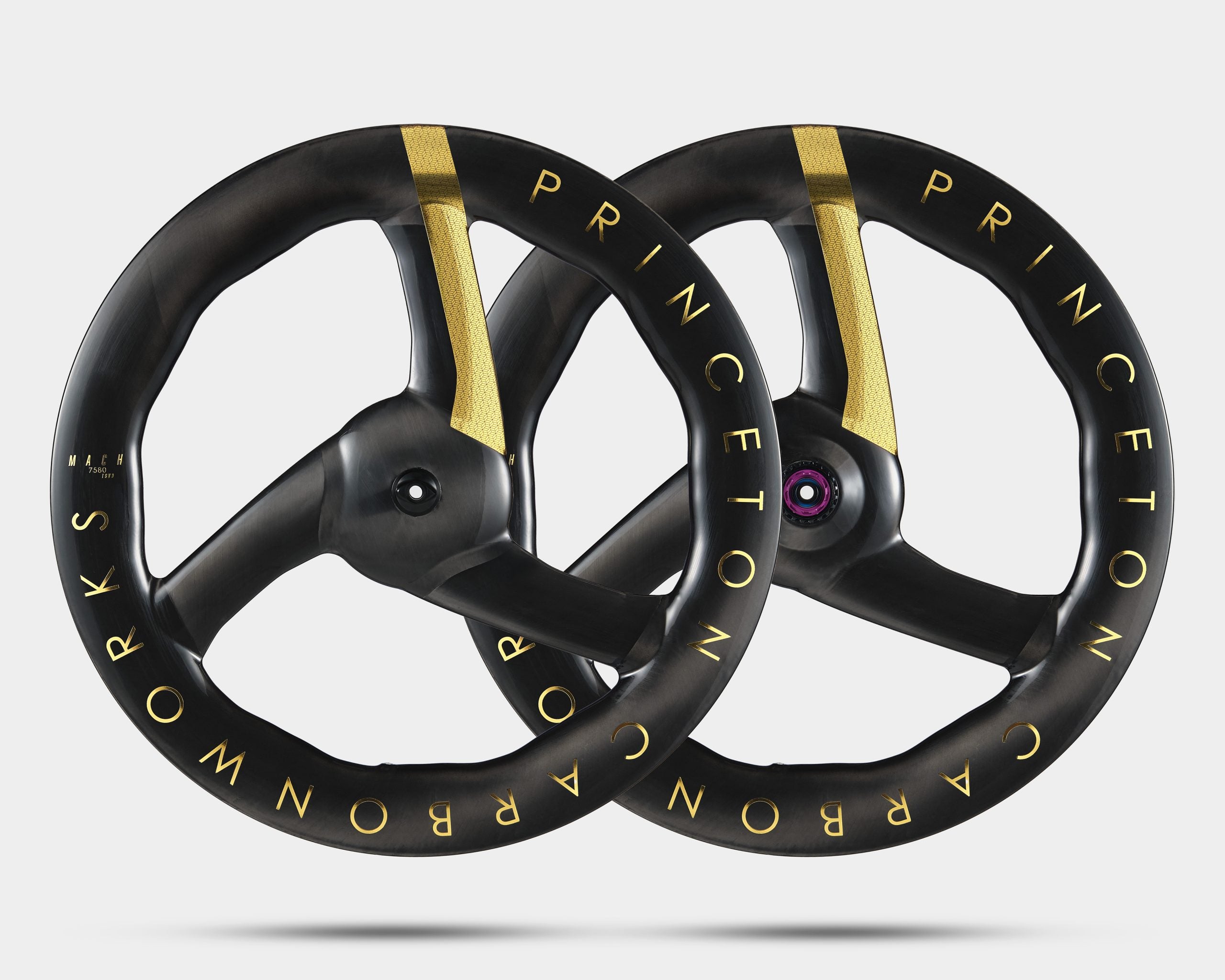

- Gloss Gold

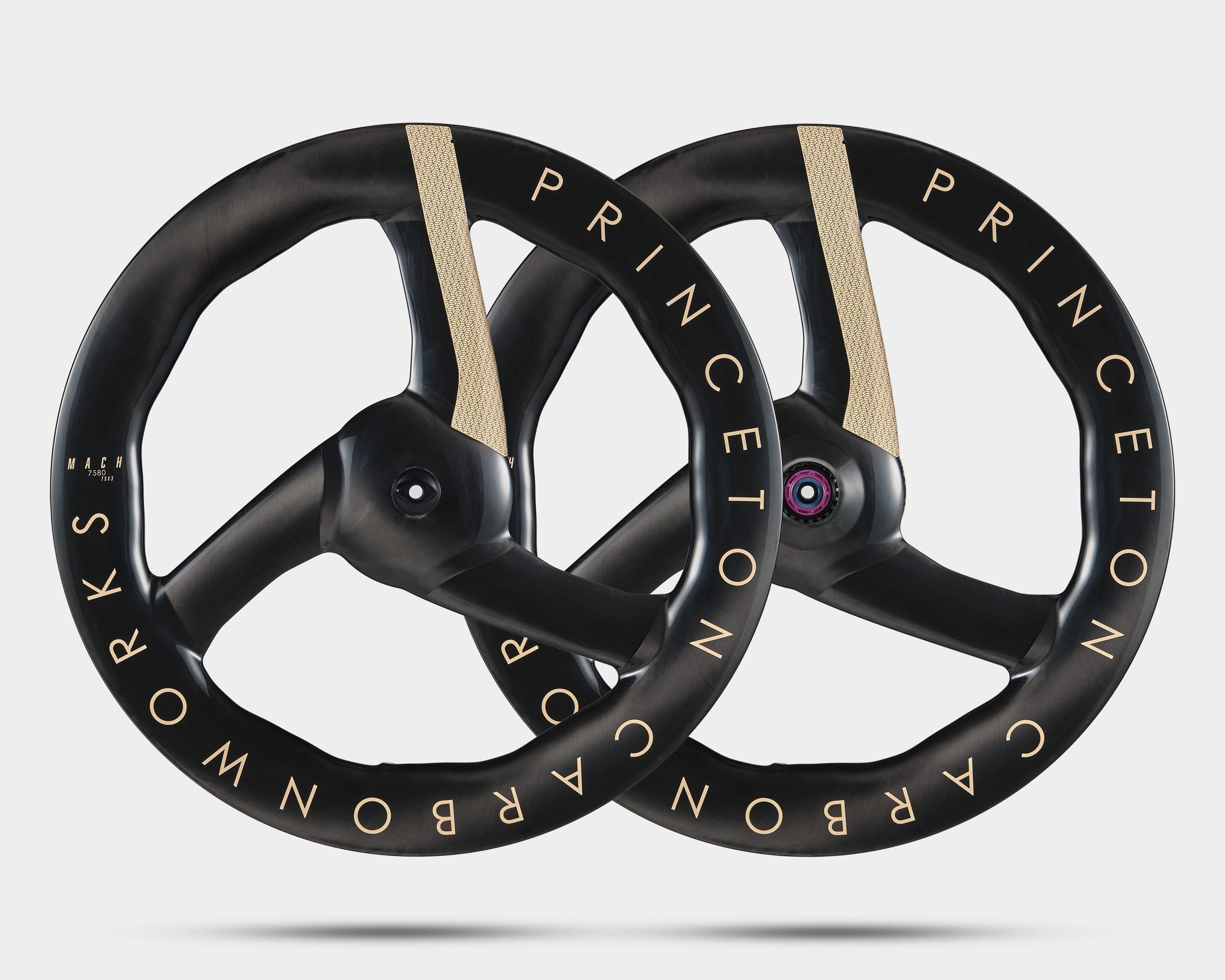

- Gloss Sand

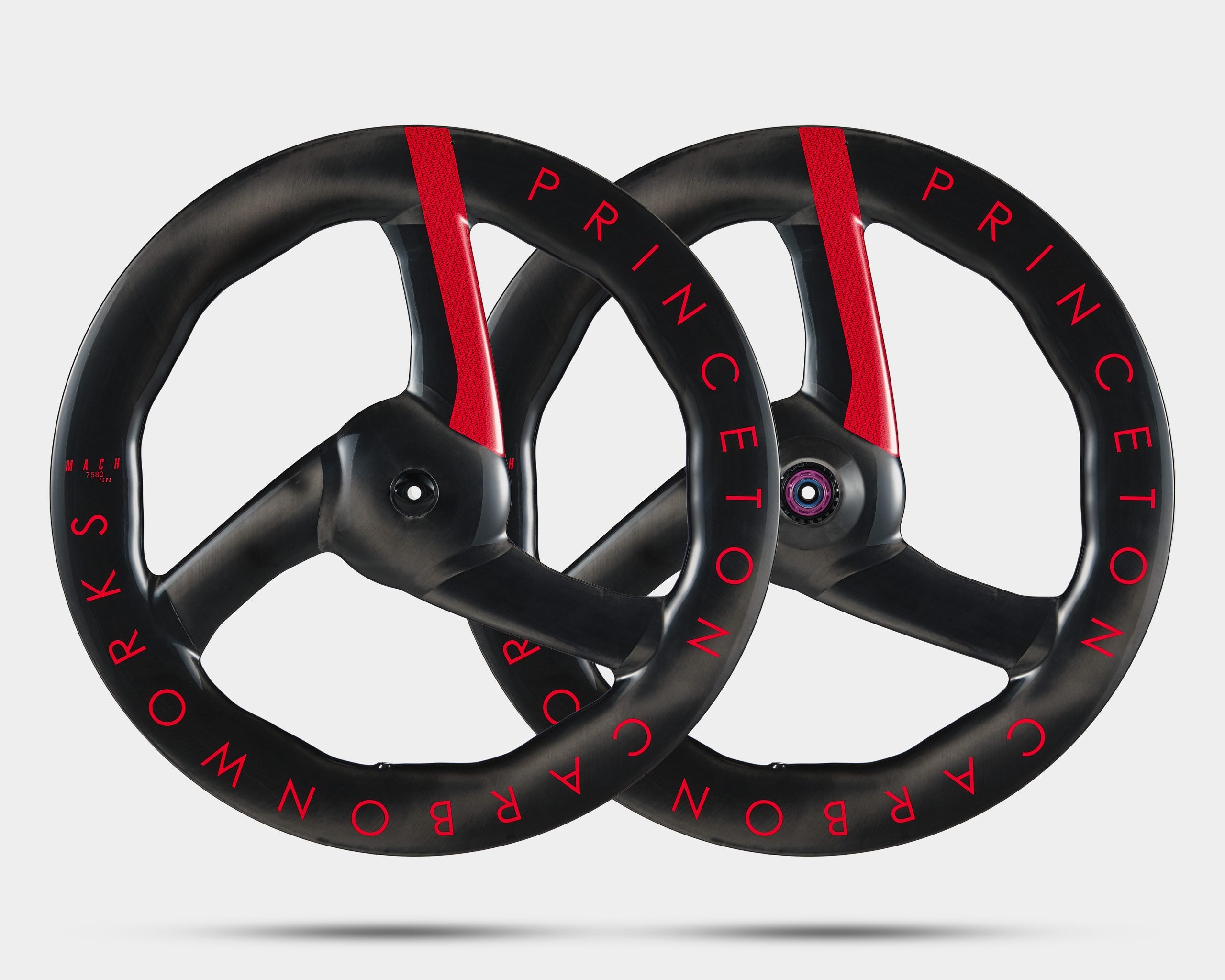

- Gloss Red

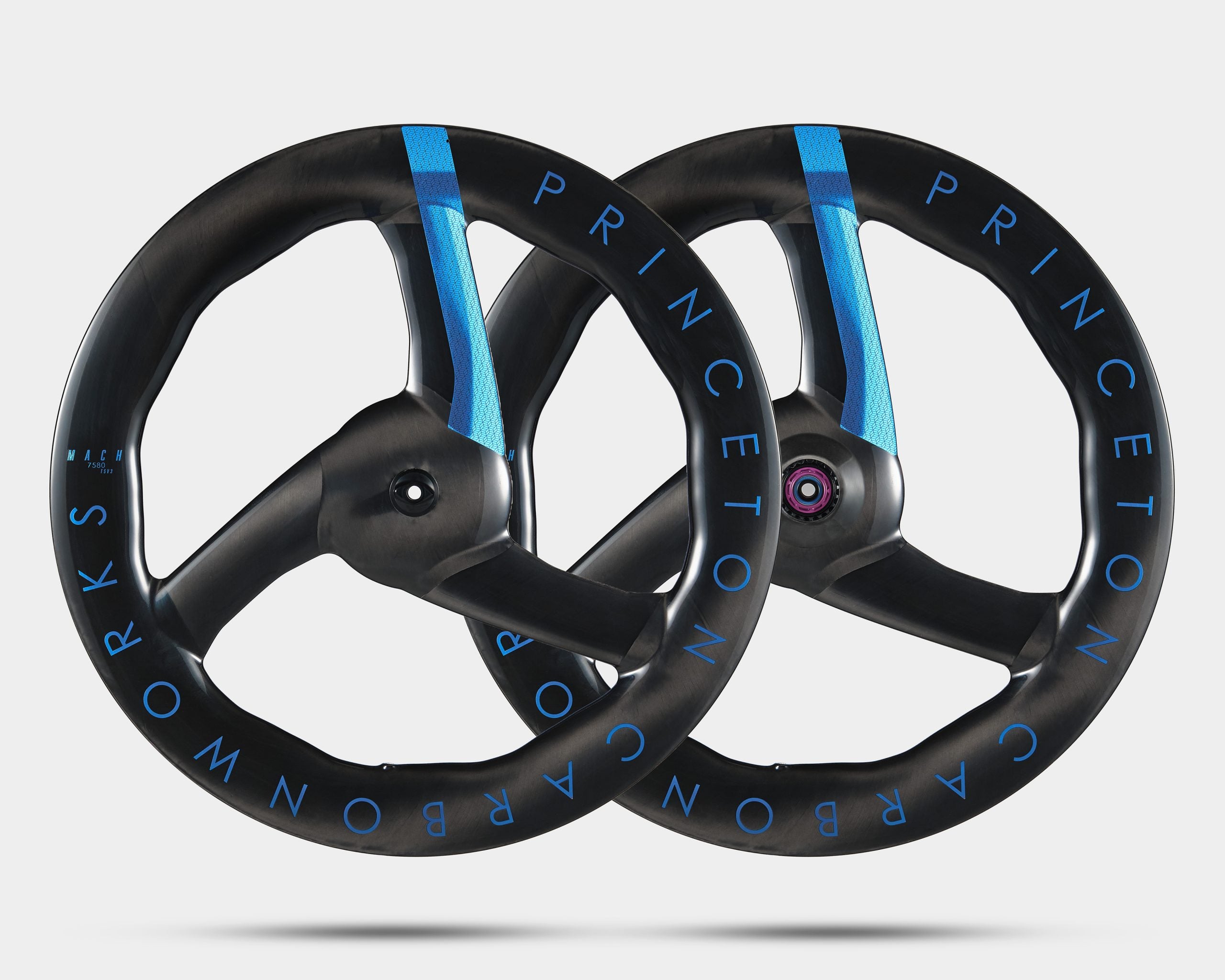

- Gloss Cobalt

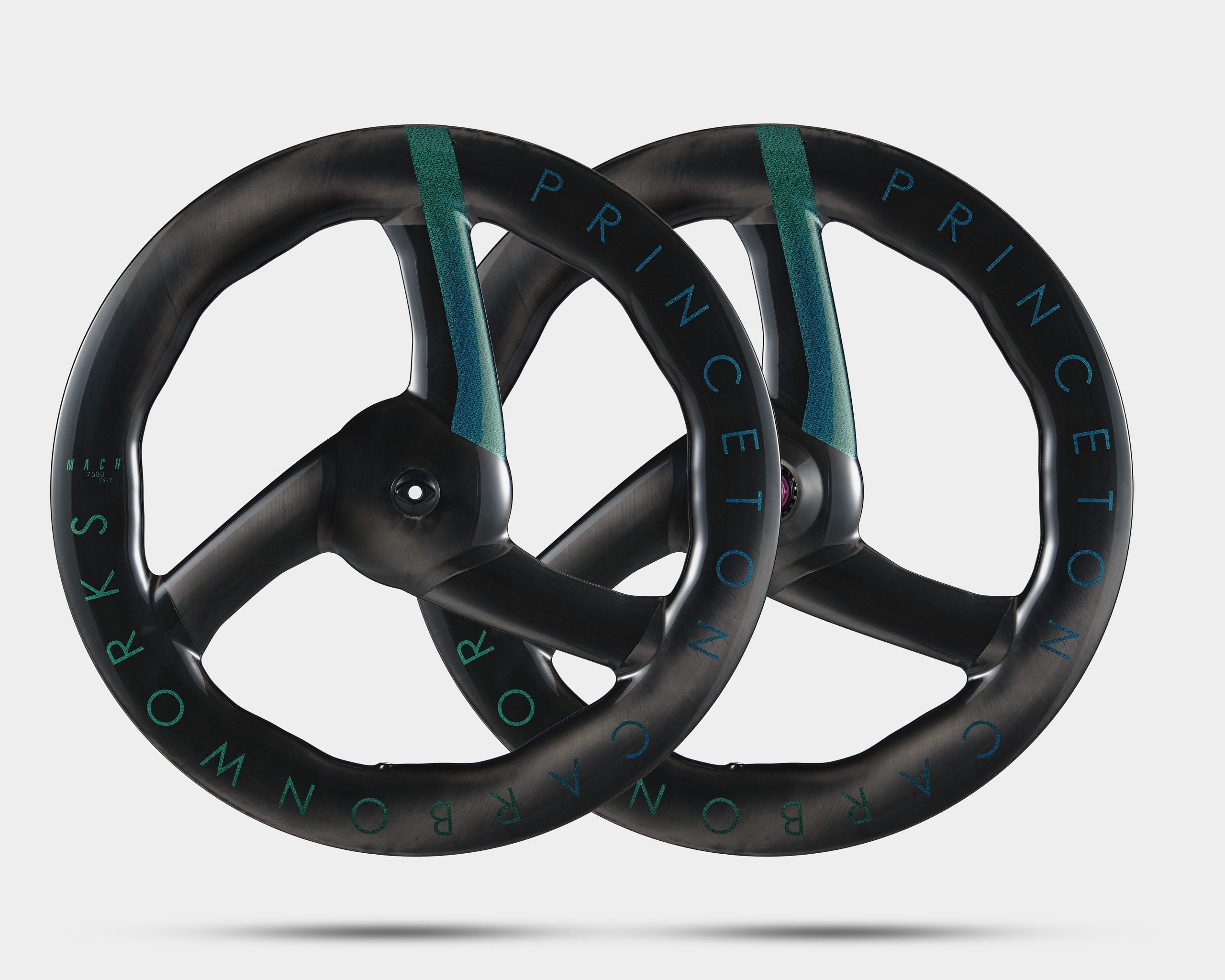

- Gloss Chameleon
Mach 7580 TSV3 FAQ
Can I buy the Mach 7580 TSV3 as an individual wheel?
Yes. The Mach 7580 TSV3 is available as a front wheel, a rear wheel, or a matching complete wheelset.
What tire sizes are recommended for the TSV3?
The updated rim and spoke-blade profiles were developed around modern 28mm to 30mm tires.
How wide is the Mach 7580 TSV3 rim?
The TSV3 has a 23mm internal hook-to-hook width and a 33mm maximum external rim width.
What bearings and hub internals are used?
The wheels use ceramic bearings and Tactic Racing TR01 v2 ratchet and freehub internals.
How much lighter is TSV3 than TSV2?
The complete Mach 7580 TSV3 wheelset is approximately 125g lighter than the TSV2 complete set.
What is included when ordering a complete set?
A complete set includes one Mach 7580 TSV3 front wheel and one Mach 7580 TSV3 rear wheel. Confirm included accessories and freehub selection in the product options before ordering.
