Description:

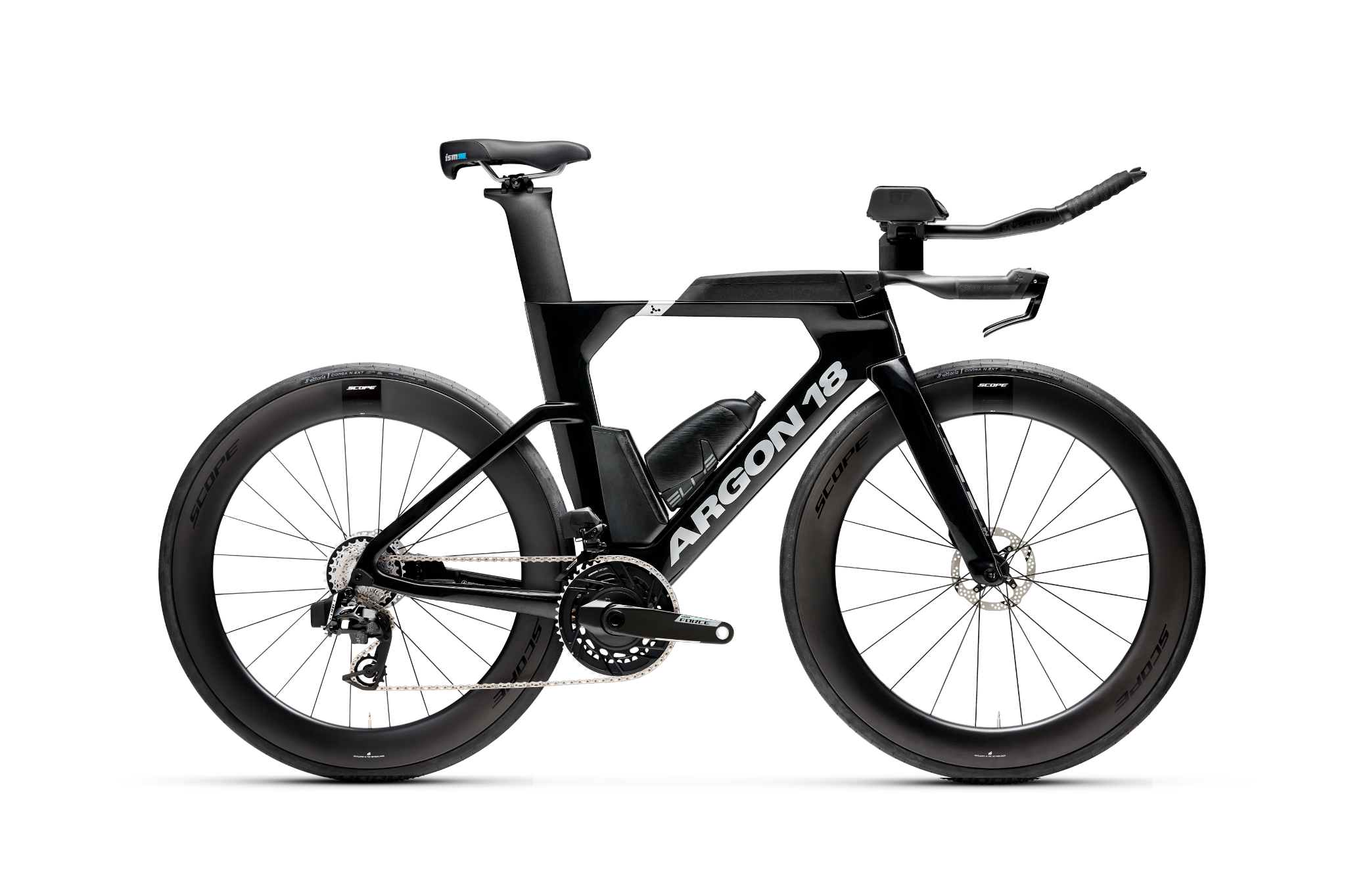

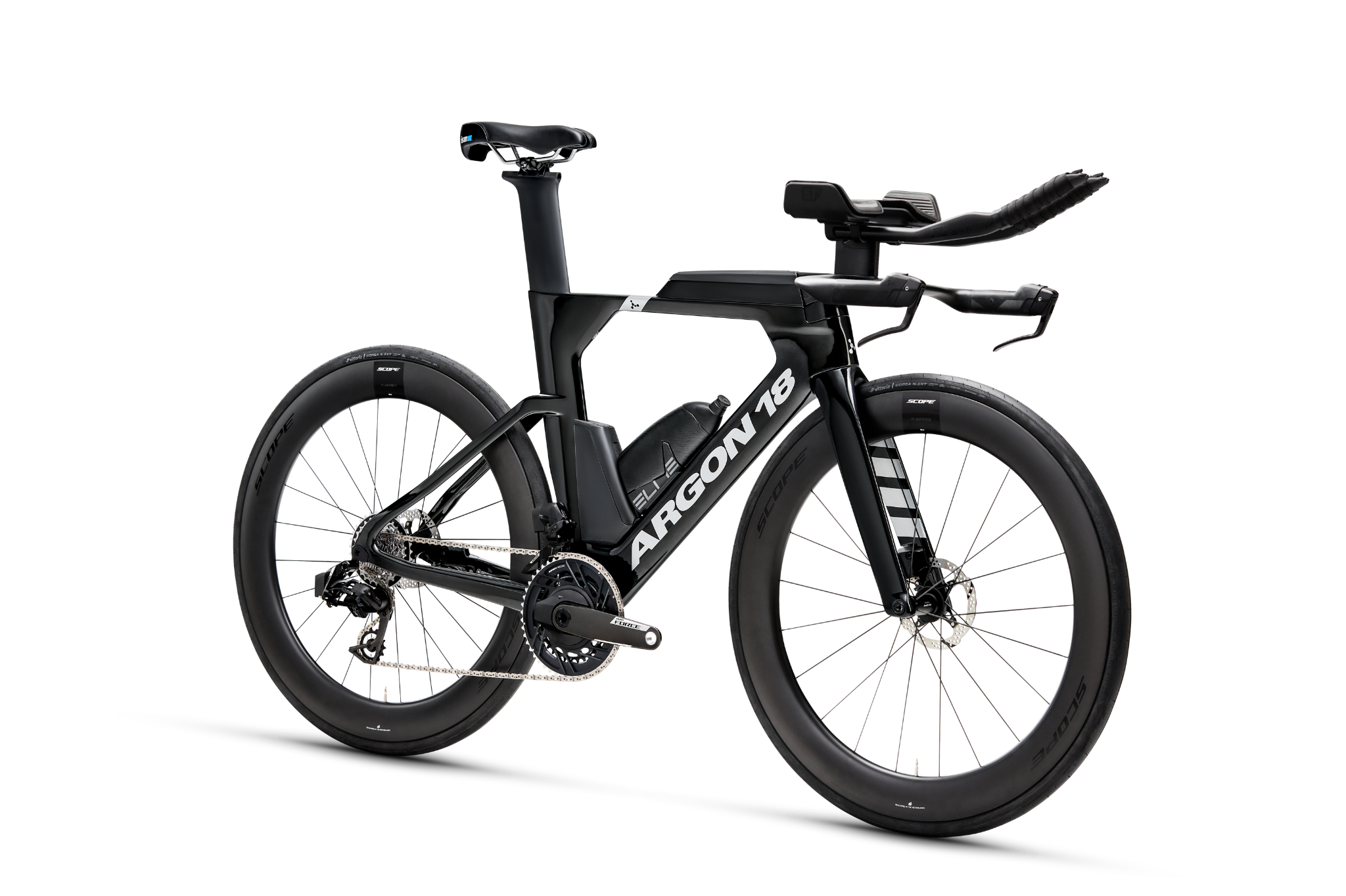

Argon 18 E117 SRAM Force AXS Integrated Cockpit — Race-Ready Aero Performance for Triathlon and TT
The Argon 18 E117 is a dedicated triathlon and time-trial bike built for athletes who want a real aero race position, integrated disc braking, and value-driven performance from Argon 18's triathlon platform. It is designed for serious triathletes, TT competitors, and riders moving from a road bike setup into a purpose-built bike with forward triathlon geometry and adjustable fit.
Choose the E117 SRAM Force AXS if you want the most complete E117 configuration in this inventory. It pairs the E117 carbon triathlon platform with SRAM Force AXS E1 wireless shifting, a SRAM Red AXS Powermeter crank, Scope R6.A wheels, integrated brakes, the Argon 18 Integrated Cockpit, and 51 Speedshop Custom Extensions.
Who should buy this model?
This build is best for riders who want the highest E117 build in this import, athletes who train and race with power, SRAM AXS users, and triathletes who want wireless shifting with a premium wheel and crank package.
Why this E117 over the other builds?
Compared with Rival AXS, Force AXS adds a higher-tier SRAM drivetrain package, Scope R6.A wheels, and a power meter crank. Compared with Ultegra Di2, it is the best pick for riders who prefer SRAM wireless shifting and integrated power measurement.
Key E117 Platform Features
- Race-ready triathlon and TT geometry for a forward, aerodynamic position
- Integrated disc brake system designed to reduce drag while preserving brake control
- Internal cable routing and integrated frame details for a clean race setup
- Argon Fit System with size-specific geometry
- 3D System fit options to tune stack without compromising front-end stiffness
- E117 carbon frame, E117 fork, and E117 headset platform
- Tire clearance up to 30C / 32mm depending tire/rim combination
E117 Model Comparison: Which Build Should You Buy?
| Model | Best For | Why It Matters |
|---|---|---|
| Shimano 105 | Best entry price | Mechanical Shimano 105 and Profile Design cockpit for value-focused first tri bikes. |
| Shimano 105 Di2 | Best electronic-shifting value | Di2 electronic shifting and integrated cockpit at a lower price than Ultegra. |
| SRAM Rival AXS | Best SRAM wireless value | Wireless AXS shifting and integrated cockpit below Force AXS pricing. |
| Shimano Ultegra Di2 | Best Shimano performance/value | Ultegra Di2, Scope R6.A wheels, and integrated cockpit for regular racing. |
| SRAM Force AXS | Top E117 build | SRAM Force AXS E1, Red AXS power meter crank, and Scope R6.A wheels. |
Specifications
| Component Group | Component | Specification |
|---|---|---|
| Frameset | Frame | E117 |
| Frameset | Fork | E117 |
| Frameset | Headset | E117 |
| Frameset | Integrated Cables | Yes |
| Wheels | Wheels | Scope R6.A |
| Wheels | Tires | Vittoria Corsa N.EXT TLR 29c |
| Wheels | Tire Clearance | 30C (32mm) |
| Group | Bottom Bracket | SRAM DUB PF 86.5 Road |
| Group | Front Derailleur | SRAM Force AXS E1 |
| Group | Rear Derailleur | SRAM Force AXS E1 |
| Group | Crankset | SRAM Red AXS Powermeter 48/35 |
| Group | Chain | SRAM CN Force E1 |
| Group | Cassette | SRAM CS XG 1270 E1 10-33 |
| Brakes | Brakes | Argon 18 Integrated Brake System |
| Brakes | Brake Levers | Argon 18 Integrated Brake System |
| Brakes | Rotors | TRP TR140-25 / F:140mm R:140mm |
| Brakes | Shifters | SRAM Wireless blips |
| Other | Handlebar | Argon 18 Integrated Cockpit |
| Other | Stem | Argon 18 Integrated Cockpit |
| Other | Bar Tape | Prologo Plaintouch black |
| Other | Saddle | ISM PR1.0 |
| Other | Seatpost | Argon 18 E117 specific |
| Other | Extensions | 51 Speedshop Custom Extensions |
| Included | Toolkit | Yes |
Geometry
| Measurement | Unit | XS 47-50 |
S 51-53 |
M 54-56 |
L 57-59 |
XL 60-62 |
|
|---|---|---|---|---|---|---|---|
| A | Seat Tube Height | cm | 45.5 | 50.0 | 51.6 | 54.2 | 56.8 |
| B | Seat Tube Angle | deg | 78.0 | 78.0 | 78.0 | 78.0 | 78.0 |
| C | Head Tube Angle | deg | 72.0 | 72.0 | 72.0 | 72.0 | 72.0 |
| D | Top Tube Length | cm | 49.2 | 50.4 | 51.7 | 52.7 | 54.5 |
| E | Chain Stay Length | cm | 41.3 | 41.3 | 41.3 | 41.3 | 41.3 |
| F | Wheelbase | cm | 97.6 | 98.9 | 100.4 | 101.7 | 103.8 |
| G | BB Drop | cm | 7.0 | 7.0 | 7.0 | 7.0 | 7.0 |
| H1 | Head Tube Length 3D (0mm) | cm | 4.9 | 6.0 | 7.7 | 10.4 | 13.1 |
| H2 | Head Tube Length 3D (35mm) | cm | 8.4 | 9.5 | 11.2 | 13.9 | 16.6 |
| I | Stand Over Height | cm | 72.9 | 76.7 | 78.2 | 80.8 | 83.3 |
| L | Fork Length (Axle-to-crown) | cm | 37.5 | 37.5 | 37.5 | 37.5 | 37.5 |
| R | Fork Rake | cm | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 |
Fit: Stack and Reach
| Measurement | Unit | XS 47-50 |
S 51-53 |
M 54-56 |
L 57-59 |
XL 60-62 |
|
|---|---|---|---|---|---|---|---|
| J | Armpad Stack | cm | 55 - 67.4 | 56 - 68.4 | 57.6 - 70 | 60.2 - 72.6 | 62.8 - 75.1 |
| K | Armpad Reach | cm | 40.5 - 50.4 | 41.5 - 51.4 | 42.5 - 52.3 | 43 - 52.8 | 44.2 - 54.1 |
| Saddle Height Min | cm | 60.0 | 64.5 | 66.1 | 68.7 | 71.3 | |
| Saddle Height Max | cm | 77.0 | 81.5 | 83.1 | 85.7 | 88.3 |
FAQ
What is the Argon 18 E117 best for?
The E117 is best for triathlon and time-trial riders who want a dedicated aero position, integrated disc brakes, and a performance platform that is more accessible than the flagship E119.
Why buy the Argon 18 E117 SRAM Force AXS Integrated Cockpit?
Choose the E117 SRAM Force AXS if you want the most complete E117 configuration in this inventory. It pairs the E117 carbon triathlon platform with SRAM Force AXS E1 wireless shifting, a SRAM Red AXS Powermeter crank, Scope R6.A wheels, integrated brakes, the Argon 18 Integrated Cockpit, and 51 Speedshop Custom Extensions.
Is the E117 a triathlon bike or a time-trial bike?
It is designed for triathlon and TT use. The forward geometry, aerobar cockpit, armpad stack/reach ranges, and integrated braking system are aimed at aero race positioning.
How does the E117 compare to the E119?
The E117 is the more value-focused and versatile dedicated triathlon bike. The E119 is Argon 18's fastest, most advanced triathlon platform with deeper full-system integration.
What sizes are included in this Shopify listing?
This import includes XS, S, M, L, and XL variants. Zero-inventory sizes are included so shoppers can see the complete size range while stock remains accurate.
Can I buy a zero-inventory variant?
Zero-inventory variants are included for catalog completeness and future inventory planning. They are imported with quantity 0 and draft status so availability can be controlled before publishing.
Does the E117 have integrated disc brakes?
Yes. The E117 uses the Argon 18 Integrated Brake System with TRP 140 mm rotors on the current source specifications.
Does the E117 have an integrated cockpit?
The Force AXS, Ultegra Di2, 105 Di2, and Rival AXS builds use the Argon 18 Integrated Cockpit. The Shimano 105 mechanical build uses an Argon 18 carbon basebar with Profile Design cockpit components.
What fit numbers should I compare before buying?
Compare armpad stack, armpad reach, saddle height range, standover height, and size range. These are included in the geometry and fit tables on this page.
Source and fit note
Product copy is rewritten from Argon 18 E117 source materials and matched to the supplied USA inventory table. Always confirm final fit with a professional bike fitter or authorized dealer before purchase.
