Super Record X wireless
Campagnolo Super Record X WRL gives this bike a premium 1x13 gravel drivetrain with refined shift feel, Italian component finishing and a broad 10-48T cassette range.
Description:
Rave SLR ID2 gravel race platform
Wilier Rave SLR ID2 Campagnolo Super Record X WRL 1x13 Power Meter - Miche Graff Aero 48 F-Bar
The top Italian drivetrain expression of the Rave SLR ID2, pairing Campagnolo Super Record X 1x13 wireless shifting with a power meter, Wilier F-Bar integration and Miche Graff Aero 48 Carbon wheels.
- Campagnolo Super Record X WRL 1x13
- Integrated power meter
- Miche Graff Aero 48 Carbon
- F-Bar integrated carbon cockpit
- 7.85 kg +/- 5%
- XS to XXL
Why it exists
The most Italian, most complete gravel race build in this Rave SLR ID2 sequence.
The Rave SLR ID2 is Wilier's dedicated gravel race platform, designed for riders who want speed, control and precision across fast gravel, broken pavement and demanding mixed terrain.
This E628CXG build combines the Rave ID2 carbon monocoque HUS MOD + Liquid Crystal Polymer frame with Campagnolo Super Record X 1x13S WRL, an integrated power meter, Miche Graff Aero 48 Carbon wheels and Wilier's F-Bar integrated carbon cockpit. It is the premium choice for riders who want a top-tier Italian drivetrain, race-ready power data and a complete aero gravel package from day one.
52mm max tire clearance
10-4813-speed cassette
7.85kg +/- 5%
48mm carbon wheel depth
Why this bike stands out
A flagship gravel race build with Italian drivetrain character, live power data, integrated cockpit performance and the fast Miche Graff Aero 48 Carbon wheel platform.
Power meter included
The power meter specification makes this build race- and training-ready without adding an external upgrade later, helping riders pace long gravel efforts with precision.
Aero carbon wheel speed
Miche Graff Aero 48 Carbon wheels give this build a fast, sharp feel for high-speed gravel, rolling terrain and mixed road sections where efficiency matters.
Value argument
Why this build is worth the premium
The E628CXG build is for riders who want a top-level, no-compromise gravel race bike with the most distinctive Italian parts story. Campagnolo Super Record X 1x13S WRL brings premium wireless shifting, the power meter adds immediate training value, and the F-Bar cockpit gives the bike a clean integrated front end.
The value is in the complete package. The drivetrain, cockpit, wheels and chassis are already aligned for speed, clean integration, power-based training and high-end presentation, so the bike arrives as a finished elite gravel race setup rather than a platform that still needs major upgrades.
Best for
This Campagnolo F-Bar build is made for riders who want the highest-end Italian Rave SLR ID2 specification with aero speed and integrated power measurement.
Elite gravel racing
The aero wheelset, carbon cockpit and race-focused chassis suit high-speed gravel events, aggressive mixed-surface riding and riders chasing every performance advantage.
Power-based training
Best for riders who structure efforts around wattage and want power measurement built into the bike from the start.
Italian component purists
A strong choice when you want Wilier carbon engineering paired with the flagship Campagnolo gravel drivetrain and Italian Miche carbon wheels.
Configuration
Complete build details for the Rave SLR ID2 E628CXG with Campagnolo Super Record X 1x13S WRL + power meter, Miche Graff Aero 48 Carbon wheels and F-Bar.
| Model | Wilier Rave SLR ID2 |
|---|---|
| Build code | E628CXG, F-Bar |
| Category | Carbon gravel race bike |
| Frame | Rave ID2 carbon monocoque HUS MOD + Liquid Crystal Polymer |
| Fork | Rave ID2 carbon monocoque HUS MOD + Liquid Crystal Polymer |
| Groupset | Campagnolo Super Record X 1x13S WRL + power meter |
| Shifters | Campagnolo Ergopower Super Record X WRL |
| Brakes | Campagnolo Super Record hydraulic disc |
| Rotors | Campagnolo 03 AFS 160 / 160 mm |
| Rear derailleur | Campagnolo Super Record X 1x13S WRL |
| Crankset | Campagnolo Super Record X 1x13S WRL 40T with power meter |
| Bottom bracket | Campagnolo QCK-TECH BB86 Press Fit 86.5x41 |
| Cassette | Campagnolo Super Record X WRL 13-speed 10-48T |
| Chain | Campagnolo Super Record 13S |
| Wheelset | Miche Graff Aero 48 Carbon |
| Tyres | Vittoria Terreno T50 700x50c TLR |
| Handlebar | F-Bar integrated carbon custom made |
| Handlebar weight | 380 g +/- 5% |
| Headset | Custom Superslim 1-1/4 inch upper bearing and FSA MR137 1-1/4 inch lower bearing |
| Saddle | Prologo Dimension-AGX T4.0 143 black |
| Seatpost | Wilier Filante carbon custom seatpost, -15 mm offset |
| Axle / thru axle | Miche thru axle 12x118 front and 12x165 rear |
| Weight | 7.85 kg +/- 5% |
| Frame weight | 990 g +/- 5% |
| Fork weight | 415 g +/- 5% |

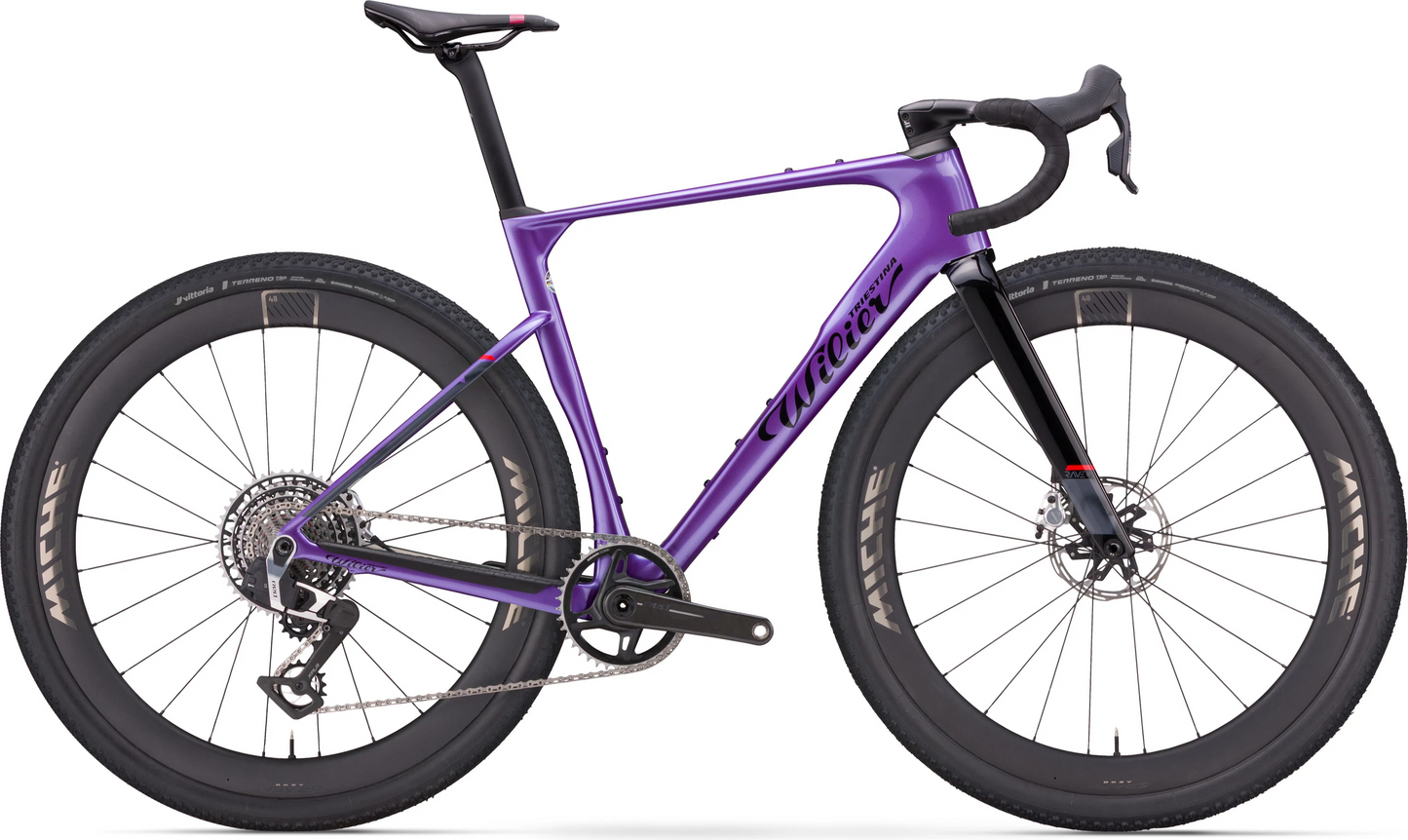

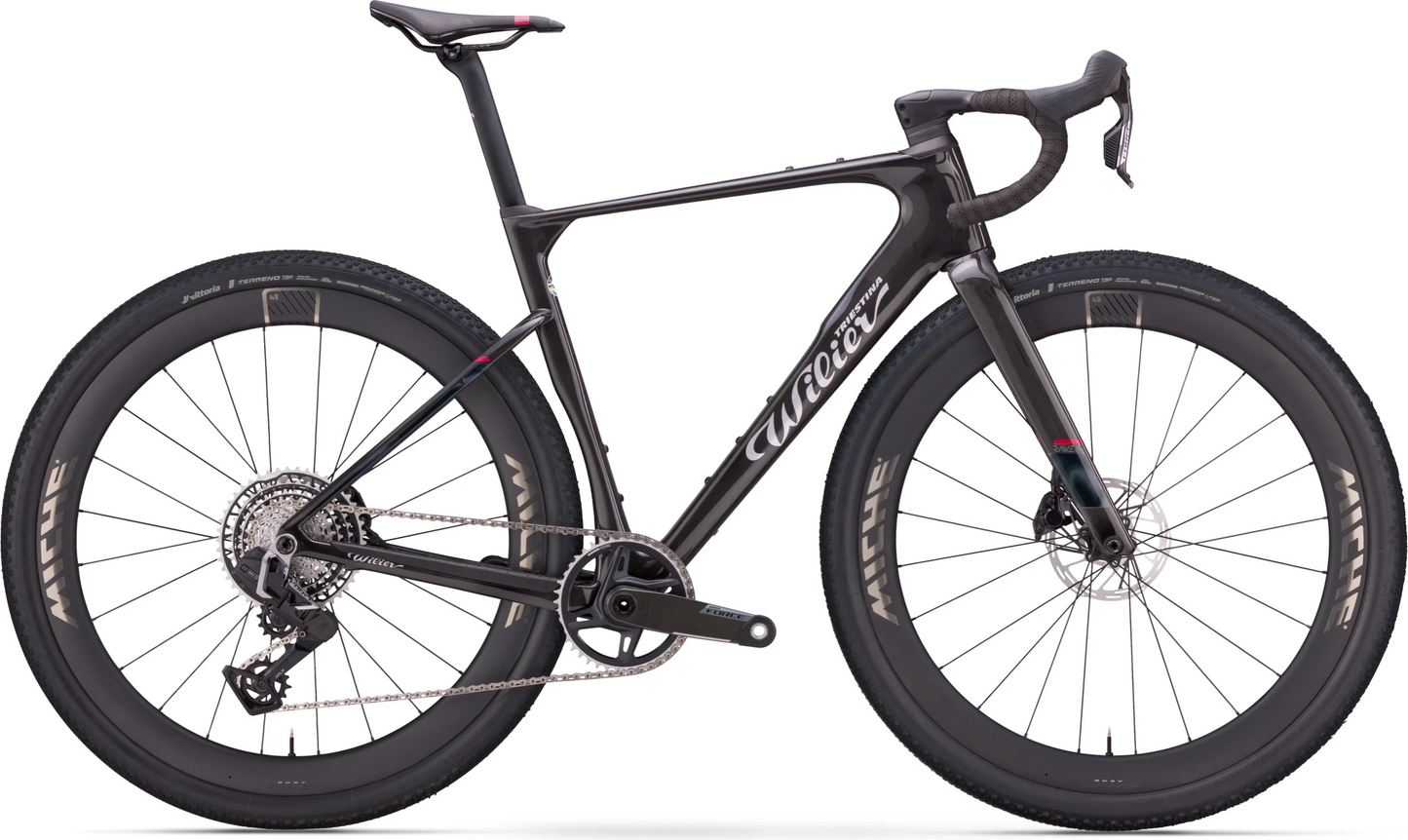

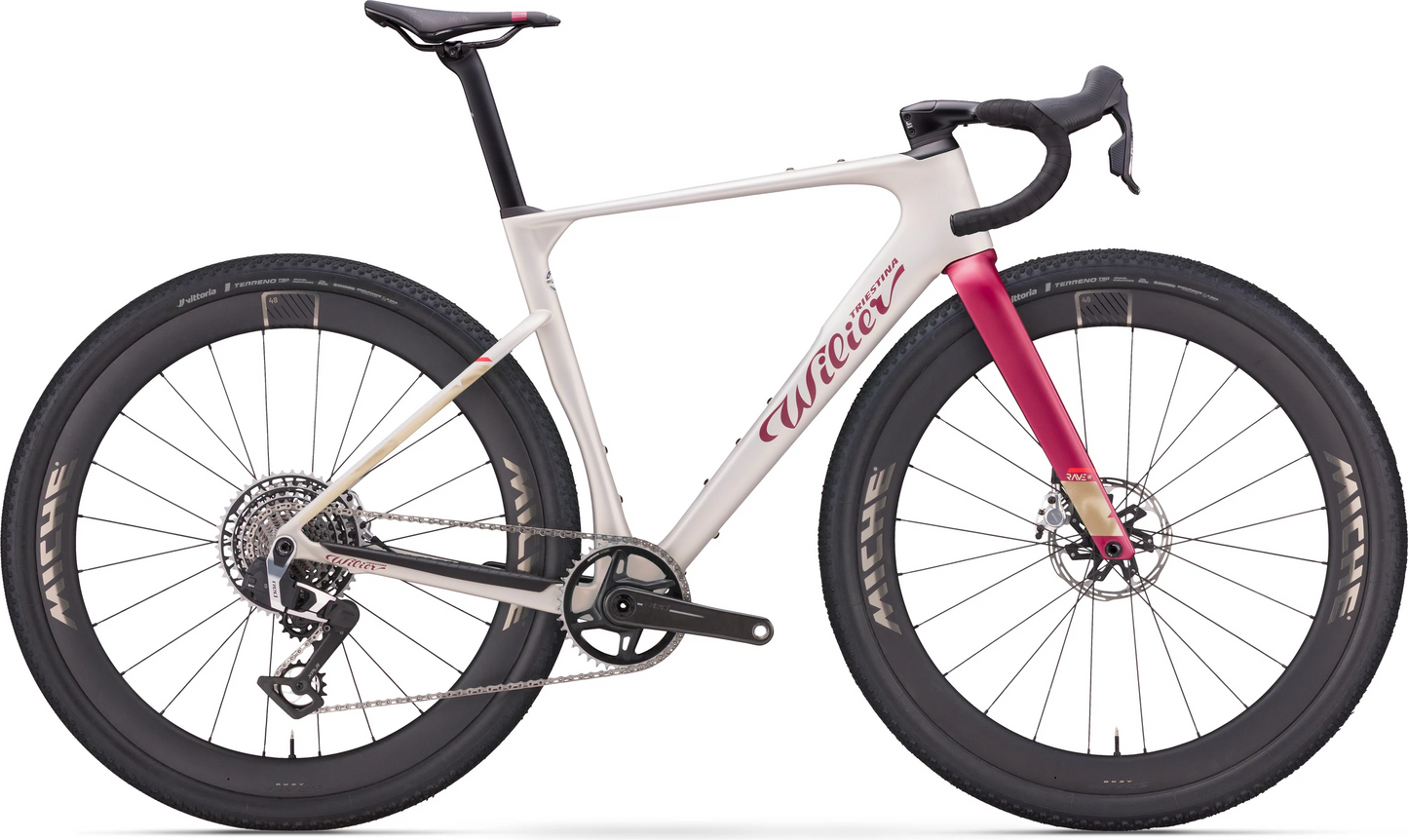

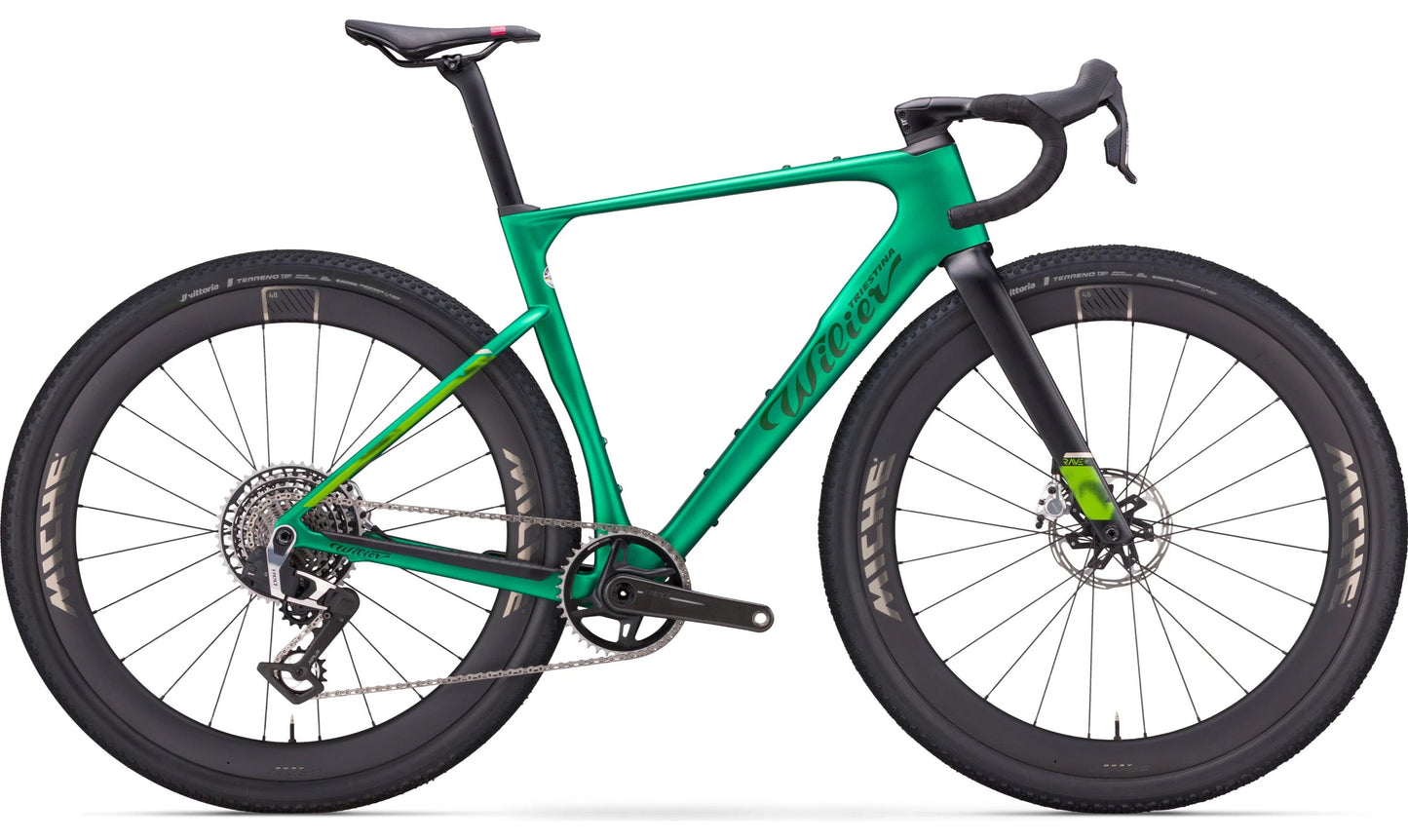

| Available colours | V10 Pixel Green Matt, V11 Glitch Black, V12 Neon Purple, V13 Byte Cream Matt |
| Available sizes | XS, S, M, L, XL, XXL |
Geometry
Compact wheelbase, short chainstays and gravel-racing angles create a quick, precise ride on road and off.
| Size | C/C cm | L cm | H cm | A deg | L1 cm | H1 cm | A1 deg | Reach mm | Stack mm | Wheelbase mm |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 43.2 | 51.6 | 45 | 75.5 | 41.9 | 10.7 | 69.2 | 375 | 532 | 1014 |
| S | 46.2 | 53.2 | 48 | 74.7 | 41.9 | 11.8 | 70 | 381 | 546 | 1017 |
| M | 48.2 | 54.9 | 50 | 74 | 42.1 | 13.1 | 70.8 | 387 | 561 | 1022 |
| L | 50.2 | 56.6 | 52 | 73.5 | 42.1 | 14.8 | 71.2 | 393 | 579 | 1031 |
| XL | 52.2 | 58.3 | 54 | 73 | 42.3 | 16.6 | 71.6 | 400 | 597 | 1042 |
| XXL | 54.2 | 59.7 | 56 | 73 | 42.3 | 18.5 | 72 | 408 | 617 | 1052 |
Questions riders often ask
Helpful answers for comparing this Campagnolo Super Record X F-Bar build to the other Rave SLR ID2 options.
Why choose this over the SRAM RED XPLR F-Bar build?
Choose this version if you want Campagnolo Super Record X wireless shifting, an integrated power meter and the most Italian component identity in this Rave SLR ID2 sequence, while keeping the same F-Bar cockpit and Miche Graff Aero 48 Carbon wheel platform.
What is the benefit of the built-in power meter?
The power meter makes the bike ready for structured training, pacing and race analysis from day one, avoiding the need to add a separate power-measuring upgrade later.
What is the benefit of the Miche Graff Aero 48 wheels?
The 48 mm aero carbon wheelset is designed to make the bike feel faster and more responsive at speed, especially on fast gravel, rolling courses and mixed road sections.
How does the F-Bar change the ride?
The F-Bar creates a cleaner, more integrated front end and gives the bike a more premium race-bike feel compared with the separate alloy handlebar and stem configurations.
Who should buy this version?
This build is best for riders who want the flagship Campagnolo Rave SLR ID2 with aero carbon wheels, an integrated carbon cockpit, power measurement and a premium wireless 1x13 drivetrain.
The flagship Campagnolo power-meter build with aero wheels and full cockpit integration.
The E628CXG sits at the top of this Rave SLR ID2 group by pairing Wilier's carbon gravel race chassis with Campagnolo Super Record X WRL, power measurement, Miche Graff Aero 48 Carbon wheels and the F-Bar integrated carbon cockpit.
