FELT NEXAR FRD Framekit

FELT NEXAR FRD Framekit

Aero as you’ve never FELT. The NEXAR FRD Framekit is the purest foundation for building FELT’s fastest aero road platform into your own dream bike. It is designed around the same NEXAR priorities that define the complete bikes: aerodynamic speed, low weight, and a performance fit that works for real riders in real conditions.

NEXAR is FELT’s next chapter in aero road performance. The platform was developed to compete at the highest level of CdA while deliberately balancing AERO, WEIGHT, and FIT. Instead of maximizing one attribute at the expense of the others, NEXAR is optimized across all three so riders can stay fast, comfortable, and efficient when the road gets long, rough, or relentless.

Why buy the NEXAR FRD Framekit?

• Build your ultimate aero road bike: start with the elite FRD 12K carbon light frame and fork, then choose your exact drivetrain, wheels, saddle, tires, and finishing details.
• Fast without the usual aero compromises: the NEXAR platform was developed around a 5% drag reduction versus the previous FELT AR while still prioritizing rideable geometry and low system weight.
• FRD 12K carbon construction: FELT’s top-tier carbon frame and fork construction delivers the stiffness-to-weight and aerodynamic efficiency expected from a flagship platform.
• Integrated cockpit included: the FELT ROAD one-piece integrated cockpit keeps the front end clean, aero, and ready for a professional-level build.
• Modern performance fit: slightly higher stack, shorter reach, seven frame sizes, and a dedicated zero-offset NEXAR seatpost help more riders achieve a sustainable high-speed position.
• Lightweight framekit package: listed framekit weight is 1.3 kg in size M, giving custom builders a serious starting point for a light aero road project.

Included framekit highlights

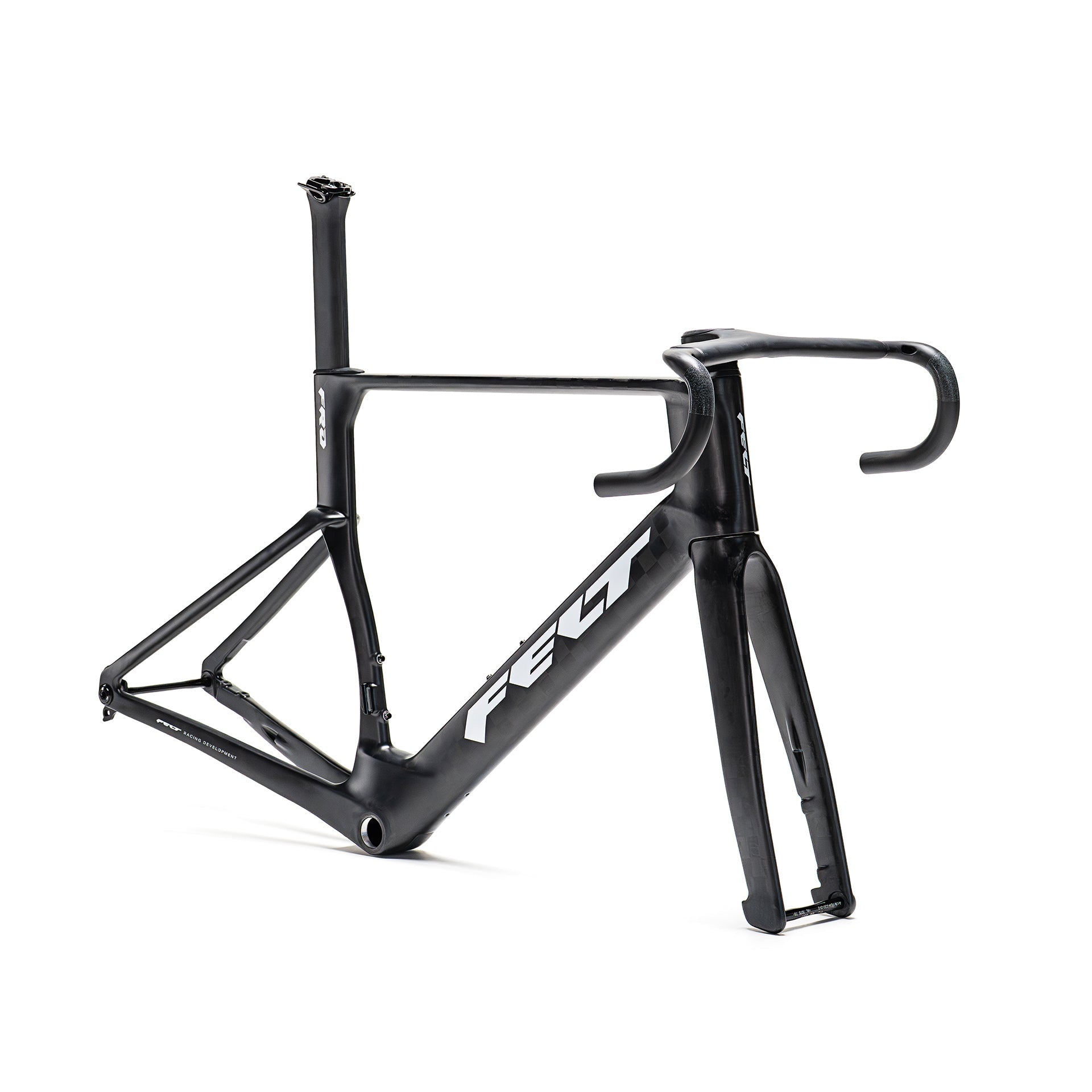

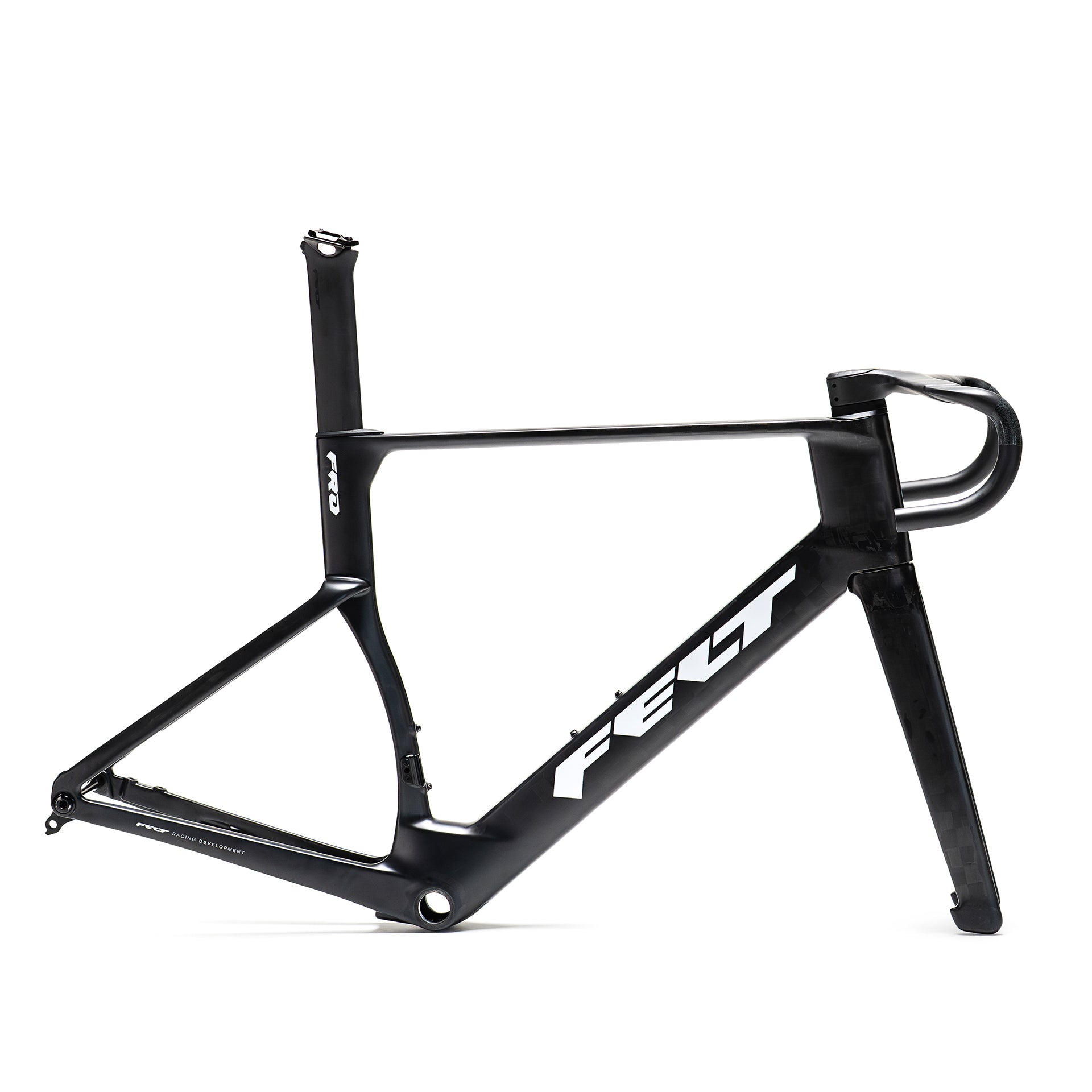

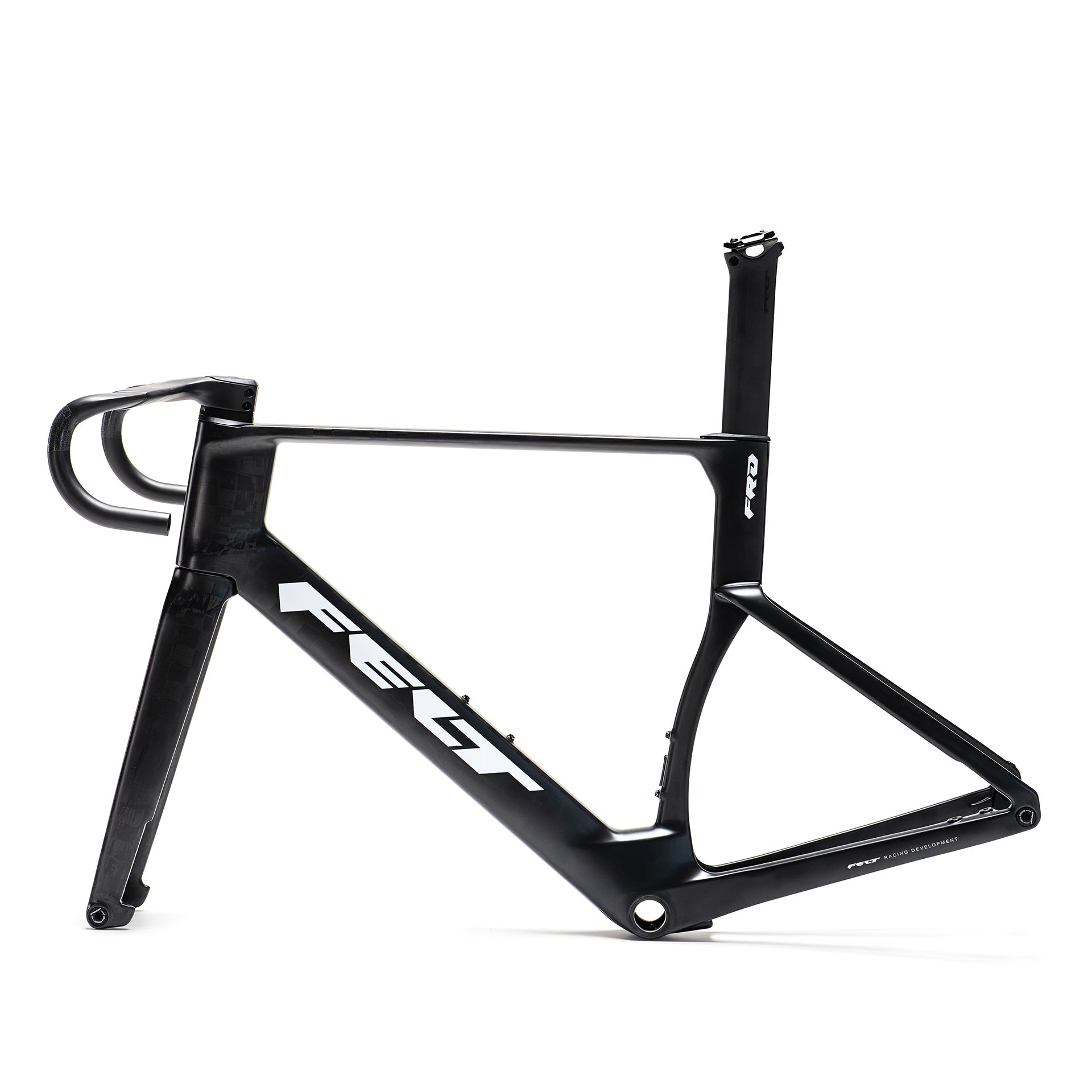

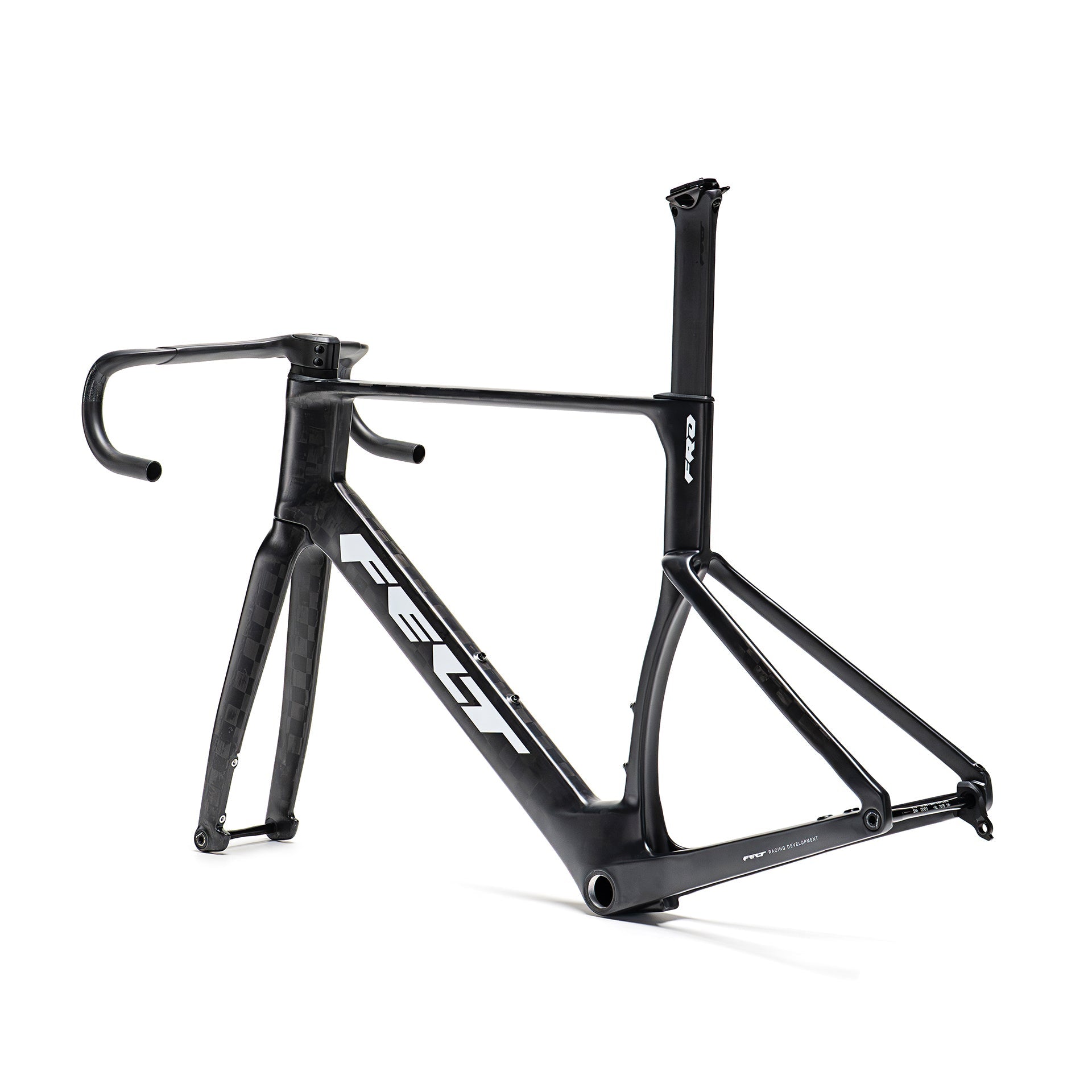

The NEXAR FRD Framekit includes the NEXAR FRD 12K Carbon Light frame, NEXAR FRD 12K Carbon Light fork, FELT ROAD one-piece integrated cockpit, and NEXAR dedicated carbon seatpost. Cockpit dimensions and seatpost length are size-specific for a dialed fit across the range.

Fit and sizing

Available in seven sizes: 45, 48, 51, 54, 56, 58, and 61. FELT developed NEXAR for the 99% of performance riders, not just the narrow fit window of the strongest racers, with a geometry concept that supports speed, comfort, and control.

Key specs

• Frame: NEXAR - FRD 12K Carbon Light Frame
• Fork: NEXAR - FRD 12K Carbon Light Fork
• Cockpit: FELT ROAD 1 Piece Integrated Cockpit
• Barstem sizing: 45 / 48: 360/400x90 carbon; 51 / 54 / 56: 380/420x100 carbon; 58 / 61: 400/440x110 carbon
• Seatpost: FELT NEXAR dedicated carbon seatpost; 250 mm on 45 / 48 / 51 and 330 mm on 54 / 56 / 58 / 61
• Framekit weight: 1.3 kg, size M
• Permissible total weight: 120 kg
• Trailer approval: No trailer approval
• Color: FRD 12K / Matte

Specifications may change depending on factory parts supply. Contact the shop to confirm exact details for current stock.
