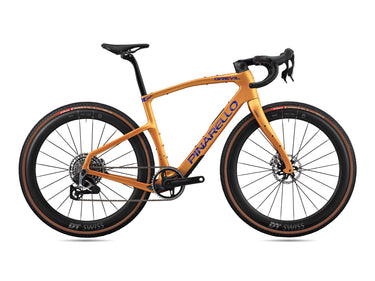

The new generation of Grevil F is lighter, faster, and designed to be ridden for days on end. No matter the conditions or the duration of the race, the bike’s versatility provides the perfect solution to help you compete to win.

Components

Frame	TORAY T900 UD
Fork	F Onda Fork with ForkFlap™, Tapered head tube
Headset	TiCR integrated
Crankset and Chainrings	SRAM FORCE XPLR 1x13
Rear Derailleur	SRAM FORCE XPLR AXS
Shifters	SRAM FORCE AXS
Cassette	SRAM Force
Chain	SRAM Force
Bottom Bracket	SRAM BB DUB ITALIAN 70mm ROAD WIDE
Brakes	Sram Force 2 pistons caliper, 160mm rotor
Wheelset	MOST Gravel Carbon 45
Tires	VITTORIA TERRENO T50 45
Handlebar	JAGUAR ULTRA GR TICR
Stem	TIGER ALU AERO TICR
Bar Tape	MOST Ultragrip evo 3mm - Black
Saddle	Most Lynx My26
Seatpost	D-SHAPE SEATPOST
Seat Clamp	fsc frontal seat clamp
Axles	NEW MOST Ultra Light Custom Axle 12x100 & 12x142, tool free removal

Geometries

CF	CC	L	I	A[°]	B[°]	F	P	T	D	R	G	WB	REACH	STACK
410	470	530	125.6	74.5	70.25	603.9	430	115	72	55	405	1023.5	368.4	553.2
440	500	545	137.8	74	70.5	614.5	430	130	72	55	405	1034.2	376.1	568.3
470	530	558	148.3	73.75	70.75	625.8	430	150	67	55	405	1047	383.7	583.2
490	550	570	156.2	73.5	71.75	621.9	430	160	67	50	405	1043	390.4	598.4
510	575	587	168.1	73	72	631.9	430	175	67	50	405	1053.1	398.2	613.6
545	600	607	180.4	72.5	72.25	644.3	430	195	67	50	405	1065.5	406.9	633.7

NEW GREVIL F7 SRAM FORCE XPLR AXS Geometry

CE: SEAT TUBE CENTER - END, CC: SEAT TUBE CENTER - CENTER, L: TOP TUBE CENTER - CENTER, A[°]: SEAT TUBE ANGLE, B[°]: HEADTUBE ANGLE, P: CHAINSTAY, T: HEADTUBE, D: BB DROP, R: FORK RAKE , G: FORK HEIGHT, REACH, STACK
