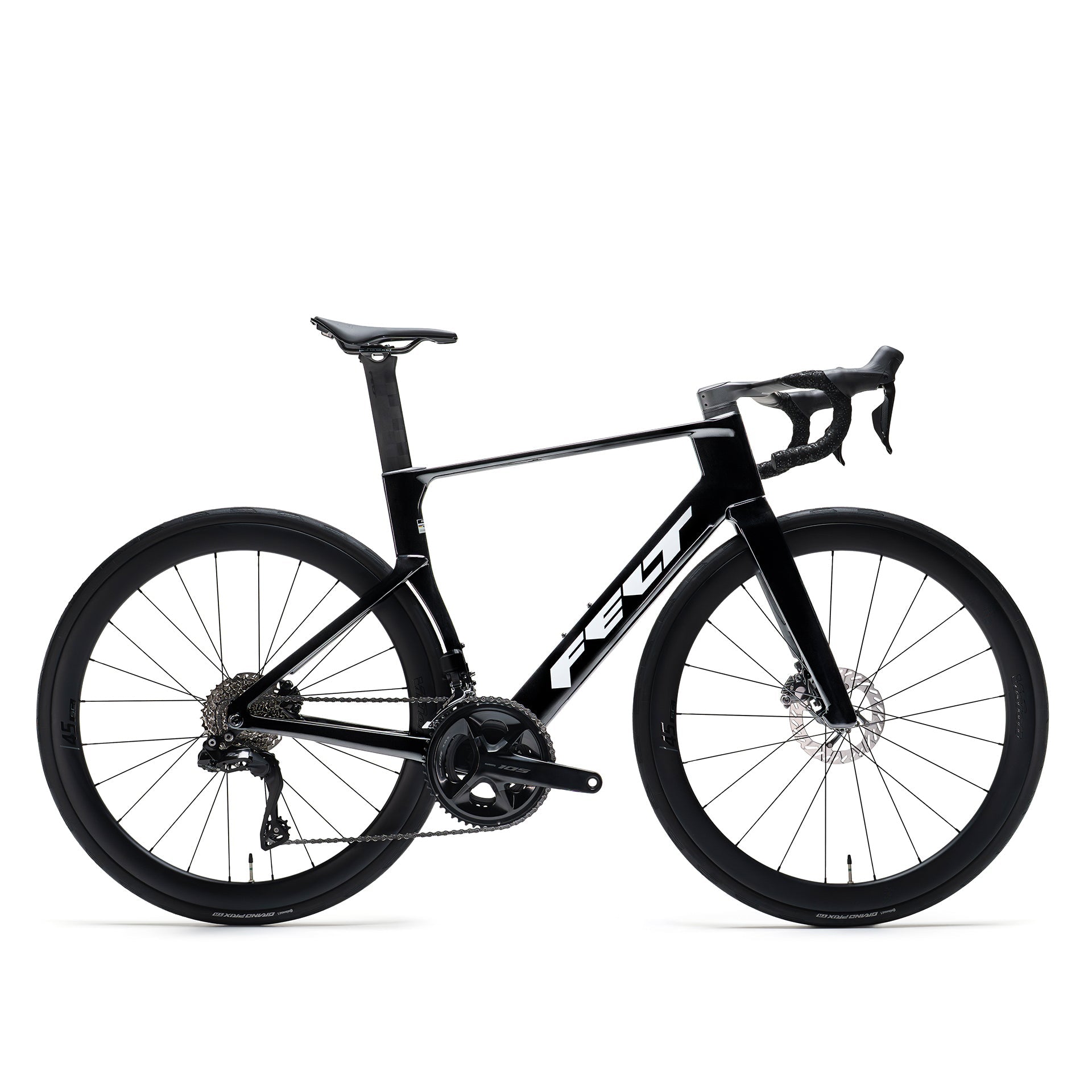

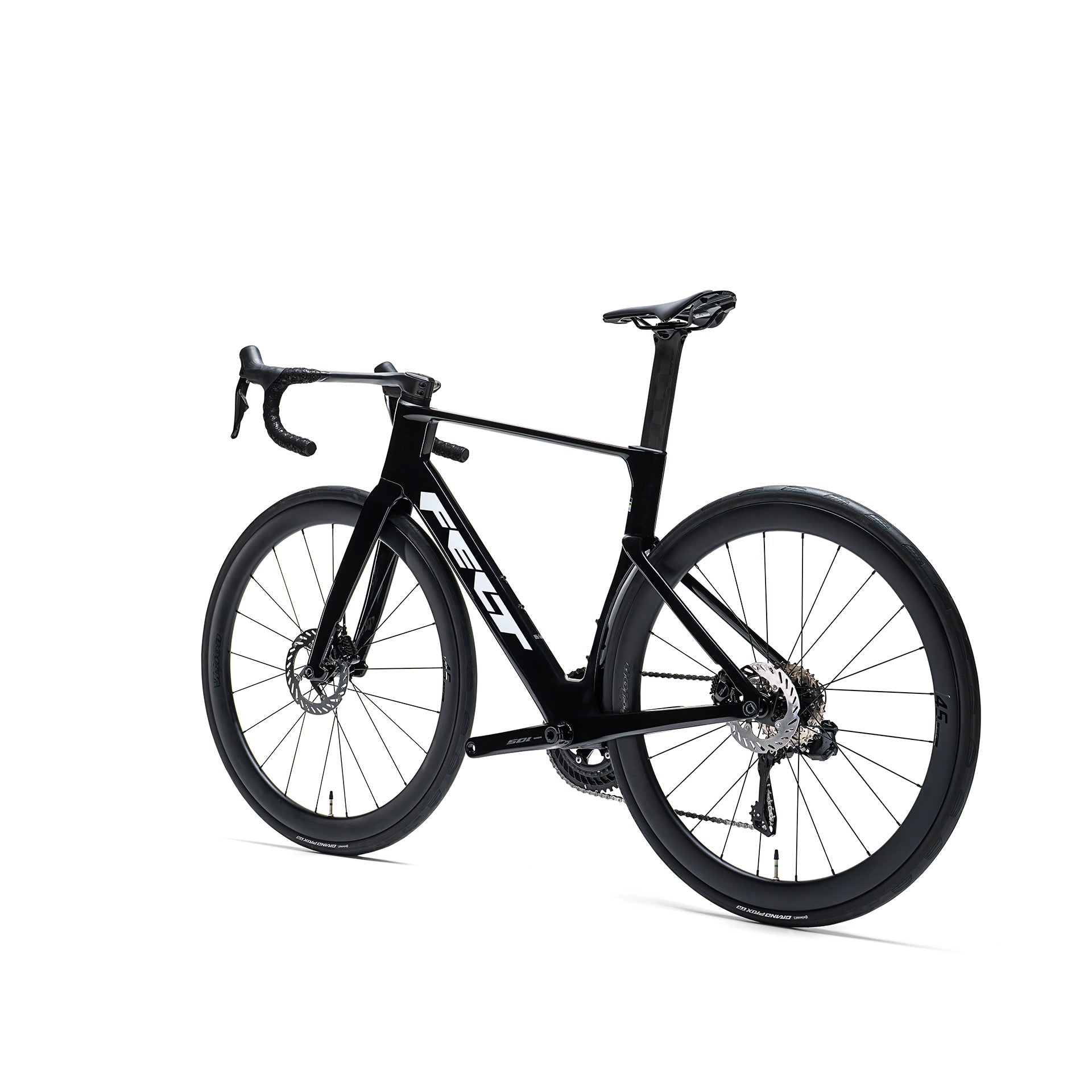

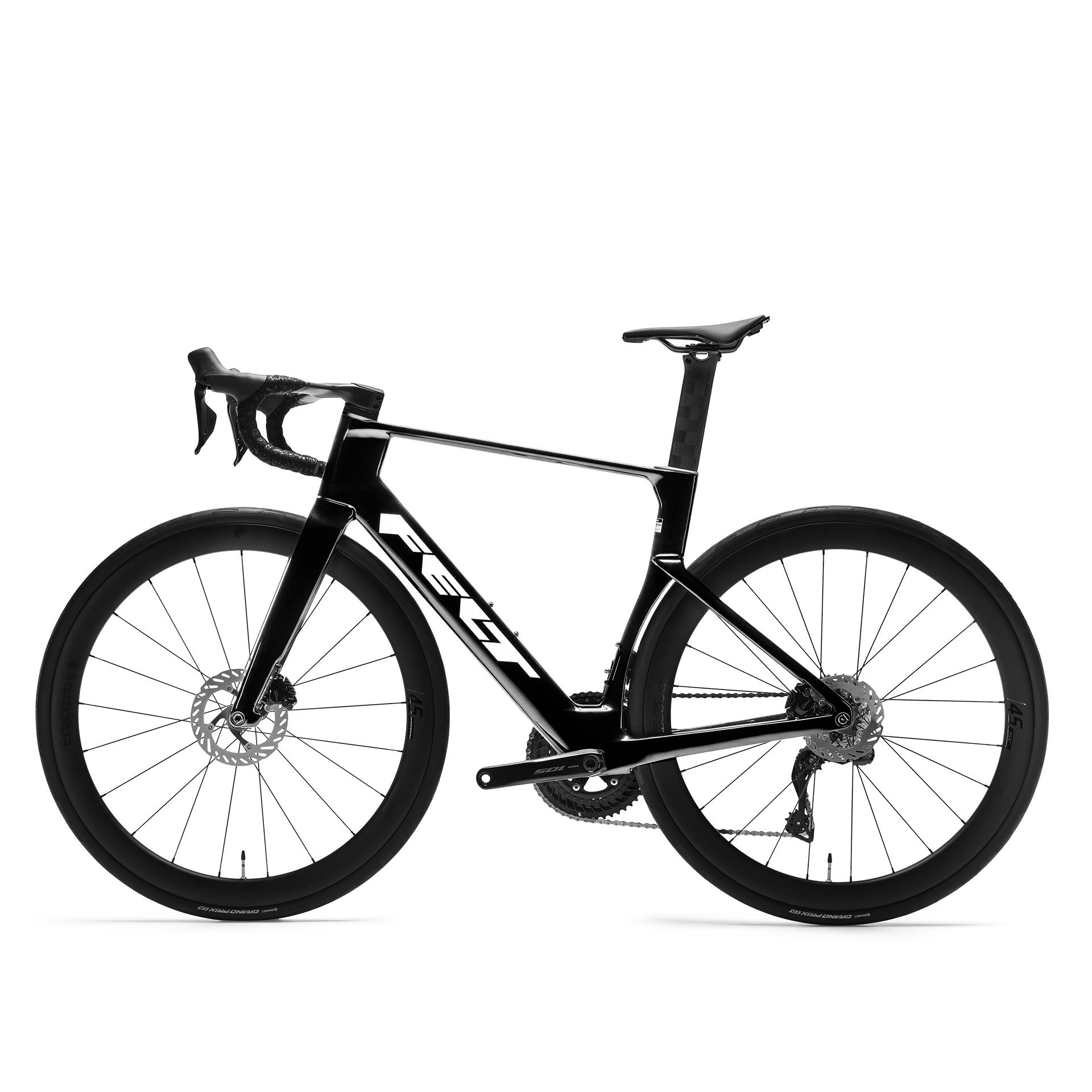

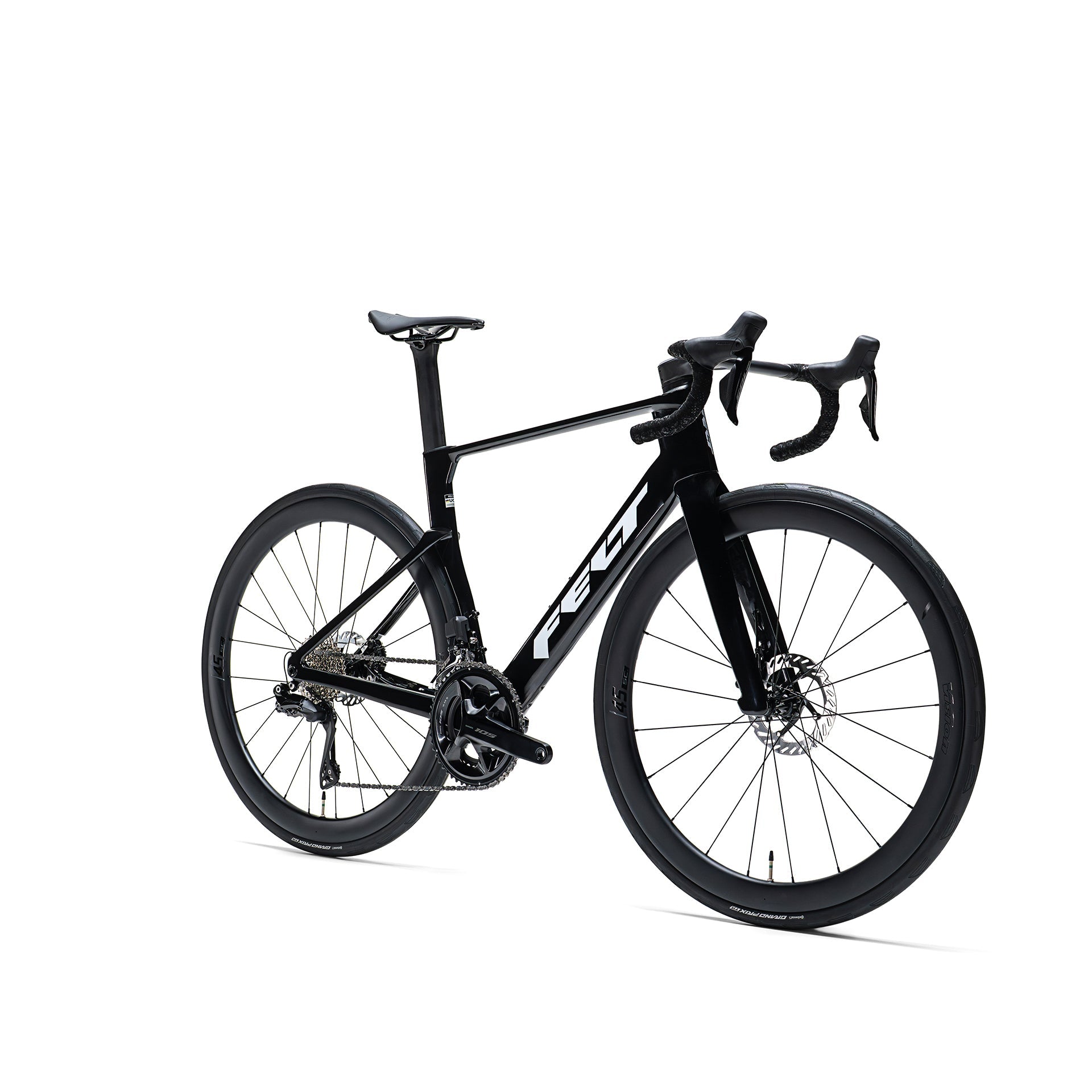

FELT NEXAR RACE Shimano 105 Di2

FELT NEXAR RACE Shimano 105 Di2

Aero as you’ve never FELT. The NEXAR RACE brings FELT’s latest aero road platform to riders who want electronic shifting, hydraulic disc brakes, carbon aero speed, and the value of Shimano 105 Di2. NEXAR is designed around three defining pillars — AERO, WEIGHT, and FIT — so it is not just a wind-tunnel bike, but a fast road bike made for real riders, real roads, and real speed.

The RACE model uses FELT’s UD carbon NEXAR frame and fork, Shimano 105 Di2 2x12 electronic shifting, Shimano 105 hydraulic disc brakes, Vision SC45 i23 wheels, Continental Grand Prix 5000 S TR 700x28c tires, and FELT’s Road one-piece integrated cockpit. It is the most attainable complete NEXAR build for riders who want the new FELT aero platform with modern electronic-shift performance.

Why buy the NEXAR RACE?

• FELT’s newest aero road platform. NEXAR is FELT’s next evolution in aero road-bike design and carries the “Next-AR” lineage forward.
• Aero performance without the usual compromise. FELT developed NEXAR to deliberately balance aerodynamics, weight, and fit rather than over-optimizing only one dimension.
• Measured aerodynamic gains. FELT states that NEXAR reduces drag by 5% versus the previous AR and is within 4 watts of the fastest competitor at 40 km/h.
• UD carbon speed platform. The RACE build uses FELT’s UD carbon NEXAR frame and fork for a responsive, efficient, competition-ready chassis.
• Shimano 105 Di2 electronic shifting. 105 Di2 delivers crisp 12-speed electronic shifting with reliable Shimano hydraulic disc braking.
• Carbon aero wheels and premium tires included. Vision SC45 i23 wheels and Continental GP5000 S TR 700x28c tires make this a serious fast-road setup right out of the box.
• Fit designed for speed riders can hold. NEXAR uses a slightly higher stack, shorter reach, size-specific cockpit dimensions, seven frame sizes, and a dedicated carbon seatpost to help more riders stay aero and powerful in real-world conditions.

Best for

Performance road riders, racers, fast group-ride riders, fondo riders, and cyclists upgrading to a modern aero road bike with electronic Shimano 105 Di2 shifting and carbon aero wheels.

Frame and fit highlights

• UD carbon NEXAR frame and fork
• Seven frame sizes: 45, 48, 51, 54, 56, 58, 61
• Modern aero geometry with a slightly higher stack and shorter reach
• FELT Road one-piece integrated cockpit, size-specific by frame size
• Dedicated NEXAR carbon seatpost
• Glossy Black finish
• Permissible total weight: 120 kg

Key specifications

Frame	NEXAR - UD Carbon STD Frame
Fork	NEXAR - UD Carbon Fork
Shifters	Shimano 105 Di2 ST-R7170
Rear Derailleur	Shimano 105 Di2 RD-R7150, 2x12-speed
Front Derailleur	Shimano 105 Di2 FD-R7150
Crankset	Shimano 105 FC-R7100, 52/36T
Cassette	Shimano 105 CS-R7100, 11-34T
Chain	Shimano CN-M7100 HG 12-speed
Brakes	Shimano 105 BR-R7170 hydraulic disc, 2-piston
Rotors	Shimano RT-MT900 Center Lock, 160 mm front / 140 mm rear
Wheelset	Vision SC45 i23
Tires	Continental Grand Prix 5000 S TR, 700x28c
Cockpit	FELT Road one-piece integrated cockpit: 45/48: 360/400x90; 51/54/56: 380/420x100; 58/61: 400/440x110
Saddle	Prologo Nago R4 PAS 137
Seatpost	45/48/51: FELT NEXAR dedicated carbon seatpost, 250 mm; 54/56/58/61: 330 mm
Weight	7.963 kg, size M / 54

Specifications may change depending on component availability. Contact the shop for exact build details and current inventory.
