Description:

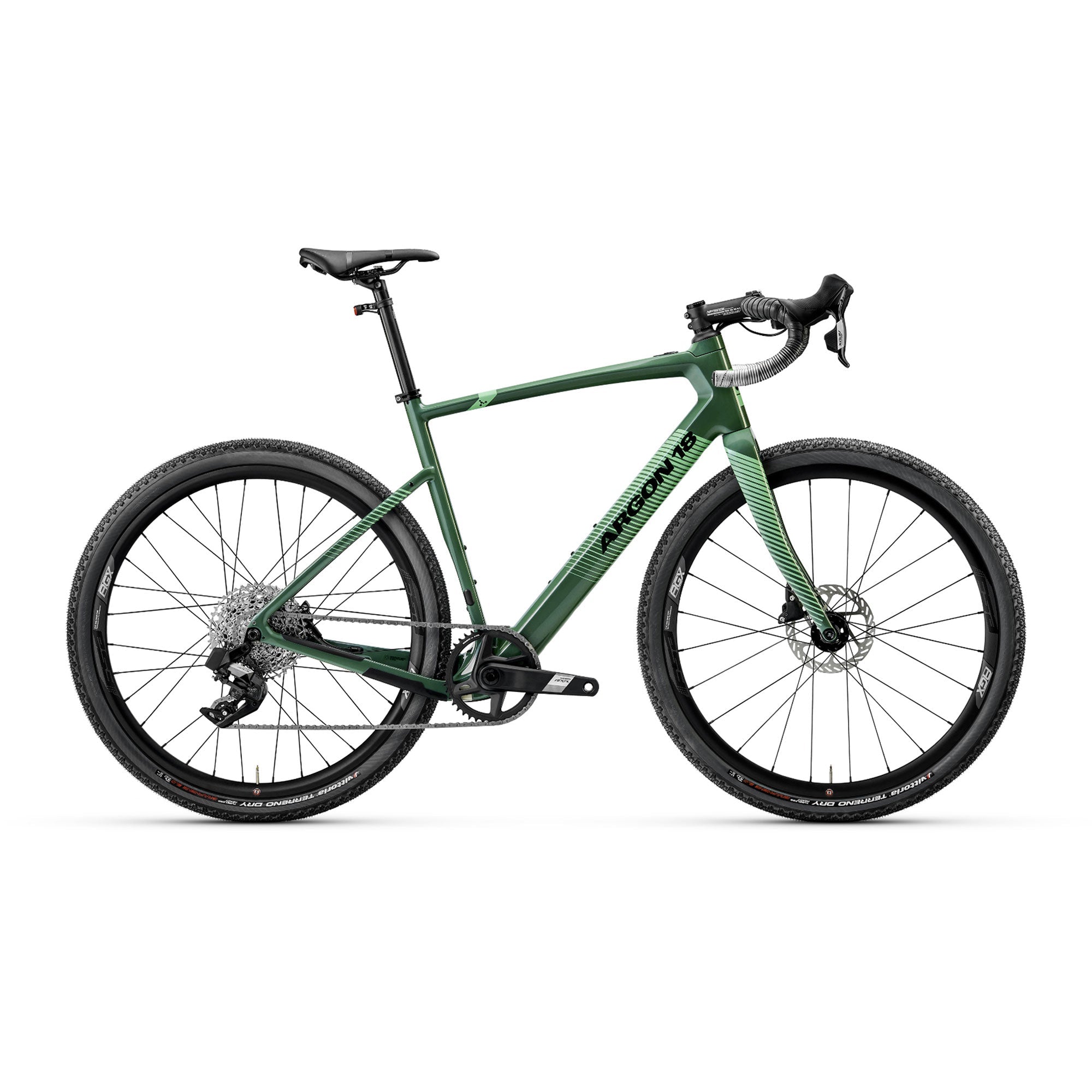

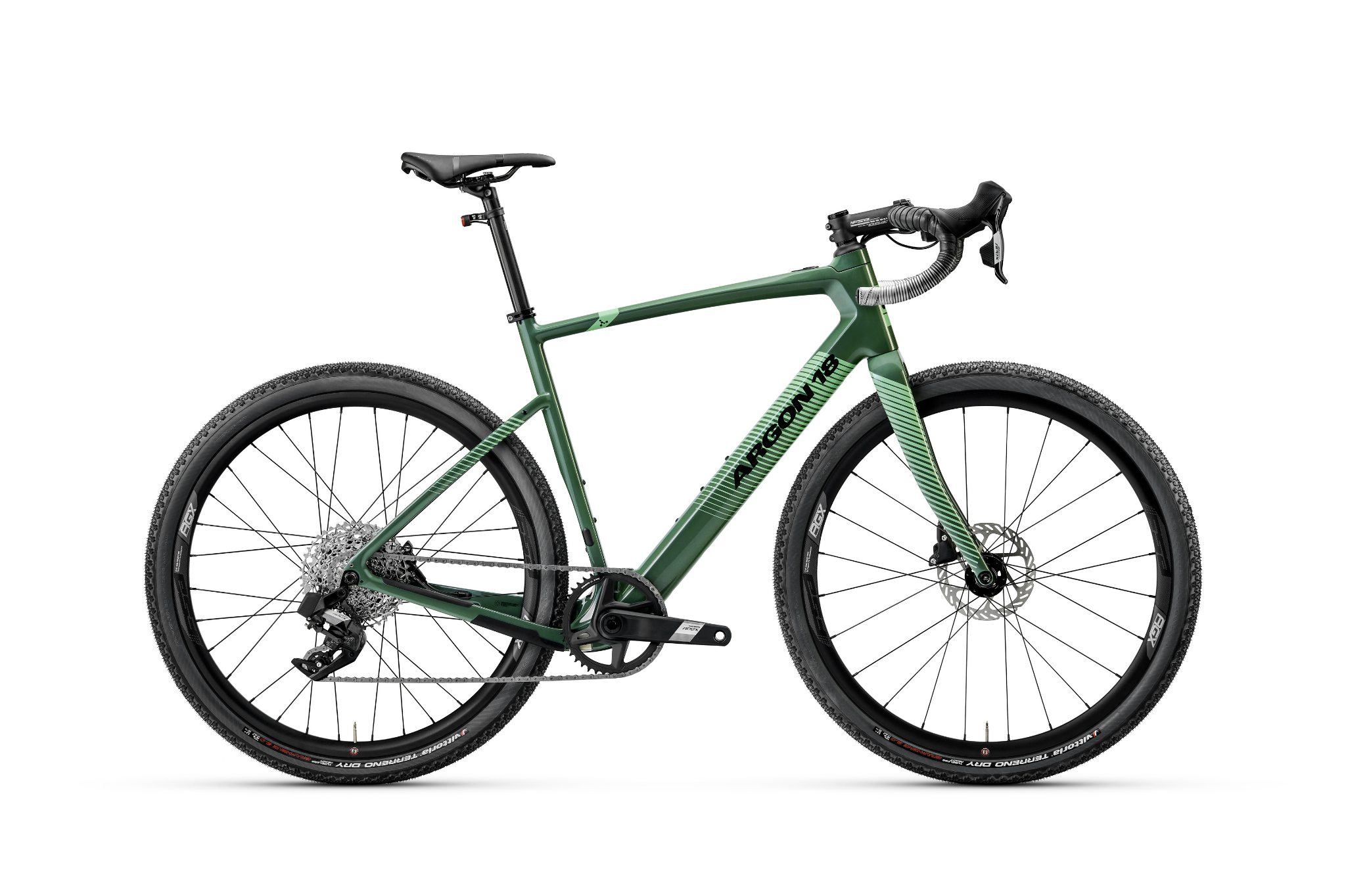

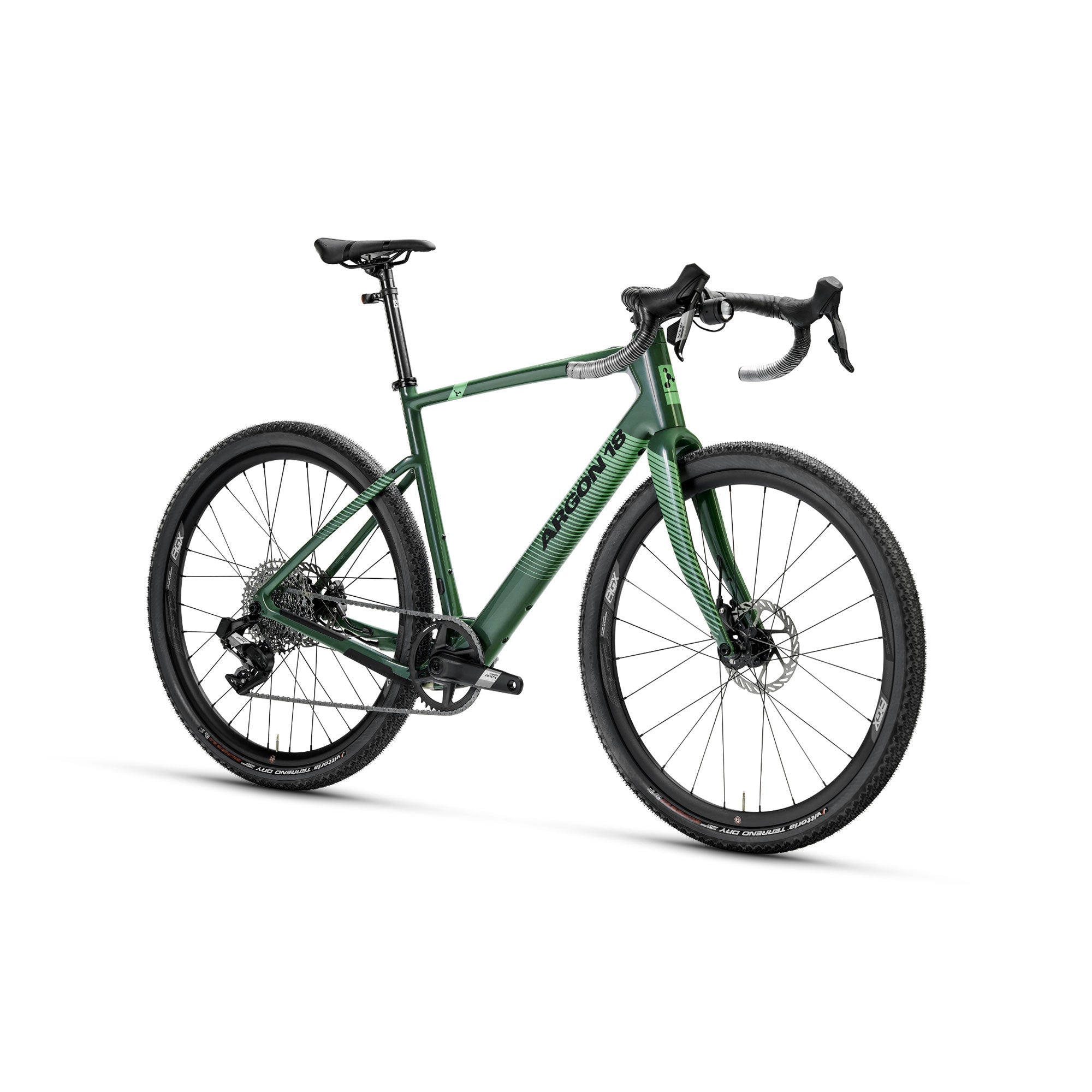

Argon 18 Subito eGravel SRAM Apex AXS XPLR — Lightweight Electric Gravel Bike for Bigger Routes
The Argon 18 Subito eGravel SRAM Apex AXS XPLR is built for riders who want the feel, fit, and speed of a performance gravel bike with a discreet electric assist for climbs, wind, rough terrain, long routes, and mixed-surface adventures. It is not a bulky utility e-bike. It is a carbon drop-bar e-gravel bike designed to look clean, ride naturally, and give you an extra push exactly when the route gets harder.
This build pairs the Subito eGravel carbon platform with the MAHLE X35 rear hub motor system, a 250Wh battery, SRAM Apex AXS XPLR 12-speed wireless electronic shifting, hydraulic disc brakes, 650b gravel wheels, and Vittoria Terreno DRY 650x47 tires. The result is a capable all-road and gravel e-bike for riders who want to keep up with faster groups, extend their range, ride steeper climbs, or explore surfaces that would be less inviting on a standard road bike.
Why buy the Subito eGravel Apex AXS XPLR?
- It feels like a real gravel bike first. The rear hub motor and integrated battery keep the silhouette clean and the handling familiar.
- It helps when the ride gets hard. The MAHLE X35 system adds support for climbs, headwinds, fatigue, and longer mixed-terrain routes.

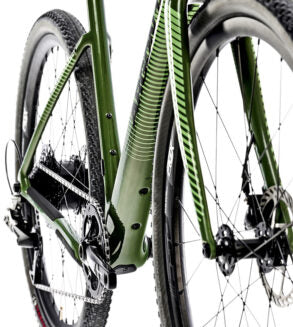

- It is built for rougher surfaces. The longer wheelbase, dropped chainstays, and 650x47 gravel tires create stability, grip, and comfort on unpaved roads.
- It uses modern wireless shifting. SRAM Apex AXS XPLR gives electronic 12-speed gravel shifting with a simple 1x drivetrain and broad 11-44 range.
- It keeps integration clean. Battery, cables, iWoc control, lights, and headset integration are designed to preserve the premium carbon gravel-bike look.
Best-fit customer
This is the right bike for gravel riders, endurance cyclists, road riders moving into mixed surfaces, and e-bike shoppers who want a performance drop-bar bike rather than a heavy commuter-style electric bike. It is especially compelling for riders who want help on climbs while keeping the handling and fit of a true Argon 18 performance platform.
Who should choose this over a standard gravel bike?
Choose the Subito eGravel if your ideal ride includes long climbs, rolling dirt roads, fast gravel group rides, mixed pavement and trail connectors, or days when you want more range without giving up the sensation of riding a responsive drop-bar bike. Choose a non-assisted gravel bike only if the lowest possible system weight and complete mechanical simplicity matter more than assistance.
Subito eGravel technology highlights
- Ebikemotion / MAHLE X35 platform: compact rear-hub assistance designed to provide a natural-feeling boost.
- Integrated battery and cable routing: clean frame presentation with internal routing and battery placement.

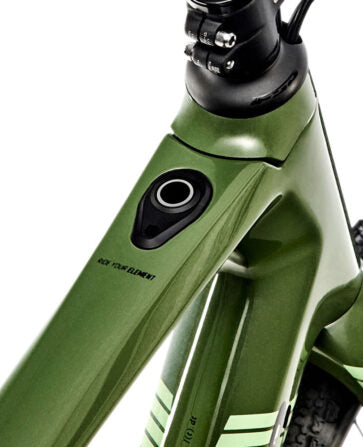

- Clean iWoc integration: simple cockpit-area control for e-assist interaction.

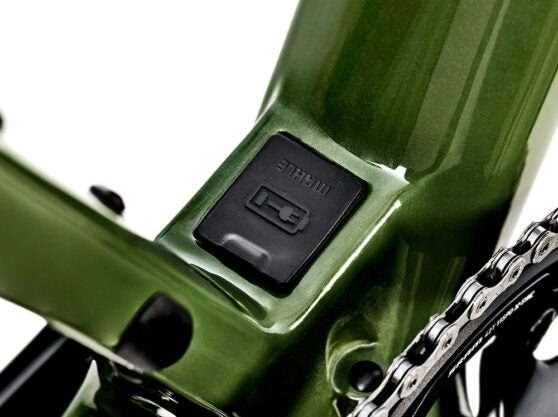

- Bottom bracket battery access port: service-oriented access to the integrated battery system.
- Included internally cabled light kit: LiteMove headlight and taillight are part of the source specification.
- Cable-integrated headset: supports the clean, premium front-end presentation.
- 3D System: multiple head tube height options help tune fit while maintaining front-end stiffness.
- Topological Compliance System: Argon 18 compliance design helps dampen road and trail vibration while retaining efficiency.
- Argon Fit System: size-specific geometry helps each frame size maintain the intended ride quality and position.
- Endurance Geometry: stable, comfortable positioning for long mixed-surface rides.
How this bike compares
| Bike Type | Why Choose It |
|---|---|
| Subito eGravel SRAM Apex AXS XPLR | Best for gravel riders who want electric assistance with real drop-bar gravel geometry, a quiet rear hub motor, 650b traction, and 12-speed wireless SRAM AXS shifting. |
| Traditional acoustic gravel bike | Best for riders who want the lightest possible non-assisted setup and do not need help on climbs, longer rides, or group-ride pacing. |
| Urban e-bike | Best for commuting, but usually less suited to fast mixed-surface rides, gravel tires, drop-bar handling, and performance bike fit. |
| E-road bike | Best for pavement and road group rides, but usually less confident on rougher dirt, washboard, mud, and 650b gravel tire setups. |
Complete component specification
| Component Group | Component | Specification |
|---|---|---|
| Frame | Frame Material | Carbon |
| Frame | Fork | Carbon |
| Frame | Headset | SA No.69 SRS + 3D |
| Frame | Seatpost | Argon 18 TDS-C |
| Drivetrain | Front Derailleur | None; 1x drivetrain |
| Drivetrain | Rear Derailleur | SRAM Apex AXS XPLR |
| Drivetrain | Crankset | SRAM Apex 1 Wide DUB |
| Drivetrain | Chainring | 42T |
| Drivetrain | Bottom Bracket | SRAM DUB PF 86.5 Road Wide |
| Drivetrain | Cassette | SRAM XG-1231 12-speed 11-44 |
| Drivetrain | Chain | SRAM Apex 12-speed |
| Brakes | Brake Calipers | SRAM Apex Hydraulic Disc |
| Brakes | Rotors | SRAM G2 CleanSweep 160mm front / 140mm rear |
| Controls | Shifters / Levers | SRAM Apex AXS |
| E-System | Battery | MAHLE 250Wh |
| E-System | Motor | MAHLE X35 rear hub motor |
| Wheels | Front Wheel | FSA NS AGX i21 |
| Wheels | Rear Wheel | FSA NS AGX i21 with MAHLE X35 |
| Wheels | Tires | Vittoria Terreno DRY TLR G2.0 650x47 |
| Cockpit | Stem | FSA OS-167 Omega Pro |
| Cockpit | Handlebar | FSA NS Adventure Compact HR-RD-310S |
| Cockpit | Bar Tape | Ciclovation Leather Touch Tornado Gloss |
| Contact Points | Saddle | Prologo Proxim W350 |
| Included Accessories | Lights | LiteMove 110 LUX headlight and LiteMove 70 LUX taillight |
| Included Accessories | Pedals | Not included |
Geometry
Use this geometry table to compare Subito eGravel sizes. Measurements are shown in the source-style format with all available size labels from XXS through XL.
| Code | Measurement | Unit | XXS | XS | S | M | L | XL |
|---|---|---|---|---|---|---|---|---|
| B | Seat Tube (c-t) | mm | 420 | 450 | 485 | 520 | 555 | 590 |
| C | Top Tube Length | mm | 490 | 510 | 527 | 550 | 573 | 598 |
| D | Head Tube Length | mm | 106-131 | 121-146 | 142-167 | 161-186 | 186-211 | 212-237 |
| E | Chain Stay Length | mm | 422 | 422 | 422 | 422 | 422 | 422 |
| F | BB Drop | mm | 75 | 75 | 75 | 75 | 75 | 75 |
| G | Seat Tube Angle | deg | 75.5 | 74.9 | 74.3 | 73.7 | 73.1 | 72.5 |
| H | Head Tube Angle | deg | 69.3 | 70.8 | 71.3 | 72.0 | 72.0 | 72.3 |
| I | Stand Over Height | mm | 683 | 710 | 742 | 773 | 804 | 835 |
| J | Wheel Size | 650b | 650b | 650b | 650b | 650b | 650b | |
| K | Stack | mm | 519-542 | 539-562 | 561-584 | 584-607 | 608-631 | 634-657 |
| L | Reach | mm | 343-352 | 354-362 | 364-372 | 375-382 | 385-392 | 395-402 |
| Stem Length | mm | 70 | 80 | 90 | 100 | 110 | 110 | |
| Bar Width | cm | 40 | 40 | 42 | 44 | 44 | 44 | |
| M | Crank Length | mm | 165 | 170 | 170 | 172.5 | 172.5 | 175 |
Frequently asked questions
What is the Argon 18 Subito eGravel best for?
It is best for riders who want a performance carbon gravel bike with discreet electric assistance for climbing, longer rides, headwinds, mixed terrain, and keeping pace with stronger groups.
Is the Subito eGravel a gravel bike or an e-bike?
It is both: a drop-bar carbon gravel bike with an integrated MAHLE X35 electric assist system. It is designed to ride like a performance gravel bike while adding power when needed.
What motor system does it use?
This build uses the MAHLE X35 rear hub motor system with a 250Wh battery.
What drivetrain is on this model?
The SRAM Apex AXS XPLR build uses wireless electronic shifting, a 1x drivetrain, a 42T chainring, and an 11-44 12-speed cassette for gravel-friendly range.
What tire size does the Subito eGravel use?
The source specification lists Vittoria Terreno DRY TLR G2.0 650x47 tires. Argon 18 also positions the Subito eGravel around clearance for 650x45c / 47mm tires.
Does it include lights?
Yes. The listed accessories include a LiteMove 110 LUX headlight and LiteMove 70 LUX taillight.
Is this good for commuting?
It can be used for fast commuting, especially on rough roads or mixed routes, but it is primarily a performance e-gravel bike. Riders looking for racks, heavy cargo, upright posture, or utility features may prefer a dedicated commuter e-bike.
Is this good for road rides?
Yes, especially for mixed road and dirt rides. The 650b gravel tires prioritize traction and comfort over pure road speed, so riders focused only on pavement may prefer a dedicated e-road bike.
What sizes are included in this Shopify import?
This product includes XXS, XS, S, M, L, and XL variants in Everlasting Green. SKUs follow the source pattern SUBG.[SIZE].360B.4E.1.
Are pedals included?
No. The source specification lists pedals as not included.
Why does this listing include detailed geometry?
Geometry helps shoppers, bike fitters, and AI shopping agents answer sizing and fit questions directly on the product page. Stack, reach, head tube length, bar width, crank length, and standover are included so riders can compare fit before contacting the shop.
Who should not buy this model?
Riders who want a fully unassisted race gravel bike, maximum weight savings, or a utility e-bike with racks and cargo features may be better served by a different model. Riders who want discreet assistance, gravel comfort, wireless shifting, and a premium drop-bar ride should strongly consider the Subito eGravel.
