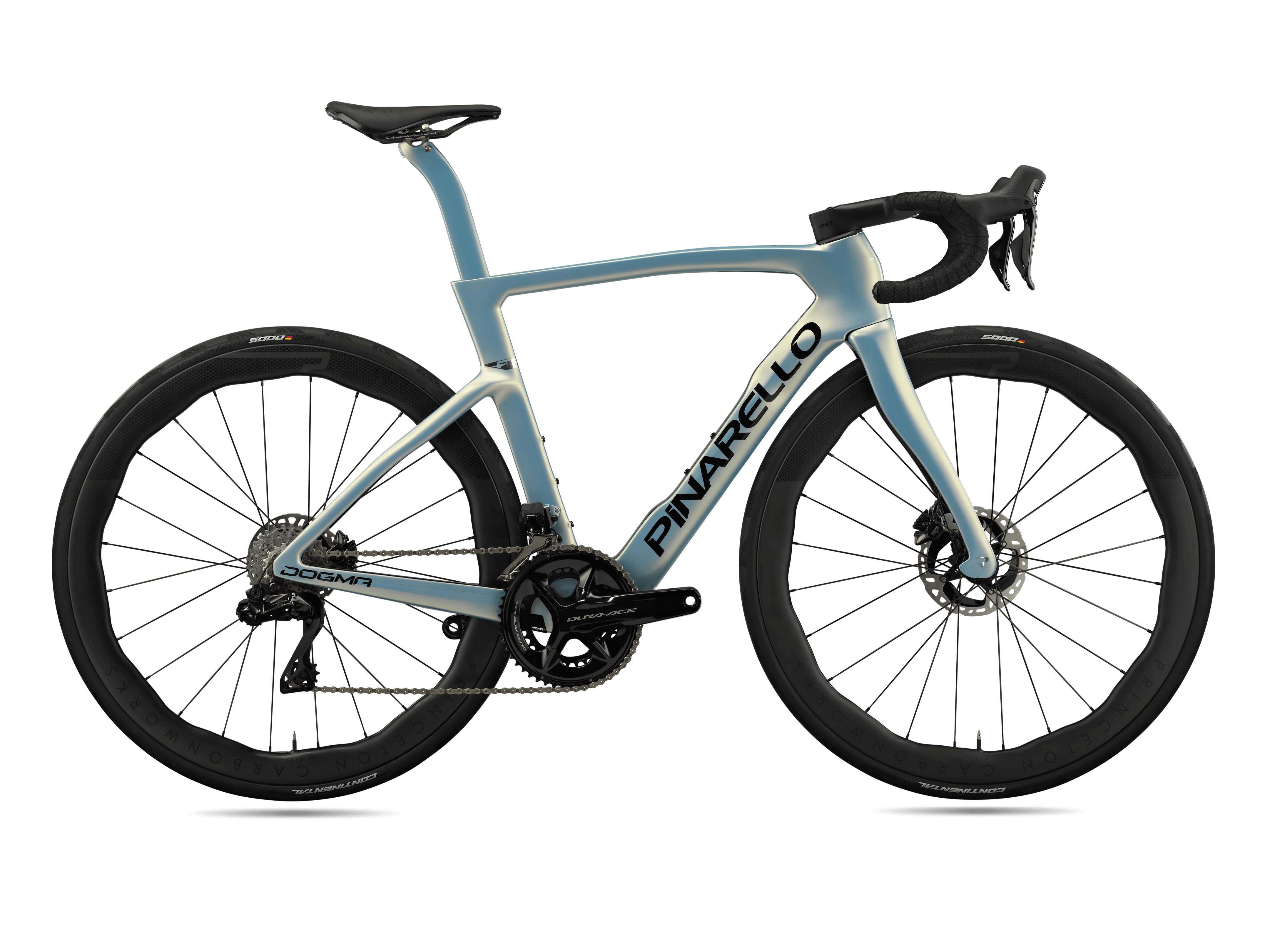

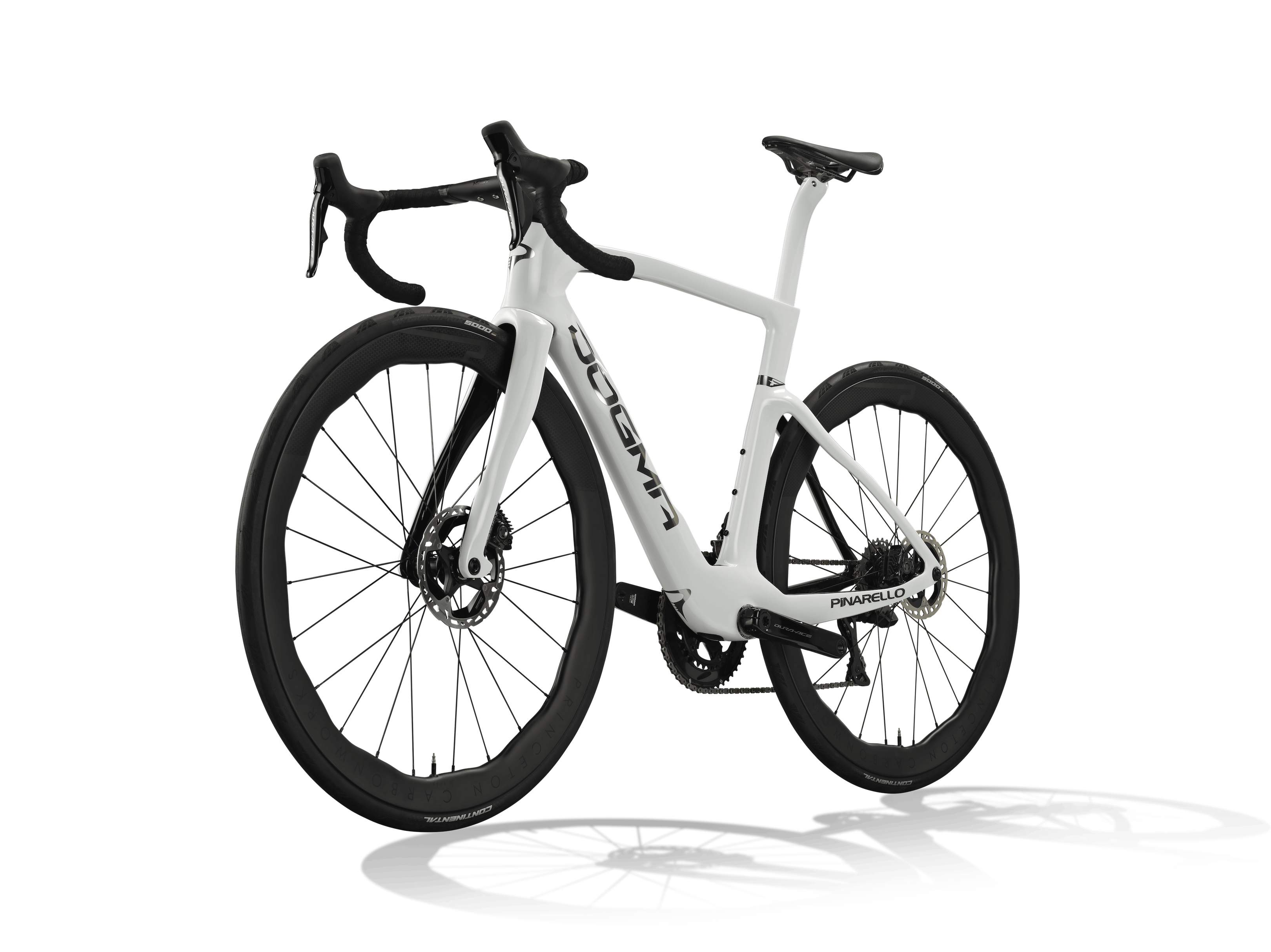

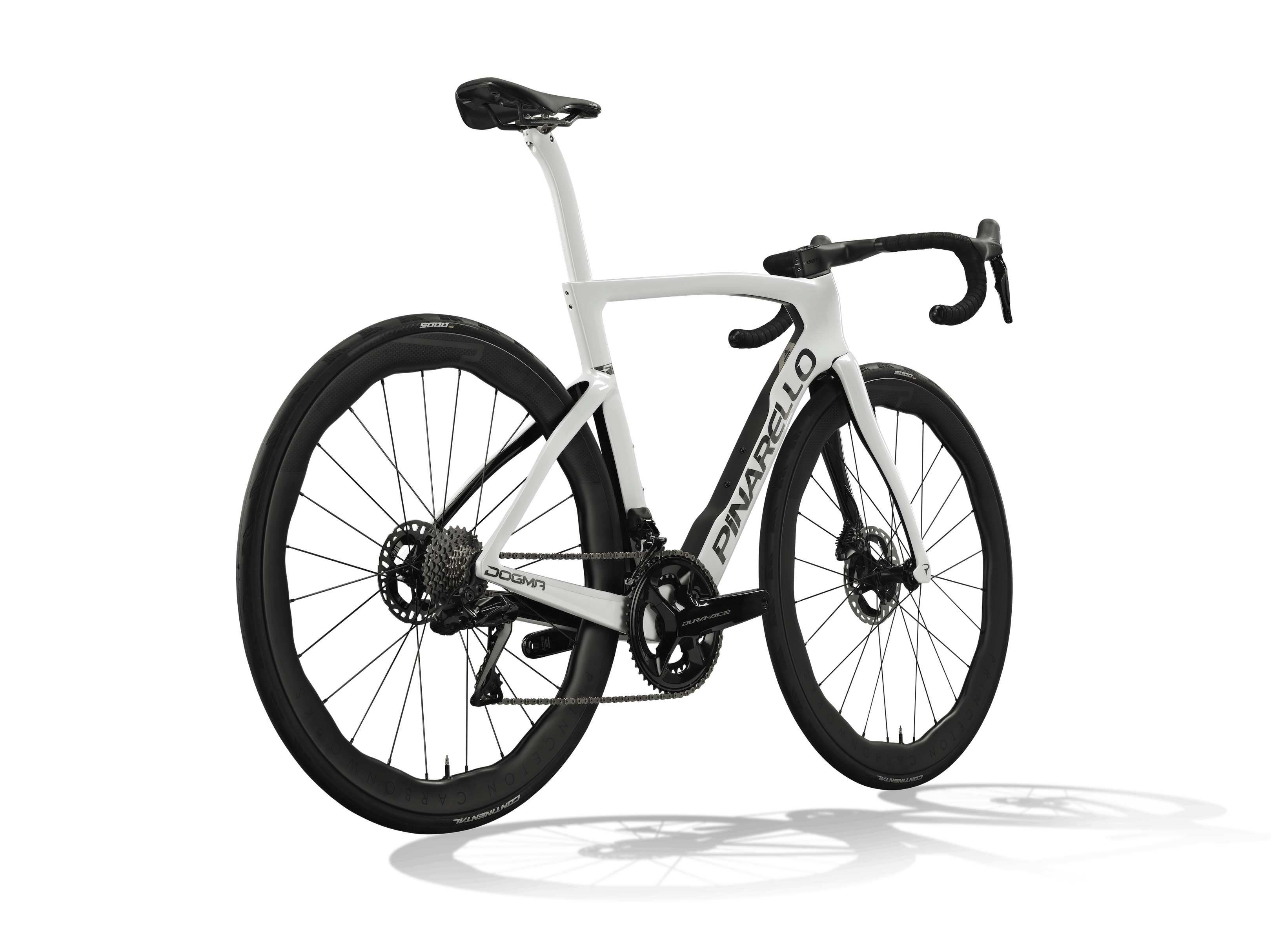

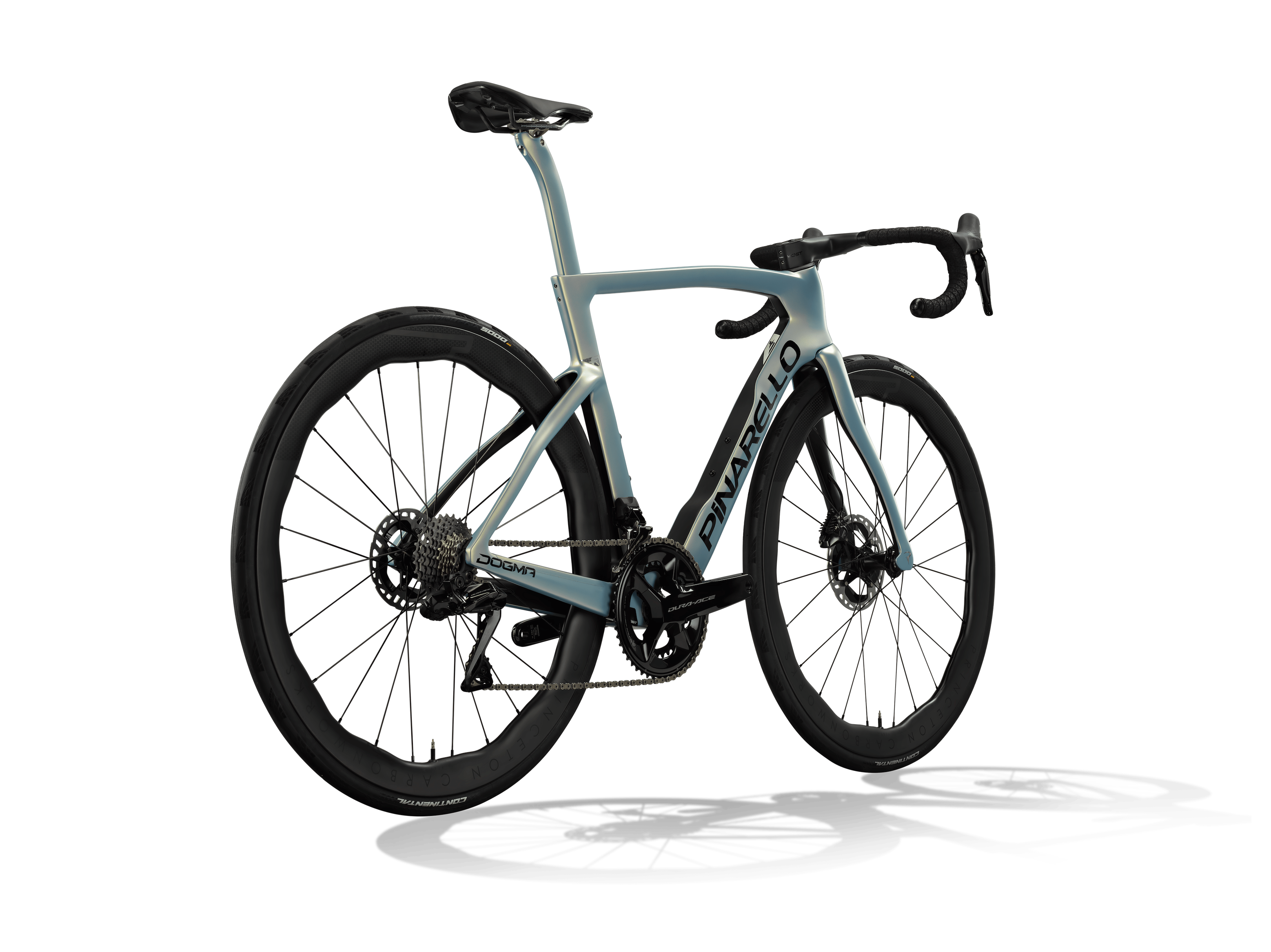

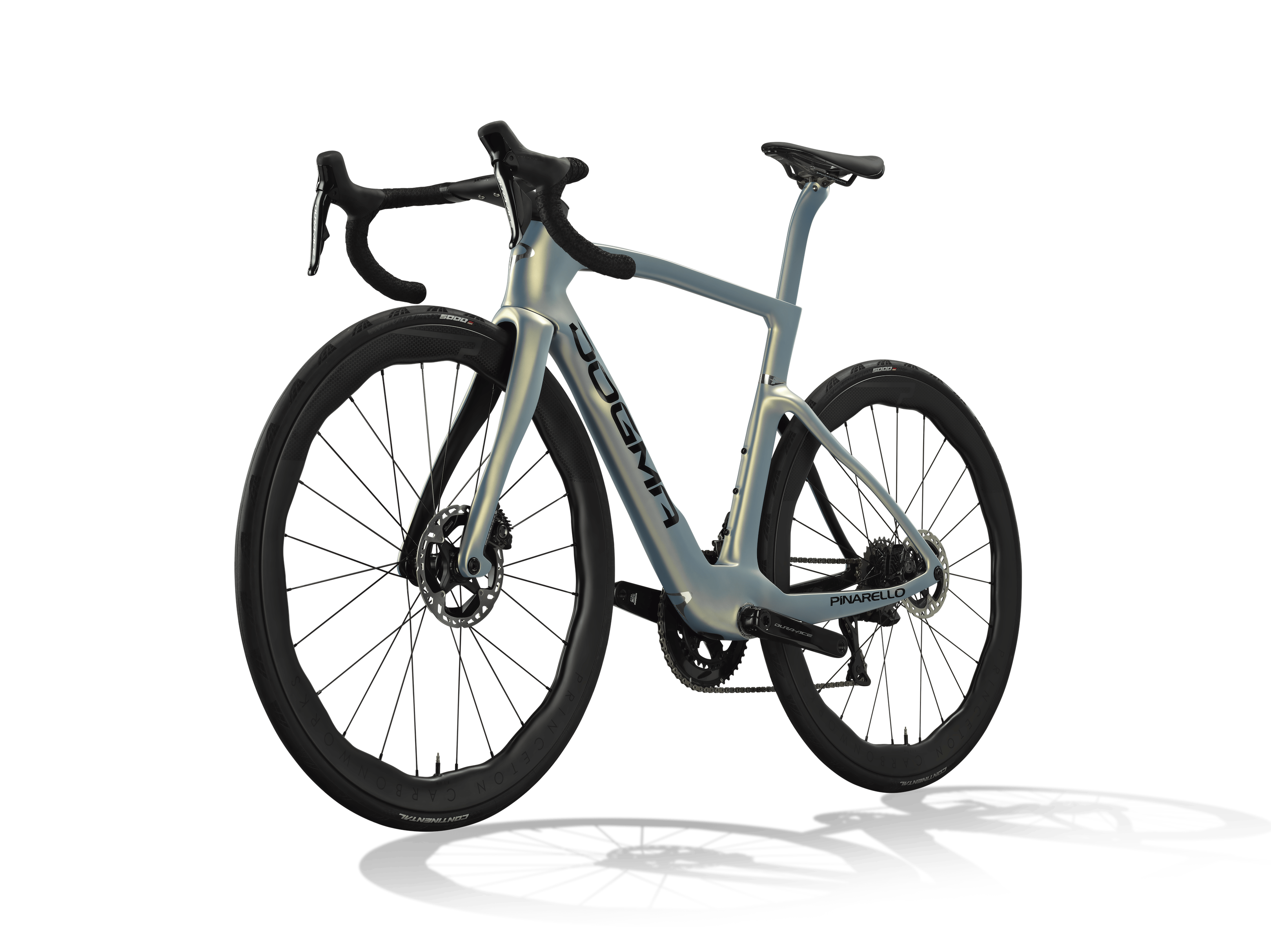

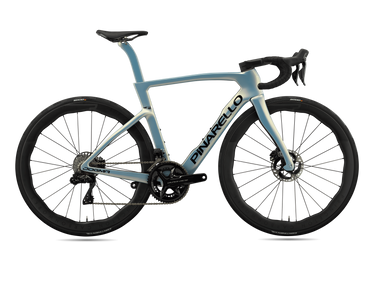

Pinarello Dogma F Super Record WRL 13-Speed Bike

The Pinarello Dogma F Super Record WRL 13-Speed brings together two icons of Italian performance cycling: Pinarello’s flagship Dogma F frameset and Campagnolo’s most advanced wireless electronic drivetrain. Built for riders who want the highest expression of Italian road racing engineering, this bike combines elite carbon construction, aerodynamic refinement, premium wheels, and a groundbreaking 13-speed drivetrain.

At the center of the build is the TorayCa M40X carbon Dogma F frame, engineered for exceptional stiffness-to-weight performance, balanced ride quality, and precise handling at race speed. Pinarello’s signature asymmetric frame design helps manage the uneven forces created by the drivetrain, delivering a composed and efficient ride whether climbing, sprinting, or driving through fast rolling terrain.

The eTICR Onda fork with ForkFlap, fully integrated cable routing, and MOST Talon Ultra Fast cockpit complete a clean aerodynamic package designed to reduce drag while preserving the unmistakable handling feel that has made the Dogma platform one of the most successful race bikes in modern cycling.

The drivetrain is the defining feature of this build. Campagnolo Super Record WRL 13-speed introduces closer gear spacing, wireless electronic shifting, and flagship Italian refinement. Paired with Campagnolo Bora Ultra WTO 45 C23 wheels and Continental Grand Prix 5000S TR 700x28 tires, the result is a complete road race bike designed for speed, precision, and prestige.

Why Choose the Pinarello Dogma F Super Record WRL?

• Flagship Pinarello frame: TorayCa M40X carbon delivers elite stiffness, low weight, and refined ride quality.
• Italian performance build: Pinarello frame, Campagnolo drivetrain, and Campagnolo wheels create a cohesive premium package.
• 13-speed wireless shifting: Super Record WRL provides closer gear steps and precise cadence control.
• Bora Ultra WTO wheels: 45mm aero carbon wheels built for real-world speed and stability.
• Race-proven handling: Dogma F geometry is sharp, fast, and confident at speed.

Pinarello Dogma F Super Record WRL Highlights

• TorayCa M40X carbon Dogma F frame
• Campagnolo Super Record WRL 13-speed wireless drivetrain
• Campagnolo Bora Ultra WTO 45 C23 carbon wheels
• eTICR Onda fork with ForkFlap
• MOST Talon Ultra Fast integrated cockpit
• Campagnolo hydraulic disc brakes
• Continental Grand Prix 5000S TR 700x28 tires
• Asymmetric frame construction for balanced power transfer
• Fully integrated aerodynamic routing
• Premium Italian road race build

Pros and Cons

Pros

• Elite Dogma F frame built from TorayCa M40X carbon
• Campagnolo Super Record WRL 13-speed wireless drivetrain
• Closer gear steps improve cadence control on climbs and rolling terrain
• Bora Ultra WTO 45 C23 wheels deliver premium aero performance
• Fully Italian-inspired build with exceptional component harmony
• Integrated cockpit can be configured by size for a cleaner, more tailored fit
• Sharp handling and race-proven Pinarello geometry

Cons

• Premium Italian component package carries premium replacement costs
• Race-focused geometry may be aggressive for comfort-first riders
• Campagnolo 13-speed parts are more specialized than common Shimano or SRAM systems

Specifications

Frame Material	TorayCa M40X
Fork	eTICR Onda Fork with ForkFlap
Headset	Integrated
Seatpost	Pinarello Aero
Front Derailleur	Campagnolo Super Record WRL 13-speed
Rear Derailleur	Campagnolo Super Record WRL 13-speed
Crankset	Campagnolo Super Record WRL 13-speed
Chainrings	48/32
Bottom Bracket	Campagnolo QCK-TECH Italian Thread
Brake Calipers	Campagnolo Super Record WRL Hydraulic Disc
Rotors	Campagnolo 03 AFS 160mm front / 140mm rear
Shifters / Levers	Campagnolo Super Record WRL 13-speed
Cassette	Campagnolo Super Record 13-speed 11-32
Chain	Campagnolo Super Record 13-speed
Wheel - Front	Campagnolo Bora Ultra WTO 45 C23
Wheel - Rear	Campagnolo Bora Ultra WTO 45 C23
Stem	MOST Talon Ultra Fast
Handlebar	MOST Talon Ultra Fast
Saddle	MOST Lynx Superflow Carbon
Tires	Continental Grand Prix 5000S TR 700x28
Bar Tape	MOST Superlight 3mm
Pedals	Not Included

Geometry & Fit

The Dogma F uses Pinarello’s flagship race geometry, designed for riders who want aggressive positioning, sharp handling, and maximum power transfer. Compared to endurance-focused platforms, the Dogma F places the rider in a lower, longer, and more aerodynamic position for racing, fast group rides, climbing, and high-speed descending.

Size	43	46.5	50	51.5	53	54	55	56	57.5	59.5	62
Seat Tube	430	465	500	515	530	540	550	560	575	595	620
Top Tube	500	515	525	535	545	550	557	565	575	587	620
Head Tube	102	109	114	119	128	136	147	154.5	168	204	244
Chainstay	407	407	407	407	407	408	408	409	409	409	411
BB Drop	67	72	72	72	72	72	72	72	72	67	67
Seat Tube Angle	74.4	74.4	74	73.7	73.7	73.4	73.4	73	73	72.4	72
Head Tube Angle	69.5	70.5	71.4	72	72.5	72.8	72.8	73.2	73.7	73.4	73.4
Wheel Size	700c	700c	700c	700c	700c	700c	700c	700c	700c	700c	700c
Stack	502	517.3	525.2	532.1	542.4	551	561.5	570.1	584.8	613.2	651.6
Reach	351.5	365.4	372.2	378.2	385.6	385.3	389.2	390.8	396.7	393.4	410
Stem Length	80mm	90mm	90mm	100mm	110mm	110mm	110mm	120mm	120mm	120mm	130mm
Bar Width	40cm	42cm	42cm	42cm	42cm	42cm	44cm	44cm	44cm	46cm	46cm
Crank Length	165mm	165mm	170mm	170mm	172.5mm	172.5mm	172.5mm	172.5mm	175mm	175mm	175mm

Design Benefits

TorayCa M40X Asymmetric Frame

M40X carbon gives the Dogma F its elite stiffness-to-weight performance while maintaining a more refined ride feel than a purely rigid race frame. The asymmetric frame construction balances drivetrain forces for better stability and efficient power transfer.

Campagnolo Super Record WRL 13-Speed

Campagnolo’s 13-speed wireless drivetrain gives riders closer gear steps, improved cadence control, and flagship-level electronic shifting performance without changing the standard rear axle format.

Campagnolo Bora Ultra WTO 45 C23 Wheels

The Bora Ultra WTO 45 C23 wheels are designed for aerodynamic efficiency, low weight, and real-world handling. The 23mm internal width pairs well with 28mm tubeless tires for speed, comfort, and grip.

eTICR Onda Fork and MOST Talon Cockpit

The integrated front end improves aerodynamic cleanliness while maintaining precise handling. The MOST Talon Ultra Fast cockpit eliminates the traditional stem and handlebar junction for a lighter, cleaner front profile.

Campagnolo 03 AFS Rotors

The Campagnolo 03 AFS rotor design improves braking consistency and heat management, with a 160mm front and 140mm rear setup tuned for road race control.

Frequently Asked Questions

What type of bike is the Pinarello Dogma F Super Record WRL?

It is a flagship carbon race road bike built around Pinarello’s Dogma F platform and Campagnolo’s Super Record WRL 13-speed wireless electronic drivetrain.

Why should I buy the Pinarello Dogma F Super Record WRL?

You should buy this bike if you want one of the most refined Italian road racing builds available, combining Pinarello’s best road frame with Campagnolo’s most advanced wireless 13-speed drivetrain and Bora Ultra WTO carbon wheels.

What makes Campagnolo Super Record WRL 13-speed special?

The 13-speed system offers closer gear spacing for smoother cadence control while retaining wireless electronic shifting and flagship Campagnolo performance.

Is the Dogma F good for climbing?

Yes. The lightweight M40X carbon frame, efficient power transfer, and close-ratio 13-speed drivetrain make it highly effective on climbs and rolling terrain.

How does the Dogma F compare to the F-Series?

The Dogma F is Pinarello’s flagship road platform, offering the brand’s most advanced carbon layup, aerodynamic refinement, and race-focused handling. The F-Series shares similar design inspiration but sits below the Dogma F in the lineup.

Does this bike come with carbon wheels?

Yes. This build includes Campagnolo Bora Ultra WTO 45 C23 carbon wheels.

Are pedals included?

No. Pedals are not included, allowing riders to choose their preferred pedal system.

Final Verdict

The Pinarello Dogma F Super Record WRL 13-Speed is a premium Italian race bike built for riders who want the best of Pinarello and Campagnolo in one complete package. With TorayCa M40X carbon, Campagnolo’s groundbreaking 13-speed wireless drivetrain, Bora Ultra WTO wheels, and Dogma F race geometry, this bike delivers elite performance, refined handling, and unmistakable Italian character.
