The race-hardtail philosophy
Everything a cross-country racer needs. Nothing it doesn't.
The Wilier USMA SLR is for riders who want a direct connection between effort and speed. It pairs a notably light HUS-MOD carbon frame with modern, stable XC geometry and a purposeful 100 mm suspension platform—ready for steep accelerations, rolling racecourses, and long days where conserving energy matters.
With the Shimano XT Di2 build, the performance story continues through the component choices: electronic 1×12 shifting, wide-range 10–51T gearing, a FOX 34 SC Factory Kashima fork, and 29-inch tubeless-ready Miche wheels.
Wilier manufacturer imagery; equipment shown may differ from this configuration.

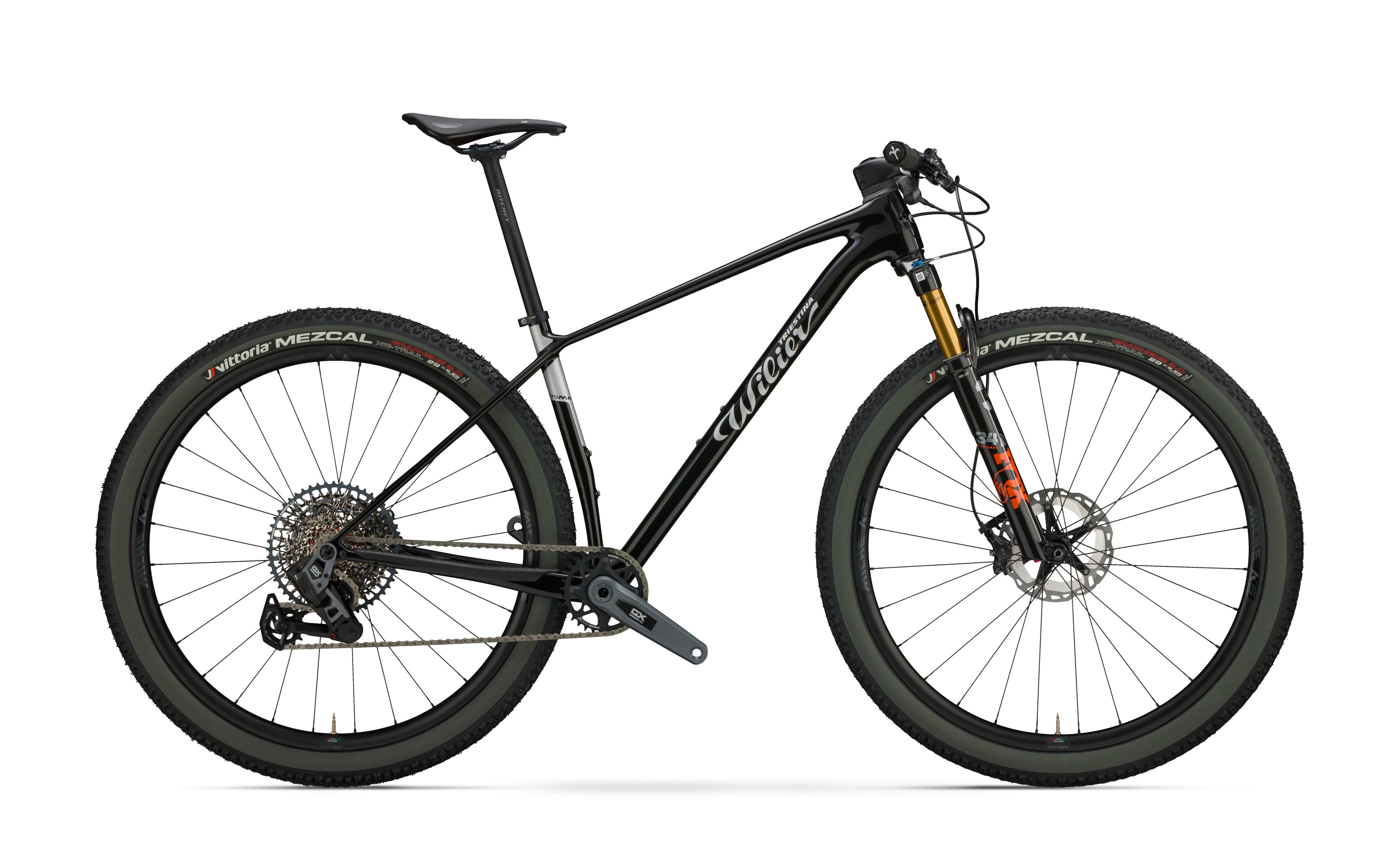

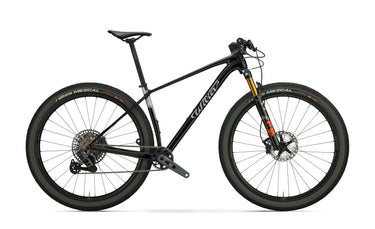

Photography note: the white-background studio image shows U6 Black/Silver Glossy. The riding and close-up images feature a different display-bike finish and may show equipment not included in the E630TW9K XT Di2 configuration; rely on the specification table for the supplied build.
Race-grounded design
A hardtail with range beyond the start line.

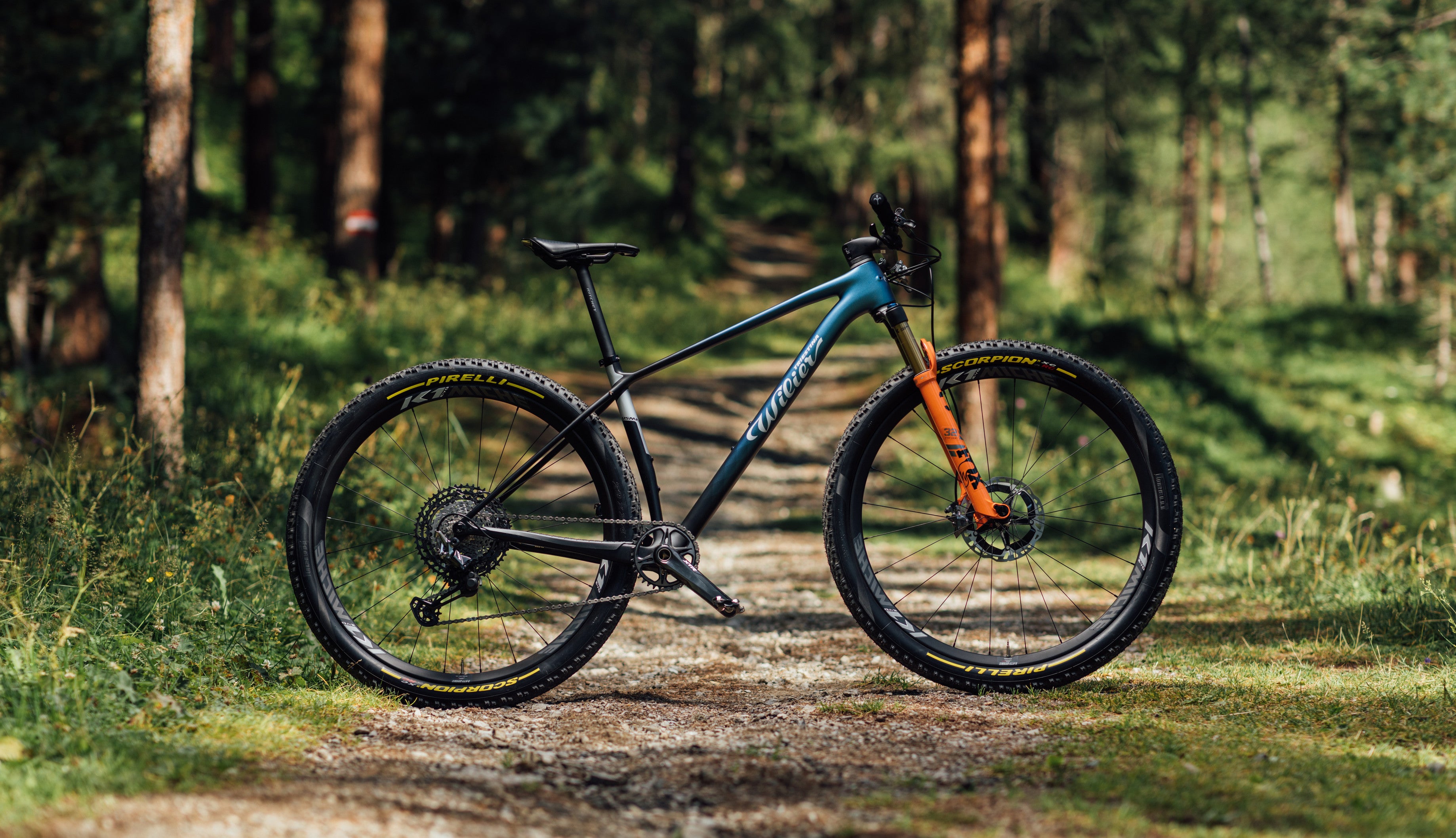

A fast 100 mm cross-country platform designed for climbs, acceleration and technical trail handling. Riding and studio photographs show an alternate finish.
Engineered to climb
HUS-MOD carbon. Race-ready geometry.
The 850 g ±5% painted size-M frame is built with Wilier's HUS-MOD carbon construction. Carefully reinforced tube junctions support the demands of off-road riding without turning this lightweight XC platform into an all-mountain bike.
Short 425 mm chainstays make the bike feel eager to accelerate and change direction. A 75° seat-tube angle positions the rider for sustained seated efforts, while the 67.75° head-tube angle contributes front-end confidence when the terrain starts pointing downward.
Frame detail
Every gram has a purpose.

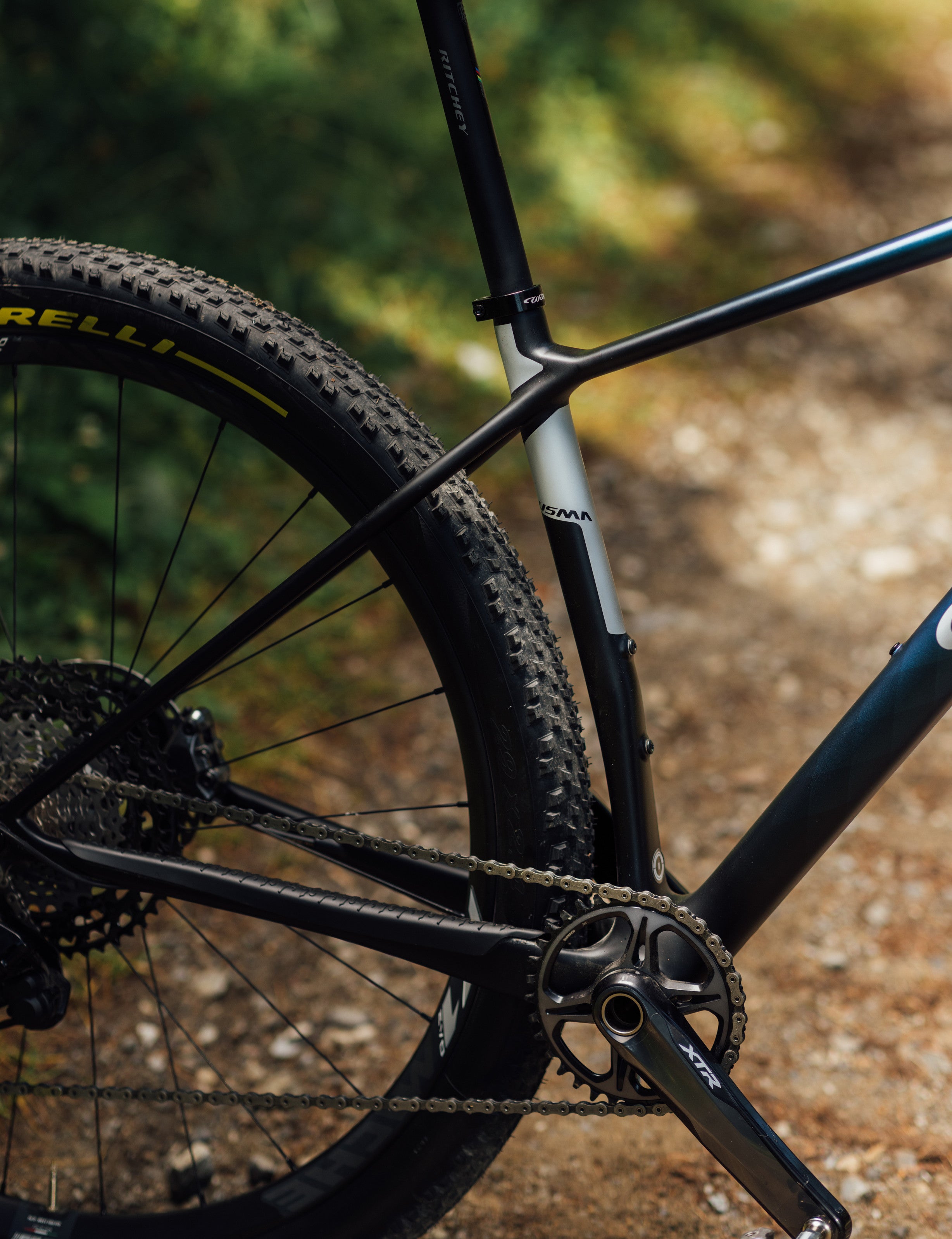

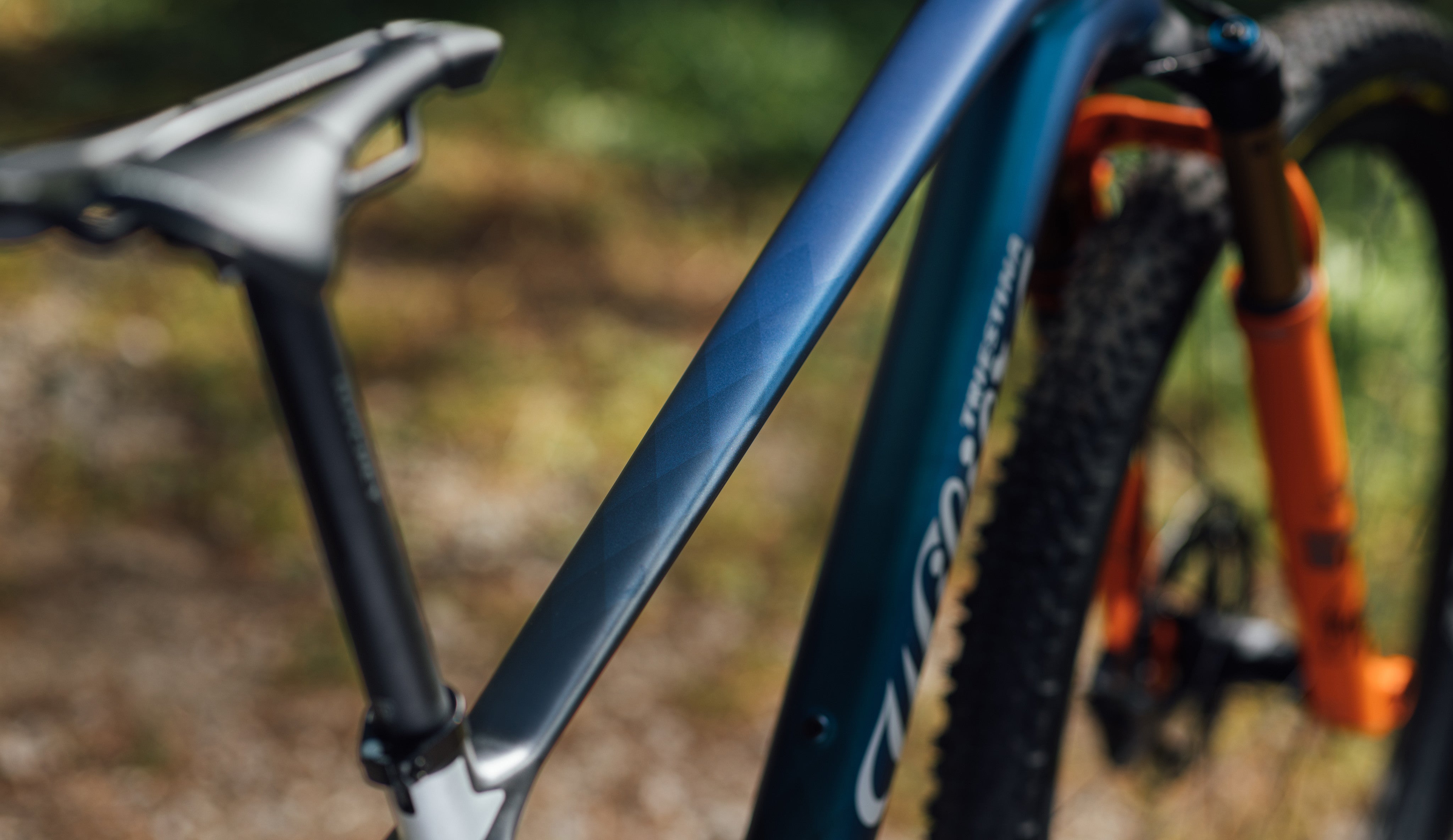

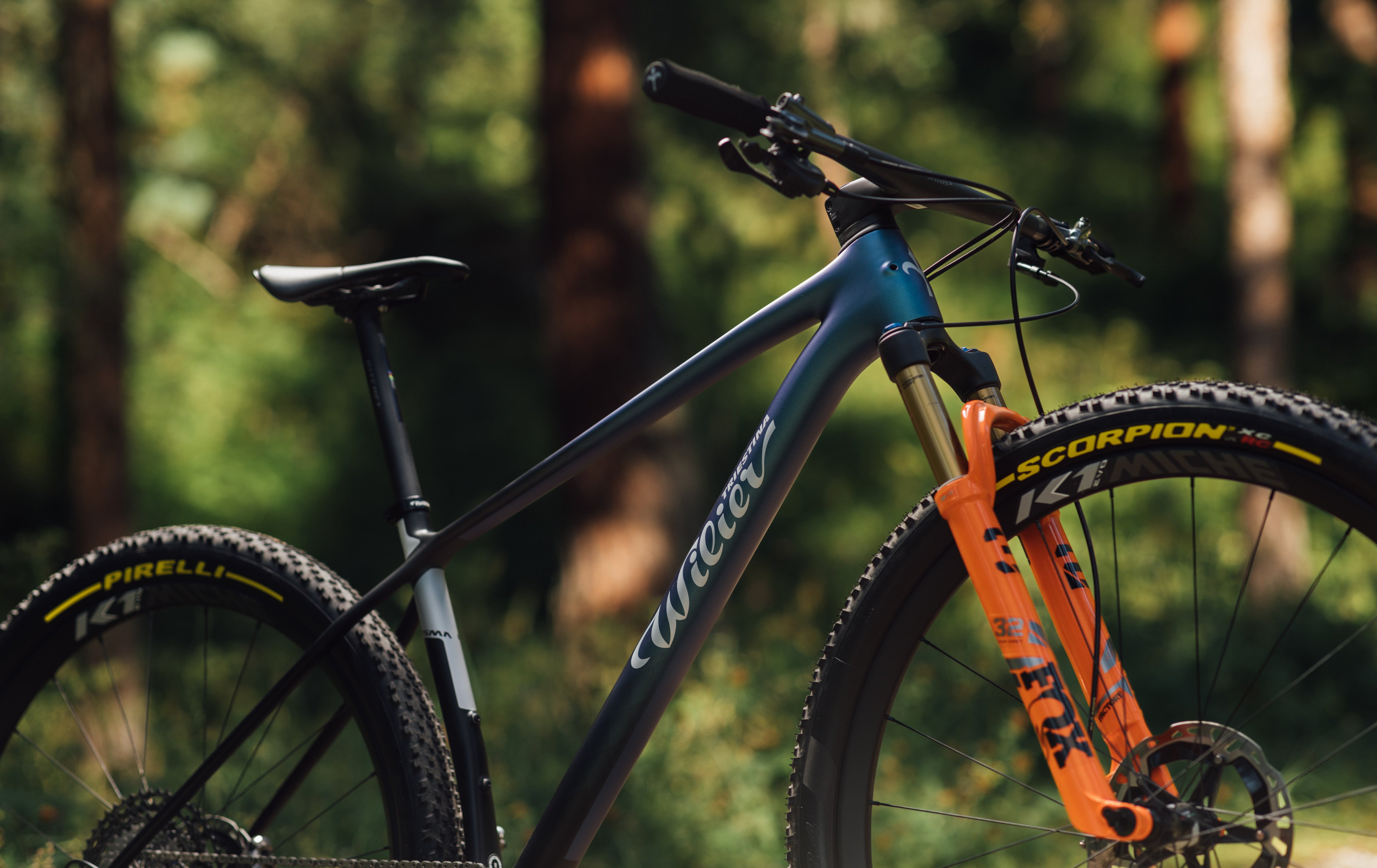

A closer look at the USMA SLR chassis, rear triangle and finish. These photographs show the model in a different paint and equipment configuration.
The complete build
Shimano XT Di2. FOX Factory. No wasted motion.
Electronic precision
Shimano XT M8200 Di2 brings wireless electronic shifting to a 1×12 drivetrain. The 32T chainring and 10–51T cassette deliver a broad 510% gearing range for sharp pitches and faster sections.
Focused suspension
The FOX 34 Step-Cast Factory fork uses Kashima-coated stanchions and 100 mm of travel—an XC-oriented pairing for rough climbs and technical singletrack.
Race-ready wheels
Miche 966 SPR 29-inch tubeless-ready alloy wheels carry Vittoria Saguaro 2.25-inch TLR tires. The frame supports tires up to 2.4 inches, subject to actual wheel-and-tire fit.
A cleaner cockpit
URTA BAR. One deliberate silhouette.

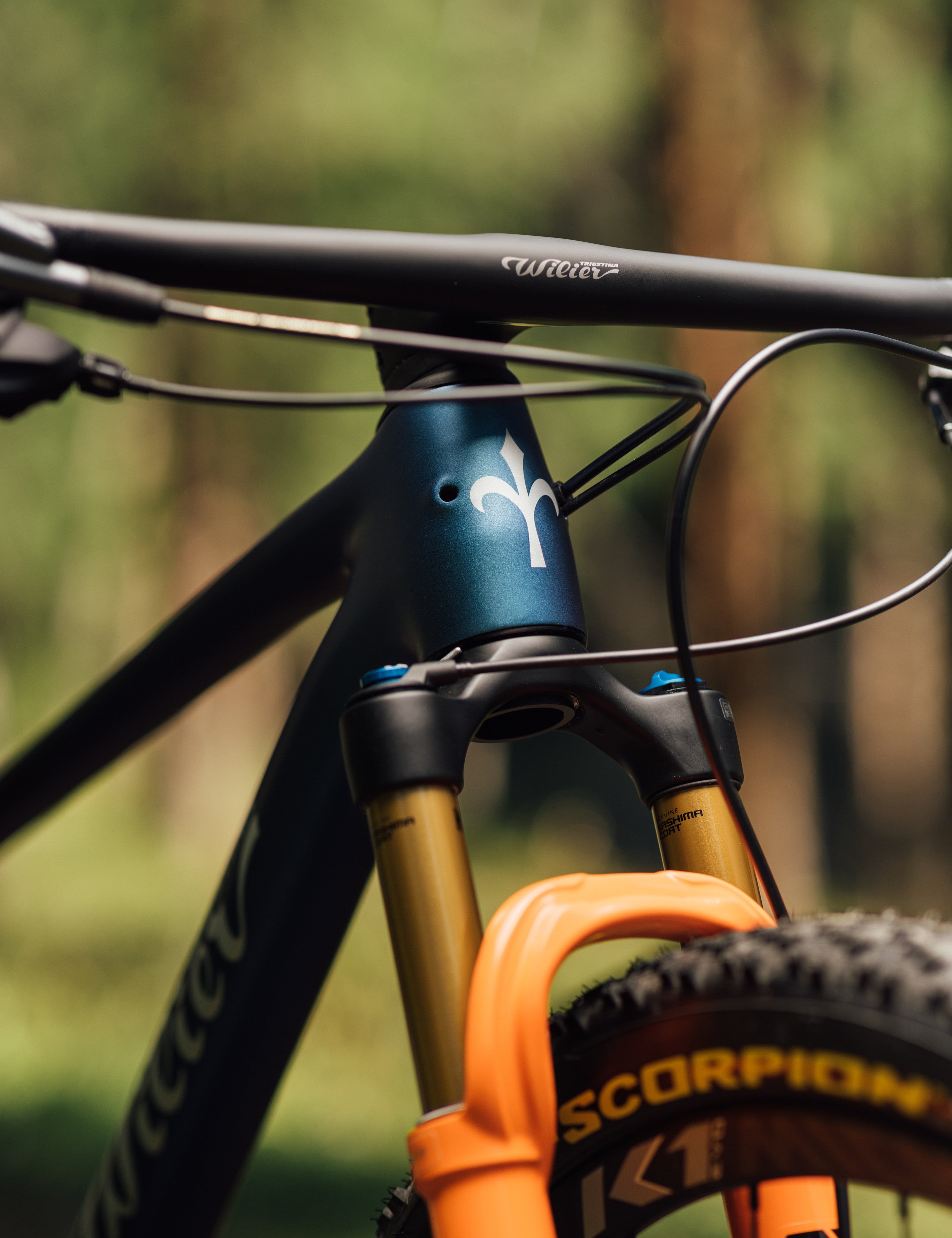

The −17° Wilier URTA BAR combines a carbon handlebar and stem into a lightweight monocoque unit with a published bar weight of 285 g ±5%. The frame supports thoughtfully managed cable routing, but Wilier specifies that URTA BAR's cables are external at the handlebar—not completely internally hidden.
Wilier's ACCU-FIT approach considers the handlebar and spacer arrangement alongside frame stack and reach. Exact fitted cockpit dimensions should be verified for each size before ordering.
The geometry below covers S, M and L, the three frame sizes supplied in Wilier’s 2027 dealer catalogue for setup E630TW9K. Dimensions are frame measurements; the final riding position also depends on cockpit, spacers and saddle setup.
Three sizes. One race-focused design.
Wilier's official USMA SLR geometry is shown below in millimeters and degrees, including stack and reach for all four frame sizes. This is frame geometry; rider position also depends on cockpit, spacers, saddle setup, and physiology.
| Frame measurement | Unit | S | M | L |
|---|---|---|---|---|
| Reach | mm | 405 | 430 | 454 |
| Stack | mm | 597 | 608 | 619 |
| Effective top tube (L) | mm | 565 | 593 | 620 |
| Seat tube (H) | mm | 400 | 440 | 480 |
| Head tube (H1) | mm | 84 | 96 | 108 |
| Chainstay (L1) | mm | 425 | 425 | 425 |
| Seat tube angle (A) | ° | 75 | 75 | 75 |
| Head tube angle (A1) | ° | 67.75 | 67.75 | 67.75 |
| Wheelbase | mm | 1,090 | 1,120 | 1,148 |
| Wheel size | in | 29 | 29 | 29 |
| Fork travel | mm | 100 | 100 | 100 |
Source: Wilier USMA SLR frame geometry, limited here to the S/M/L sizes in the 2027 dealer catalogue. XL is not listed as an orderable variant of this configuration. Measurements are in millimeters or degrees as indicated.
Complete bike / size-specific net weights
Know the weight of your build.
| Size | S | M | L |
|---|---|---|---|
| Net bike weight | 10.7 kg | 10.8 kg | 10.9 kg |
Size-specific net weights from Wilier dealer data, with size M corrected to 10.8 kg as confirmed by Brimstone. Actual assembled-bike weight may vary with configuration, tolerances and accessories. These are not boxed shipping weights. Wilier also publishes a separate 850 g ±5% painted size-M frame weight.
Factory build specification
Every component, accounted for.
Frameset & suspension
| Frame | Wilier USMA SLR HUS-MOD carbon monocoque hardtail; SRAM UDH-compatible |
|---|---|
| Frame weight | 850 g ±5%, painted size M (manufacturer reference; not complete-bike weight) |
| Suspension fork | FOX 34 Step-Cast Factory, Kashima coating, 100 mm travel |
| Headset | Ritchey Comp |
| Tire clearance | Up to 29 × 2.4 in (approximately 60 mm); verify rim/tire clearance on the assembled bicycle |
Shifting & drivetrain
| Groupset | Shimano Deore XT M8200 Di2 1×12-speed electronic |
|---|---|
| Shifter | Shimano XT Di2 SW-M8250-R |
| Rear derailleur | Shimano XT Di2 RD-M8250-SGS long cage |
| Crankset | Shimano XT FC-M8200, 32T single chainring |
| Cassette | Shimano CS-M8200-12, 10–51T |
| Chain | Shimano CN-M8100 |
| Bottom bracket | Shimano Press-Fit BB-MT800-PA |
Wheels & braking
| Wheels | Miche 966 SPR alloy, 29 in, tubeless-ready |
|---|---|
| Tires | Vittoria Saguaro 29 × 2.25 in TLR (tubeless-ready; tubeless setup not confirmed) |
| Brake levers | Shimano XT BL-M8200 |
| Calipers | Shimano XT BR-MT805 flat-mount hydraulic disc |
| Rotors | Shimano RT-CL800, 180 mm (manufacturer-specified; front/rear split not provided) |
Cockpit & finishing
| Handlebar | Wilier URTA BAR integrated carbon handlebar/stem, −17° |
|---|---|
| Cockpit weight | 285 g ±5% (handlebar only) |
| Cable routing | URTA BAR’s cables are external at the bar; compatible frame routing is integrated |
| Saddle | Selle San Marco Shortfit 2.0 Open-Fit Narrow |
| Seatpost | Ritchey WCS Trail Zero, 27.2 mm alloy, fixed post (dropper not included) |
| Rear axle | 12 × 178.5 mm, pitch 1.0 (per manufacturer setup) |
| Color photographed | U6 Black / Silver, gloss finish |
Manufacturer setup E630TW9K. Component availability and minor specifications may change during the model season. Complete-bike weight, boxed weight, and size-specific cockpit measurements have not been supplied.
USMA SLR · Frequently asked questions
The details worth knowing.
Is this a full-suspension bike?
No. USMA SLR is a carbon hardtail with a 100 mm suspension fork.
Does it include a dropper post?
No. This build lists a fixed Ritchey WCS Trail Zero 27.2 mm post. The frame supports a compatible 27.2 mm internally routed dropper as an upgrade.
Is it tubeless out of the box?
The wheels and tires are specified as tubeless-ready; an installed tubeless setup is not guaranteed.
Can I fit wider XC tires?
Wilier states clearance up to 29 × 2.4 in (60 mm). Check actual inflated tire width and clearance before use.
Does it use SRAM UDH?
Yes, the frame uses SRAM's Universal Derailleur Hanger standard.
What is the full-bike weight?
A complete-bike weight has not been confirmed for this specific XT Di2 build. The published 850 g figure is for the painted size-M frame only.
Built for your next line
Your USMA SLR. Brimstone's personal support.
Questions about the correct frame size, cockpit fit, XC tires, or drivetrain setup? Contact Brimstone Bicycles and speak with our cycling team before ordering. Bikes shipped to our shop receive professional assembly and a safety check at no additional assembly charge.
Wilier Triestina USMA SLR · Shimano XT Di2 1×12 · FOX 34 SC Factory 100 mm · Miche 966 SPR 29-inch wheels · Black / Silver (U6)
