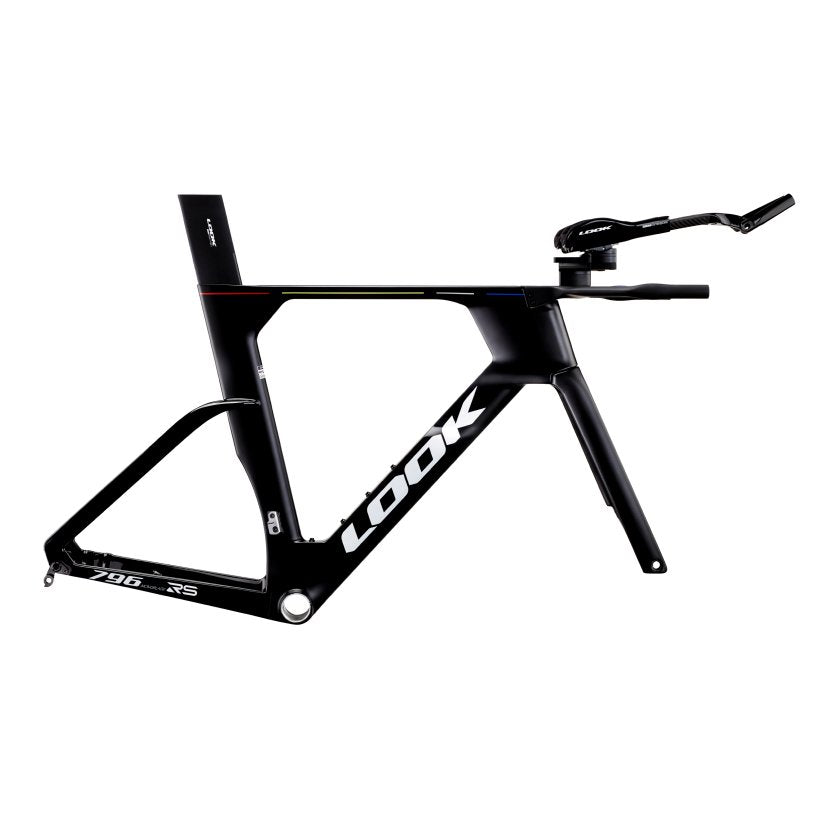

LOOK 796 Monoblade RS Frameset

LOOK 796 Monoblade RS Frameset

Aerodynamic excellence for triathlon and time trial performance. The LOOK 796 Monoblade RS Frameset is a premium carbon triathlon and time-trial platform built for riders who want maximum aerodynamic efficiency, race-day speed, and a fully optimized custom build.

Finished in Proteam Black Glossy, this frameset is designed around LOOK's carbon expertise, integrated aero cockpit concept, internal cable routing, and adjustable fit architecture. It is the foundation for a fast, highly personalized triathlon or TT bike build.

Designed to conquer the clock

LOOK developed the 796 Monoblade RS around aerodynamic modeling, wind tunnel testing, on-road validation, and track-inspired carbon engineering. The result is a lightweight and rigid racing platform optimized from frame to cockpit to slice through the air efficiently.

Why choose the 796 Monoblade RS Frameset?

• Ultra High Modulus carbon fiber frameset designed for triathlon and time-trial speed
• Internal cable routing for a clean, aerodynamic build
• LOOK Aeropost Tube 2 with reversible head and sliding integrated seatpost clamp

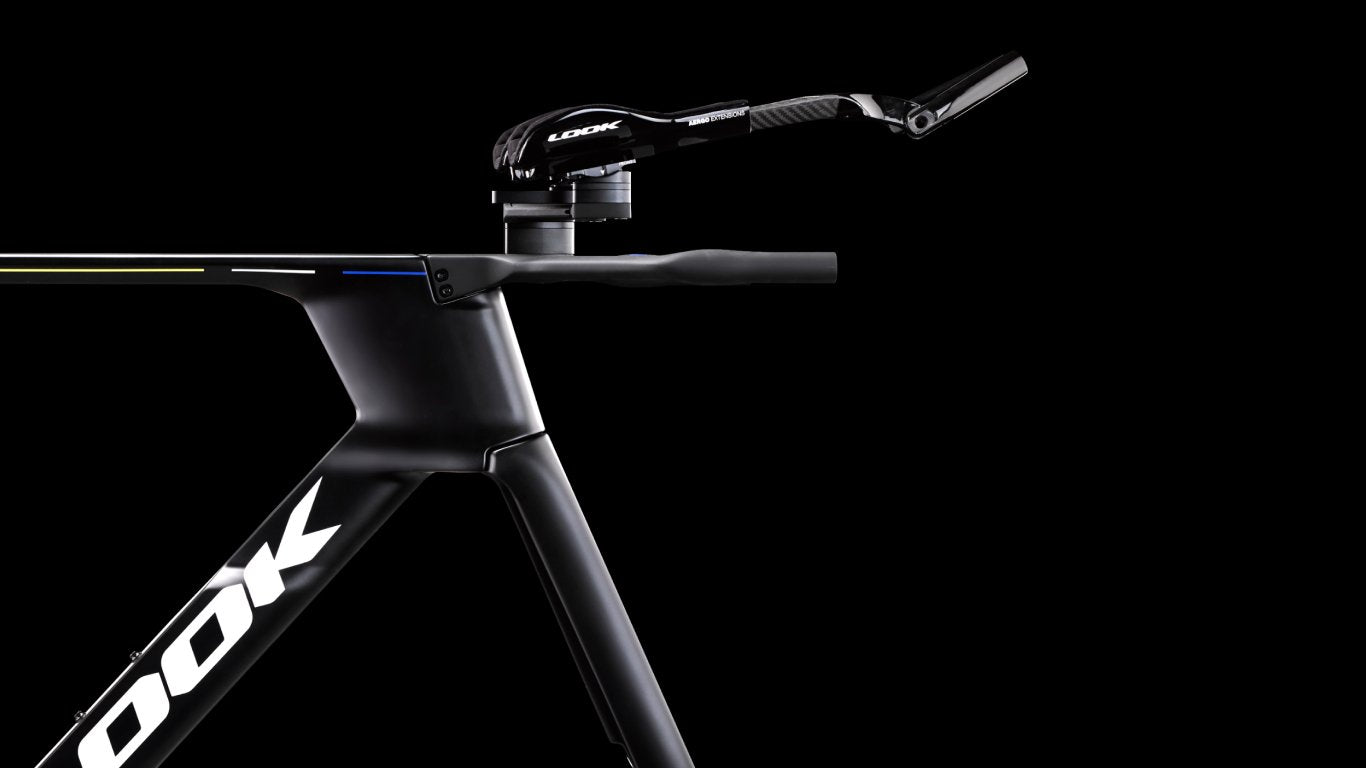

• Combo AEROFLAT BAR 2 Carbon cockpit system
• Adjustable 380 mm or 400 mm handlebar width options
• Disc-brake only frameset with Flat Mount standard
• T47 85.5 mm bottom bracket standard
• Compatible with tires up to 32 mm
• Modern X12 thru-axle spacing: 100 mm front and 142 mm rear

Who is this frameset for?

This frameset is ideal for triathletes, time-trial specialists, Ironman athletes, and performance-focused riders who want to build a premium aero bike around their preferred wheels, drivetrain, saddle, extensions, fit coordinates, and race-day setup.

Technical Specifications

Geometry

Geometry values are shown in millimeters unless noted.

Size Guide

Please note: this is an approximate size guide. For the most precise fit, contact your dealer or schedule a professional triathlon bike fit.

Triathlon fit depends heavily on saddle position, pad stack, pad reach, extension choice, hip angle, flexibility, and race distance. A professional triathlon fit is strongly recommended before finalizing a frameset size.

Buyer Questions & Answers

Who should buy the LOOK 796 Monoblade RS Frameset?

This frameset is for triathletes, time-trial riders, Ironman athletes, and aero-focused cyclists who want to build a fast custom race bike around their preferred drivetrain, wheels, cockpit position, saddle, and fit coordinates.

Is the 796 Monoblade RS good for triathlon?

Yes. It is designed specifically for triathlon and time-trial performance, with an aerodynamic frame, integrated cockpit, internal cable routing, and geometry intended for speed against the clock.

Is this a complete bike or a frameset?

This product is a frameset, not a complete bike. You should plan for wheels, tires, drivetrain, brakes, rotors, cassette, chain, saddle, extensions, hydration/storage setup, pedals, and any required small parts.

What makes the 796 Monoblade RS aerodynamic?

The frame is shaped around aero modeling, wind tunnel testing, internal cable routing, and an integrated cockpit concept. LOOK also highlights its track expertise and carbon mastery in the design.

What is the maximum tire clearance?

LOOK lists compatibility with tires up to 32 mm.

What bottom bracket does it use?

The 796 Monoblade RS Frameset uses a T47 85.5 mm bottom bracket standard.

What brake standard does the frame use?

The frameset is disc mount only and uses the Flat Mount standard.

What axles does the frameset use?

The front thru axle is X12 type, 100 mm, M12 x 1.5, with 115 mm full length. The rear thru axle is X12 type, 142 mm, M12 x 1.5, with 160 mm full length.

Can I build this with electronic shifting?

Yes, it can be a strong platform for a modern electronic triathlon or time-trial drivetrain, provided the drivetrain, brake, routing, bottom bracket, and cockpit parts are selected for compatibility. Confirm the final parts list with your mechanic before ordering.

Can I use this for Ironman racing?

Yes. The 796 Monoblade RS is designed for aerodynamic efficiency and race performance, making it a strong option for long-course triathlon and Ironman-style events when properly fit to the athlete.

How important is fit on this frameset?

Fit is critical. Triathlon bikes are highly position-sensitive, and the right frame size depends on more than rider height. Pad stack, pad reach, saddle position, crank length, hip angle, and event distance all matter.

What size should I choose?

LOOK's approximate size guide recommends XS for riders under 166 cm, S for 164-173 cm, M for 171-180 cm, and L for 178-187 cm. In inches, that is XS under 65.4 in, S from 64.6-68.1 in, M from 67.3-70.9 in, and L from 70.1-73.6 in. A professional triathlon fit is recommended before choosing a frameset size.

Why choose a frameset instead of a complete triathlon bike?

A frameset lets you build around your preferred drivetrain, wheel depth, cockpit position, saddle, hydration system, and race setup. This is ideal for athletes who know their fit numbers or want a high-end custom build.

Is this bike only for racing?

The 796 Monoblade RS is purpose-built for speed, triathlon, and time trial performance. It can be trained on, but it is best suited to athletes who want a dedicated aero race platform.
