ENVE AR40 Carbon Gravel Wheels

Why this wheel exists

For riders who value carbon all-road versatility and an accessible ENVE wheelset, ENVE has developed this Gravel / All-Road wheel as a specific tool rather than an all-purpose generic carbon rim. AR40 costs less and uses a narrower 25 mm internal rim than the G SES 4.5’s 30 mm gravel-racing design. Choose G23 for a shallower low-mass gravel setup.

ENVE’s approach to wheel development is system-oriented: rim design, tire pairing, hub engagement and on-bike handling all change the ride. For the AR40, the central decision is whether carbon all-road versatility and an accessible ENVE wheelset matches your routes and race goals. A faster wheel is the right wheel only when its aerodynamic, weight and handling compromises make sense for where you actually ride.

Why ENVE AR40 earns its place

A carbon all-road upgrade without unnecessary complexity

The AR40 serves the rider who wants a lighter-feeling and more responsive carbon all-road wheel for pavement and mixed-surface riding. Rather than chasing the deepest possible aerodynamic profile, the wheel emphasizes a practical balance of rim shape, dependable tubeless setup, and everyday usefulness.

Construction and ride character

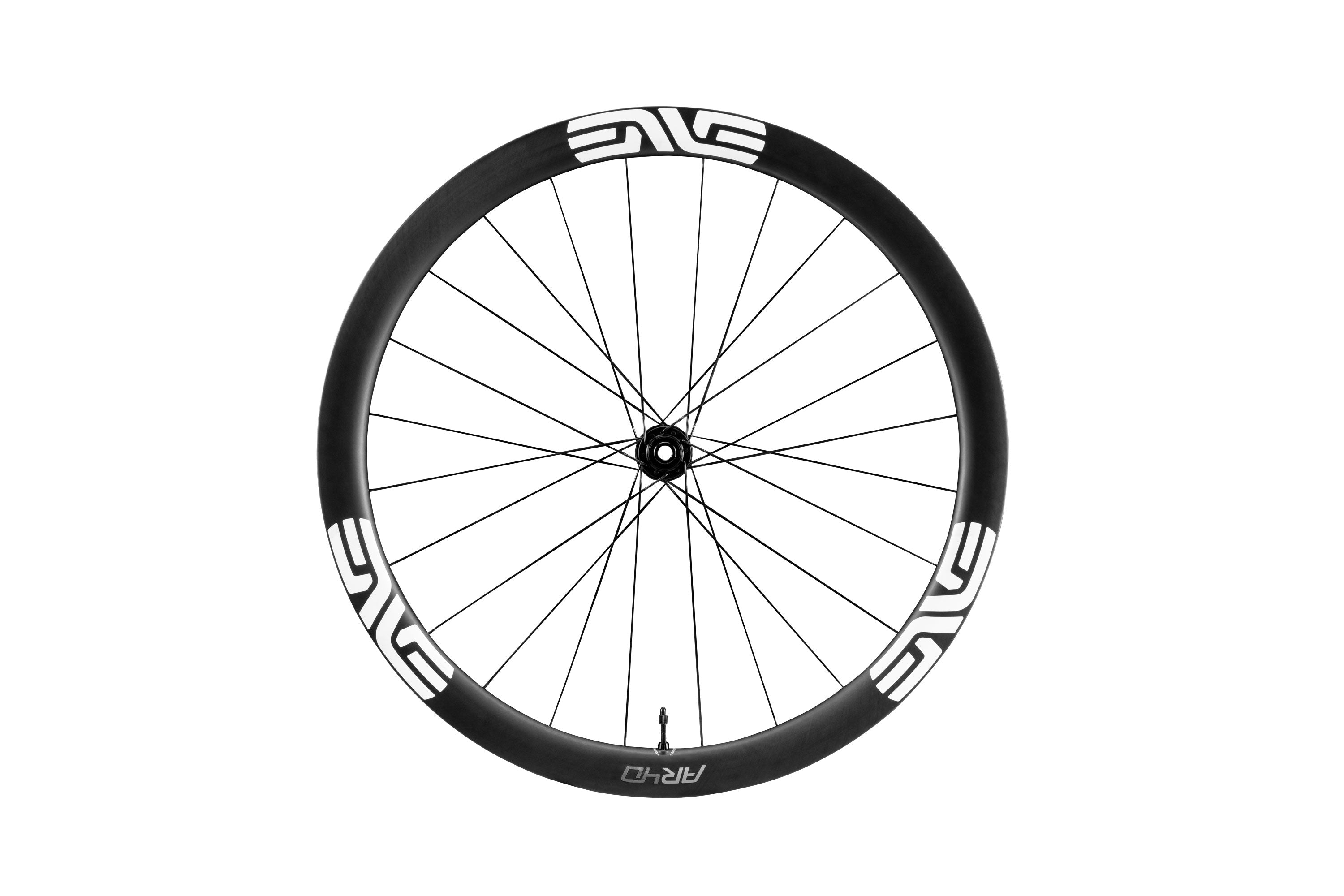

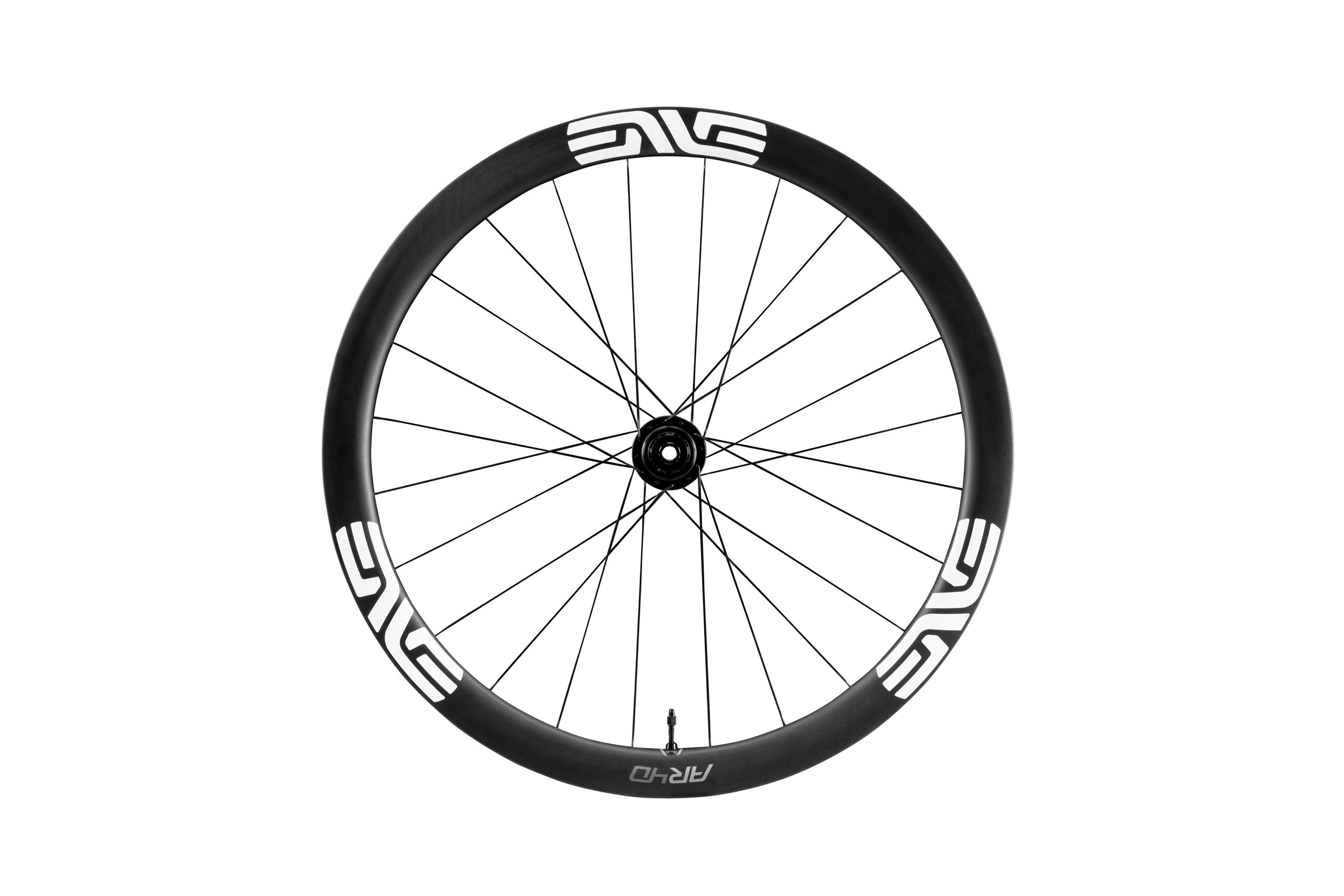

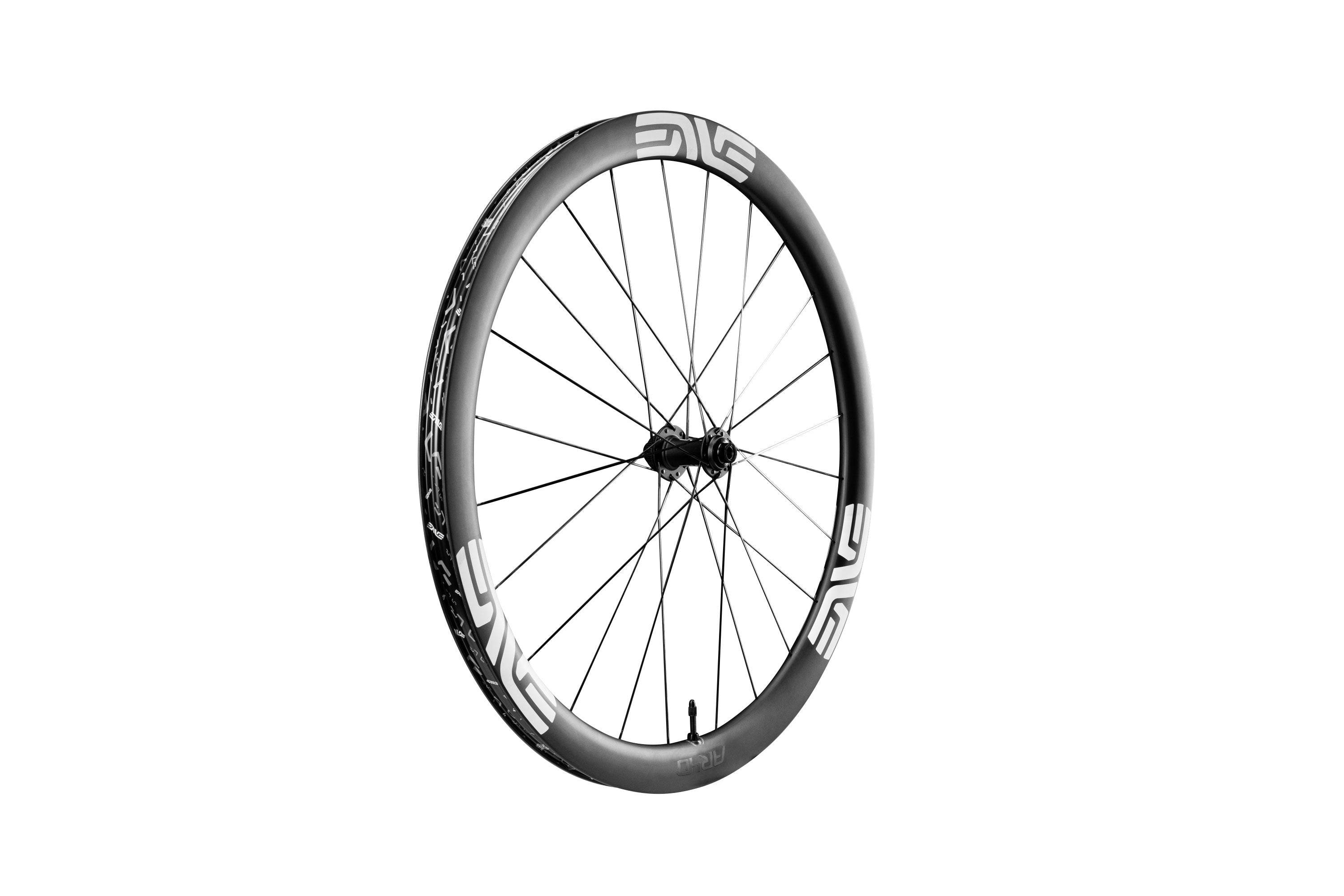

ENVE INNERDRIVE Foundation is at the center of this build. The carbon rim follows a 40 mm front and rear profile and provides 25 mm of internal tire support. The manufacturer’s assembled weight reference is 1,515 g wheelset including tape and valves (HG). These specifications refer to this ENVE model; they are not copied from a different generation or from a similarly named road/gravel wheel.

The benefit of this architecture is particularly meaningful for endurance-road cyclists, all-road explorers and gravel riders shopping an everyday carbon upgrade. Rim depth can influence aerodynamic behavior and steering in crosswinds; tire volume affects traction and comfort; hub and axle standards determine whether the parts actually fit your bike. We recommend prioritizing complete system compatibility before selecting a freehub or ordering a pair.

A closer look at the carbon wheel system

The two wheel positions have different jobs on the bike. Confirm the exact front, rear, or wheelset option, including the driver and axle requirements, before ordering.

Full ENVE AR40 technical specifications

Published weights and tire guidance are manufacturer values and may vary by hub/freehub, wheel size, accessory setup, and measurement convention. Confirm critical dimensions before ordering.

Choosing Front, Rear, or Complete Wheelset

Choose Front, Rear, or Wheelset directly above the Add to Cart area. The wheelset includes one matching front and one matching rear wheel. Pick the decal and corresponding rear freehub. A front wheel does not take a cassette, so its option will read “None (Front Wheel Only).” All complete sets are Brimstone-combined selections priced at ENVE’s individual-wheel MSRPs, not manufacturer-boxed bundles.

Pricing and ordering: $630.00 front / $770.00 rear / $1,400.00 complete wheelset. Brimstone does not apply an unverified wheelset-only discount. Brimstone-combined wheelset variants use internal retailer SKUs, while standalone wheels retain manufacturer component identifiers.

Technology, riding priorities and real-world setup

An all-road wheel depends heavily on the tires fitted to it. Decide which proportion of your riding is paved and how rough your unpaved routes actually are. Then confirm tire width, approved tire construction, and clearance on the bike. Rim internal width is only one part of that compatibility conversation.

Tires

Follow ENVE model-specific approved tire width, construction and pressure guidance.

Drivetrain

Match your cassette to the freehub option; verify axle spacing and brake mounting.

Expert advice

Brimstone is an authorized ENVE dealer and can check your exact bicycle fitment.

Frame, cassette and rotor compatibility

Start with your bike’s actual brake mounts and axles: Centerlock; 12×100 / 12×142 mm thru-axle. Then confirm whether your cassette requires HG, XDR, Campagnolo N3W, or Shimano Micro Spline/MS. A cassette-freehub standard is not interchangeable with every gear system, even if it has a similar cassette tooth count. If unsure, share your full cassette model and frame year with Brimstone.

Tire selection, tubeless setup and pressures

ENVE’s fitment guidance for this model is Modern road/all-road and gravel tubeless-compatible tires; check ENVE compatibility chart. Check actual inflated tire width on the rim, frame/fork clearance, whether the rim is hooked or hookless, and the currently approved tubeless tire list. Do not rely on a universal pressure number without checking ENVE’s current chart. Road racing, all-road and gravel riding place different demands on tires and pressures.

In particular, a label such as 28 mm, 45 mm, or 2.4 inches describes a tire model’s nominal size, not a guaranteed measured inflated dimension on every rim. Never exceed ENVE’s published rim pressure limit or the tire maker’s lower limit. If uncertain about hooked versus hookless tire approval, request a fitment check.

ENVE AR40 compared with other ENVE options

AR40 costs less and uses a narrower 25 mm internal rim than the G SES 4.5’s 30 mm gravel-racing design. Choose G23 for a shallower low-mass gravel setup.

When deciding between comparable wheels, look beyond the headline depth: consider the actual ride discipline, tire width, expected crosswinds, total system weight, hub serviceability, and whether a dedicated high-speed wheel makes sense as your only wheelset. Brimstone can help with a side-by-side model and cassette compatibility review.

Choose the ENVE that fits your course

The AR40 is a logical choice for riders who want accessible carbon performance without the stronger racing emphasis of G SES or the lightweight gravel-specific priorities of G23.

Read ENVE tire compatibility and current manufacturer warranty terms for eligibility and fitment details. The photography and specifications on this page are ENVE manufacturer-sourced; confirm availability with Brimstone before ordering.

Technical buying advice from Brimstone Bicycles

Brimstone Bicycles is an authorized ENVE dealer. For a high-value carbon-wheel purchase, we recommend sharing the bicycle model/year, current wheel axle and brake standard, drivetrain/cassette, desired tire brand/width, and riding goals before ordering. We can clarify available component options and help avoid the costs of a mismatched freehub, rotor system or axle standard.

For the latest product-specific setup guidance, warranty eligibility, and approved tire combinations, consult ENVE's official AR40 product page. Manufacturer imagery and specifications are credited to ENVE Composites. Availability and shipping promises should be confirmed with Brimstone before publishing this Draft listing.
