Pinarello
C1845100149-20110
Nytro E5 Allroad MY23 - Shimano Deore
$6,000.00
/
Added to cart with your e-bike when checked. You can remove it anytime before checkout.
Pickup available at Brimstone Bicycles Shop
Usually ready in 2-4 days

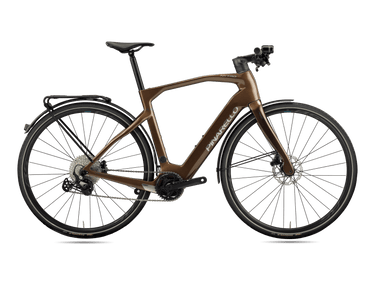

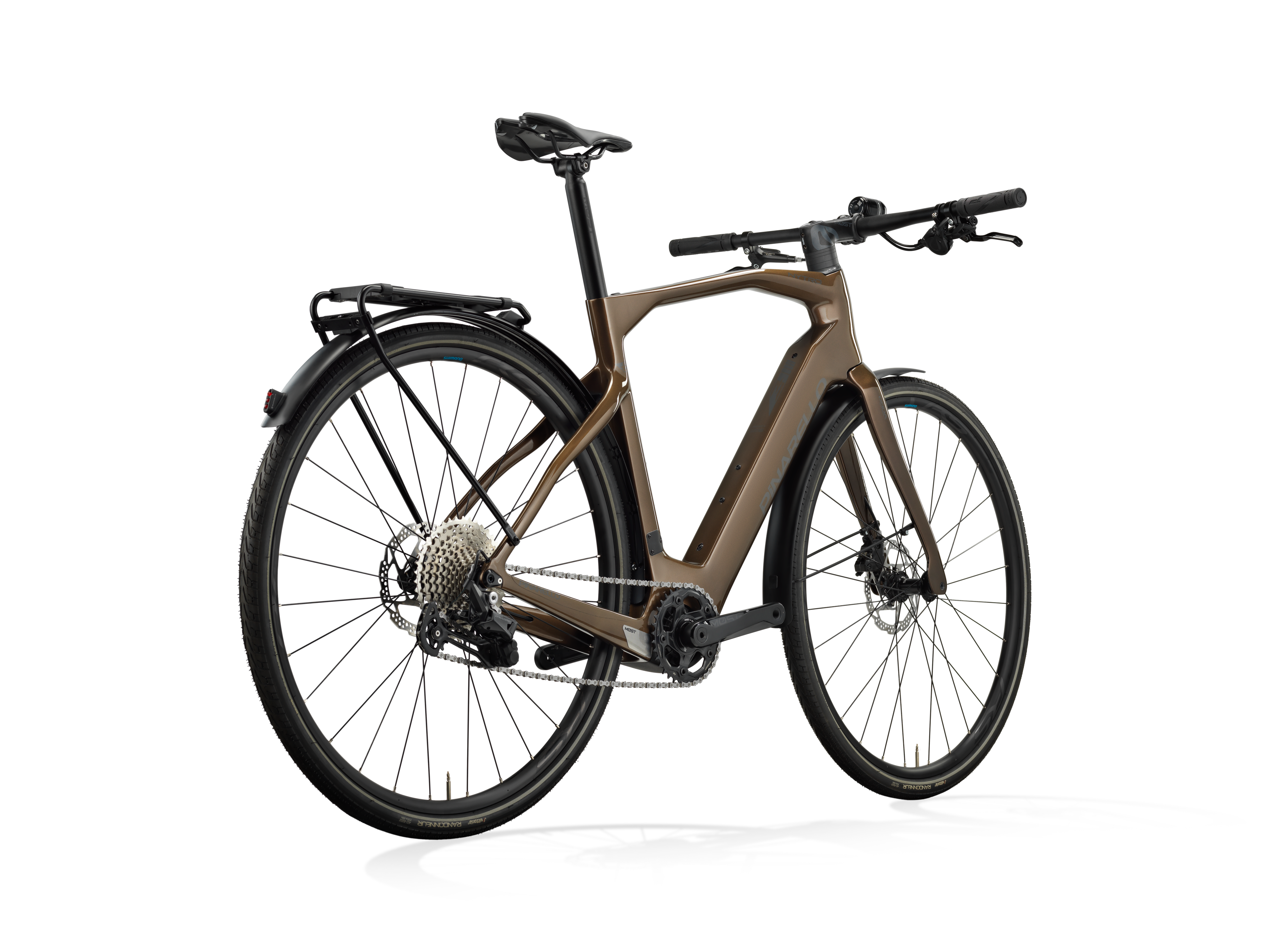

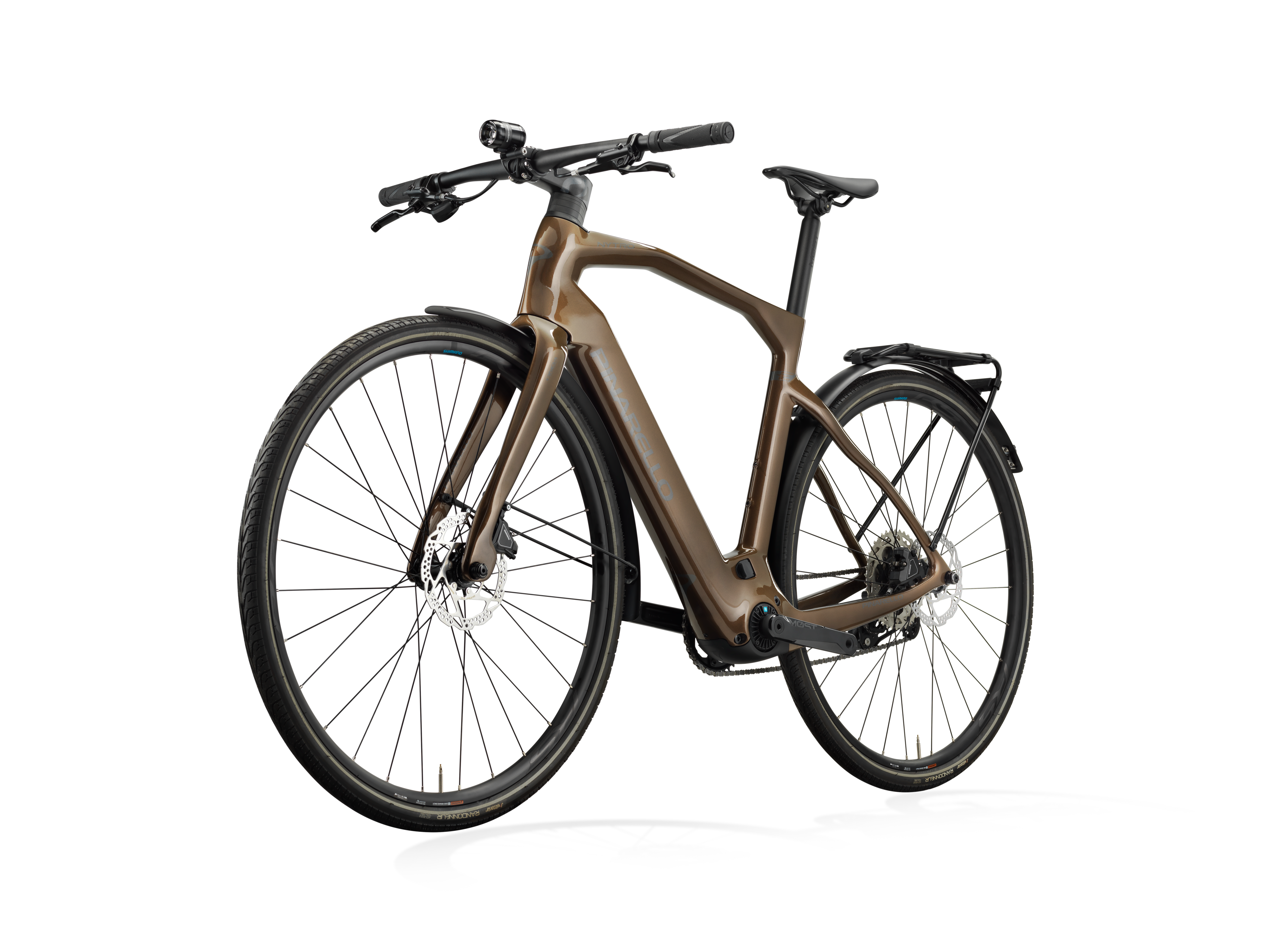

Pinarello Nytro E5 Allroad - Shimano Deore - Sienna Brown (2023)
NYTRO E ALL ROAD
ALL ROAD with lights and mudguards, for total freedom of use. This is a bike
designed to be pedaled every day, whether it’s to the office or on a wonderful
adventure on the weekend. The power and reliability of the Nytro E will make
everything easier and more fun.
Highlights
- TorayCa T700 UD carbon frame with integrated 360 Wh battery and internal cable routing
- Nytro Onda carbon fork with ForkFlap™ and tapered head tube

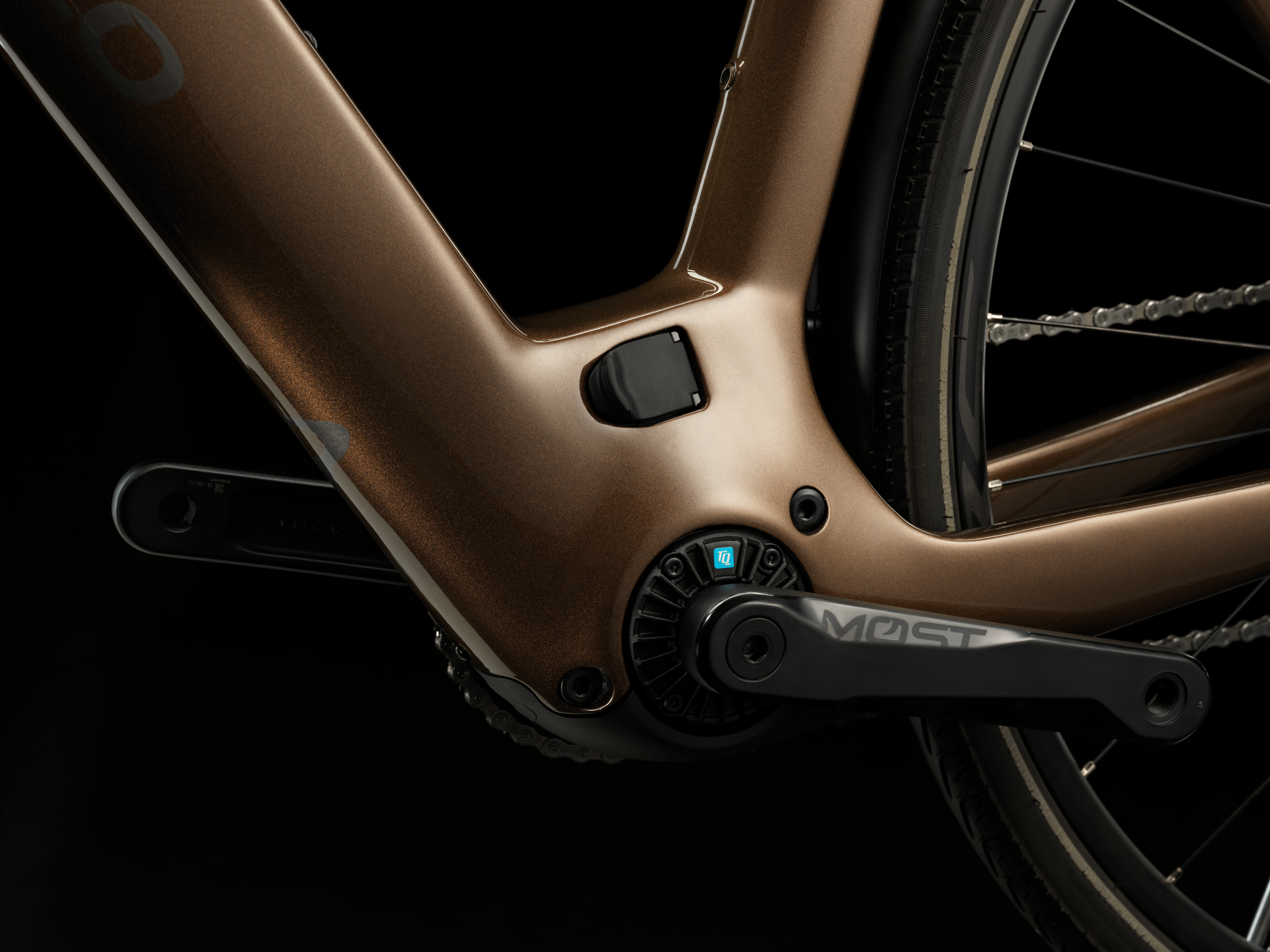

- TQ-HPR50 drive unit for natural-feeling assistance
- Allroad setup with lights and 40mm tyres for mixed-surface riding
Key Components
- Frame: TORAYCA™ T700 UD Carbon Road Frame
- Fork: Nytro Onda fork with forkflap™, 47mm
- Motor: TQ-HPR50
- Battery: 360 Wh integrated Battery
- Shifters: Shimano Deore 1x11
- Rear derailleur: Shimano Deore
- Front derailleur: Shimano Deore
- Crankset: MOST - 170MM
- Cassette/Freewheel: Shimano Deore
- Chain: Shimano Deore

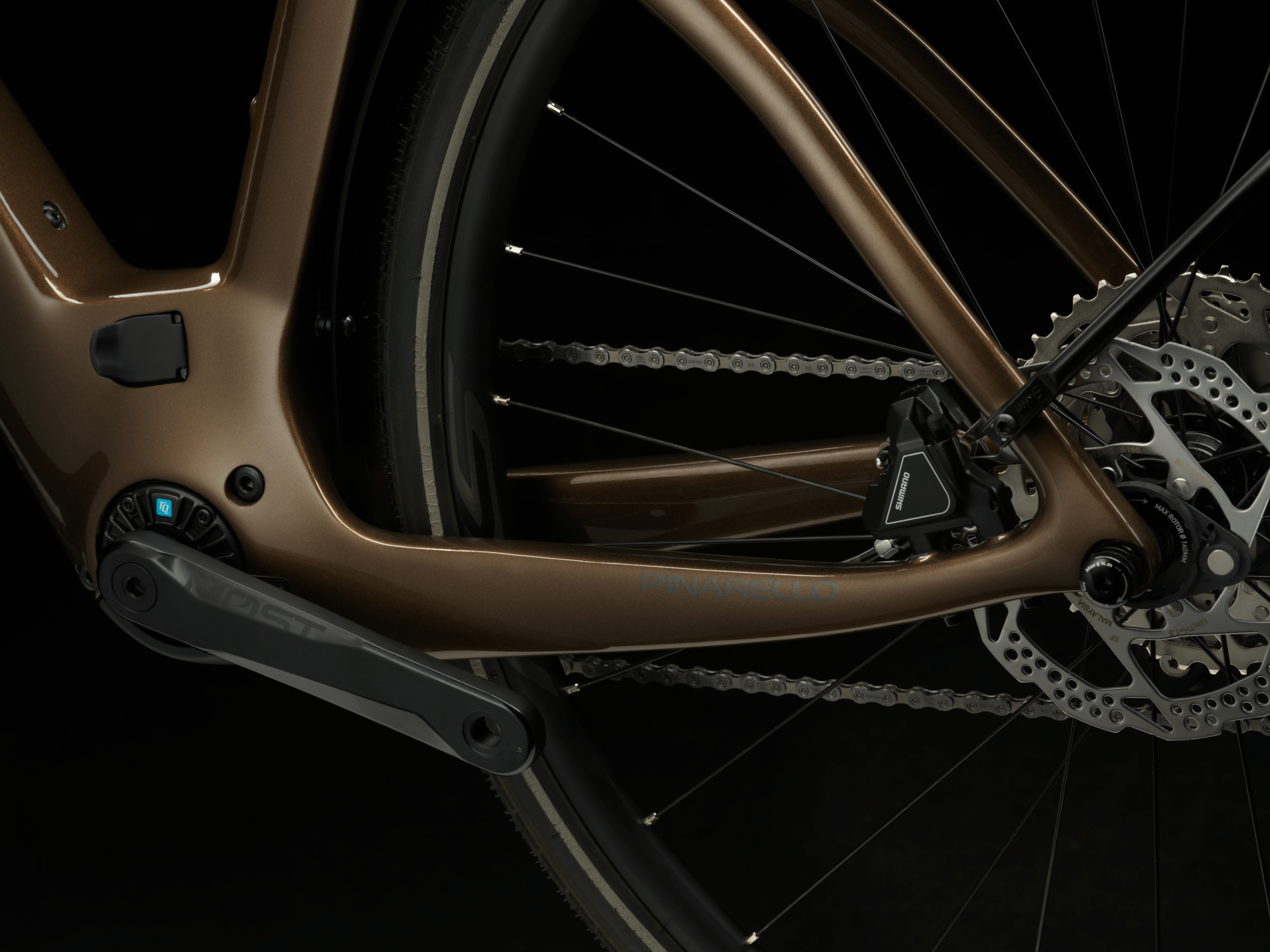

- Brakes: Shimano Deore
- Wheels: Shimano WH-RS171
- Tires: Vittoria Randonneur
- Handlebar: MTB Alu TiCR
- Stem: Tiger Alu Aero Di2
Geometry (Model Year 2023)
Measurements in millimeters (mm) and degrees (°).
| Size | Stack (mm) | Reach (mm) | Top Tube (mm) | Seat Tube (mm) | Seat Angle (°) | Head Tube (mm) | Head Angle (°) | BB Drop (mm) | BB Height (mm) | Chainstay (mm) | Fork Rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 571 | 364 | 535 | 480 | 74.0 | 137 | 70.0 | 78 | 258 | 437 | 50 |
| 53 | 589 | 373 | 550 | 510 | 73.8 | 155 | 70.3 | 78 | 258 | 437 | 50 |
| 55 | 606 | 381 | 564 | 530 | 73.5 | 170 | 71.0 | 78 | 258 | 437 | 50 |
| 57.5 | 622 | 388 | 581 | 565 | 73.0 | 190 | 71.3 | 74 | 262 | 437 | 50 |
