Bafang Hub Motor
500W nominal and 750W peak output for confident starts and hill support.
Description:
Low-Step · Folding · Dual-Sensor Assist
Magnum Premium 3 Torque LS
A compact folding e-bike for commuters, RV travelers, apartment living, recreation, and riders who want easy mounting without giving up strong power, stable tires, and everyday utility.
500W / 750W peakTorque + cadence sensing48V 15Ah / 720Wh20 × 3.0 tiresHydraulic disc brakes
30–50 miManufacturer-estimated range
25 mphMaximum pedal-assist speed
62.25 lbBike weight
330 lbMaximum load capacity
Two Color Options
Black/Silver or White/Silver
Both finishes use the same one-size low-step folding frame, 500W Bafang system, 15Ah battery, hydraulic brakes, Shimano drivetrain, rack, fenders, and lights.
Black/Silver
White/Silver
Natural or Effortless
Choose torque or cadence sensing
Torque mode follows how firmly you pedal for natural, proportional assistance. Cadence mode supplies power when crank rotation is detected for easier cruising. A thumb throttle provides power without pedaling up to its configured limit.
- Advanced torque sensor for proportional response
- 12-magnet cadence sensor for easy cruising
- Configurable Class 1, 2, or 3 operation
- Up to 25 mph pedal assist and 20 mph throttle-only

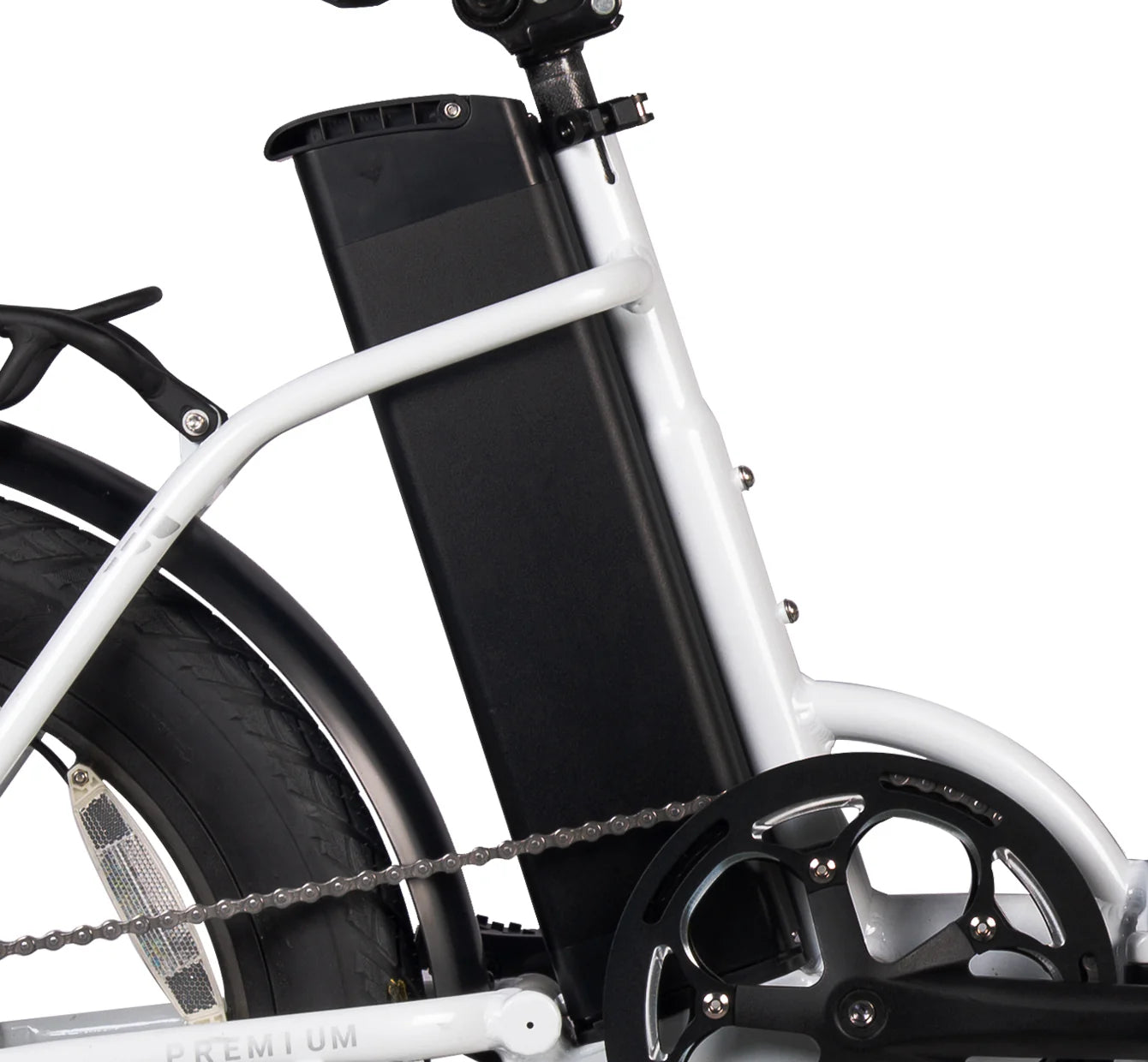

Battery & Range
48V power for everyday miles
The current component specification lists a 48V, 15Ah, 720Wh Li-NMC battery with UL 2271 and UL 2849 certification. Magnum claims 30 to 50 miles per charge, with actual distance affected by assist level, rider and cargo weight, terrain, wind, tire pressure, and temperature.
- 720Wh rated energy capacity
- Approximately 7.5 hours from empty
- Integrated front and rear lights
- 20-lux front light includes an electric horn

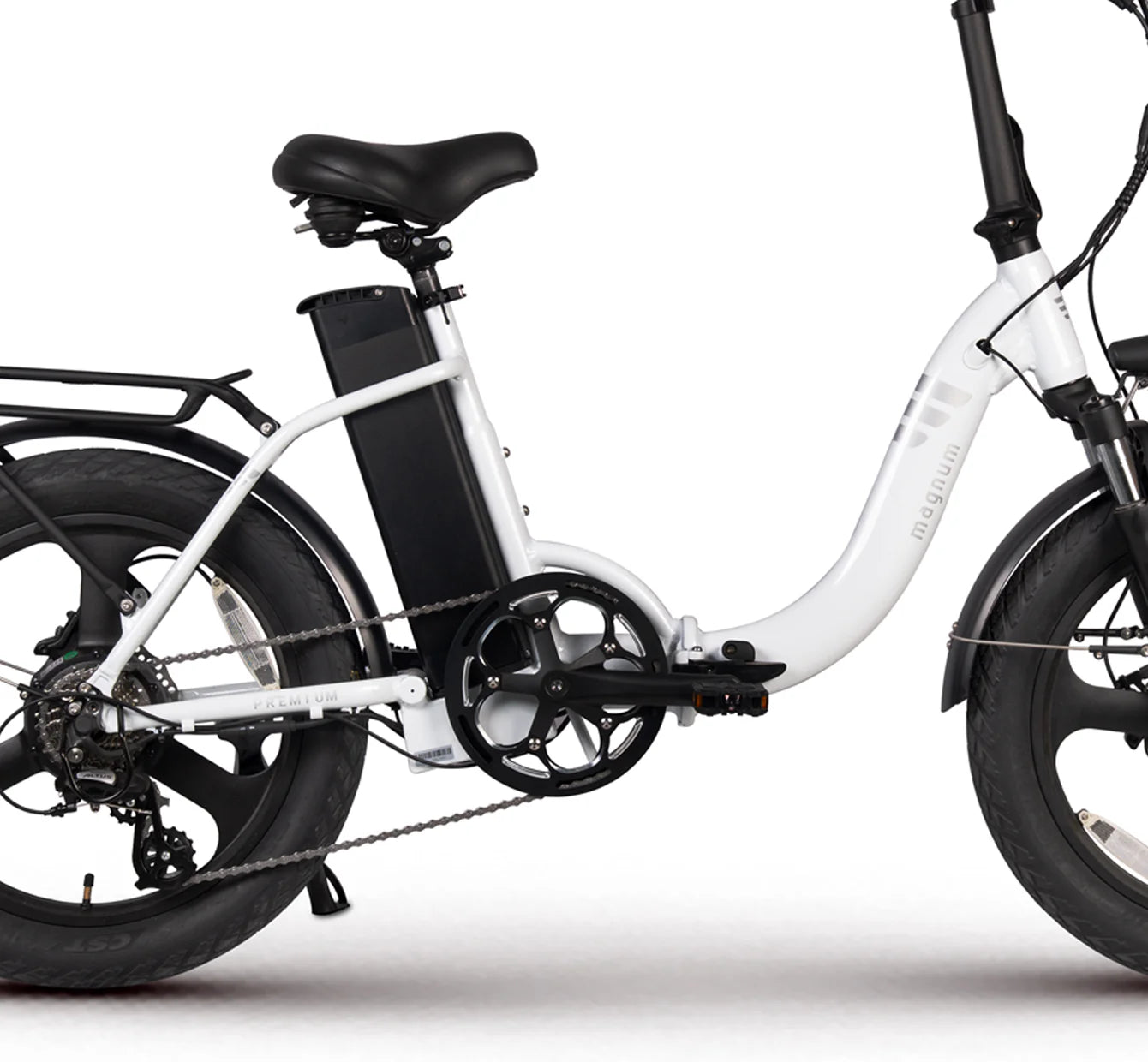

Compact Utility
Low-step access with a folding frame
The aluminum frame folds at the main junction, while the telescopic stem and folding platform pedals reduce the storage footprint. It is practical for apartments, offices, motorhomes, garages, and vehicle transport.
- 15.75-inch standover height
- Folding telescopic stem and folding pedals
- Rear rack and full fenders included
- Relaxed position for pavement and light trails
Ride System
Power, comfort, control, and useful gearing

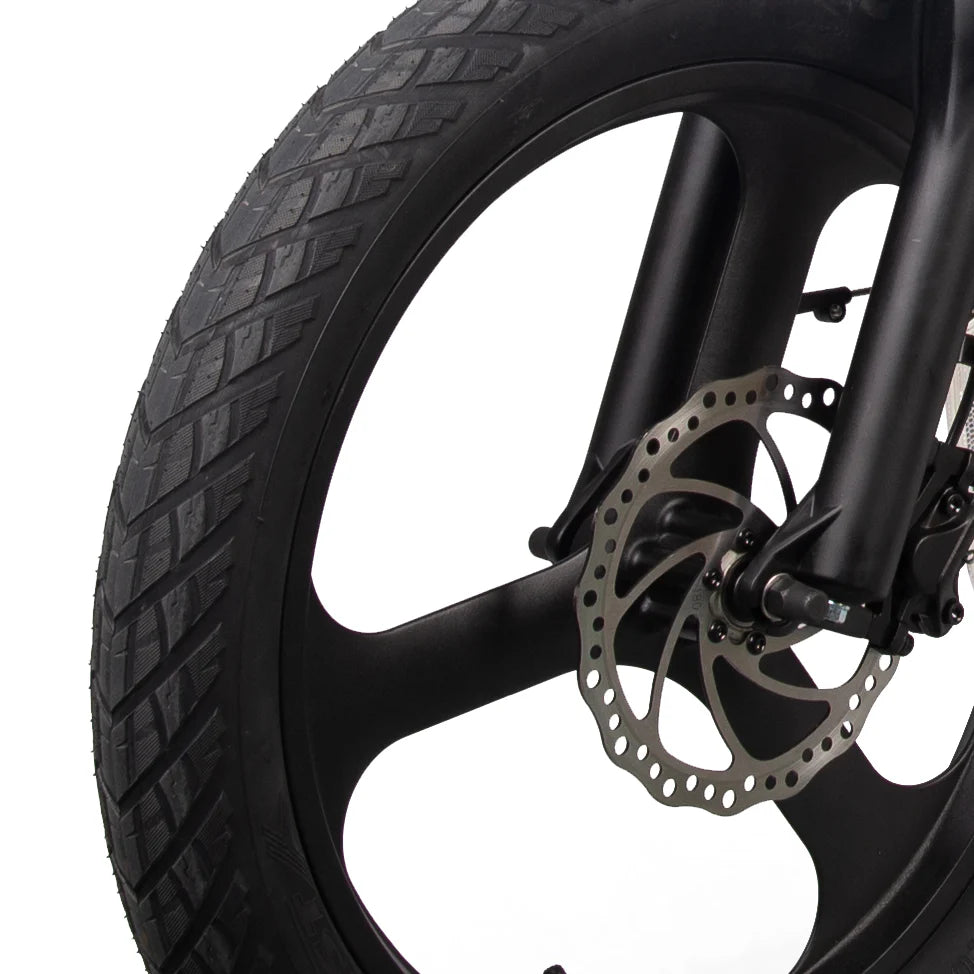

20 × 3.0 Tires
Wide tires add air volume, stability, and comfort on pavement or light gravel.

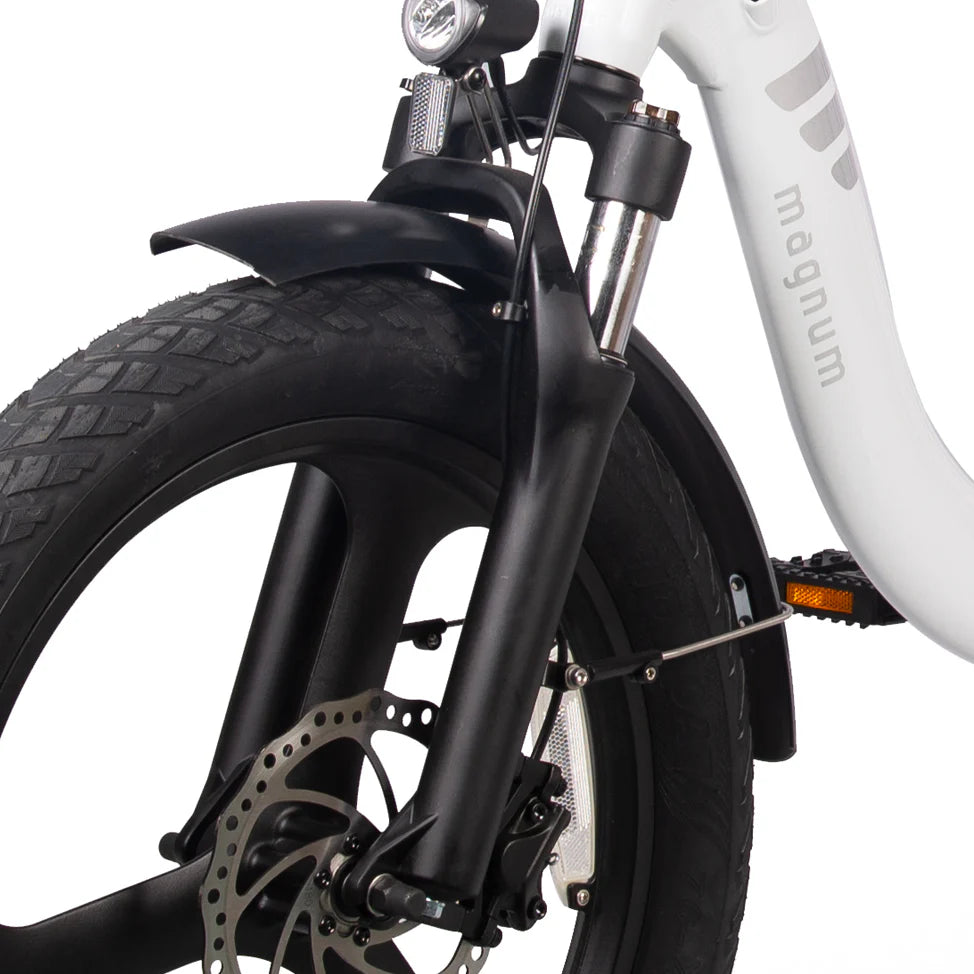

Lockout Suspension
The coil spring fork smooths rough surfaces and locks out for firm pavement riding.

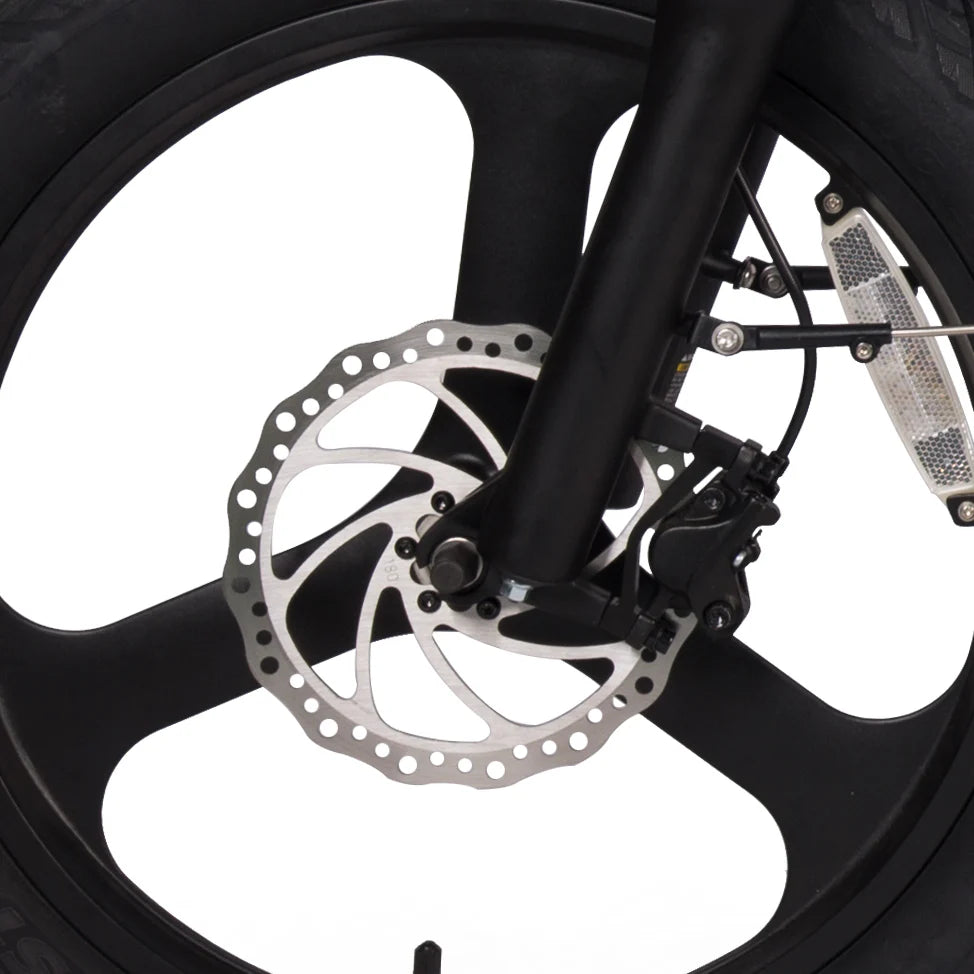

Hydraulic Brakes
Front and rear hydraulic discs deliver controlled stops with low lever effort.

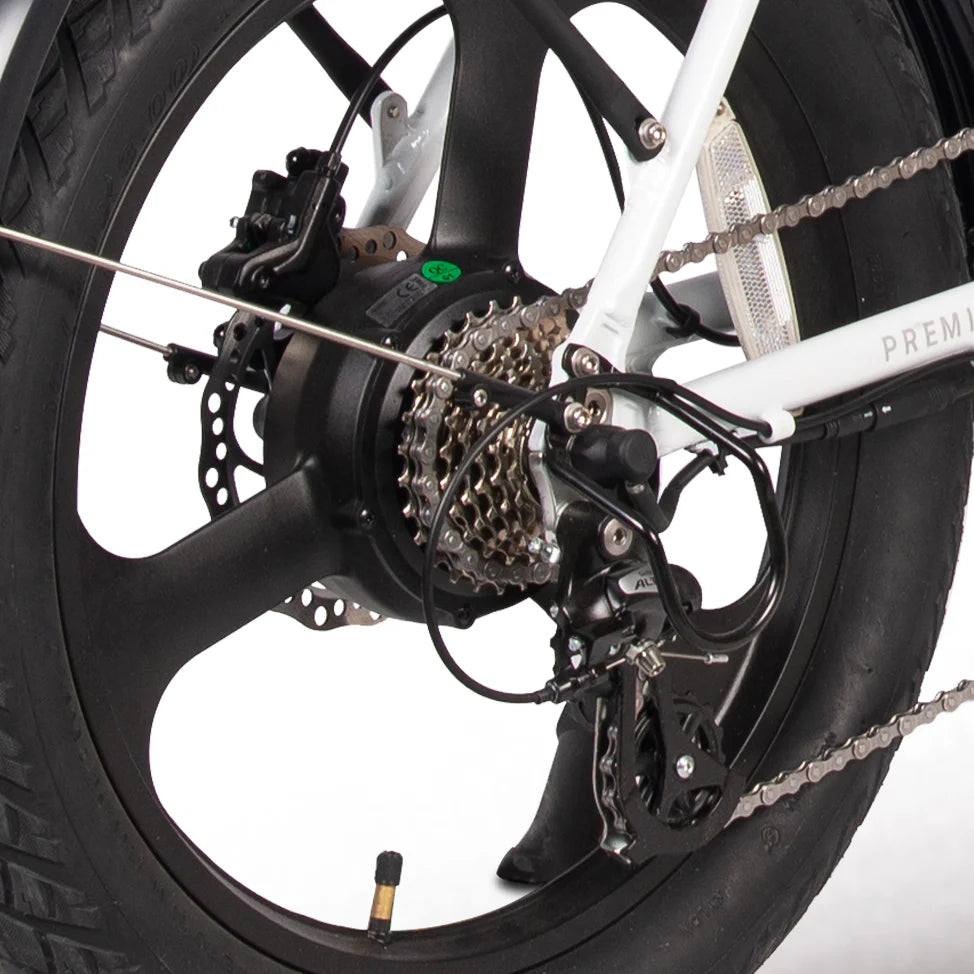

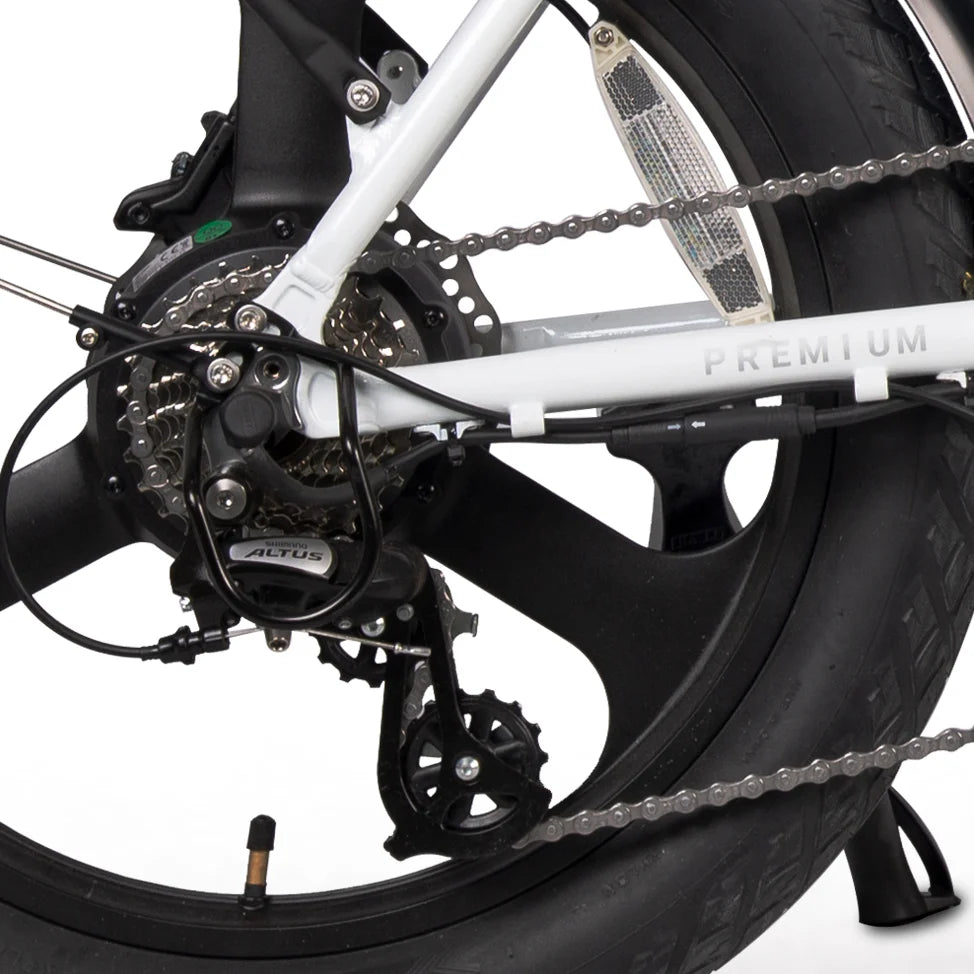

Shimano 7-Speed
A 14–28 tooth freewheel supports starts, cruising, and moderate climbs.
Daily Equipment
Lights, full fenders, rear rack, padded suspension saddle, and kickstand are included.
Relaxed Low-Step Fit
Easy mounting and extensive saddle and stem adjustment suit many riders.
Compact Folding Platform
Designed for commuters and travelers who need easier storage and transport.
Complete Specifications
Electrical and mechanical details
Electrical System
| Motor Brand | Bafang |
| Motor Type | Geared rear hub with intelligent torque and cadence sensing |
| Motor Output | 500W nominal / 750W peak |
| Battery | 48V, 15Ah, 720Wh Li-NMC |
| Battery Certification | UL 2271 and UL 2849 certified |
| Charge Time | Approximately 7.5 hours from empty |
| Claimed Range | 30–50 miles (48–80 km) |

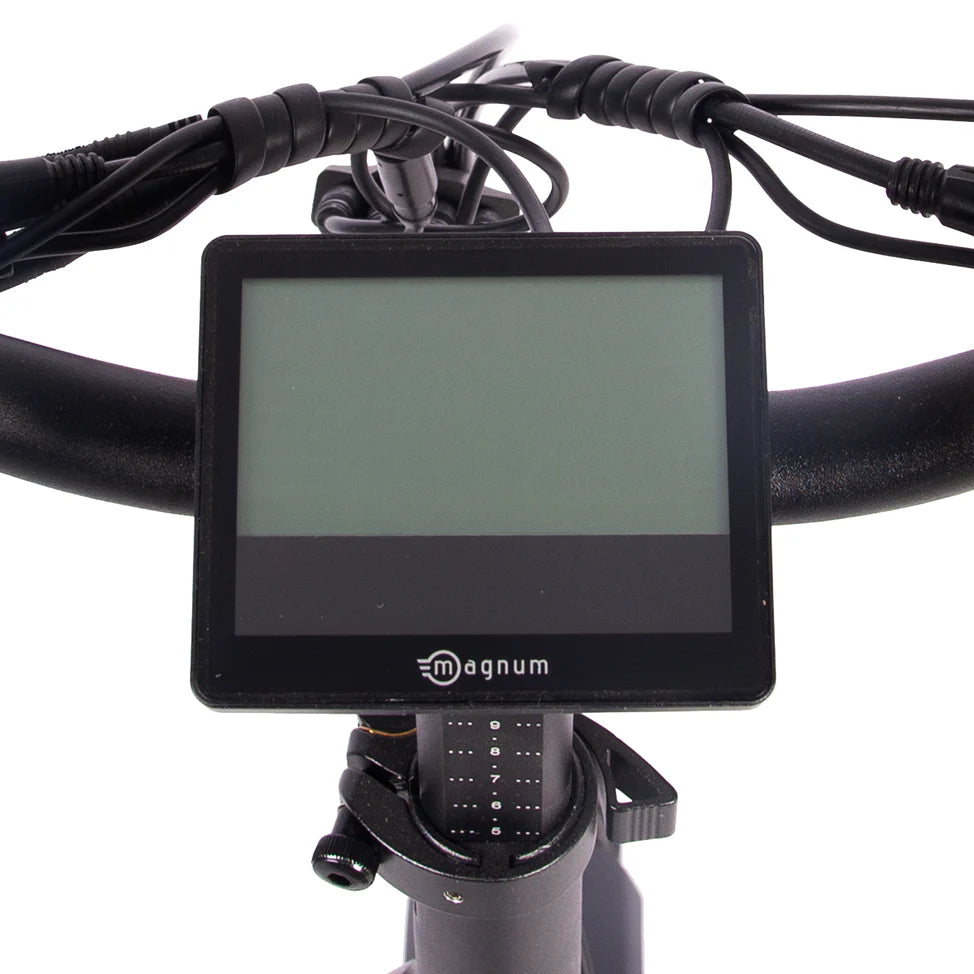

| Display | Magnum-branded VeloFox, 3.5-inch diagonal, fixed monochrome backlit LCD |
| Display Readouts | Battery level, assist level, current speed, power output, trip distance, odometer, range, and trip time |
| Drive Modes | Dual-mode torque/cadence pedal assist and thumb throttle |
| Sensor System | Advanced torque sensor plus 12-magnet cadence sensor |
| Top Speed | Up to 25 mph pedal assist; up to 20 mph throttle-only |
| Lights | Integrated 20-lux front light with horn and 20-lux rear light |
Mechanical System
| Frame | Low-step folding aluminum alloy |
| Fork | Coil spring suspension with lockout |
| Drivetrain | Shimano 7-speed |
| Freewheel | 14–28 tooth |
| Shifter | Shimano 7-speed |
| Crank | Alloy, 52-tooth chainring, 170 mm arms |
| Chain | KMC |
| Brakes | Front and rear hydraulic disc brakes |
| Wheels / Tires | 20-inch wheels with 20 × 3.0-inch tires |
| Stem | Folding telescopic |
| Pedals | Folding platform |
| Grips | Ergonomic faux leather |
| Saddle | Padded saddle with suspension |
| Fenders | Full front and rear fenders included |
| Use / Seating | Relaxed position for pavement, light trails, and recreation |
Geometry & Fit
One compact frame with broad adjustment
The current measurement table uses the latest published Premium 3 Torque LS dimensions. A minimum rider height of 5 feet is recommended; individual fit also depends on inseam, mobility, reach preference, and posture.
| Measurement | Imperial | Metric |
|---|---|---|
| Seat Tube | 15 in | 38 cm |
| Reach | 17 in | 43 cm |
| Standover Height | 15.75 in | 40 cm |
| Virtual Top Tube | 24.5 in | 62 cm |
| Minimum Saddle Height | 21.75 in | 55 cm |
| Maximum Saddle Height | 31.5 in | 80 cm |
| Overall Width | 25.5 in | 65 cm |
| Wheelbase | 47 in | 119 cm |
| Total Length | 68 in | 173 cm |
| Bike Weight | 62.25 lb | 28.25 kg |
| Battery Weight | 11 lb | 5 kg |
| Recommended Minimum Rider Height | 5 ft 0 in | 152 cm |
| Maximum Load Capacity | 330 lb | 150 kg |
Included Equipment
Ready for commuting and recreation
| Kickstand | Adjustable left-side chainstay-mounted kickstand |
| Horn / Bell | Electric horn integrated with the front light |
| Charger | Included |
| Rear Rack | Included |
| Front Rack | Not included |
| Fenders | Front and rear included |
| Accessory Mounts | Top-tube mounts for a water bottle cage; cage and bottle not included |
| Warranty | Manufacturer 1-year limited warranty; terms and eligibility apply |
Professional support from Brimstone Bicycles
Brimstone Bicycles is an authorized Magnum Bikes dealer and full-service shop in Canal Fulton, Ohio. Local pickup provides professional assembly and a complete safety check, with ongoing service and warranty support from technicians who work on e-bikes year-round.
Frequently Asked Questions
Is the Premium 3 Torque LS right for you?
Who is this folding e-bike best for?
It suits commuters, RV and camper travelers, apartment residents, recreational riders, and anyone who values low-step access, compact storage, stable wide tires, and a relaxed riding position.
What is the difference between torque and cadence sensing?
Torque sensing changes assistance according to pedal pressure for a natural feel. Cadence sensing supplies assistance when crank rotation is detected for easy cruising. This model lets you select either mode.
How far can it travel per charge?
Magnum publishes a 30–50 mile range. Actual range varies with rider and cargo weight, terrain, wind, temperature, tire pressure, speed, stops, and assist level.
How fast does it go?
The current specification lists up to 25 mph with pedal assist and up to 20 mph throttle-only. It can be configured for Class 1, 2, or 3 use; permitted settings vary by location.
Does it include a rack, lights, and fenders?
Yes. The rear rack, front and rear fenders, front and rear lights, electric horn, adjustable kickstand, and charger are included. A front rack and bottle cage are not included.
What rider size does it fit?
Magnum recommends a minimum rider height of 5 feet. Saddle height adjusts from about 21.75 to 31.5 inches, and the telescopic stem adds cockpit adjustment. A test ride is recommended when reach, mobility, or inseam is a concern.
Can Brimstone Bicycles assemble and service it?
Yes. Choose local pickup for professional assembly and a safety inspection. As an authorized Magnum dealer and full-service shop, Brimstone can assist with service, setup, accessories, and eligible warranty needs.
Specifications and estimated range are manufacturer-provided and may change without notice. Follow local e-bike laws and the owner's manual.
