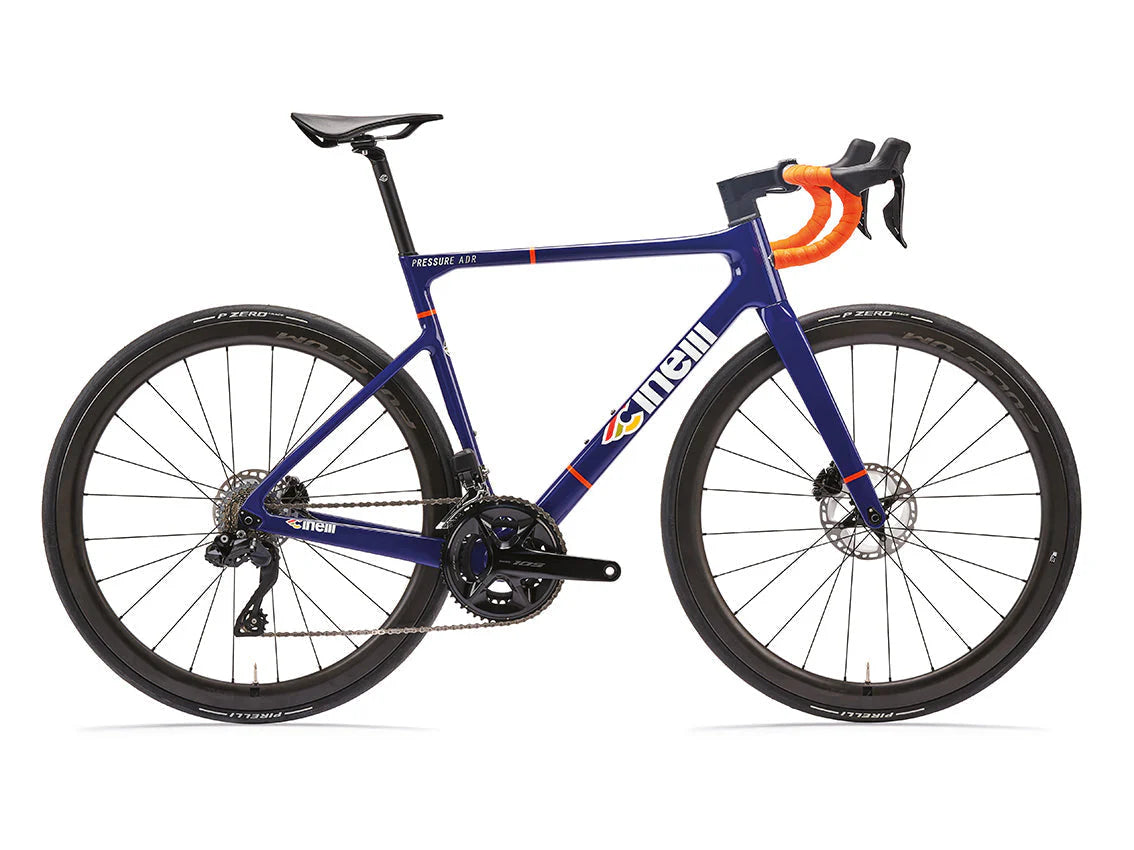

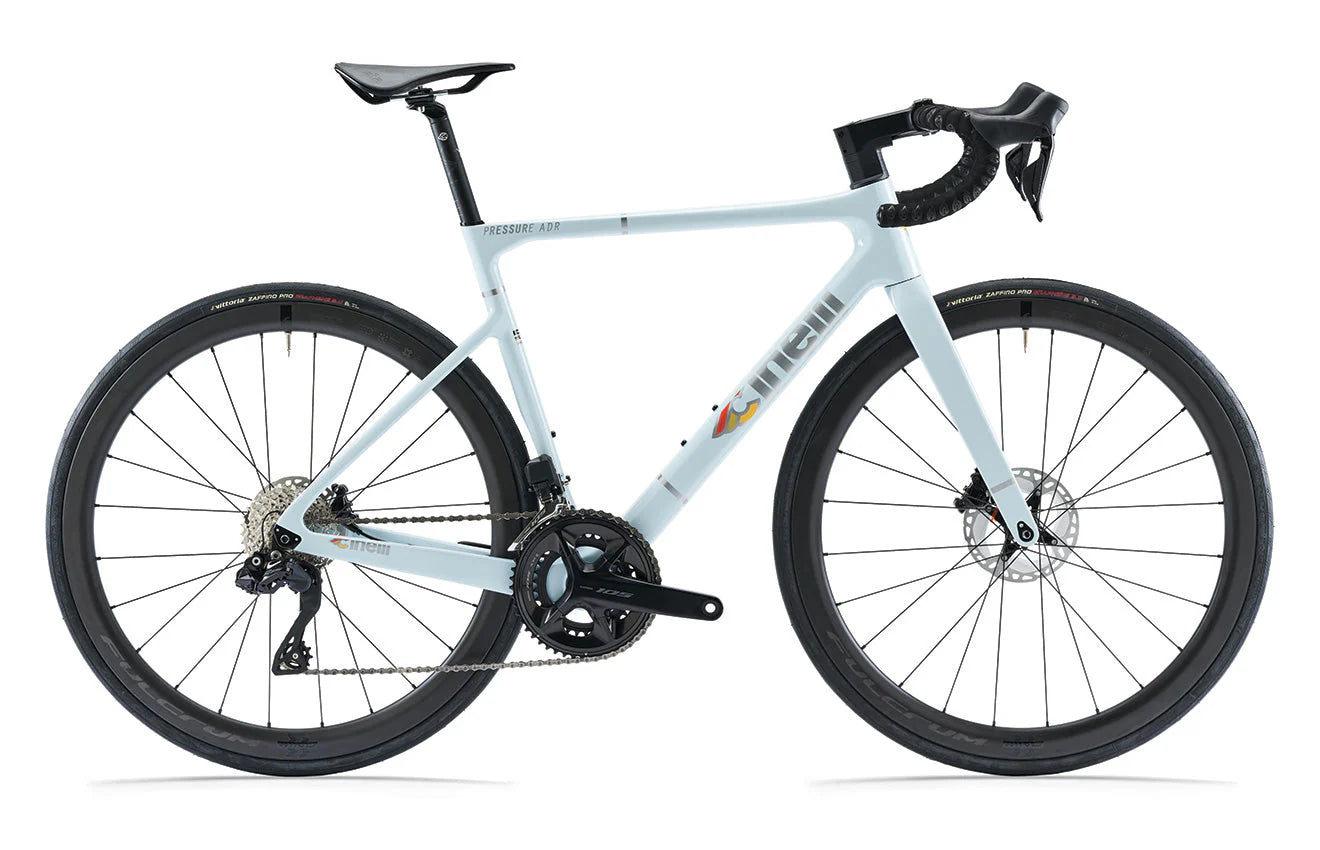

Cinelli Pressure ADR – Shimano 105 Di2

Pressure ADR is tuned for epic, long-distance racing with an aggressive position and all-day comfort.

The Pressure ADR continues to refine the design and performance developments of our aero-racer, the Pressure fine tuning it for epic, long-distance racing. The ADR in fact maintains the signature pure competition handing and feel of the Pressure, fine-tuning tube sections and carbon fiber lay-up to make it more suitable for long hours in the saddle. These engineering considerations are complemented by fully-integrated cable routing and the use of standard seatpost and fork steerer diameters, allowing the owner to easily install world-leading after market component solutions.

Highlights

• ASSEMBLED IN US
• Tuned for ultimate racing comfort
• Aggressive rider position
• Integrated seatpost clamp and cable routing
• Possibility to customize build with after-market components thanks to the standard seat post and fork steerer diameters

Assembly

• Colour: All Colours
• Drivetrain: 105 Di2

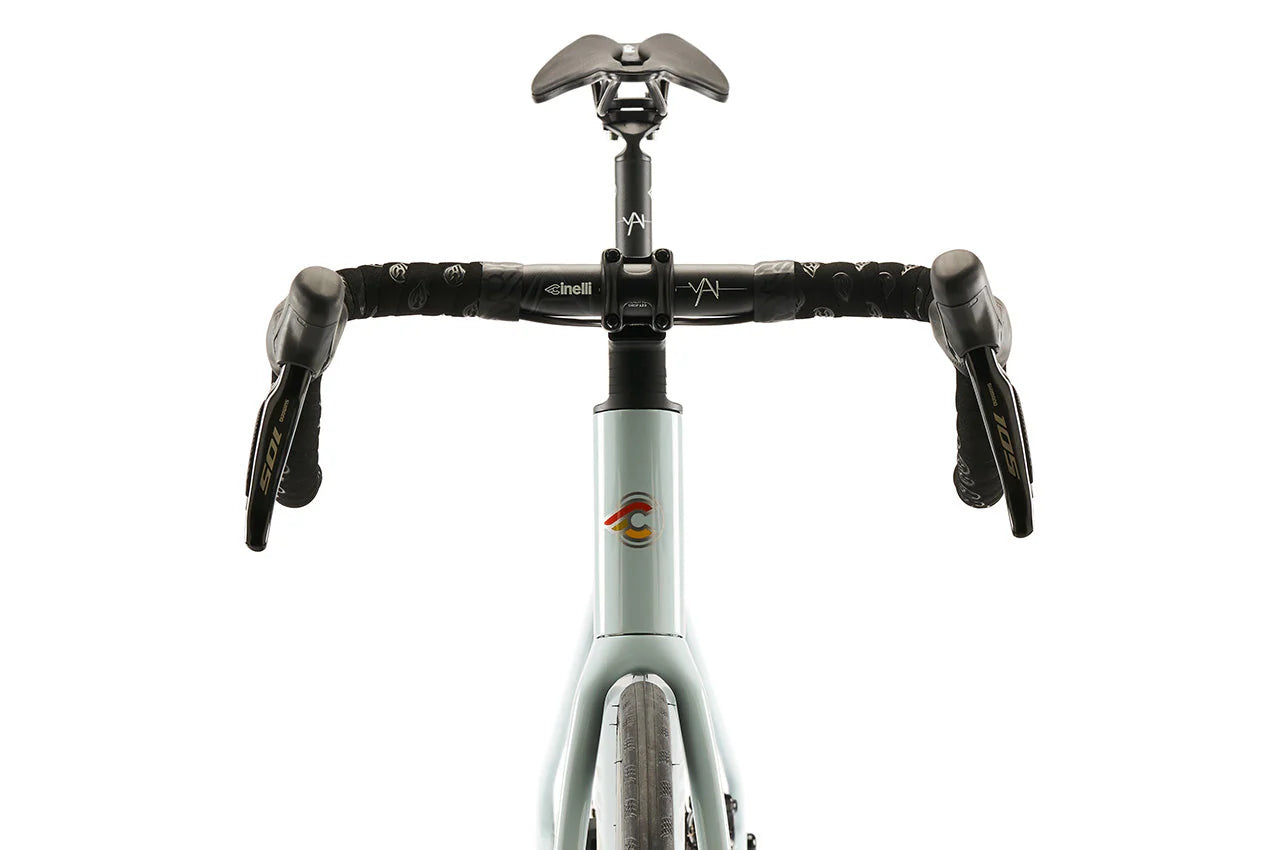

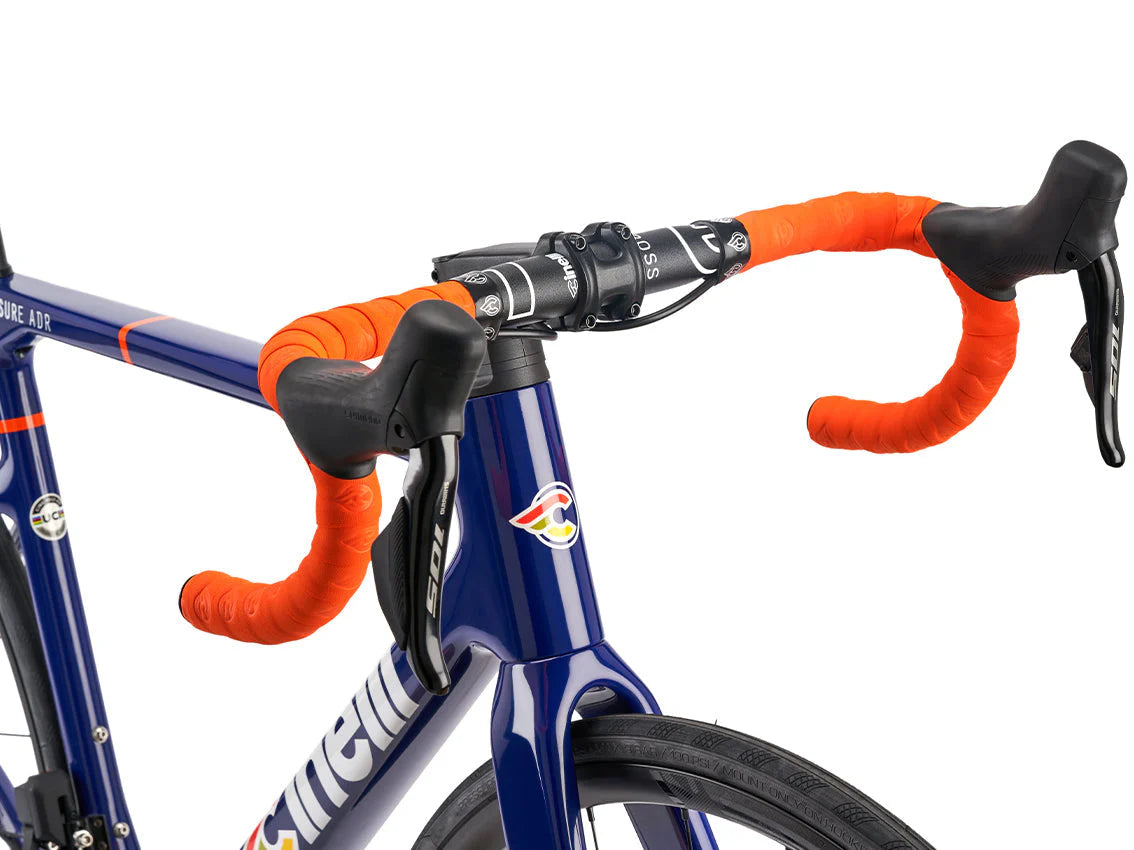

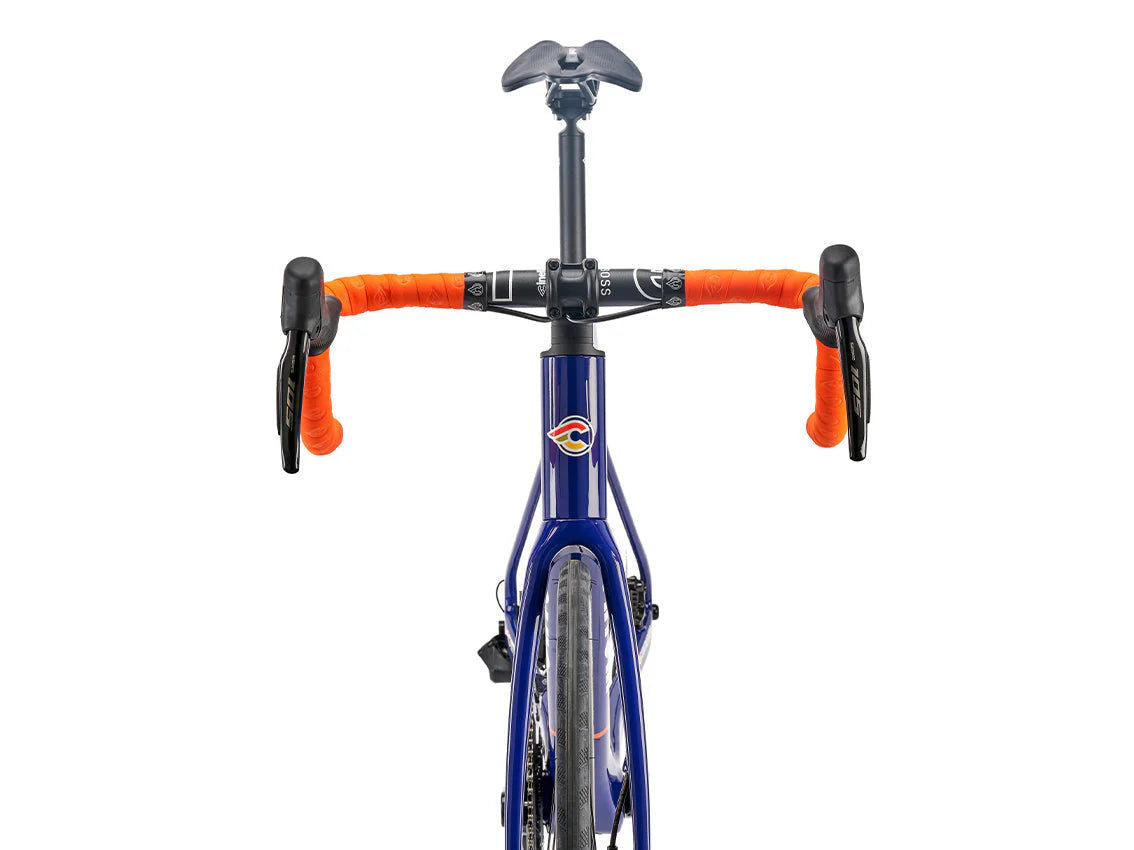

• Handlebar: Cinelli Vai
• Stem: Alu 6063
• Seatpost: Cinelli Vai ø 27,3
• Shifters: Shimano 105 R7170
• Brakes: Shimano 105 R7170
• Rotors: Shimano 160 - 140 mm
• Ft. derailleur: Shimano 105 R7150

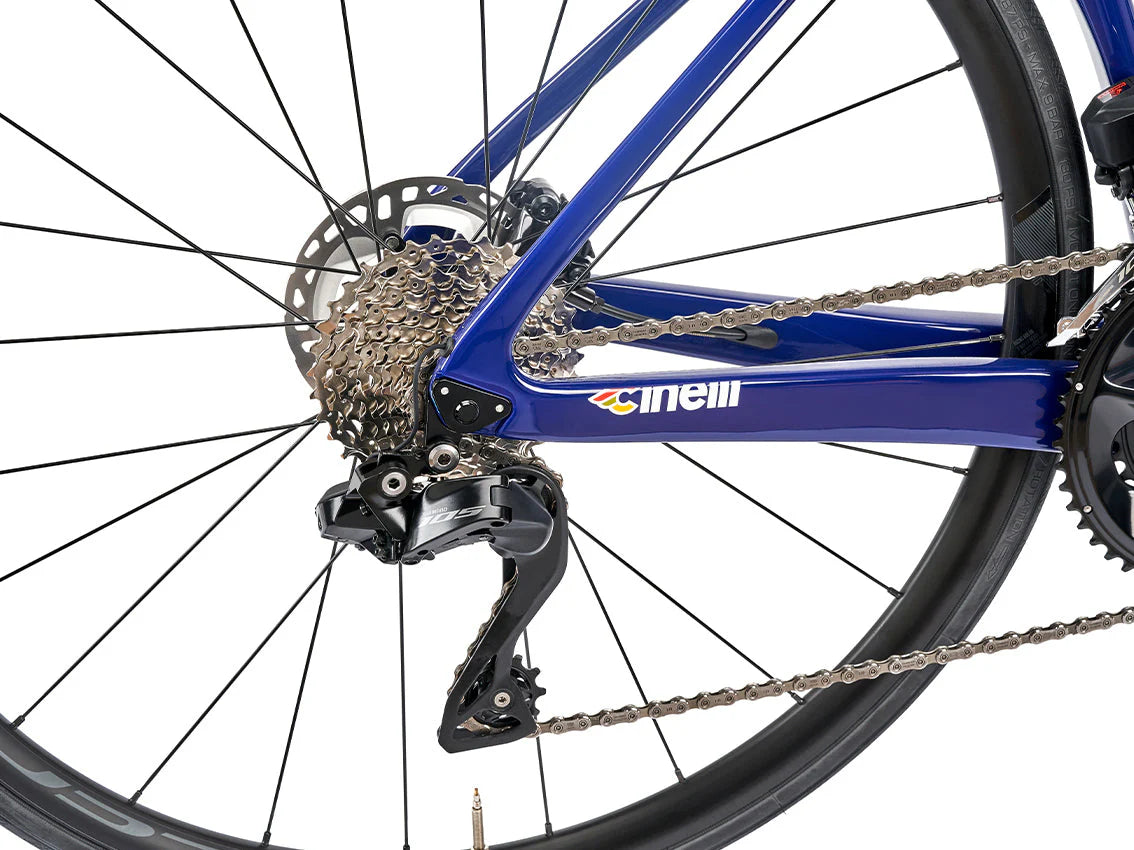

• R. derailleur: Shimano 105 R7150
• Crankset: Shimano 105 R7100 52/36T
• Cassette: Shimano 105 R7100 11/34T
• Chain: Shimano M7100
• Wheelset: Fulcrum 600
• Tyres: Vittoria Zaffiro Pro 700x28

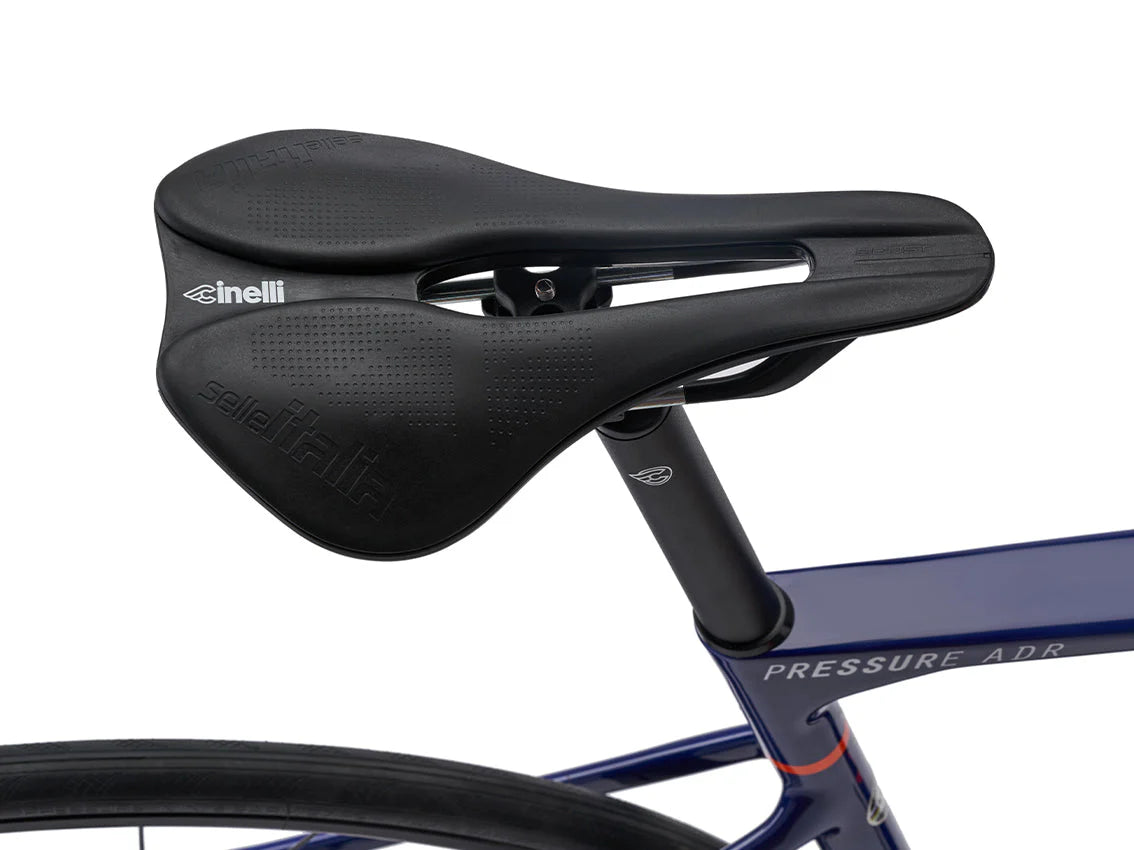

• Saddle: Selle Italia Model X

Frame Specs

• Sizes: XS (45) - S (48) - M (51) - L (54) - XL (57)
• Steam: Included . XS 90mm - S 100mm - M 100mm - L-110mm - XL-110mm
• Material: Columbus Carbon Monocoque
• Headset: IS 52/28,6 | IS 52/40
• Seatpost: ø 27,2

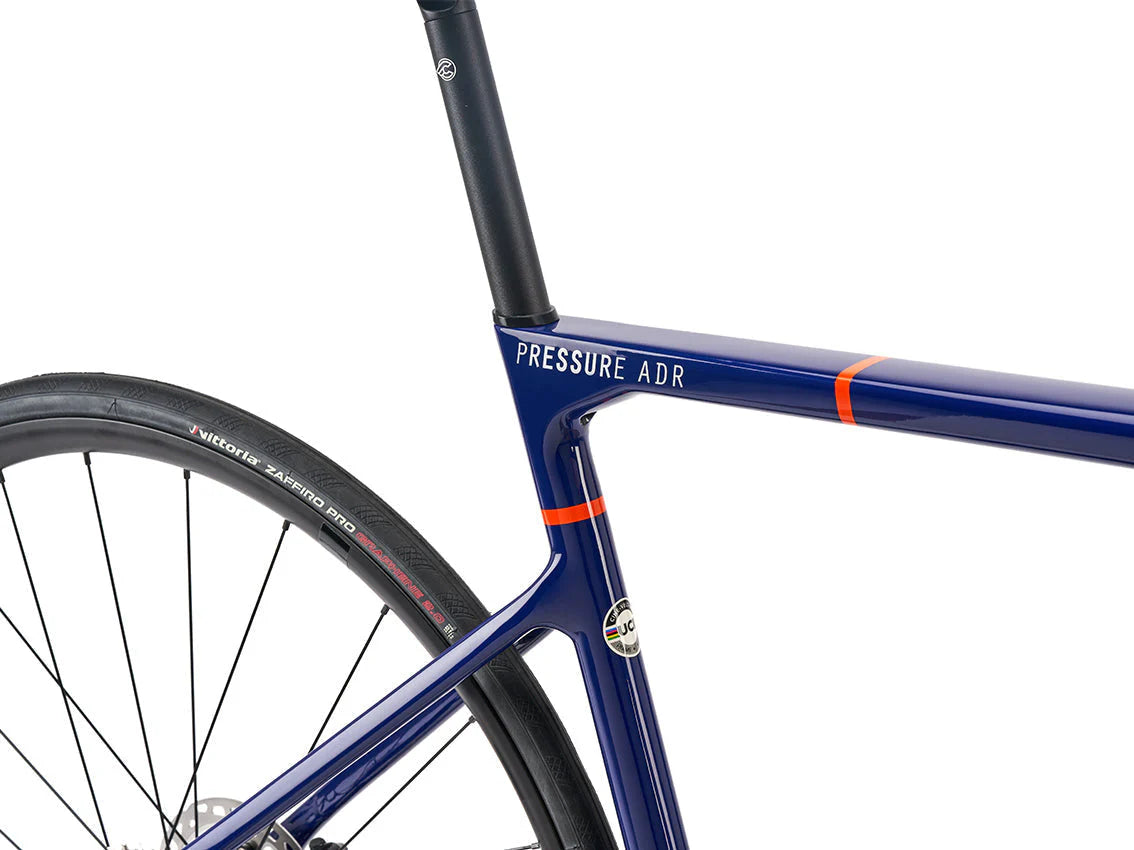

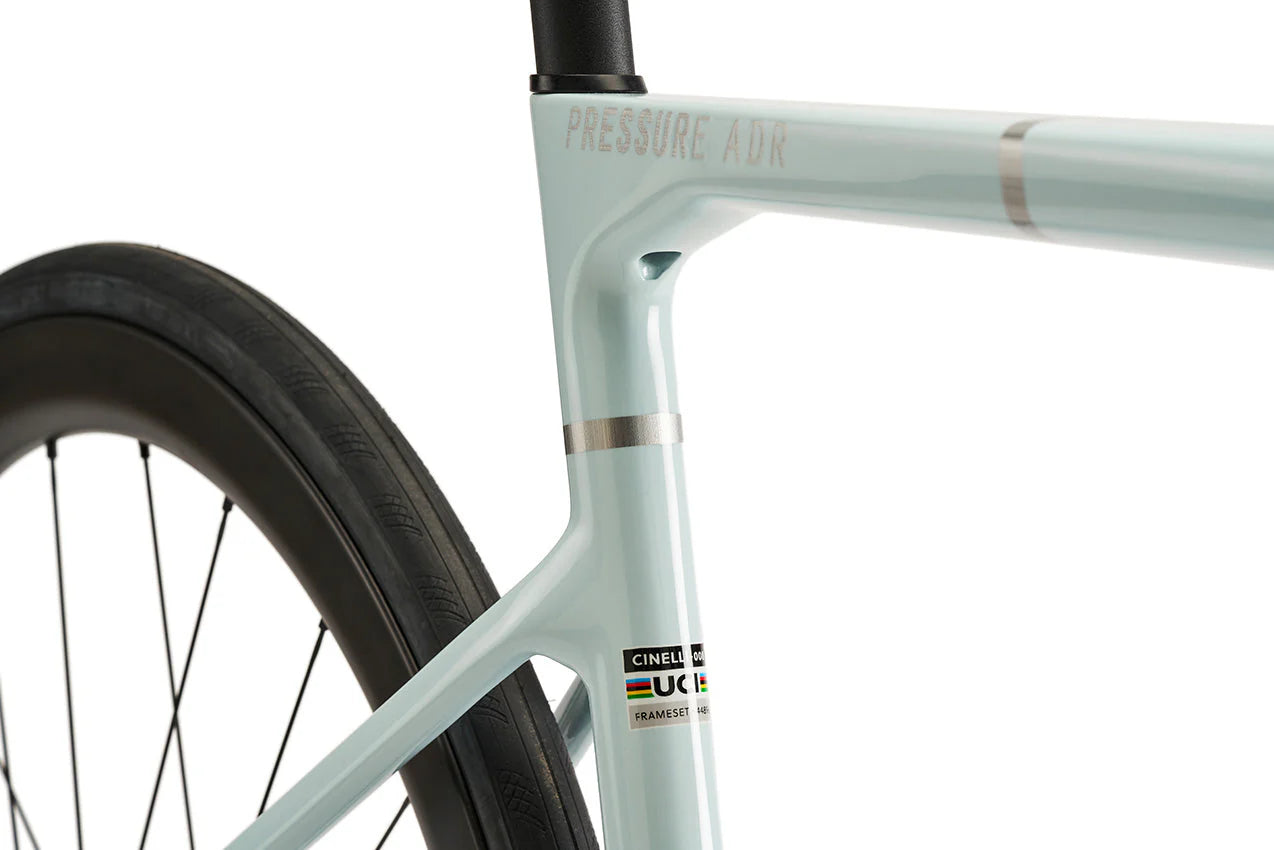

• Seat Clamp: Hidden (included)
• BB Shell: Press Fit 86,5 x 41 mm
• Ft. derailleur: Braze-On
• Routing: Full Internal - Di2 Compatible
• Color: Sun Faded Laser Blue / Midnight Scream
• Tyre Clear.: up to 700x30 mm
• Fork: Columbus Disc 1-1/2” Carbon Monocoque Internal Cable Routing
• Weight: Frame 990g (size M) - Fork 420g (uncut)

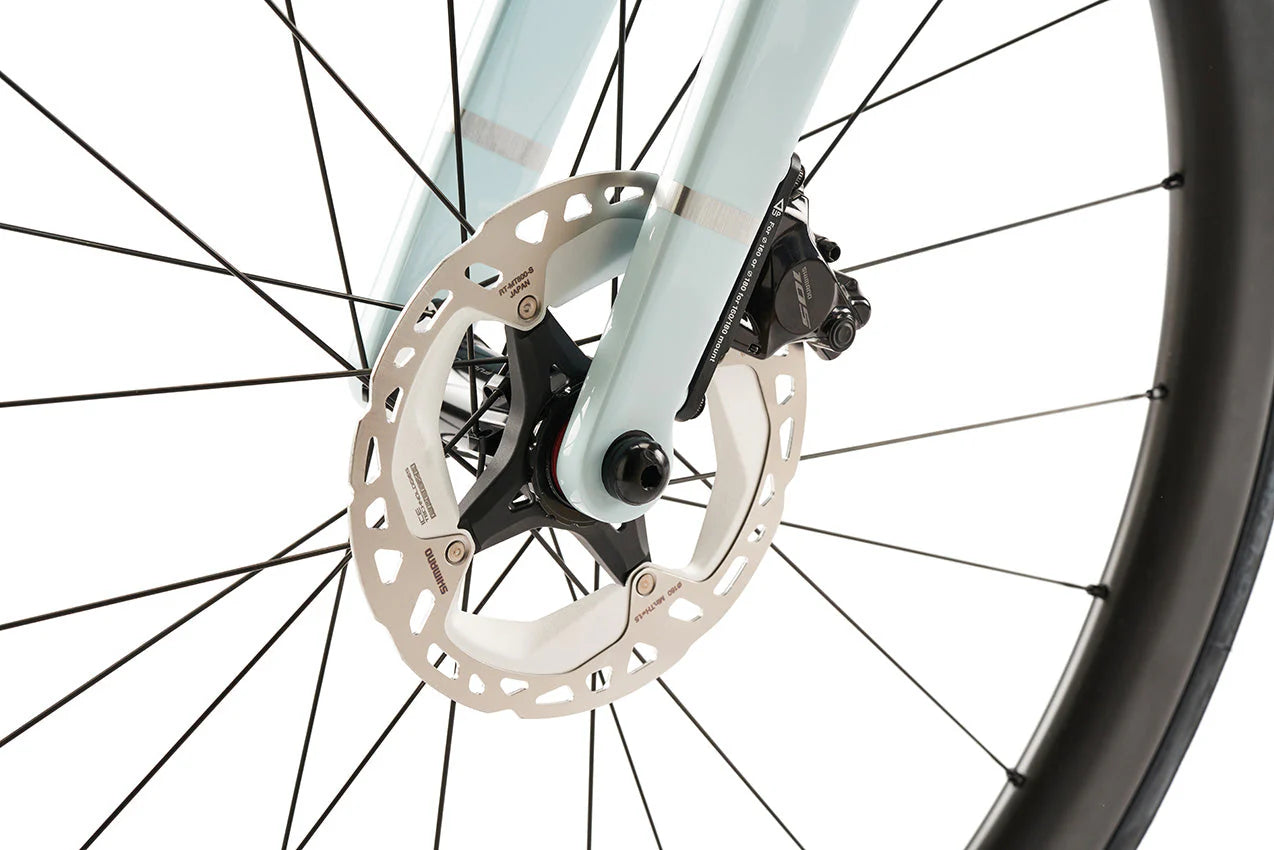

• Brake: Flat Mount Disc Brake, Rotor Size Up To 160 mm
• Dropouts ST: Rear TA Ø 12x142mm - M12x162 / Front TA Ø 12x100mm - M12x120
• Highlights: Ft.-Re. Skewers, Headset, Stem

Geometry

All measurements in millimeters unless otherwise stated.

Size	S1	T1	H/T	A	B	R	C	F	WB	E	Stack	Reach
XS/45	450	519	112	71	74	50	406	582	978	70	512	372
S/48	480	530	125	71.5	74	50	406	590	986	70	528	380
M/51	510	545	140	72	74	50	406	600	996	70	545	388
L/54	540	560	155	72.5	74	50	406	610	1006	70	565	396
XL/57	570	575	170	73	74	50	406	620	1016	70	585	404
