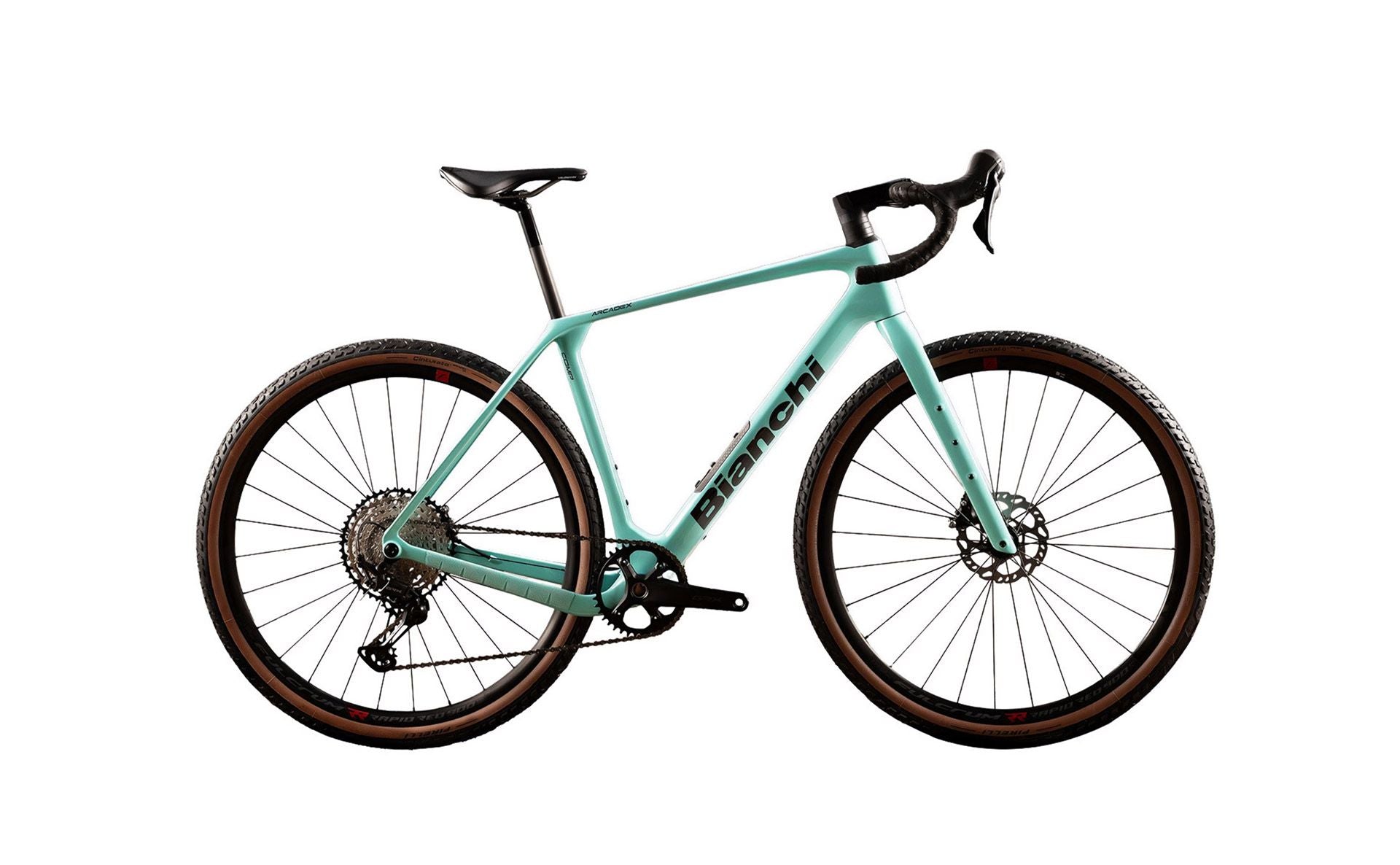

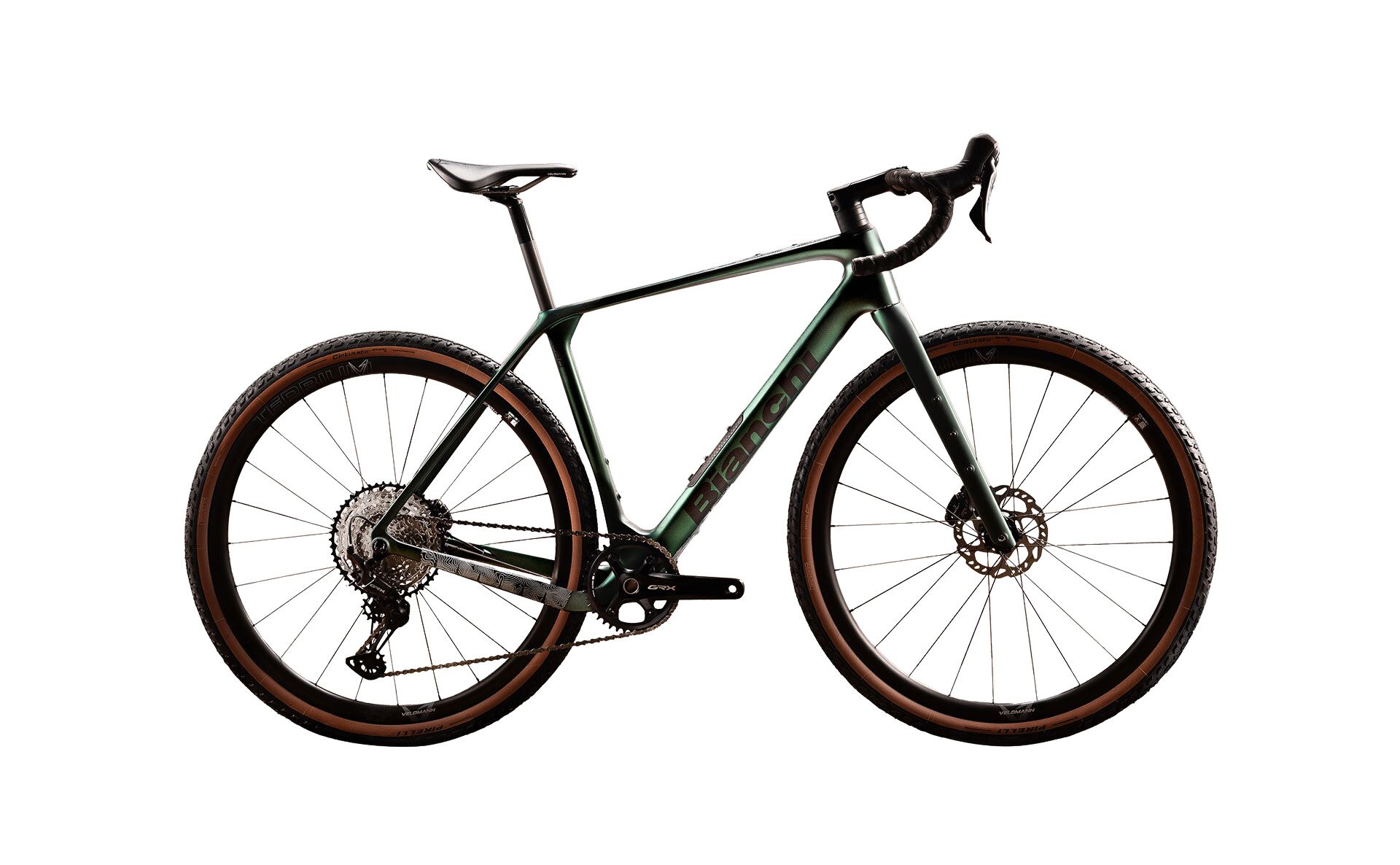

Bianchi Arcadex Pro - GRX 820/822 SGS 1x12sp

Ride deeper into the wilds. The Bianchi Arcadex PRO is a modern adventure-gravel machine designed to take you further beyond your usual routes—combining Bianchi’s racing heritage with rugged, expedition-ready capability. It’s built for fast gravel, long mixed-surface days, and bikepacking escapes where reliable handling and smart integration matter.

Built to explore: the Arcadex platform

The Arcadex family is designed around advanced exploration: stable, confidence-inspiring handling for long-distance rides, plus practical features that support self-sufficient adventures. The dedicated carbon frameset uses an endurance-focused geometry for back-to-back days in the saddle, and keeps the bike looking clean with fully integrated routing.

Adventure-ready integration you’ll actually use

• Internal Frame Storage (IFS) for essentials like CO₂, levers, snacks, multi-tool, or small spares
• Protective tool pouch designed to fit the IFS neatly and prevent rattling
• Rear axle hex tool integrated into the rear thru-axle (4/5/6 mm Allen) for trailside fixes

Bikepacking-friendly mounting and tire clearance

Arcadex is built with multi-day escapes in mind. The platform supports accessories and bikepacking luggage, and offers generous tire clearance—up to 700c x 50 mm—with compatibility for clip-on fenders/mudguards. That means more grip, comfort, and control when the route gets rough.

Option to tame the trail

For riders who want extra comfort and control on rugged terrain, Arcadex PRO is also offered in versions compatible with a suspension fork setup (RockShox Rudy XPLR with 30 mm travel on select builds). The platform can be upgraded post-purchase with a compatible suspension fork.

Why Arcadex PRO (GRX 820/822) makes sense

This build is centered on Shimano GRX 820/822 mechanical shifting in a 1x12 configuration—simple, durable, and ideal for gravel. The wide-range gearing helps you stay seated on steep climbs while keeping speed on the flats.

Full specifications

Component details from your inventory sheet:

• Frame: Arcadex PRO Disc Brake Specification: Flat Mount 140/160 Bottom Braket Standard: PressFit 86.5 X Ø41 Rear Axle: thru12 OLD (Over-Locknut-Dimension): 142 mm Front Derailleur:Non Compatible Rear Derailleur: SRAM UDH Hanger type Max Chainring Compatibility:
• Fork: Bianchi Arcadex Fork Disc Brake Specification: Flat Mount 140/160 Front Axle: thru12 OLD (Over-Locknut-Dimension): 100 mm Tire Clearance: ETRTO 622-42mm Steer tube Diameter: 1 1/8"" Material: Epoxy - SM Carbon Fiber Composite
• Headset: Bianchi Custom Acros ICR (Internal Cable Rounting) Spacers:5 mm x1, 10mm x3 Headtube Cover: Bianchi Costum Compresion Ring: 1.125 Inch Top Bearing: Angular contact Bearing 42x52x7 + seal Bottom Bearing: Angular contact Bearing 40x52x7 + seal
• Shifters: Shimano GRX 820 ST/BL-RX820
• Rear Derailleur: Shimano GRX 822 RD-RX822, SGS Maximum Cassette Sprocket 51T
• Crankset: Shimano GRX 820 FC-RX820-1, 40T Crank Length: 170mm-XS(47)-SM(51), 172.5mm-MD(55)-LG(58), 175mm-XL(61)
• Bottom Bracket: Shimano SM-BB72-41B, press fit
• Chain: Shimano CN-M7100
• Casette: Shimano CS-M7100-12 speed, 11-51T Driver body Interface: MicroSpline
• Brakes: Shimano Hydraulic Brake, BR-RX820
• Rotor: Shimano SM-RT70 IceTech Hub Interface: Centerlock Rotor Diameter: 160 mm (front&Rear)
• Wheels: Velomann Terbium clincher and tubeless ready Rim Diameter: 700C Material: Carbon Rim Height: 30 mm Inner Wigth Channel: 25 mm
• Tire: Pirelli Cinturato™ GRAVEL M Classic, 45-622 tan sidewall
• stem: Velomann AICR Alloy Rise: -2° Steerer Diameter: 1-1/8"" (28.6mm) HB interface Diameter: 1-1/4"" (31.8mm) Stem Lengths: 80mm - XS(47), 90mm - SM(51), 100mm-MD(55), 110mm-LG(58),120m -XL(61)
• handlebar: Velomann Gravel ICR Alloy Flare: 16° Drop: 130mm Reach 70mm Interface Diameter: 1 1/4"" (31.8mm) HandleBar Widths: 400 - SX(47) SM(51), 420 - MD(55) LG(58), 440 -XL(61)
• grips / extensions: Bianchi Hexagon tape 2.5mm thickness, Full black
• seatpost: Velomann Carbon UD SeatPost O.D: Ø27.2 mm Seatpost lengths: 300mm-SX(47), 350mm- SM(51) MD(55), LG(58) XL(61)
• saddle: Velomann MITORA 149 H1 cover: soft touch, padding: foam, shell: nylon carbon rails: Aisi Steel lenght: 250mm width: 149mm weight: 230g ± 2
