Pinarello

D2171022224-00001

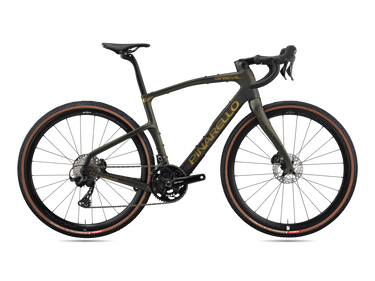

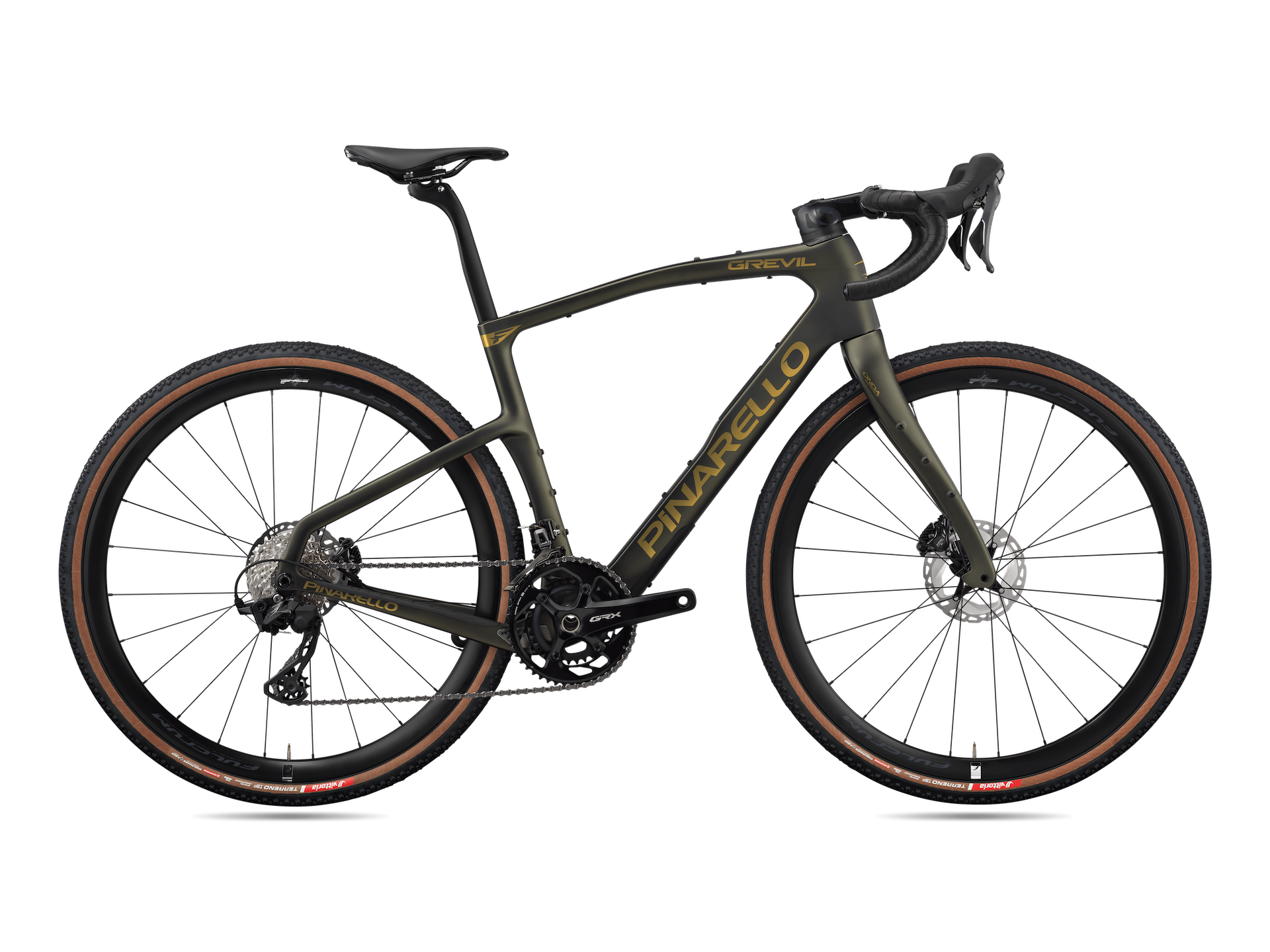

New Grevil F3 MY26 - Apex AXS XPLR - DT Swiss G1800

$3,700.00
Happy New Year 2026 — 5% off eBike accessories. Discount automatically applied in cart.
Color: Etna Black
Size: 47.0

Pickup available at Brimstone Bicycles Shop

Usually ready in 2-4 days

The new generation of Grevil F is lighter, faster, and designed to be ridden for days on end. No matter the conditions or the duration of the race, the bike’s versatility provides the perfect solution to help you compete to win.

Components

Frame TORAY T600 UD
Fork F Onda Fork with ForkFlap™, Tapered head tube
Headset TiCR integrated
Crankset and Chainrings SRAM APEX XPLR 1x13
Rear Derailleur SRAM APEX XPLR AXS
Shifters SRAM APEX AXS
Cassette SRAM Apex
Chain SRAM Apex
Bottom Bracket SRAM BB DUB ITALIAN 70mm ROAD WIDE
Brakes SRAM APEX 2 pistons caliper, 160mm rotor
Wheelset DT Swiss G1800
Tires VITTORIA TERRENO T50 45
Handlebar JAGUAR GR ALU
Stem TIGER ALU AERO TICR
Bar Tape MOST Ultragrip evo 3mm - Black
Saddle Most Lynx My26
Seatpost D-SHAPE SEATPOST
Seat Clamp fsc frontal seat clamp
Axles NEW MOST Ultra Light Custom Axle 12x100 & 12x142, tool free removal

Geometries

CF CC L I A[°] B[°] F P T D R G WB REACH STACK
410 470 530 125.6 74.5 70.25 603.9 430 115 72 55 405 1023.5 368.4 553.2
440 500 545 137.8 74 70.5 614.5 430 130 72 55 405 1034.2 376.1 568.3
470 530 558 148.3 73.75 70.75 625.8 430 150 67 55 405 1047 383.7 583.2
490 550 570 156.2 73.5 71.75 621.9 430 160 67 50 405 1043 390.4 598.4
510 575 587 168.1 73 72 631.9 430 175 67 50 405 1053.1 398.2 613.6
545 600 607 180.4 72.5 72.25 644.3 430 195 67 50 405 1065.5 406.9 633.7
NEW GREVIL F3 SRAM APEX XPLR Geometry

CE: SEAT TUBE CENTER - END, CC: SEAT TUBE CENTER - CENTER, L: TOP TUBE CENTER - CENTER, A[°]: SEAT TUBE ANGLE, B[°]: HEADTUBE ANGLE, P: CHAINSTAY, T: HEADTUBE, D: BB DROP, R: FORK RAKE , G: FORK HEIGHT, REACH, STACK
