Description:
Magnum Peak 2.0
A trail-ready electric mountain bike with 140mm suspension, a wide-range 10-speed drivetrain and switchable torque or cadence assistance for technical rides, gravel and everyday exploration.
Built beyond the bike path
More control, more capability, more places to ride.

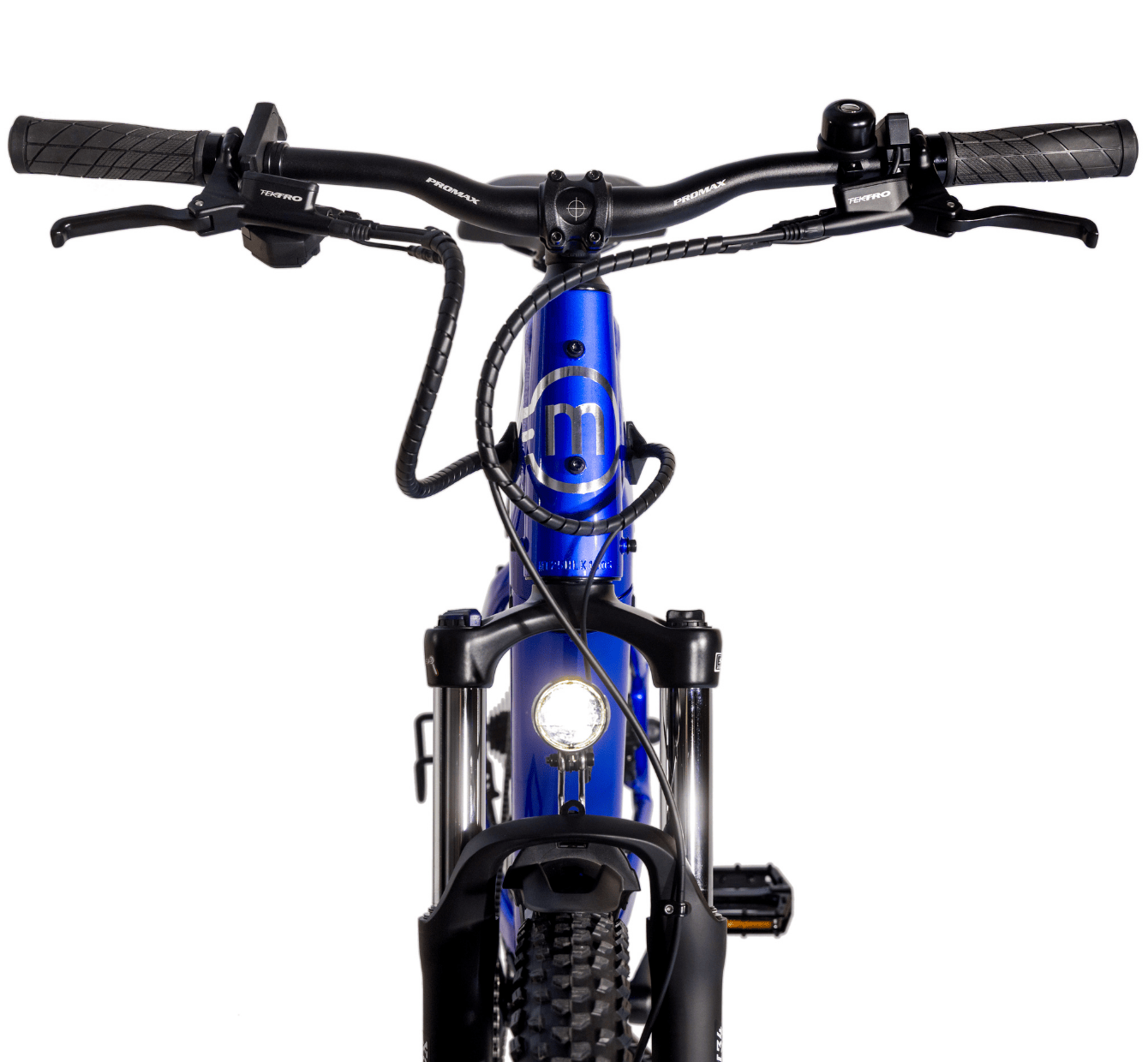

The Peak 2.0 combines large-volume 27.5 × 2.8-inch tires, hydraulic disc brakes and a Boost through-axle suspension fork with a responsive electric system. It is equally at home on forest roads, rough commuting routes and recreational trail networks.
Choose your ride feel
Use torque sensing for natural, effort-matched support or switch to cadence mode when you want easy, consistent assistance.
Trail-focused chassis
The 140mm SR Suntour XCM 34 Boost fork adds control on roots, rocks, washboard and broken pavement.
Wide-range gearing
Microshift Advent X provides ten gears, an 11–48T cassette and a clutched derailleur for secure chain management.
Long-range energy
The removable 48V 15Ah / 720Wh Samsung battery supports rides of up to 50 miles under favorable conditions.
Confident braking
Tektro hydraulic disc brakes pair 180mm rotors front and rear for dependable stopping power.
Useful every day
Included lightweight fenders, front light, kickstand, accessory mounts and a tracker-ready bell increase practical value.
Complete specification
Everything riders need to compare.
Electrical system
| Motor | Sutto by Bafang brushless planetary-geared rear hub motor |
|---|---|
| Nominal / peak output | 500W / 800W |
| Battery | 48V, 15Ah / 720Wh, removable and frame-integrated |
| Cell chemistry | Samsung 21700 Li-NMC |
| Safety certification | UL 2271 battery and UL 2849 electrical system |
| Charge time | Approximately 7.5 hours from empty |
| Maximum stated range | Up to 50 miles / 80 km |
| Display | VeloFox frame-integrated color display |
| Display data | Battery, assist level, speed, power, trip distance, odometer, trip time and 12-hour clock |
| Assist modes | Torque-sensor pedal assist, cadence pedal assist, thumb throttle and walk mode |
| Maximum assist speed | Up to 28 mph pedal assist / 20 mph throttle, subject to configuration and local law |
| Front light | Integrated 100-lumen headlight |
Mechanical specification
| Frame | Aluminum-alloy high-step MTB trail frame with integrated display and battery |
|---|---|
| Fork | SR Suntour XCM 34 Boost, 140mm travel, preload, compression, lockout and through-axle |
| Drivetrain | Microshift Advent X, 10-speed, clutched rear derailleur |
| Cassette | 11–48T |
| Shifter | Microshift Advent X Trail Pro, 10-speed, silicone-padded levers |
| Crank | Aluminum alloy, 170mm |
| Chain | KMC X10 |
| Brakes | Tektro hydraulic disc, 180mm rotors front and rear |
| Stem | Magnum Mountain, 60mm |
| Grips | Lock-on ergonomic MTB |
| Saddle | Selle Royal Essenza+ |
| Pedals | Wide alloy platforms with reflectors |
| Wheels | 27.5 inch |
| Tires | CST Patrol 27.5 × 2.8-inch knobby |

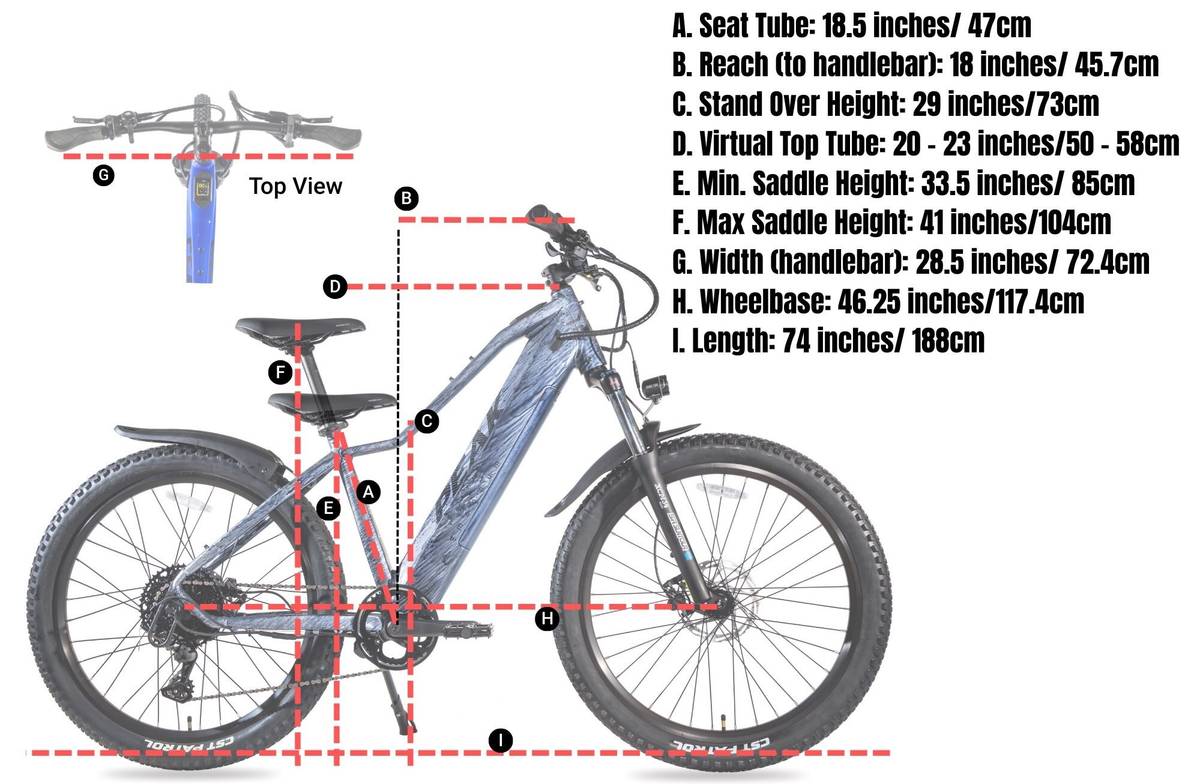

Geometry, dimensions and capacity
| Frame size | One size |
|---|---|
| Seat tube | 18.5 in / 47 cm |
| Reach | 18 in / 45.7 cm |
| Standover height | 29 in / 73 cm |
| Virtual top tube | 20–23 in / 50–58 cm |
| Minimum saddle height | 33.5 in / 85 cm |
| Maximum saddle height | 41 in / 104 cm |
| Handlebar width | 28.5 in / 72.4 cm |
| Wheelbase | 46.25 in / 117.4 cm |
| Overall length | 74 in / 188 cm |
| Total bike weight | 66 lb / 30 kg |
| Battery weight | 9.3 lb / 4.2 kg |
| Maximum load | 330 lb / 150 kg |
Included equipment and compatibility
| Fenders | Lightweight front and rear fenders included |
|---|---|
| Kickstand | Center-mounted adjustable single-side kickstand |
| Bell | Bell with AirTag / M-Tag compatibility; tracker sold separately |
| Charger | 54.6V, 2A charger |
| Front cargo | Compatible with Magnum multipurpose cargo basket; sold separately |
| Rear rack | Optional rear carrier rack available separately |
| Accessory mounts | Built-in head-tube and top-tube mounts |
| Warranty | Two-year limited manufacturer warranty; terms and exclusions apply |

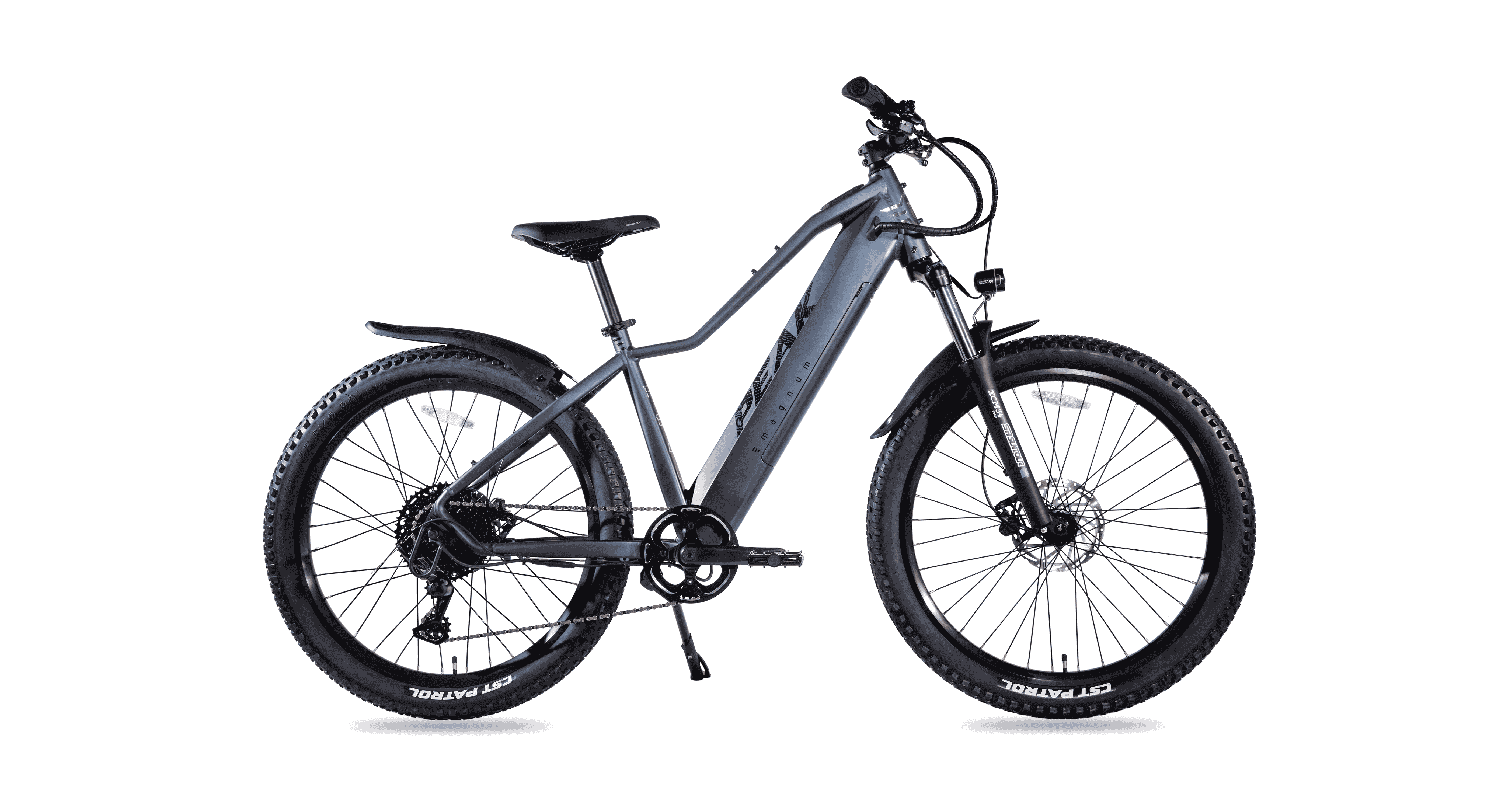

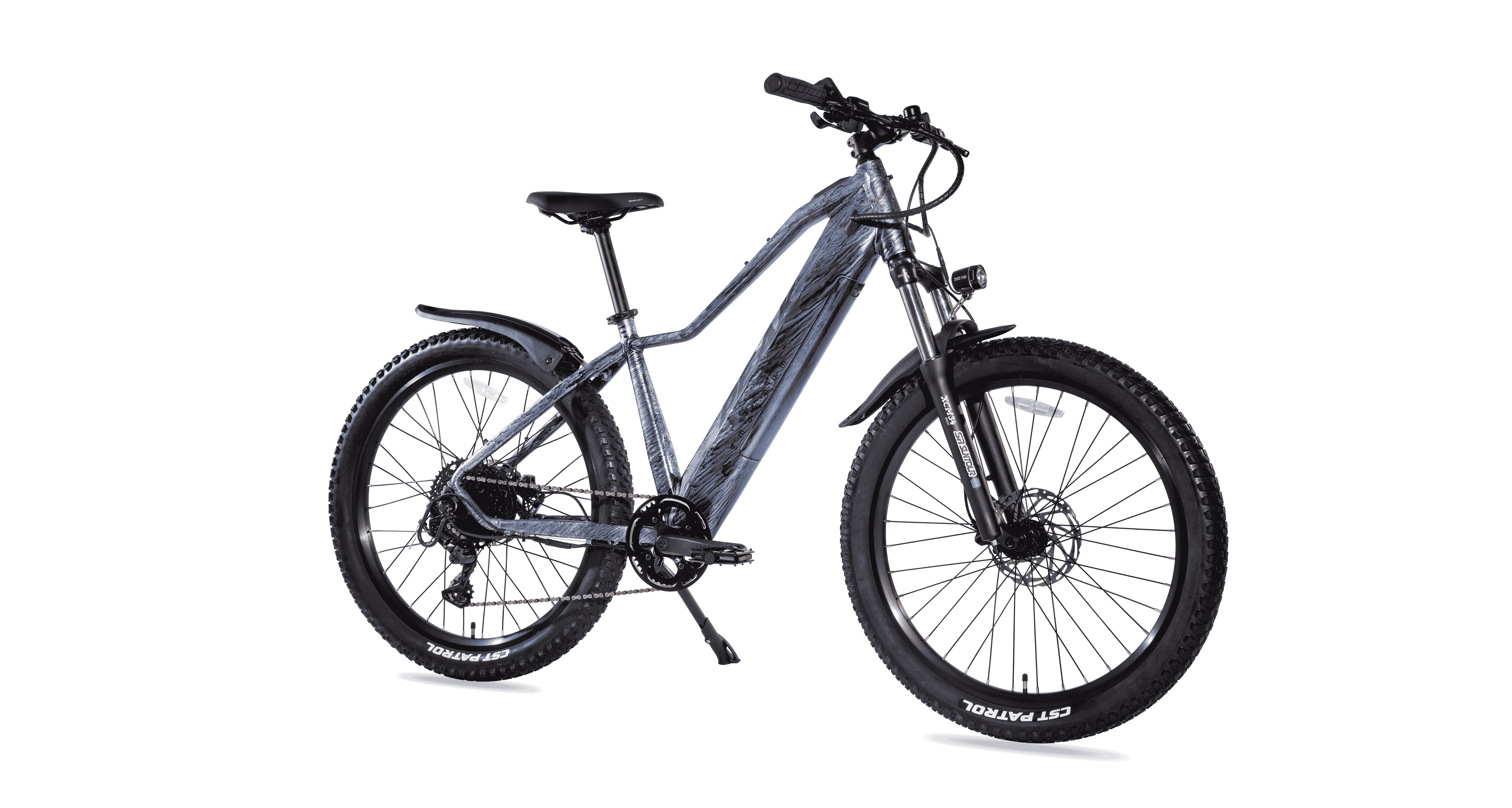

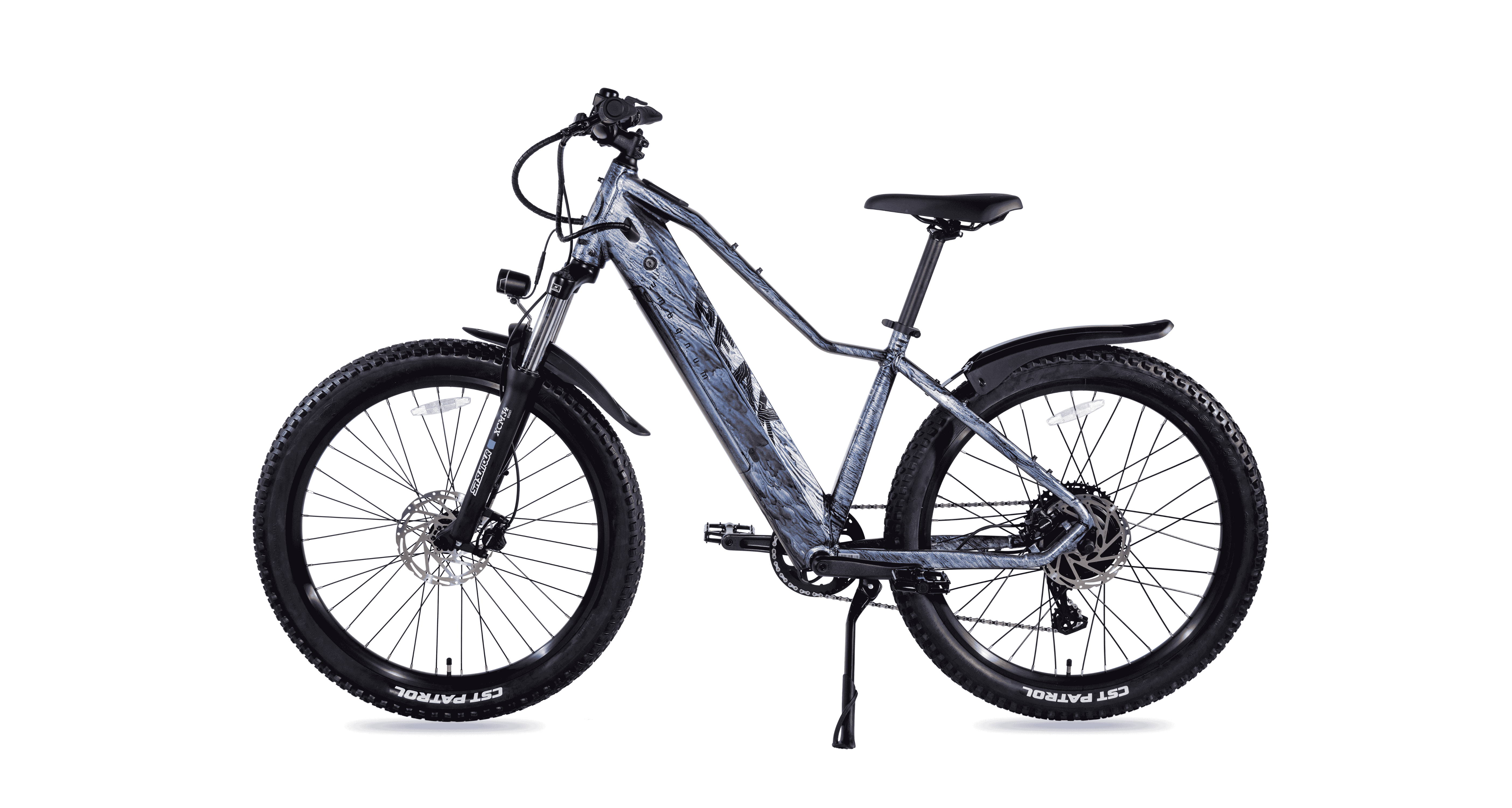

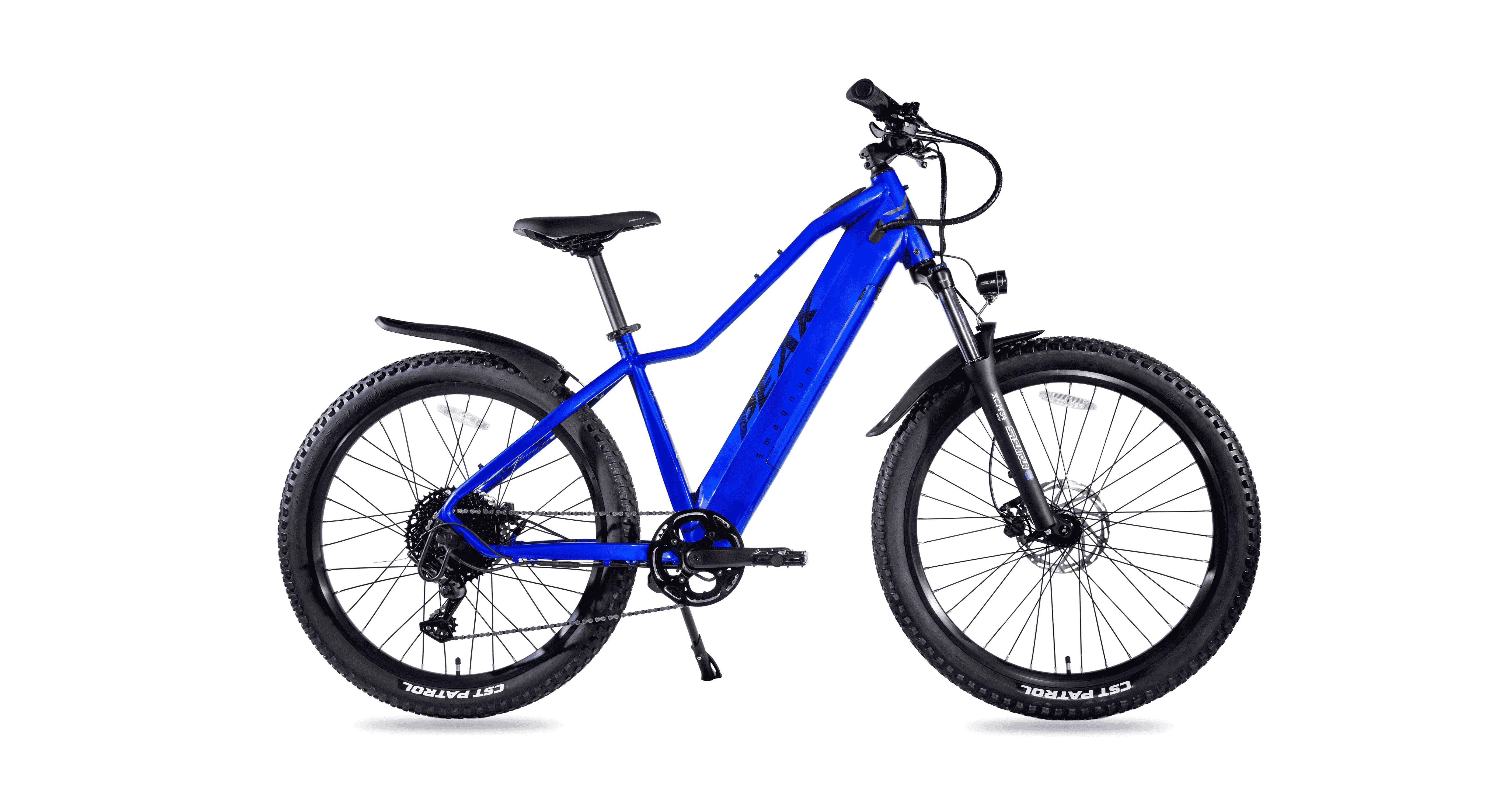

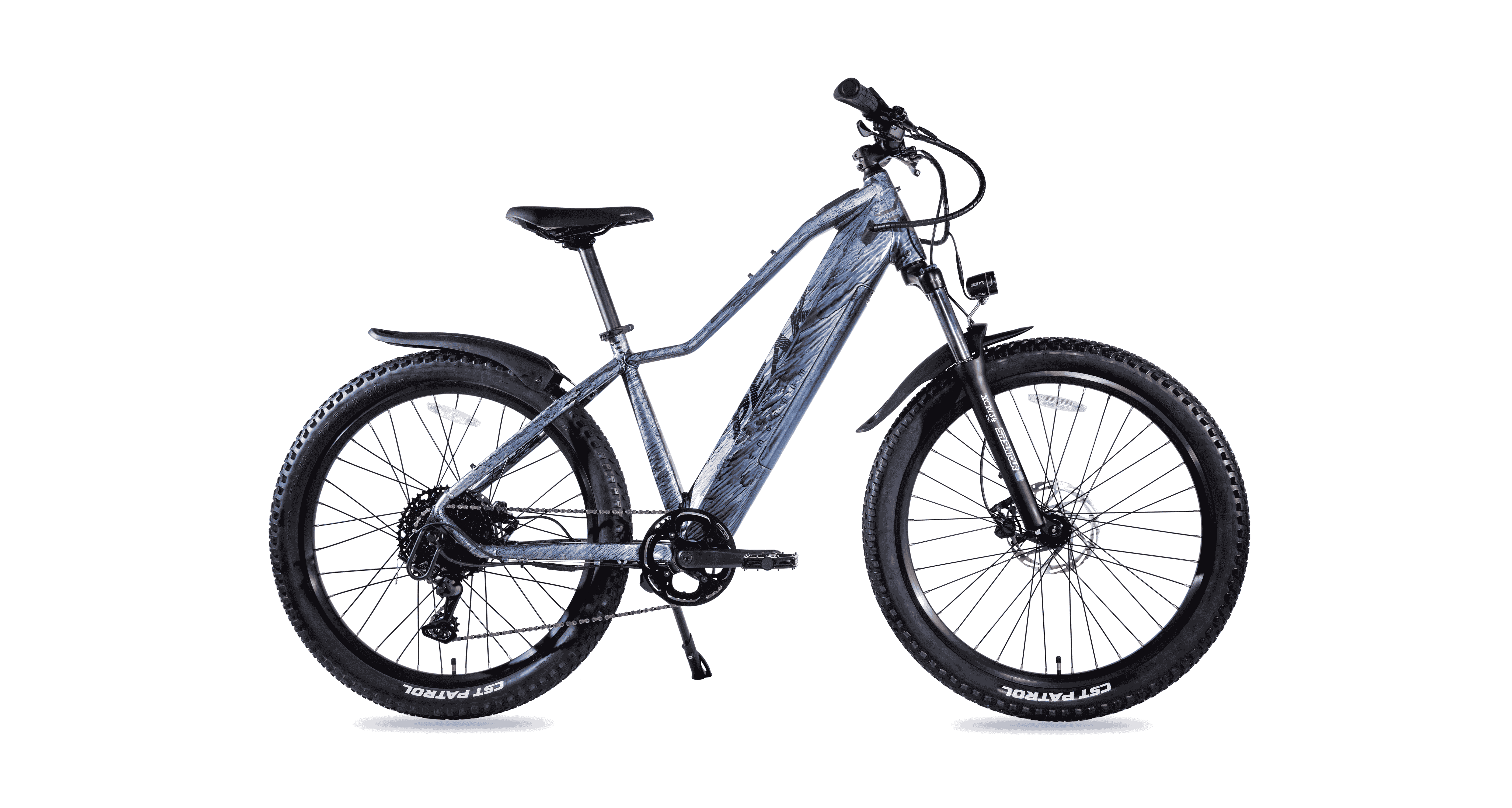

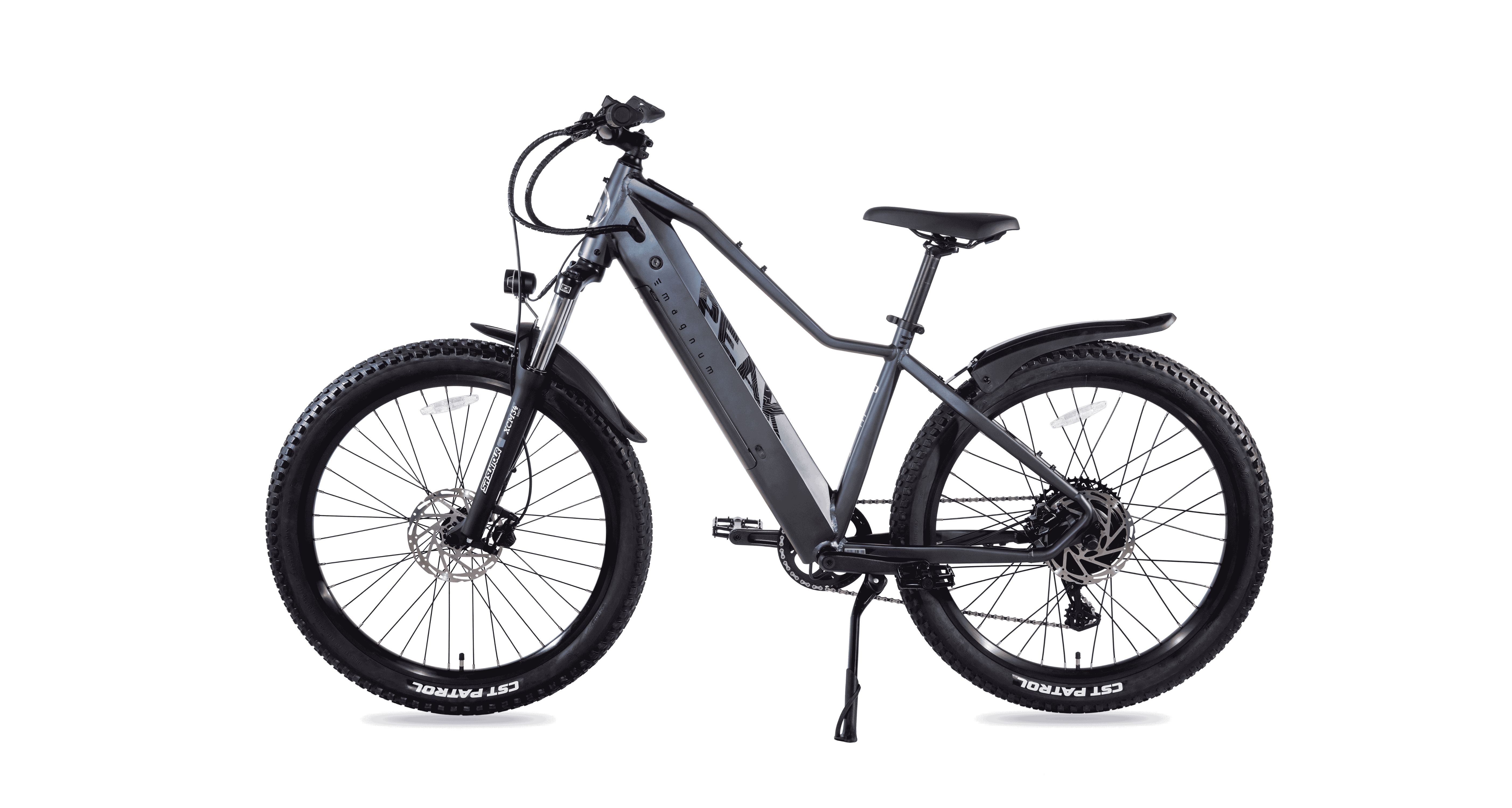

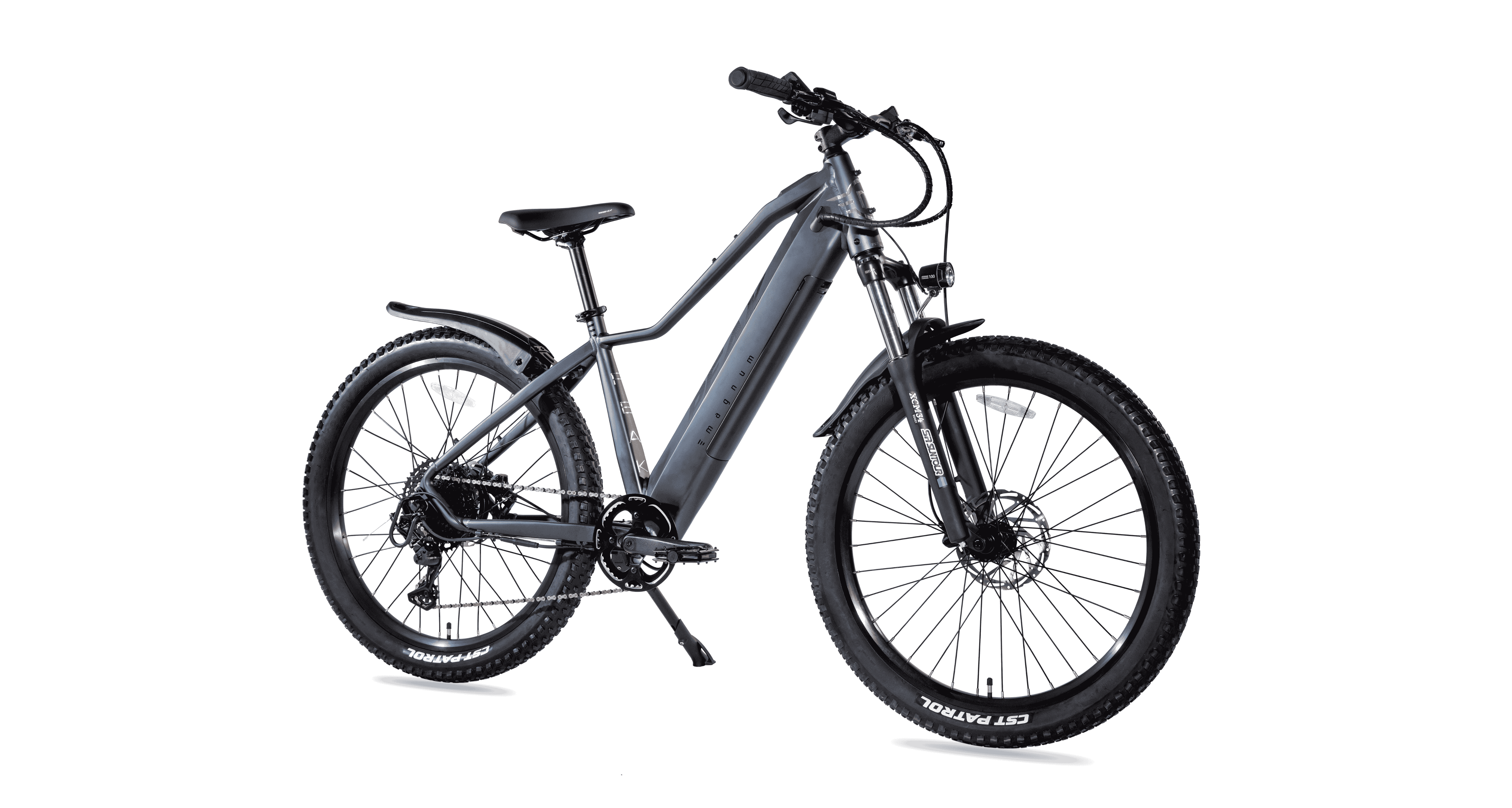

Three finishes
Choose your Peak 2.0.
Questions riders ask
Magnum Peak 2.0 FAQ
Is the Peak 2.0 a true mountain bike?
It is a capable electric hardtail intended for trails, gravel and mixed-surface riding. The 140mm fork, wide knobby tires, hydraulic brakes and clutched drivetrain are trail-focused, though riders tackling aggressive technical terrain may prefer a purpose-built mid-drive e-MTB.
Can I switch between torque and cadence sensing?
Yes. Torque mode responds to pedal pressure for a natural feel, while cadence mode supplies steady support whenever the cranks are turning.
What e-bike class is it?
It ships as Class 2 and can be configured as Class 1, Class 2 or Class 3, plus a European mode, through the display. Local regulations determine where each setting may be used.

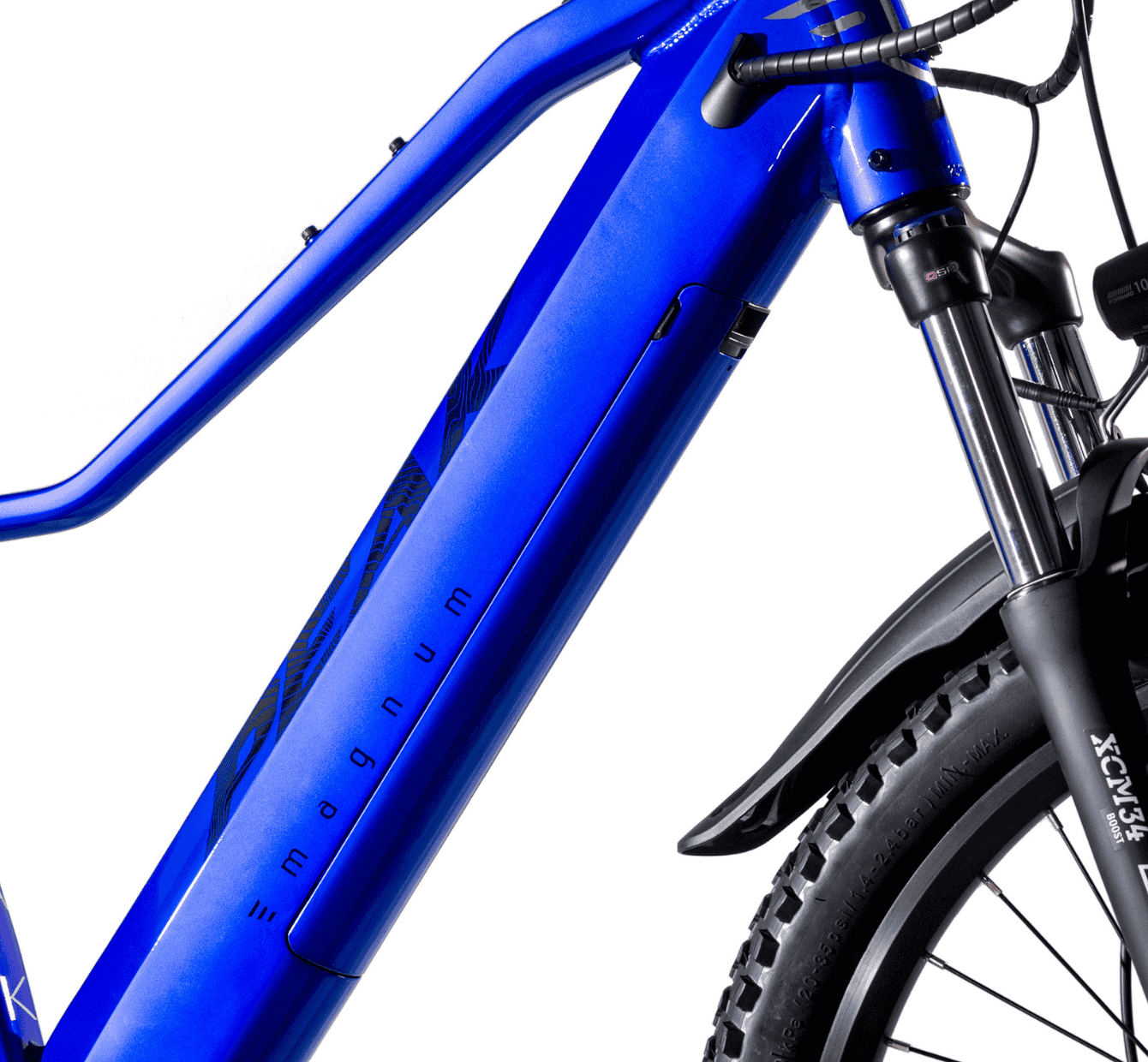

Is the 720Wh battery removable?
Yes. It is integrated into the downtube for a clean appearance but can be removed for indoor charging or storage.
Will it always achieve 50 miles?
No. Range varies with assist mode, throttle use, speed, terrain, rider and cargo weight, tire pressure, temperature and wind.
Are racks and lights included?
A 100-lumen front light and lightweight fenders are included. The rear rack and rack-mounted rear brake light are optional accessories.
Authorized Magnum dealer support from Brimstone Bicycles.
Purchase from a veteran-owned, family-owned bicycle shop with professional assembly, safety inspection and support from people who service the products they sell.
Specifications, component brands and colors may change without notice. Published maximum range is an estimate under favorable conditions. Speed and operating class are subject to configuration and local law.
